ZYXEL · NOD-XMG2230-28HP-ZZ0101F

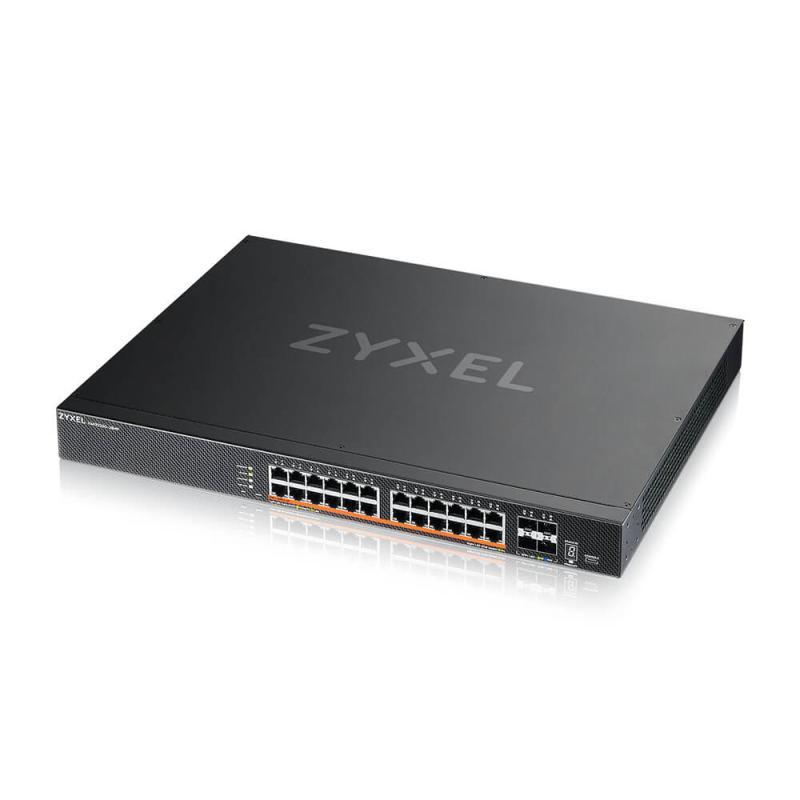

Zyxel XMG2230-28HP, L3 ACCESS SWITCH

Name: Zyxel XMG2230-28HP, L3 ACCESS SWITCH
Brand: ZYXEL
SKU: NOD-XMG2230-28HP-ZZ0101F
Price: 5720 RON
Availability: LimitedAvailability

10G support: Yes · AC input frequency: 50/60 Hz · AC input voltage: 100 - 240 V · ARP inspection: Yes · Authentication: Guest VLAN, MAC-based authentication · Authentication type: IEEE 802.1x, NAC SSH V2.0, RADIUS, TACACS+

4.727 lei

prețuri fără TVA · 5.720 lei cu TVA

Disponibil la furnizor·termen de livrare confirmat la comandă

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.4.727 lei

ZYXEL · NetworkingDoar pentru firme (B2B)

Zyxel XMG2230-28HP, L3 ACCESS SWITCH

SKU: NOD-XMG2230-28HP-ZZ0101F

10G support: Yes
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V
ARP inspection: Yes
Authentication: Guest VLAN, MAC-based authentication
Authentication type: IEEE 802.1x, NAC SSH V2.0, RADIUS, TACACS+

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

4.727 leiprețuri fără TVA

Disponibil la furnizor·termen de livrare confirmat la comandă

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandZYXEL

Cod produsNOD-XMG2230-28HP-ZZ0101F

CategorieNetworking

10G supportYes

AC input frequency50/60 Hz

AC input voltage100 - 240 V

ARP inspectionYes

AuthenticationGuest VLAN, MAC-based authentication

Authentication typeIEEE 802.1x, NAC SSH V2.0, RADIUS, TACACS+

Basic switching RJ-45 Ethernet ports quantity24

Basic switching RJ-45 Ethernet ports type2.5G Ethernet (100/1000/2500)

BPDU filtering/protectionYes

Broadcast storm controlYes

CertificationFCC Part 15 (Class A) CE EMC (Class A) BSMI EMC

Cloud-managedYes

Compliance certificatesBSMI, Low Voltage Directive (LVD), RoHS

Configuring Location Settings (CLI)Yes

Console portRJ-45/USB Type-C

Copper ethernet cabling technology2.5GBASE-T, 100BASE-T, 1000BASE-T

DC input voltage50 - 57 V

Depth330 mm

Flash memory64 MB

Form factor1U

Forwarding rate148.8 Mpps

GARP VLAN Registration Protocol (GVRP)Yes

Heat dissipation2856 BTU/h

Height44 mm

IGMP proxyYes

IGMP snoopingYes

Internal memory1000 MB

IP-MAC-Port bindingYes

IPv4 & IPv6 featuresDual stack IPv4/IPv6, ICMPv6, IPv6 Path MTU Discovery, IPv6 Telnet

Jumbo frames12

Jumbo frames supportYes

LAN-Port-TypeGigabit

LAN-Ports48

LayerLayer-3

LED indicatorsYes

MAC address table32000 entries

ManagementManaged

Mean time between failures (MTBF)554612.62 h

Montare in RackDa

Multicast supportYes

Noise level48.85 dB

Number of IP interfaces32

Number of static routes4000

Operating relative humidity (H-H)5 - 95%

Operating temperature (T-T)-20 - 50 °C

Package depth503 mm

Package height95 mm

Package weight6.81 kg

Package width580 mm

Packet buffer memory2 MB

PoENo

Policy-based routingYes

Port mirroringYes

Porturi RJ 4524-28

Porturi SFP3-4

Power consumption (max)1519.1 W

Power over Ethernet (PoE)Yes

Power over Ethernet (PoE) type supportedPoE++ (4PPoE)

Power sourceAC/PoE

Power supply includedYes

Product colourBlack

Quality of Service (QoS) supportYes

Rack mountingYes

RackableYes

Rate limitingYes

Redundant-PSUNo

Routing entries64

Security algorithmsSNMP, SNMPv2, SNMPv3

SFP+ module slots quantity4

SSH/SSL supportYes

StackableYes

Static port securityYes

Static routeYes

Storage relative humidity (H-H)5 - 95%

Storage temperature (T-T)-40 - 70 °C

Switch layerL2/L3

Switch typeManaged

Switching capacity200 Gbit/s

Total Power over Ethernet (PoE) budget1440 W

Viteza transferGigabit

Weight4.53 kg

Width441 mm

Specificații

Brand	ZYXEL
Cod produs	NOD-XMG2230-28HP-ZZ0101F
Categorie	Networking
Garanție	Se confirmă la ofertare
Livrare	termen de livrare confirmat la comandă
10G support	Yes
AC input frequency	50/60 Hz
AC input voltage	100 - 240 V
ARP inspection	Yes
Authentication	Guest VLAN, MAC-based authentication
Authentication type	IEEE 802.1x, NAC SSH V2.0, RADIUS, TACACS+
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
BPDU filtering/protection	Yes
Broadcast storm control	Yes
Certification	FCC Part 15 (Class A) CE EMC (Class A) BSMI EMC
Cloud-managed	Yes
Compliance certificates	BSMI, Low Voltage Directive (LVD), RoHS
Configuring Location Settings (CLI)	Yes
Console port	RJ-45/USB Type-C
Copper ethernet cabling technology	2.5GBASE-T, 100BASE-T, 1000BASE-T
DC input voltage	50 - 57 V
Depth	330 mm
Flash memory	64 MB
Form factor	1U
Forwarding rate	148.8 Mpps
GARP VLAN Registration Protocol (GVRP)	Yes
Heat dissipation	2856 BTU/h
Height	44 mm
IGMP proxy	Yes
IGMP snooping	Yes
Internal memory	1000 MB
IP-MAC-Port binding	Yes
IPv4 & IPv6 features	Dual stack IPv4/IPv6, ICMPv6, IPv6 Path MTU Discovery, IPv6 Telnet
Jumbo frames	12
Jumbo frames support	Yes
LAN-Port-Type	Gigabit
LAN-Ports	48
Layer	Layer-3
LED indicators	Yes
MAC address table	32000 entries
Management	Managed
Mean time between failures (MTBF)	554612.62 h
Montare in Rack	Da
Multicast support	Yes
Noise level	48.85 dB
Number of IP interfaces	32
Number of static routes	4000
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-20 - 50 °C
Package depth	503 mm
Package height	95 mm
Package weight	6.81 kg
Package width	580 mm
Packet buffer memory	2 MB
PoE	No
Policy-based routing	Yes
Port mirroring	Yes
Porturi RJ 45	24-28
Porturi SFP	3-4
Power consumption (max)	1519.1 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	PoE++ (4PPoE)
Power source	AC/PoE
Power supply included	Yes
Product colour	Black
Quality of Service (QoS) support	Yes
Rack mounting	Yes
Rackable	Yes
Rate limiting	Yes
Redundant-PSU	No
Routing entries	64
Security algorithms	SNMP, SNMPv2, SNMPv3
SFP+ module slots quantity	4
SSH/SSL support	Yes
Stackable	Yes
Static port security	Yes
Static route	Yes
Storage relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-40 - 70 °C
Switch layer	L2/L3
Switch type	Managed
Switching capacity	200 Gbit/s
Total Power over Ethernet (PoE) budget	1440 W
Viteza transfer	Gigabit
Weight	4.53 kg
Width	441 mm

Configurație

10G support: Yes

AC input frequency: 50/60 Hz

AC input voltage: 100 - 240 V

ARP inspection: Yes

Authentication: Guest VLAN, MAC-based authentication

Authentication type: IEEE 802.1x, NAC SSH V2.0, RADIUS, TACACS+

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

10G support: YesAC input frequency: 50/60 HzAC input voltage: 100 - 240 VARP inspection: YesAuthentication: Guest VLAN, MAC-based authenticationAuthentication type: IEEE 802.1x, NAC SSH V2.0, RADIUS, TACACS+
