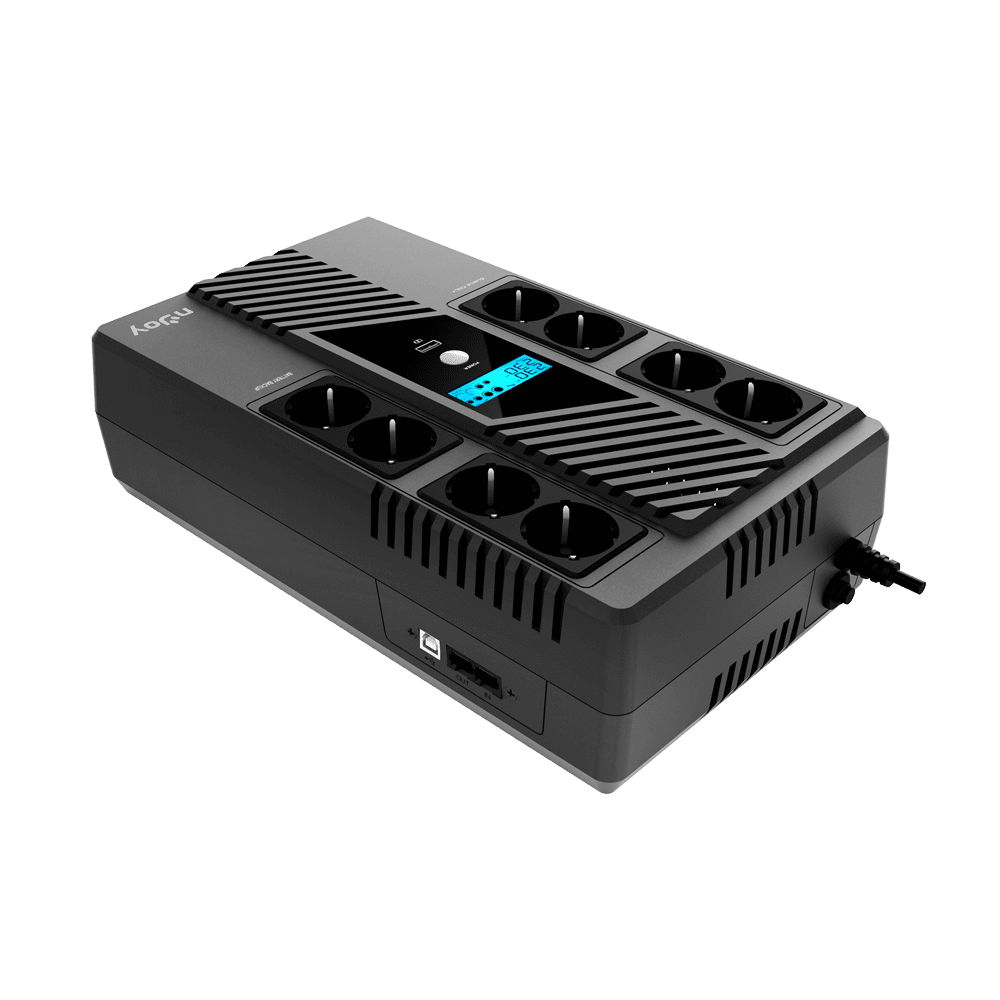

UPS nJoy Token 800 VA / 480 W Capacity 800 VA / 480 W

NJOY · NOD-UPCSBLS680TTOAZ01B

UPS nJoy Token 800 VA / 480 W Capacity 800 VA / 480 W

Name: UPS nJoy Token 800 VA / 480 W Capacity 800 VA / 480 W
Brand: NJOY
SKU: NOD-UPCSBLS680TTOAZ01B
Price: 402 RON
Availability: InStock

UPS nJoy Token 800 VA / 480 W Capacity 800 VA / 480 W Type Line-Interactive Input Nominal Voltage 230 VAC Accepted Voltage Range 170 – 280 VAC Frequency Range 50Hz / 60Hz (Auto Sensing) Output Nominal Voltage 230 VAC Accepted Voltage range 230 VAC, +/- 10% Frequency Range (Batt. Mode) 50 Hz / 60Hz ± 1% Power Factor 0.6 @ nominal voltage (100% load) Waveform (Batt. Mode) Simulated Sinewave Transfer Time 6ms typical Indicators type LCD Standby mode, AC mode Overload mode, Battery mode Self-Test mode Battery replacement mode Fault Mode Alarm Battery mode, Overload mode, Low battery, Fault mode Protection Outlets type 4x Schuko Battery Backup 4x Schuko Surge Protection RJ45 protection with 1Gb/s Full protection Overload, discharge, and overcharge protection Environement Noise level Fanless Humidity 0-90 % (non-condensing) Temperature 0-40ºC Battery Battery Type & Number 1x GP09122F (PN: BTVACIUOCTA2FCN01B) Typical Recharge Time 6~8 hours recover to 90% capacity Running time on battery (minutes) 25% Load - 15min 50% Load - 2min 30s 75% Load - 0min 48s Management Communication port HID USB Software https://www.power-softwaredownload. com/viewpower.html USB Charger 5V/2.1A Physical Product dimensions 345 x 200 x 100 mm Product weight 5.8 kg Retail pack dimensions 425 x 146 x 269 mm Retail pack Weight 6.2 kg

332 lei

prețuri fără TVA · 402 lei cu TVA

Disponibil la furnizor · 17 buc·termen de livrare confirmat la comandă

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.332 lei

NJOY · ComponenteDoar pentru firme (B2B)

UPS nJoy Token 800 VA / 480 W Capacity 800 VA / 480 W

SKU: NOD-UPCSBLS680TTOAZ01B

AC outlet types: Type F
AC outlets quantity: 8 AC outlet(s)
Auto-restart: Yes
Automatic Voltage Regulation (AVR): Yes
Baterie inlocuitoare: GP09122F
Battery recharge time: 8 h

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

332 leiprețuri fără TVA

Disponibil la furnizor · 17 buc·termen de livrare confirmat la comandă

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandNJOY

Cod produsNOD-UPCSBLS680TTOAZ01B

CategorieComponente

AC outlet typesType F

AC outlets quantity8 AC outlet(s)

Auto-restartYes

Automatic Voltage Regulation (AVR)Yes

Baterie inlocuitoareGP09122F

Battery recharge time8 h

Cables includedUSB cable

Cabling technology10/100/1000Base-T(X)

Capacitate putere UPS480W

Capacitate RackNone

Caracteristici displayLoad level Battery level, AC mode, Battery mode, Bypass mode, Fault indicator

Cold startYes

Compliance certificatesCE, RoHS

Conectori iesire1xUSB 5V

CuloareNegru

Depth34.5 mm

Dimensiuni345 x 200 x 100 mm

DisplayDa

Display typeLCD

Ecran LCDDa

Form FactorCompact

Greutate5.8 kg

Height100 mm

Incarcare480 W

Input frequency50 - 60 Hz

Input operation voltage (max)280 V

Input operation voltage (min)170 V

InterfataHID USB

LED indicatorsYes

Master (outer) case gross weight18.6 kg

Master (outer) case height287 mm

Master (outer) case length461 mm

Master (outer) case net weight17.4 kg

Master (outer) case width438 mm

Numar baterii1

Number of batteries supported1

Number of input phases1

Number of output phases1

Operating relative humidity (H-H)0 - 90%

Operating temperature (T-T)0 - 40 °C

Output operation voltage (max)230 V

Output power480 W

Output power capacity0.8 kVA

Output voltage regulation-10 - 10%

Package depth425 mm

Package height146 mm

Package typeBox

Package weight6.2 kg

Package width269 mm

Port USBDa

Power factor0.6

Power plugType F

Power protection featuresBattery discharge, Overcharge, Overload

Products per master (outer) case3 pc(s)

Putere800 VA

RackableNo

Replacement battery cartridgeGP09122F

Response time6 ms

RJ-111

RJ-451

Schuko4x Schuko Battery Backup, 4x Schuko Surge Protection

Surge protectionYes

Surge protection featuresNetwork

Sustainability complianceYes

Tensiune de alimentare170 – 280 VAC, 50Hz ~ 60Hz (Auto Sensing)

Timp de transfer6 ms

Timp mediu de functionare25% Load - 15 min, 50% Load - 2 min 30s, 75% Load - 0 min 48s

TipLine-interactive

Tip UPSLine Interactive

Typical backup time at half load2.5 min

UPS topologyLine-Interactive

UPS-ManagementYes

USB 2.0 ports quantity1

USB PortYes

USB port typeUSB Type-B

WaveformSine

Weight5.8 kg

Width200 mm

Specificații

Brand	NJOY
Cod produs	NOD-UPCSBLS680TTOAZ01B
Categorie	Componente
Garanție	Se confirmă la ofertare
Livrare	termen de livrare confirmat la comandă
AC outlet types	Type F
AC outlets quantity	8 AC outlet(s)
Auto-restart	Yes
Automatic Voltage Regulation (AVR)	Yes
Baterie inlocuitoare	GP09122F
Battery recharge time	8 h
Cables included	USB cable
Cabling technology	10/100/1000Base-T(X)
Capacitate putere UPS	480W
Capacitate Rack	None
Caracteristici display	Load level Battery level, AC mode, Battery mode, Bypass mode, Fault indicator
Cold start	Yes
Compliance certificates	CE, RoHS
Conectori iesire	1xUSB 5V
Culoare	Negru
Depth	34.5 mm
Dimensiuni	345 x 200 x 100 mm
Display	Da
Display type	LCD
Ecran LCD	Da
Form Factor	Compact
Greutate	5.8 kg
Height	100 mm
Incarcare	480 W
Input frequency	50 - 60 Hz
Input operation voltage (max)	280 V
Input operation voltage (min)	170 V
Interfata	HID USB
LED indicators	Yes
Master (outer) case gross weight	18.6 kg
Master (outer) case height	287 mm
Master (outer) case length	461 mm
Master (outer) case net weight	17.4 kg
Master (outer) case width	438 mm
Numar baterii	1
Number of batteries supported	1
Number of input phases	1
Number of output phases	1
Operating relative humidity (H-H)	0 - 90%
Operating temperature (T-T)	0 - 40 °C
Output operation voltage (max)	230 V
Output power	480 W
Output power capacity	0.8 kVA
Output voltage regulation	-10 - 10%
Package depth	425 mm
Package height	146 mm
Package type	Box
Package weight	6.2 kg
Package width	269 mm
Port USB	Da
Power factor	0.6
Power plug	Type F
Power protection features	Battery discharge, Overcharge, Overload
Products per master (outer) case	3 pc(s)
Putere	800 VA
Rackable	No
Replacement battery cartridge	GP09122F
Response time	6 ms
RJ-11	1
RJ-45	1
Schuko	4x Schuko Battery Backup, 4x Schuko Surge Protection
Surge protection	Yes
Surge protection features	Network
Sustainability compliance	Yes
Tensiune de alimentare	170 – 280 VAC, 50Hz ~ 60Hz (Auto Sensing)
Timp de transfer	6 ms
Timp mediu de functionare	25% Load - 15 min, 50% Load - 2 min 30s, 75% Load - 0 min 48s
Tip	Line-interactive
Tip UPS	Line Interactive
Typical backup time at half load	2.5 min
UPS topology	Line-Interactive
UPS-Management	Yes
USB 2.0 ports quantity	1
USB Port	Yes
USB port type	USB Type-B
Waveform	Sine
Weight	5.8 kg
Width	200 mm

Configurație

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

AC outlet types: Type FAC outlets quantity: 8 AC outlet(s)Auto-restart: YesAutomatic Voltage Regulation (AVR): YesBaterie inlocuitoare: GP09122FBattery recharge time: 8 h
