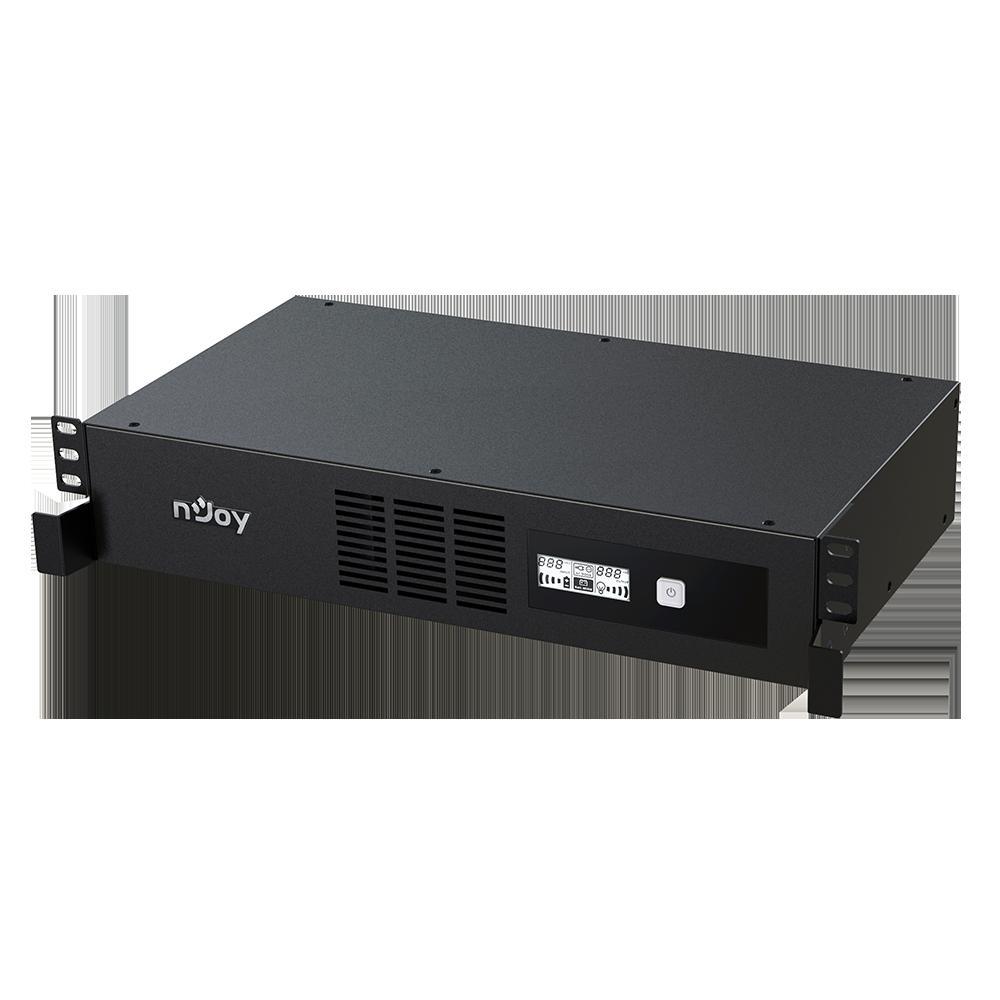

UPS nJoy Code 800, 800VA/480W, Frecventa: 50/60 Hz, Conectori: Intrare 1 x IEC-320 C14, Iesire 8 x IEC-320 C13

NJOY · NOD-UPLI-LI080CO-AZ01B

UPS nJoy Code 800, 800VA/480W, Frecventa: 50/60 Hz, Conectori: Intrare 1 x IEC-320 C14, Iesire 8 x IEC-320 C13

Name: UPS nJoy Code 800, 800VA/480W, Frecventa: 50/60 Hz, Conectori: Intrare 1 x IEC-320 C14, Iesire 8 x IEC-320 C13
Brand: NJOY
SKU: NOD-UPLI-LI080CO-AZ01B
Price: 604 RON
Availability: BackOrder

UPS nJoy Code 800, 800VA/480W, Frecventa: 50/60 Hz, Conectori: Intrare 1 x IEC-320 C14, Iesire 8 x IEC-320 C13, Port de comunicare: USB, Ecran LCD, AVR.

499 lei

prețuri fără TVA · 604 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.499 lei

NJOY · ComponenteDoar pentru firme (B2B)

UPS nJoy Code 800, 800VA/480W, Frecventa: 50/60 Hz, Conectori: Intrare 1 x IEC-320 C14, Iesire 8 x IEC-320 C13

SKU: NOD-UPLI-LI080CO-AZ01B

AC outlet types: C13 coupler
AC outlets quantity: 4 AC outlet(s)
Altele: Auto-Restart, Iesire sinusoidala simulata, Incarcare Off-mode, Functie Cold Start, Program de management inclus (ViewPower)
Atentionari Baterie slaba: Da
Atentionari Supraincarcare: Da
Atentionari Supratensiune: Da

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

499 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandNJOY

Cod produsNOD-UPLI-LI080CO-AZ01B

CategorieComponente

AC outlet typesC13 coupler

AC outlets quantity4 AC outlet(s)

AlteleAuto-Restart, Iesire sinusoidala simulata, Incarcare Off-mode, Functie Cold Start, Program de management inclus (ViewPower)

Atentionari Baterie slabaDa

Atentionari SupraincarcareDa

Atentionari SupratensiuneDa

Auto-restartYes

Automatic Voltage Regulation (AVR)Da

BaterieGP09122L

Batteries includedYes

Battery recharge time6 h

Capacitate putere UPS480W

Capacitate Rack2U

Cold startYes

Compliance certificatesCE, RoHS

Depth230 mm

Dimensiuni438 x 230 x 86 mm

DisplayDa

Display typeLCD

Ecran LCDDa

Efficiency95%

Form factorRackmount

Greutate7.7 Kg

Height86 mm

IEC C134

Incarcare480 W

Input frequency50 - 60 Hz

Input operation voltage (max)290 V

Input operation voltage (min)162 V

InterfataUSB

LED indicatorsYes

Master (outer) case gross weight9.2 kg

Master (outer) case height211 mm

Master (outer) case length503 mm

Master (outer) case net weight7.7 kg

Master (outer) case width330 mm

Montare in rackDa

Noise level40 dB

Numar baterii1

Number of batteries supported1

Number of input phases1

Number of output phases1

Operating relative humidity (H-H)0 - 90%

Operating temperature (T-T)0 - 40 °C

Output frequency50/60 Hz

Output operation voltage (max)230 V

Output power480 W

Output power capacity0.8 kVA

Output power factor0.6

Output voltage regulation-10 - 10%

Package typeBox

Port USBDa

Power plugC14 coupler

Power protection featuresBattery discharge, Overcharge, Overload

Power source typeAC

Products per master (outer) case1 pc(s)

Putere800 VA

Rack capacity2U

Replacement battery cartridgeGP09122L

Response time10 ms

Sustainability complianceYes

Tensiune de alimentare230 VAC

Timp de transfer4 ms

Timp mediu de functionare15 min la 25% sarcina, 5.5 min la 50% sarcina, 20 sec la 75% sarcina, 1 sec la 100% sarcina

TipLine-interactive

Tip UPSLine Interactive

Typical backup time at full load0.016 min

Typical backup time at half load5.5 min

UPS topologyLine-Interactive

USB 2.0 ports quantity1

USB PortYes

USB port typeUSB Type-B

WaveformSine

Weight7.7 kg

Width438 mm

Specificații

Brand	NJOY
Cod produs	NOD-UPLI-LI080CO-AZ01B
Categorie	Componente
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
AC outlet types	C13 coupler
AC outlets quantity	4 AC outlet(s)
Altele	Auto-Restart, Iesire sinusoidala simulata, Incarcare Off-mode, Functie Cold Start, Program de management inclus (ViewPower)
Atentionari Baterie slaba	Da
Atentionari Supraincarcare	Da
Atentionari Supratensiune	Da
Auto-restart	Yes
Automatic Voltage Regulation (AVR)	Da
Baterie	GP09122L
Batteries included	Yes
Battery recharge time	6 h
Capacitate putere UPS	480W
Capacitate Rack	2U
Cold start	Yes
Compliance certificates	CE, RoHS
Depth	230 mm
Dimensiuni	438 x 230 x 86 mm
Display	Da
Display type	LCD
Ecran LCD	Da
Efficiency	95%
Form factor	Rackmount
Greutate	7.7 Kg
Height	86 mm
IEC C13	4
Incarcare	480 W
Input frequency	50 - 60 Hz
Input operation voltage (max)	290 V
Input operation voltage (min)	162 V
Interfata	USB
LED indicators	Yes
Master (outer) case gross weight	9.2 kg
Master (outer) case height	211 mm
Master (outer) case length	503 mm
Master (outer) case net weight	7.7 kg
Master (outer) case width	330 mm
Montare in rack	Da
Noise level	40 dB
Numar baterii	1
Number of batteries supported	1
Number of input phases	1
Number of output phases	1
Operating relative humidity (H-H)	0 - 90%
Operating temperature (T-T)	0 - 40 °C
Output frequency	50/60 Hz
Output operation voltage (max)	230 V
Output power	480 W
Output power capacity	0.8 kVA
Output power factor	0.6
Output voltage regulation	-10 - 10%
Package type	Box
Port USB	Da
Power plug	C14 coupler
Power protection features	Battery discharge, Overcharge, Overload
Power source type	AC
Products per master (outer) case	1 pc(s)
Putere	800 VA
Rack capacity	2U
Replacement battery cartridge	GP09122L
Response time	10 ms
Sustainability compliance	Yes
Tensiune de alimentare	230 VAC
Timp de transfer	4 ms
Timp mediu de functionare	15 min la 25% sarcina, 5.5 min la 50% sarcina, 20 sec la 75% sarcina, 1 sec la 100% sarcina
Tip	Line-interactive
Tip UPS	Line Interactive
Typical backup time at full load	0.016 min
Typical backup time at half load	5.5 min
UPS topology	Line-Interactive
USB 2.0 ports quantity	1
USB Port	Yes
USB port type	USB Type-B
Waveform	Sine
Weight	7.7 kg
Width	438 mm

Configurație

UPS nJoy Code 800, 800VA/480W, Frecventa: 50/60 Hz, Conectori: Intrare 1 x IEC-320 C14, Iesire 8 x IEC-320 C13, Port de comunicare: USB, Ecran LCD, AVR.

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

UPS nJoy Code 800, 800VA/480W, Frecventa: 50/60 Hz, Conectori: Intrare 1 x IEC-320 C14, Iesire 8 x IEC-320 C13, Port de comunicare: USB, Ecran LCD, AVR.

AC outlet types: C13 couplerAC outlets quantity: 4 AC outlet(s)Altele: Auto-Restart, Iesire sinusoidala simulata, Incarcare Off-mode, Functie Cold Start, Program de management inclus (ViewPower)Atentionari Baterie slaba: DaAtentionari Supraincarcare: DaAtentionari Supratensiune: Da
