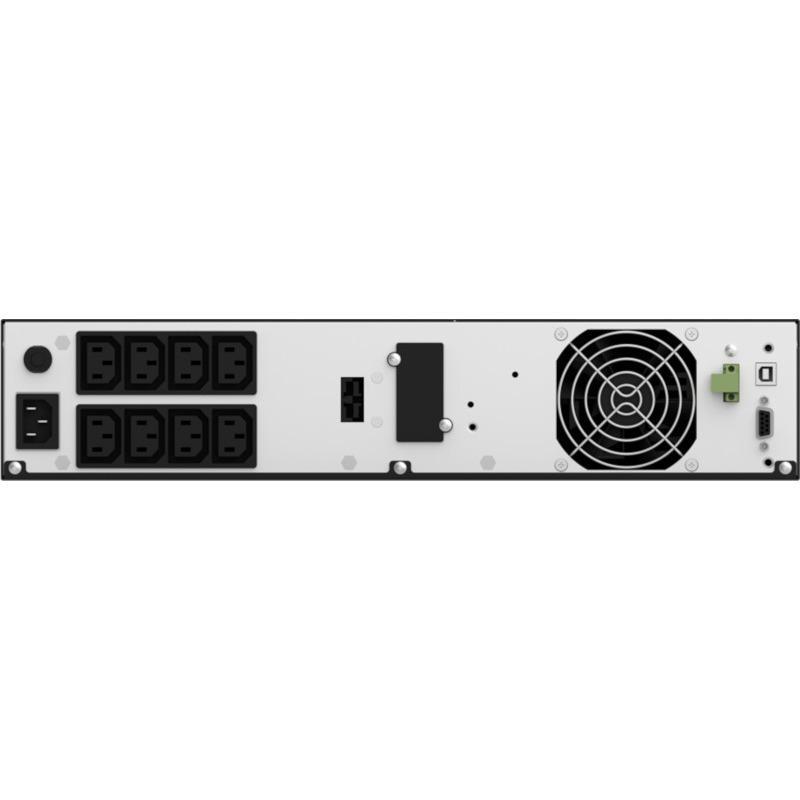

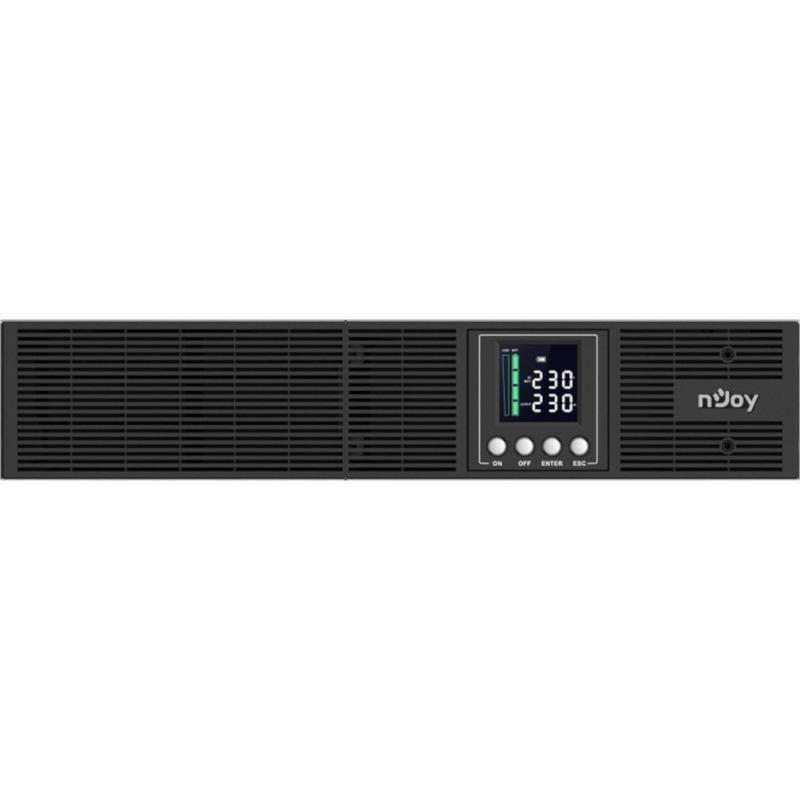

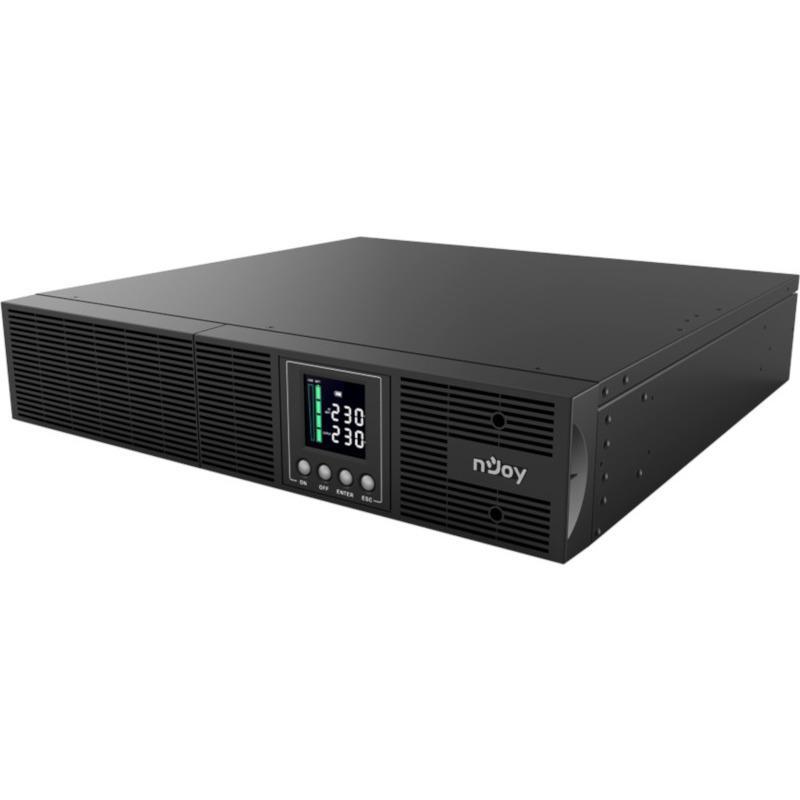

UPS nJoy Aster 3K Power 3000 VA/2700 W Type On-line

NJOY · NOD-UPCMCOP930HASCG01B

UPS nJoy Aster 3K Power 3000 VA/2700 W Type On-line

Name: UPS nJoy Aster 3K Power 3000 VA/2700 W Type On-line
Brand: NJOY
SKU: NOD-UPCMCOP930HASCG01B
Price: 2510 RON
Availability: LimitedAvailability

UPS nJoy Aster 3K Power 3000 VA/2700 W Type On-line Nominal Input Voltage 208/220/230/240 VAC Accepted Input Voltage Range 80-300 VAC Nominal Output Voltage 208/220/230/240 VAC - user selectable Frequency 50 Hz/60 Hz Efficiency High efficiency up to 97% Outlets Input 1 x IEC-320 C20 Output 8 x IEC-320 C13 + 1 x IEC-320 C19 Transfer Time to Battery / AC Zero Typical Backup Time 25% Load - 25min 2sec 50% Load - 11min 1sec 75% Load - 5min 20sec 100% Load - 3min 20sec Communication Ports HID USB / RS232 / EPO / SNMP Software http://www.powermonitor. software/ Battery Type Sealed and leak proof maintenance Battery Specification 6 X GP09122L Features Internal bypass EPO function Multifunctional color LCD Output Power Factor 0.9 Generator compatible ECO Mode for energy saving Software management Rack/Tower design Easy Battery Replacement External battery pack (optional) LCD Display UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions Environment 0- 40°C (non-condensing) Physical Dimensions 438 x 610 x 88 mm Weight: 26 kg https://www.njoy.ro/ups-commercial/aster-3000#specificatii

2.074 lei

prețuri fără TVA · 2.510 lei cu TVA

Disponibil la furnizor·termen de livrare confirmat la comandă

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.2.074 lei

NJOY · ComponenteDoar pentru firme (B2B)

UPS nJoy Aster 3K Power 3000 VA/2700 W Type On-line

SKU: NOD-UPCMCOP930HASCG01B

AC outlet types: C13 coupler, C19 coupler
AC outlets quantity: 9 AC outlet(s)
Alarme sonore: Da
Altele: ECO mode
Auto-restart: Yes
Baterie: Sealed and leak proof maintenance

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

2.074 leiprețuri fără TVA

Disponibil la furnizor·termen de livrare confirmat la comandă

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandNJOY

Cod produsNOD-UPCMCOP930HASCG01B

CategorieComponente

AC outlet typesC13 coupler, C19 coupler

AC outlets quantity9 AC outlet(s)

Alarme sonoreDa

AlteleECO mode

Auto-restartYes

BaterieSealed and leak proof maintenance

Baterie inlocuitoareCabinet de baterii extern

Batteries includedYes

Built-in fanYes

Cables includedInput power cable, USB cable

Capacitate putere UPS2700W

Capacitate Rack2U

Caracteristici displayUPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions

Cold startYes

Compliance certificatesCE, RoHS

Cooling typeActive

Crest factor3:1

CuloareNegru

Depth438 mm

Dimensiuni438 x 610 x 88 mm

DisplayLCD

Display typeLCD

ECO modeYes

Ecran LCDDa

Efficiency (ECO mode)97%

Emergency Power Off (EPO)Yes

Form FactorRackmount/Tower

Greutate26 kg

Height88 mm

IEC C138 x IEC-320 C13

IEC C191 x IEC-320 C19

Input frequency40 - 70 Hz

Input operation voltage (max)300 V

Input operation voltage (min)80 V

InterfataHID USB / RS232 / EPO / SNMP

LED indicatorsYes

Master (outer) case gross weight27.3 kg

Master (outer) case height231 mm

Master (outer) case length746 mm

Master (outer) case width550 mm

Montare in rackDa

Noise level45 dB

Numar baterii6 X GP09122L

Number of input phases1

Number of output phases1

Operating relative humidity (H-H)0 - 90%

Operating temperature (T-T)0 - 40 °C

Output frequency50/60 Hz

Output operation voltage (max)240 V

Output operation voltage (min)208 V

Output power2700 W

Output power capacity3 kVA

Output power factor0.9

Output voltage regulation±1%

Output voltage Total Harmonic Distortion (THD)5%

Port USBDa

Power plugC20 coupler

Power protection featuresBattery discharge, Overload

Power source typeAC

Products per master (outer) case1 pc(s)

Protectie la descarcareDa

Protectie Scurt-CircuitDa

Protectie supraincarcareDa

Protectie supratensiuneDa

Putere3000 VA

Rack capacity2U

Rack mount kitYes

Serial interfaceYes

Serial interface typeRS-232

Serial ports quantity1

Storage temperature (T-T)-15 - 45 °C

Tensiune de alimentare208/220/230/240 VAC

Timp mediu de functionare25% incarcare - 25 min, 50% incarcare - 11 min, 75% incarcare - 5 min, 100% incarcare - 3 min

TipOnline

Tip UPSOnline

Typical backup time at full load3.33 min

Typical backup time at half load11.01 min

UPS topologyDouble-conversion (Online)

UPS-ManagementYes

USB PortYes

WaveformPure sine

Weight2.6 kg

Width610 mm

Specificații

Brand	NJOY
Cod produs	NOD-UPCMCOP930HASCG01B
Categorie	Componente
Garanție	Se confirmă la ofertare
Livrare	termen de livrare confirmat la comandă
AC outlet types	C13 coupler, C19 coupler
AC outlets quantity	9 AC outlet(s)
Alarme sonore	Da
Altele	ECO mode
Auto-restart	Yes
Baterie	Sealed and leak proof maintenance
Baterie inlocuitoare	Cabinet de baterii extern
Batteries included	Yes
Built-in fan	Yes
Cables included	Input power cable, USB cable
Capacitate putere UPS	2700W
Capacitate Rack	2U
Caracteristici display	UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions
Cold start	Yes
Compliance certificates	CE, RoHS
Cooling type	Active
Crest factor	3:1
Culoare	Negru
Depth	438 mm
Dimensiuni	438 x 610 x 88 mm
Display	LCD
Display type	LCD
ECO mode	Yes
Ecran LCD	Da
Efficiency (ECO mode)	97%
Emergency Power Off (EPO)	Yes
Form Factor	Rackmount/Tower
Greutate	26 kg
Height	88 mm
IEC C13	8 x IEC-320 C13
IEC C19	1 x IEC-320 C19
Input frequency	40 - 70 Hz
Input operation voltage (max)	300 V
Input operation voltage (min)	80 V
Interfata	HID USB / RS232 / EPO / SNMP
LED indicators	Yes
Master (outer) case gross weight	27.3 kg
Master (outer) case height	231 mm
Master (outer) case length	746 mm
Master (outer) case width	550 mm
Montare in rack	Da
Noise level	45 dB
Numar baterii	6 X GP09122L
Number of input phases	1
Number of output phases	1
Operating relative humidity (H-H)	0 - 90%
Operating temperature (T-T)	0 - 40 °C
Output frequency	50/60 Hz
Output operation voltage (max)	240 V
Output operation voltage (min)	208 V
Output power	2700 W
Output power capacity	3 kVA
Output power factor	0.9
Output voltage regulation	±1%
Output voltage Total Harmonic Distortion (THD)	5%
Port USB	Da
Power plug	C20 coupler
Power protection features	Battery discharge, Overload
Power source type	AC
Products per master (outer) case	1 pc(s)
Protectie la descarcare	Da
Protectie Scurt-Circuit	Da
Protectie supraincarcare	Da
Protectie supratensiune	Da
Putere	3000 VA
Rack capacity	2U
Rack mount kit	Yes
Serial interface	Yes
Serial interface type	RS-232
Serial ports quantity	1
Storage temperature (T-T)	-15 - 45 °C
Tensiune de alimentare	208/220/230/240 VAC
Timp mediu de functionare	25% incarcare - 25 min, 50% incarcare - 11 min, 75% incarcare - 5 min, 100% incarcare - 3 min
Tip	Online
Tip UPS	Online
Typical backup time at full load	3.33 min
Typical backup time at half load	11.01 min
UPS topology	Double-conversion (Online)
UPS-Management	Yes
USB Port	Yes
Waveform	Pure sine
Weight	2.6 kg
Width	610 mm
