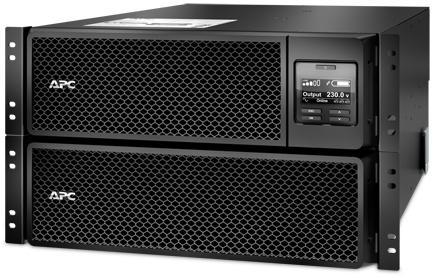

UPS APC Smart-UPS SRT online dubla-conversie 8000VA / 8000W 6 conectoriC13 4 conectori C19 extended runtime rackabil 6U

APC · NOD-SRT8KRMXLI

UPS APC Smart-UPS SRT online dubla-conversie 8000VA / 8000W 6 conectoriC13 4 conectori C19 extended runtime rackabil 6U

Name: UPS APC Smart-UPS SRT online dubla-conversie 8000VA / 8000W 6 conectoriC13 4 conectori C19 extended runtime rackabil 6U
Brand: APC
SKU: NOD-SRT8KRMXLI
Price: 44250 RON
Availability: BackOrder

APC Smart-UPS SRT 8000VA RM 230VHigh density, double-conversion on-line power protection with scalable runtimeIncludes: CD with software, Documentation CD, Installation guide, Rack mounting brackets, Rack mounting hardware, Rack mounting support rails, Temperature probe, USB cable, Warranty card, Web/SNMP management card Max. Capacity Used Max. Capacity Used The maximum percentage of UPS capacity used to support your specified load. — Please enter load to see calculated "Max. Capacity Used" 100% Output power capacity 8.0kWatts / 8.0kVA Rack Height 6U Output Connections (4) IEC 60320 C19 (Battery Backup) (4) IEC 320 C19 (Battery Backup) (6) IEC 60320 C13 (Battery Backup) (6) IEC 320 C13 (Battery Backup) (1) Hard Wire 3-wire (H N + G) (Battery Backup) (3) IEC Jumpers (Battery Backup) Nominal Output Voltage 230V Nominal Input Voltage 230V, 400V 3PH Input Connections Hard wire 3-wire (1P + N + E), Hard wire 5-wire (3P + N + E) Output Voltage Distortion Less than 2 % Output Frequency (sync to mains) 50/60 Hz +/- 3 Hz Sync to mains Other Output Voltages 220, 240 Load Crest Factor 3 : 1 Topology Double conversion online Waveform type Sine wave Bypass Internal bypass (automatic and manual)

36.570 lei

prețuri fără TVA · 44.250 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.36.570 lei

APC · ComponenteDoar pentru firme (B2B)

UPS APC Smart-UPS SRT online dubla-conversie 8000VA / 8000W 6 conectoriC13 4 conectori C19 extended runtime rackabil 6U

SKU: NOD-SRT8KRMXLI

AC outlet types: C13 coupler, C19 coupler
AC outlets quantity: 10 AC outlet(s)
Alarme sonore: Da
Altele: Montare in rack: 6U
Altii: Hard Wire 3 wire (H N + G), 3x IEC Jumpers
Audible alarm(s): Yes

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

36.570 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandAPC

Cod produsNOD-SRT8KRMXLI

CategorieComponente

AC outlet typesC13 coupler, C19 coupler

AC outlets quantity10 AC outlet(s)

Alarme sonoreDa

AlteleMontare in rack: 6U

AltiiHard Wire 3 wire (H N + G), 3x IEC Jumpers

Audible alarm(s)Yes

Auto-restartYes

Automatic battery testYes

BaterieMaintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof

Baterie inlocuitoareAPCRBC140

Battery capacity1728 VAh

Battery life (max)5 year(s)

Battery recharge time1.5 h

Battery technologySealed Lead Acid (VRLA)

BracketYes

Cables includedUSB cable

Capacitate baterie1728 VAh

Capacitate putere UPS8000W

Capacitate Rack6U

CertificationREACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE

Cold startYes

Crest factor3:1

CuloareNegru

Depth43.2 mm

Dimensiuni263 x 432 x 715 mm

DisplayDa

Display typeLCD

Ecran LCDDa

Efficiency94.8%

Emergency Power Off (EPO)Yes

Form FactorRackmount

Greutate111.82 kg

Harmonized System (HS) code85078000

Height2.63 mm

Hot-swap batteryYes

IEC C136

IEC C194

Incarcare8 kW

Input frequency40 - 70 Hz

Input operation voltage (max)476 V

Input operation voltage (min)100 V

InterfataRJ-45 Serial, Serial RJ-45, Smart-Slot, USB

LED indicatorsStatus

Montare in rackDa, 6U

Noise level55 dB

Non-operating altitude0 - 15000 m

Numar baterii2

Number of output IEC jumpers3

Number of output phases1

Operating altitude0 - 3000 m

Operating relative humidity (H-H)0 - 95%

Operating temperature (T-T)0 - 40 °C

Output frequency regulation50/60 Hz

Output operation voltage (max)240 V

Output operation voltage (min)220 V

Output power8000 W

Output power capacity8 kVA

Output voltage Total Harmonic Distortion (THD)3%

Package depth1000 mm

Package height461 mm

Package weight130 kg

Package width600 mm

Packaging contentWeb/SNMP Management Card

Port USBDa

Power plugHardwire

Products per pallet1 pc(s)

Protectie supratensiuneDa

Putere8000 VA

Quick installation guideYes

Rack capacity6U

Rack mount kitYes

RackableYes

Serial interfaceYes

Serial interface typeRJ-45

SmartSlotYes

Software CDYes

Storage relative humidity (H-H)0 - 95%

Storage temperature (T-T)-15 - 45 °C

Surge energy rating480 J

Surge protectionYes

Temperature sensorYes

Tensiune de alimentare230V

Timp incarcare1.5 ore

Timp mediu de functionare14.5 minute

TipOnline

Tip UPSOnline

Total carbon footprint (kg of CO2e)18632.76

Typical backup time at full load5.2 min

Typical backup time at half load14.5 min

UPS topologyDouble-conversion (Online)

UPS-ManagementYes

USB PortYes

Warranty cardYes

WaveformSine

Weight111.8 kg

Width71.5 mm

Specificații

Brand	APC
Cod produs	NOD-SRT8KRMXLI
Categorie	Componente
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
AC outlet types	C13 coupler, C19 coupler
AC outlets quantity	10 AC outlet(s)
Alarme sonore	Da
Altele	Montare in rack: 6U
Altii	Hard Wire 3 wire (H N + G), 3x IEC Jumpers
Audible alarm(s)	Yes
Auto-restart	Yes
Automatic battery test	Yes
Baterie	Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
Baterie inlocuitoare	APCRBC140
Battery capacity	1728 VAh
Battery life (max)	5 year(s)
Battery recharge time	1.5 h
Battery technology	Sealed Lead Acid (VRLA)
Bracket	Yes
Cables included	USB cable
Capacitate baterie	1728 VAh
Capacitate putere UPS	8000W
Capacitate Rack	6U
Certification	REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE
Cold start	Yes
Crest factor	3:1
Culoare	Negru
Depth	43.2 mm
Dimensiuni	263 x 432 x 715 mm
Display	Da
Display type	LCD
Ecran LCD	Da
Efficiency	94.8%
Emergency Power Off (EPO)	Yes
Form Factor	Rackmount
Greutate	111.82 kg
Harmonized System (HS) code	85078000
Height	2.63 mm
Hot-swap battery	Yes
IEC C13	6
IEC C19	4
Incarcare	8 kW
Input frequency	40 - 70 Hz
Input operation voltage (max)	476 V
Input operation voltage (min)	100 V
Interfata	RJ-45 Serial, Serial RJ-45, Smart-Slot, USB
LED indicators	Status
Montare in rack	Da, 6U
Noise level	55 dB
Non-operating altitude	0 - 15000 m
Numar baterii	2
Number of output IEC jumpers	3
Number of output phases	1
Operating altitude	0 - 3000 m
Operating relative humidity (H-H)	0 - 95%
Operating temperature (T-T)	0 - 40 °C
Output frequency regulation	50/60 Hz
Output operation voltage (max)	240 V
Output operation voltage (min)	220 V
Output power	8000 W
Output power capacity	8 kVA
Output voltage Total Harmonic Distortion (THD)	3%
Package depth	1000 mm
Package height	461 mm
Package weight	130 kg
Package width	600 mm
Packaging content	Web/SNMP Management Card
Port USB	Da
Power plug	Hardwire
Products per pallet	1 pc(s)
Protectie supratensiune	Da
Putere	8000 VA
Quick installation guide	Yes
Rack capacity	6U
Rack mount kit	Yes
Rackable	Yes
Serial interface	Yes
Serial interface type	RJ-45
SmartSlot	Yes
Software CD	Yes
Storage relative humidity (H-H)	0 - 95%
Storage temperature (T-T)	-15 - 45 °C
Surge energy rating	480 J
Surge protection	Yes
Temperature sensor	Yes
Tensiune de alimentare	230V
Timp incarcare	1.5 ore
Timp mediu de functionare	14.5 minute
Tip	Online
Tip UPS	Online
Total carbon footprint (kg of CO2e)	18632.76
Typical backup time at full load	5.2 min
Typical backup time at half load	14.5 min
UPS topology	Double-conversion (Online)
UPS-Management	Yes
USB Port	Yes
Warranty card	Yes
Waveform	Sine
Weight	111.8 kg
Width	71.5 mm

Configurație

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

AC outlet types: C13 coupler, C19 couplerAC outlets quantity: 10 AC outlet(s)Alarme sonore: DaAltele: Montare in rack: 6UAltii: Hard Wire 3 wire (H N + G), 3x IEC JumpersAudible alarm(s): Yes
