TP-LINK · NOD-TL-SM9110-SR4

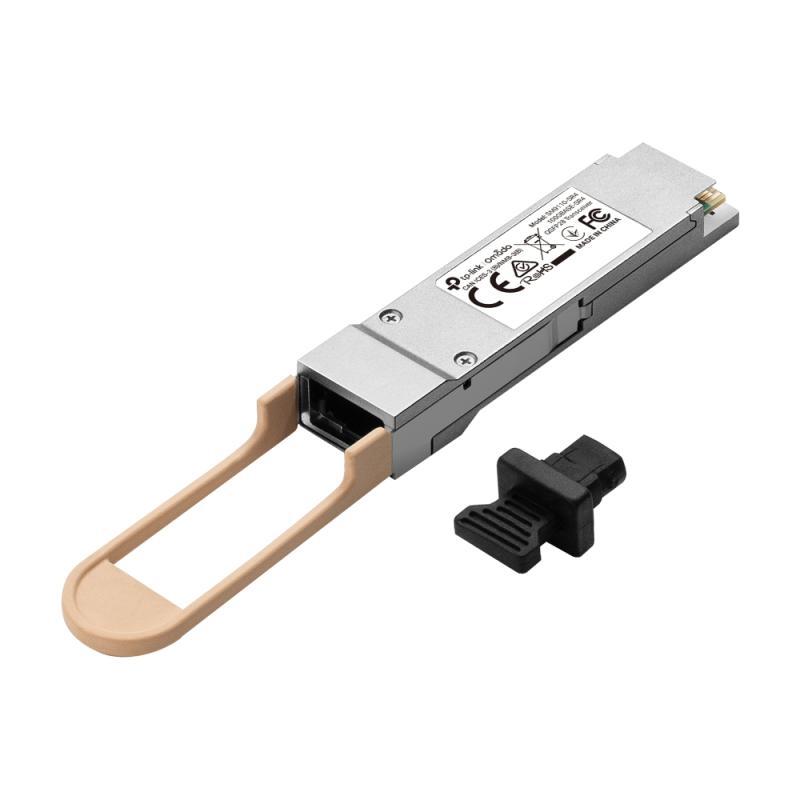

Transceiver TPL Omada 100GBASE-SR4 QSFP28 SPEC: Dual Rate 103.125Gbps and 41.2Gbps, 850nm MMF (Multimode fiber)

Name: Transceiver TPL Omada 100GBASE-SR4 QSFP28 SPEC: Dual Rate 103.125Gbps and 41.2Gbps, 850nm MMF (Multimode fiber)
Brand: TP-LINK
SKU: NOD-TL-SM9110-SR4
Price: 964 RON
Availability: BackOrder

Transceiver TPL Omada 100GBASE-SR4 QSFP28 SPEC: Dual Rate 103.125Gbps and 41.2Gbps, 850nm MMF (Multimode fiber), MTP/MPO-12, 100m Distance @OM4 at 103.125Gbps (70m Distance @OM3 at 103.125Gbps, 150m Distance @OM4 at 41.2Gbps) FEATURE: Support DDM, Built-in CDR, Hot Swappable

797 lei

prețuri fără TVA · 964 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.797 lei

TP-LINK · NetworkingDoar pentru firme (B2B)

Transceiver TPL Omada 100GBASE-SR4 QSFP28 SPEC: Dual Rate 103.125Gbps and 41.2Gbps, 850nm MMF (Multimode fiber)

SKU: NOD-TL-SM9110-SR4

Certification: QSFP28 MSA, SFF-8665, SFF-8636, SFF-8436, CPRI, eCPRI, TCP/IP
Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
Country of origin: China
Data transfer rate: 100000 Mbit/s
Depth: 18.4 mm
Digital Diagnostics Monitoring (DDM): Yes

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

797 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandTP-LINK

Cod produsNOD-TL-SM9110-SR4

CategorieNetworking

CertificationQSFP28 MSA, SFF-8665, SFF-8636, SFF-8436, CPRI, eCPRI, TCP/IP

Compliance certificatesCE, Federal Communications Commission (FCC), RoHS

Country of originChina

Data transfer rate100000 Mbit/s

Depth18.4 mm

Digital Diagnostics Monitoring (DDM)Yes

Ethernet interface type40 Gigabit Ethernet, 100 Gigabit Ethernet

Fiber cable diameters supported (core/cladding)50/125 µm

Fiber ethernet cabling technology40GBASE, 100GBASE

Fiber optic connectorMPO-12, MTP

Form factorQSFP28

Height117 mm

Hot-swapYes

Input voltage3.3 V

Interface typeQSFP28

Maximum data transfer rate100000 Mbit/s

Maximum operating temperature70 °C

Maximum transfer distance150 m

Minimum operating temperature0 °C

Multi-mode fiber (MMF) supportedYes

Networking standardsIEEE 802.3ba, IEEE 802.3bm

Operating relative humidity (H-H)0 - 85%

Operating temperature (T-T)0 - 70 °C

Plug and PlayYes

Product colourMetallic

SFP transceiver standardSR4

SFP transceiver typeFiber optic

Single-mode fiber (SMF) supportedNo

Storage relative humidity (H-H)0 - 85%

Storage temperature (T-T)-40 - 85 °C

Switch-CM-TypeSFP

Tx power (max)2.4 dBmW

Tx power (min)-8.4 dBmW

Wavelength850 nm

Width124 mm

Specificații

Brand	TP-LINK
Cod produs	NOD-TL-SM9110-SR4
Categorie	Networking
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
Certification	QSFP28 MSA, SFF-8665, SFF-8636, SFF-8436, CPRI, eCPRI, TCP/IP
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Country of origin	China
Data transfer rate	100000 Mbit/s
Depth	18.4 mm
Digital Diagnostics Monitoring (DDM)	Yes
Ethernet interface type	40 Gigabit Ethernet, 100 Gigabit Ethernet
Fiber cable diameters supported (core/cladding)	50/125 µm
Fiber ethernet cabling technology	40GBASE, 100GBASE
Fiber optic connector	MPO-12, MTP
Form factor	QSFP28
Height	117 mm
Hot-swap	Yes
Input voltage	3.3 V
Interface type	QSFP28
Maximum data transfer rate	100000 Mbit/s
Maximum operating temperature	70 °C
Maximum transfer distance	150 m
Minimum operating temperature	0 °C
Multi-mode fiber (MMF) supported	Yes
Networking standards	IEEE 802.3ba, IEEE 802.3bm
Operating relative humidity (H-H)	0 - 85%
Operating temperature (T-T)	0 - 70 °C
Plug and Play	Yes
Product colour	Metallic
SFP transceiver standard	SR4
SFP transceiver type	Fiber optic
Single-mode fiber (SMF) supported	No
Storage relative humidity (H-H)	0 - 85%
Storage temperature (T-T)	-40 - 85 °C
Switch-CM-Type	SFP
Tx power (max)	2.4 dBmW
Tx power (min)	-8.4 dBmW
Wavelength	850 nm
Width	124 mm
