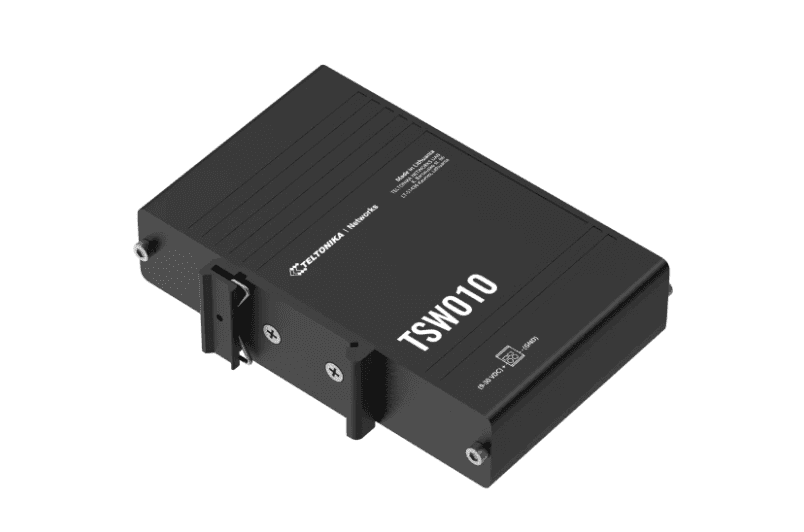

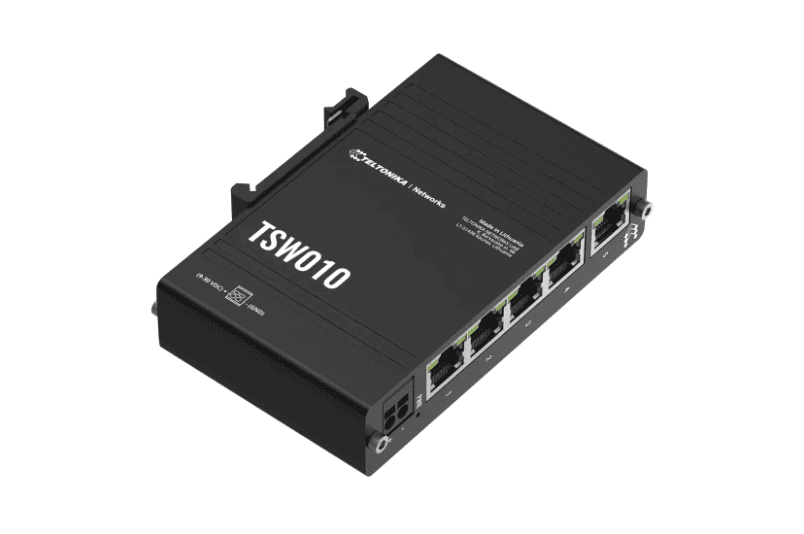

TELTONIKA INDUSTRIAL 5PORT SWITCH TSW010, Interfata: 5 x ETH port, 10/100 Mbps, supports auto MDI/MDIX crossover

TELTONIKA · NOD-TSW010

TELTONIKA INDUSTRIAL 5PORT SWITCH TSW010, Interfata: 5 x ETH port, 10/100 Mbps, supports auto MDI/MDIX crossover

Name: TELTONIKA INDUSTRIAL 5PORT SWITCH TSW010, Interfata: 5 x ETH port, 10/100 Mbps, supports auto MDI/MDIX crossover
Brand: TELTONIKA
SKU: NOD-TSW010
Price: 341 RON
Availability: BackOrder

TELTONIKA INDUSTRIAL 5PORT SWITCH TSW010, Interfata: 5 x ETH port, 10/100 Mbps, supports auto MDI/MDIX crossover, Standarde retea: 802.3i, 802.3u, 802.3x, 802.3az, Latime de banda: 1 Gbps, Carcasa aluminiu, Dimensiuni: 113.1 x 27.4 x 80.5 mm, Greutate: 146.5 g, IP30

282 lei

prețuri fără TVA · 341 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.282 lei

TELTONIKA · NetworkingDoar pentru firme (B2B)

TELTONIKA INDUSTRIAL 5PORT SWITCH TSW010, Interfata: 5 x ETH port, 10/100 Mbps, supports auto MDI/MDIX crossover

SKU: NOD-TSW010

10G support: No
Auto MDI/MDI-X: Yes
Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Certification: CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM
Depth: 80.5 mm

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

282 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandTELTONIKA

Cod produsNOD-TSW010

CategorieNetworking

10G supportNo

Auto MDI/MDI-XYes

Basic switching RJ-45 Ethernet ports quantity5

Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)

CertificationCE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM

Depth80.5 mm

DIN rail mountingYes

Ethernet LAN data rates10,100 Mbit/s

Height27.4 mm

Housing materialAluminium

Input voltage9 - 30 V

Installed SFP modules quantity0

Installed SFP+ modules quantity0

International Protection (IP) codeIP30

Jumbo frames2048

Jumbo frames supportYes

LAN-Port-TypeFastEthernet

LAN-Ports5

LayerUnmanaged

LED indicatorsYes

MAC address table2000 entries

ManagementNu

Montare in RackNu

Networking standardsIEEE 802.3, IEEE 802.3az, IEEE 802.3u

Operating relative humidity (H-H)10 - 90%

Operating temperature (T-T)-40 - 75 °C

Packet buffer memory0.128 MB

PoENu

Porturi RJ 455-10

Power connectorDC-in jack

Power consumption (max)0.9 W

Power consumption (typical)0.3 W

Power over Ethernet (PoE)Yes

Power over Ethernet (PoE) ports quantity1

Power over Ethernet (PoE) type supportedPassive PoE

Power sourceDC/PoE

Product colourBlack

RackableNo

Redundant-PSUNo

StackableNo

Switching capacity1 Gbit/s

Viteza transferFast Ethernet

Weight146.5 g

Width113.1 mm

Specificații

Brand	TELTONIKA
Cod produs	NOD-TSW010
Categorie	Networking
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
10G support	No
Auto MDI/MDI-X	Yes
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Certification	CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM
Depth	80.5 mm
DIN rail mounting	Yes
Ethernet LAN data rates	10,100 Mbit/s
Height	27.4 mm
Housing material	Aluminium
Input voltage	9 - 30 V
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
International Protection (IP) code	IP30
Jumbo frames	2048
Jumbo frames support	Yes
LAN-Port-Type	FastEthernet
LAN-Ports	5
Layer	Unmanaged
LED indicators	Yes
MAC address table	2000 entries
Management	Nu
Montare in Rack	Nu
Networking standards	IEEE 802.3, IEEE 802.3az, IEEE 802.3u
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-40 - 75 °C
Packet buffer memory	0.128 MB
PoE	Nu
Porturi RJ 45	5-10
Power connector	DC-in jack
Power consumption (max)	0.9 W
Power consumption (typical)	0.3 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	1
Power over Ethernet (PoE) type supported	Passive PoE
Power source	DC/PoE
Product colour	Black
Rackable	No
Redundant-PSU	No
Stackable	No
Switching capacity	1 Gbit/s
Viteza transfer	Fast Ethernet
Weight	146.5 g
Width	113.1 mm

Configurație

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

10G support: NoAuto MDI/MDI-X: YesBasic switching RJ-45 Ethernet ports quantity: 5Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)Certification: CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCMDepth: 80.5 mm
