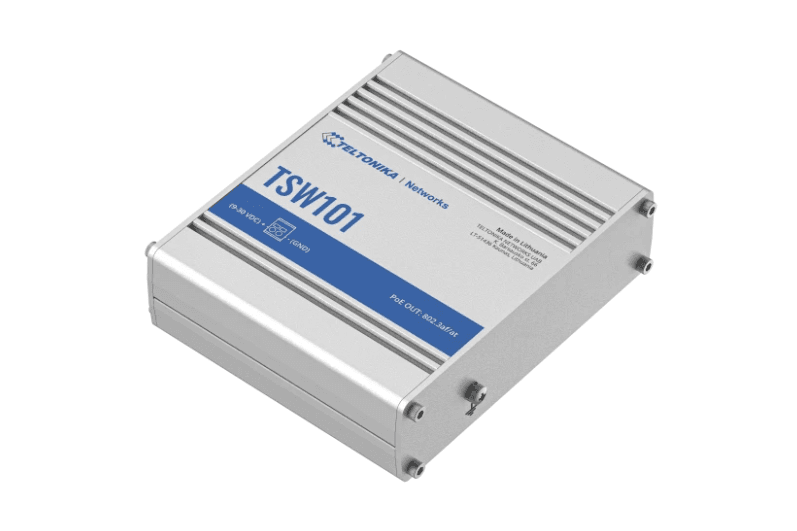

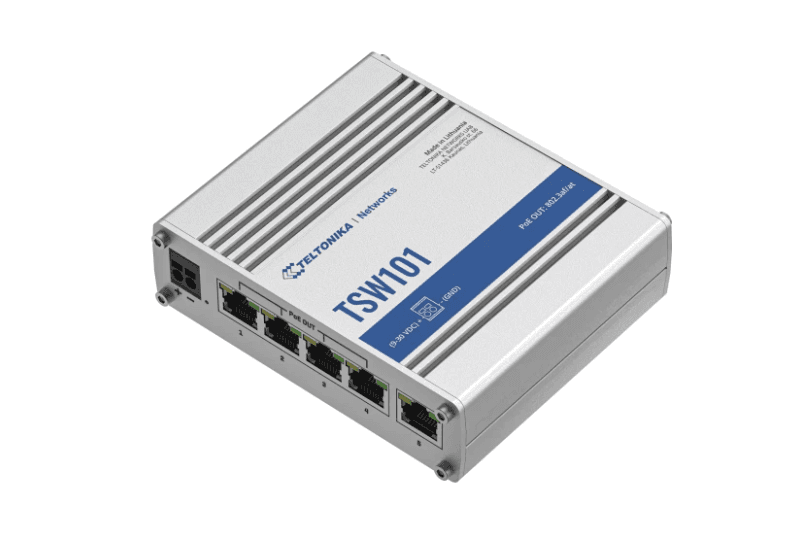

TELTONIKA AUTOMOTIVE 5PORT POE+ SWITCH TSW101, interfata: 5 x ETH ports, 10/100/1000 Mbps

TELTONIKA · NOD-TSW101

TELTONIKA AUTOMOTIVE 5PORT POE+ SWITCH TSW101, interfata: 5 x ETH ports, 10/100/1000 Mbps

Name: TELTONIKA AUTOMOTIVE 5PORT POE+ SWITCH TSW101, interfata: 5 x ETH ports, 10/100/1000 Mbps
Brand: TELTONIKA
SKU: NOD-TSW101
Price: 962 RON
Availability: BackOrder

TELTONIKA AUTOMOTIVE 5PORT POE+ SWITCH TSW101, interfata: 5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover, Standarde retea: 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az, 802.3ad, Porturi POE: 1-4, Buget POE: 60W, Lungime cablu max: 100m, Latime de banda: 10Gbps, Carcasa aluminiu, Dimensiuni: 115 x 32 x 95 mm, Greutate: 384 g.

795 lei

prețuri fără TVA · 962 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.795 lei

TELTONIKA · NetworkingDoar pentru firme (B2B)

TELTONIKA AUTOMOTIVE 5PORT POE+ SWITCH TSW101, interfata: 5 x ETH ports, 10/100/1000 Mbps

SKU: NOD-TSW101

10G support: No
Auto MDI/MDI-X: Yes
Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Certification: CE, REACH, RoHS, WEEE TSW101 CE TSW101 UKCA TSW101 FCC TSW101 IC TSW101 CB TSW101 RCM E-Mark
Depth: 32 mm

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

795 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandTELTONIKA

Cod produsNOD-TSW101

CategorieNetworking

10G supportNo

Auto MDI/MDI-XYes

Basic switching RJ-45 Ethernet ports quantity5

Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)

CertificationCE, REACH, RoHS, WEEE TSW101 CE TSW101 UKCA TSW101 FCC TSW101 IC TSW101 CB TSW101 RCM E-Mark

Depth32 mm

Ethernet LAN data rates10,100,1000 Mbit/s

Harmonized System (HS) code851762

Height95 mm

Housing materialAluminium

Input voltage9 - 30 V

International Protection (IP) codeIP30

Jumbo frames9216

Jumbo frames supportYes

LAN-Port-TypeGigabit

LED indicatorsPower, Status

MAC address table2000 entries

ManagementNu

Montare in RackNu

Networking standardsIEEE 802.3, IEEE 802.3az, IEEE 802.3u

Operating relative humidity (H-H)10 - 90%

Operating temperature (T-T)-40 - 75 °C

PoEDa

Porturi RJ 455-10

Power connectorTerminal block (2-pin)

Power consumption (max)2.31 W

Power consumption (typical)0.64 W

Power over Ethernet (PoE)Yes

Power over Ethernet (PoE) ports quantity4

Power over Ethernet (PoE) power per port30 W

Power over Ethernet (PoE) type supportedPassive PoE

Power sourceDC

Product colourMetallic

Switching capacity10 Gbit/s

Total Power over Ethernet (PoE) budget120 W

Viteza transferGigabit

Weight354 g

Width115 mm

Specificații

Brand	TELTONIKA
Cod produs	NOD-TSW101
Categorie	Networking
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
10G support	No
Auto MDI/MDI-X	Yes
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Certification	CE, REACH, RoHS, WEEE TSW101 CE TSW101 UKCA TSW101 FCC TSW101 IC TSW101 CB TSW101 RCM E-Mark
Depth	32 mm
Ethernet LAN data rates	10,100,1000 Mbit/s
Harmonized System (HS) code	851762
Height	95 mm
Housing material	Aluminium
Input voltage	9 - 30 V
International Protection (IP) code	IP30
Jumbo frames	9216
Jumbo frames support	Yes
LAN-Port-Type	Gigabit
LED indicators	Power, Status
MAC address table	2000 entries
Management	Nu
Montare in Rack	Nu
Networking standards	IEEE 802.3, IEEE 802.3az, IEEE 802.3u
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-40 - 75 °C
PoE	Da
Porturi RJ 45	5-10
Power connector	Terminal block (2-pin)
Power consumption (max)	2.31 W
Power consumption (typical)	0.64 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	4
Power over Ethernet (PoE) power per port	30 W
Power over Ethernet (PoE) type supported	Passive PoE
Power source	DC
Product colour	Metallic
Switching capacity	10 Gbit/s
Total Power over Ethernet (PoE) budget	120 W
Viteza transfer	Gigabit
Weight	354 g
Width	115 mm

Configurație

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

10G support: NoAuto MDI/MDI-X: YesBasic switching RJ-45 Ethernet ports quantity: 5Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)Certification: CE, REACH, RoHS, WEEE TSW101 CE TSW101 UKCA TSW101 FCC TSW101 IC TSW101 CB TSW101 RCM E-MarkDepth: 32 mm
