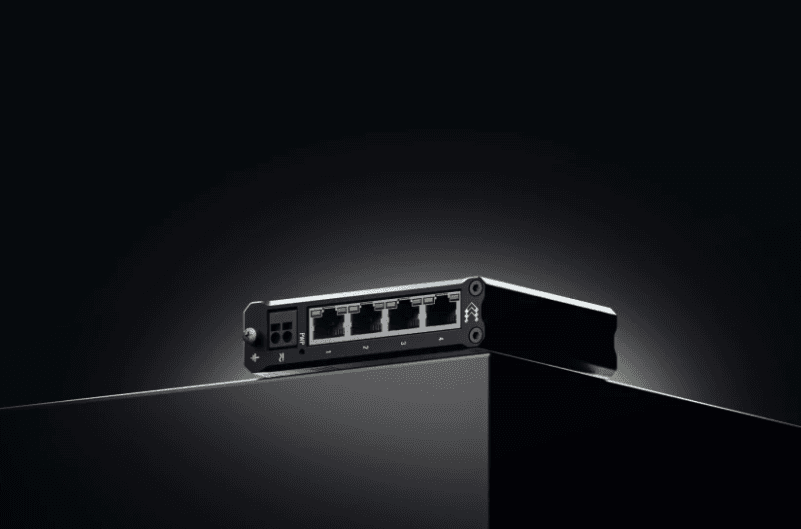

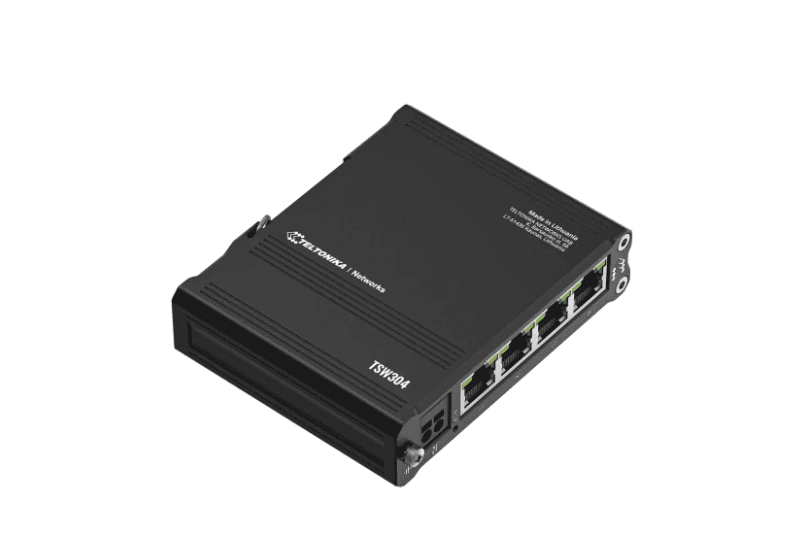

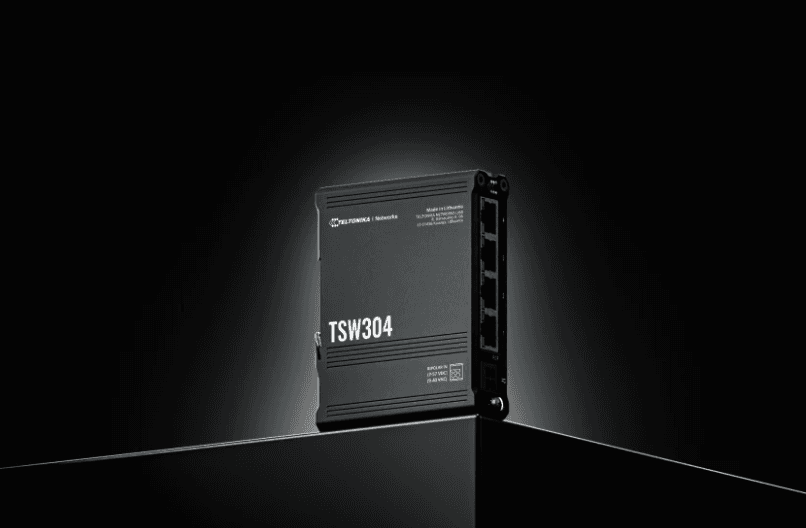

TELTONIKA 4PORT UNMANAGED DIN RAIL SWITCH TSW304, Interfata: 4 x ETH ports, 10/100/1000 Mbps

TELTONIKA · NOD-TSW304

TELTONIKA 4PORT UNMANAGED DIN RAIL SWITCH TSW304, Interfata: 4 x ETH ports, 10/100/1000 Mbps

Name: TELTONIKA 4PORT UNMANAGED DIN RAIL SWITCH TSW304, Interfata: 4 x ETH ports, 10/100/1000 Mbps
Brand: TELTONIKA
SKU: NOD-TSW304
Price: 1015 RON
Availability: BackOrder

TELTONIKA 4PORT UNMANAGED DIN RAIL SWITCH TSW304, Interfata: 4 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover, Standarde retea: 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az, 802.3ad, Latime de banda: 8 Gbps, Carcasa aluminiu, Dimensiuni: 102 x 25 x 81.5 mm, Greutate: 210g, IP30

839 lei

prețuri fără TVA · 1.015 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.839 lei

TELTONIKA · NetworkingDoar pentru firme (B2B)

TELTONIKA 4PORT UNMANAGED DIN RAIL SWITCH TSW304, Interfata: 4 x ETH ports, 10/100/1000 Mbps

SKU: NOD-TSW304

10G support: No
Auto MDI/MDI-X: Yes
Basic switching RJ-45 Ethernet ports quantity: 4
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Certification: CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM
DC input voltage: 7 - 57 V

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

839 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandTELTONIKA

Cod produsNOD-TSW304

CategorieNetworking

10G supportNo

Auto MDI/MDI-XYes

Basic switching RJ-45 Ethernet ports quantity4

Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)

CertificationCE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM

DC input voltage7 - 57 V

Depth81.5 mm

DIN rail mountingYes

Ethernet LAN data rates10,100,1000 Mbit/s

Height25 mm

Housing materialAluminium

Input voltage9 - 40 V

International Protection (IP) codeIP30

Jumbo frames9216

Jumbo frames supportYes

LAN-Port-TypeGigabit

LED indicatorsPower, Status

MAC address table2000 entries

ManagementNu

Montare in RackNu

Networking standardsIEEE 802.3, IEEE 802.3az, IEEE 802.3u

Operating relative humidity (H-H)10 - 90%

Operating temperature (T-T)-40 - 75 °C

Packet buffer memory0.128 MB

PoENu

Porturi RJ 451-4

Power consumption (max)14.4 W

Power consumption (typical)0.26 W

Power over Ethernet (PoE)Yes

Power over Ethernet (PoE) type supportedPassive PoE

Power sourceAC/DC

Product colourBlack

Switching capacity8 Gbit/s

Viteza transferGigabit

Wall mountableYes

Weight210 g

Width102 mm

Specificații

Brand	TELTONIKA
Cod produs	NOD-TSW304
Categorie	Networking
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
10G support	No
Auto MDI/MDI-X	Yes
Basic switching RJ-45 Ethernet ports quantity	4
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Certification	CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM
DC input voltage	7 - 57 V
Depth	81.5 mm
DIN rail mounting	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Height	25 mm
Housing material	Aluminium
Input voltage	9 - 40 V
International Protection (IP) code	IP30
Jumbo frames	9216
Jumbo frames support	Yes
LAN-Port-Type	Gigabit
LED indicators	Power, Status
MAC address table	2000 entries
Management	Nu
Montare in Rack	Nu
Networking standards	IEEE 802.3, IEEE 802.3az, IEEE 802.3u
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-40 - 75 °C
Packet buffer memory	0.128 MB
PoE	Nu
Porturi RJ 45	1-4
Power consumption (max)	14.4 W
Power consumption (typical)	0.26 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	Passive PoE
Power source	AC/DC
Product colour	Black
Switching capacity	8 Gbit/s
Viteza transfer	Gigabit
Wall mountable	Yes
Weight	210 g
Width	102 mm

Configurație

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

10G support: NoAuto MDI/MDI-X: YesBasic switching RJ-45 Ethernet ports quantity: 4Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)Certification: CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCMDC input voltage: 7 - 57 V
