TP-LINK · NOD-TL-SG1016DE

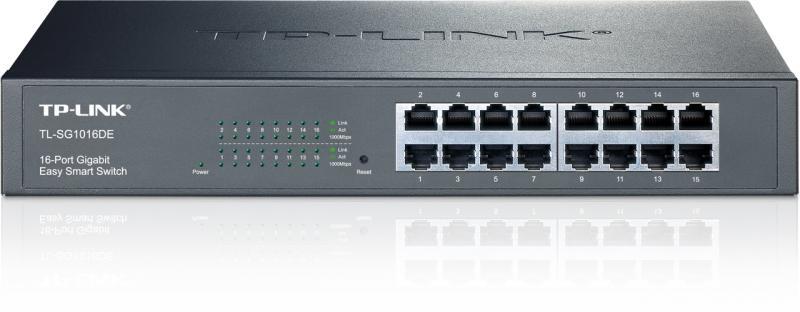

Switch TP-Link TL-SG1016DE, 16 port, 10/100/1000 Mbps

Name: Switch TP-Link TL-SG1016DE, 16 port, 10/100/1000 Mbps
Brand: TP-LINK
SKU: NOD-TL-SG1016DE
Price: 420 RON
Availability: InStock

<table><tbody><tr><td>Numar porturi</td><td> 16x RJ-45 </td></tr><tr><td>Porturi</td><td> 16x RJ45 </td></tr><tr><td>Viteza de transfer</td><td> 10/100/1000 Mbps </td></tr><tr><td>Dimensiuni</td><td> 294 x 180 x 44 mm </td></tr><tr><td>Montare in rack</td><td> 19 inch </td></tr><tr><td>Memorie Buffer</td><td> 512KB </td></tr><tr><td>Adrese MAC</td><td> 8K </td></tr><tr><td>Altele</td><td> Quality of Service:<br/>- Support Port Based/802.1p Based priority<br/>- Support 4 priority queues<br/>- Rate Limit<br/>- Storm Control<br/><br/>L2 Features:<br/>- IGMP Snooping<br/>- Link Aggregation<br/>- Port Mirroring<br/>- Cable Diagnostics<br/>- Loop Prevention </td></tr></tbody></table>

347 lei

prețuri fără TVA · 420 lei cu TVA

Disponibil la furnizor · 18 buc·termen de livrare confirmat la comandă

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.347 lei

TP-LINK · NetworkingDoar pentru firme (B2B)

Switch TP-Link TL-SG1016DE, 16 port, 10/100/1000 Mbps

SKU: NOD-TL-SG1016DE

10G support: No
AC input frequency: 50 - 60 Hz
AC input voltage: 100 - 240 V
Auto MDI/MDI-X: Yes
Auto-negotiation: Yes
Basic switching RJ-45 Ethernet ports quantity: 16

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

347 leiprețuri fără TVA

Disponibil la furnizor · 18 buc·termen de livrare confirmat la comandă

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandTP-LINK

Cod produsNOD-TL-SG1016DE

CategorieNetworking

10G supportNo

AC input frequency50 - 60 Hz

AC input voltage100 - 240 V

Auto MDI/MDI-XYes

Auto-negotiationYes

Basic switching RJ-45 Ethernet ports quantity16

Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)

Broadcast storm controlYes

Cable types supportedCat3, Cat5, Cat6

Cables includedAC

CertificationFCC, CE, RoHS

Compatible operating systemsWindows

Compliance certificatesCE, Federal Communications Commission (FCC), RoHS

Copper ethernet cabling technology100BASE-TX, 100BASE-T, 1000BASE-T

Depth180 mm

Flow control supportYes

Form factor1U

Forwarding rate23.8 Mpps

Full duplexYes

Gigabit Ethernet (copper) ports quantity16

Harmonized System (HS) code85176990

Heat dissipation34.52 BTU/h

Height44 mm

Housing materialMetal

IGMP snoopingYes

Installed SFP modules quantity0

Installed SFP+ modules quantity0

Jumbo frames9000

Jumbo frames supportYes

LAN port typeGigabit

LAN-Ports16

LayerUnmanaged

LED indicatorsYes

Link aggregationYes

MAC address table8000 entries

ManagementNu

Maximum cable length100 m

Montare in RackNu

Networking standardsIEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

Number of queues4

Number of VLANs32

Operating relative humidity (H-H)10 - 90%

Operating temperature (T-T)0 - 40 °C

Package depth400 mm

Package height80 mm

Package typeBox

Package weight1.91 kg

Package width250 mm

Packet buffer memory0.5 MB

PoENu

Port mirroringYes

Porturi RJ 4511-18

Power connectorAC-in jack

Power consumption (max)11.73 W

Power over Ethernet (PoE)No

Power sourceAC

Power supply includedYes

Product colourBlack

Quality of Service (QoS) supportYes

Rack mount kitYes

Rack mountingYes

RackableNo

Rate limitingYes

Redundant-PSUYes

Resource CDYes

StackableNo

Storage relative humidity (H-H)5 - 90%

Storage temperature (T-T)-40 - 70 °C

Store-and-forwardYes

Sustainability complianceYes

Switch layerL2

Switch typeManaged

Switching capacity32 Gbit/s

Throughput23.8 Mpps

User guideYes

Virtual LAN featuresPort-based VLAN, Tagged VLAN

Viteza transferGigabit

VLAN supportYes

Width294 mm

Specificații

Brand	TP-LINK
Cod produs	NOD-TL-SG1016DE
Categorie	Networking
Garanție	Se confirmă la ofertare
Livrare	termen de livrare confirmat la comandă
10G support	No
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Broadcast storm control	Yes
Cable types supported	Cat3, Cat5, Cat6
Cables included	AC
Certification	FCC, CE, RoHS
Compatible operating systems	Windows
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Copper ethernet cabling technology	100BASE-TX, 100BASE-T, 1000BASE-T
Depth	180 mm
Flow control support	Yes
Form factor	1U
Forwarding rate	23.8 Mpps
Full duplex	Yes
Gigabit Ethernet (copper) ports quantity	16
Harmonized System (HS) code	85176990
Heat dissipation	34.52 BTU/h
Height	44 mm
Housing material	Metal
IGMP snooping	Yes
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Jumbo frames	9000
Jumbo frames support	Yes
LAN port type	Gigabit
LAN-Ports	16
Layer	Unmanaged
LED indicators	Yes
Link aggregation	Yes
MAC address table	8000 entries
Management	Nu
Maximum cable length	100 m
Montare in Rack	Nu
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Number of queues	4
Number of VLANs	32
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Package depth	400 mm
Package height	80 mm
Package type	Box
Package weight	1.91 kg
Package width	250 mm
Packet buffer memory	0.5 MB
PoE	Nu
Port mirroring	Yes
Porturi RJ 45	11-18
Power connector	AC-in jack
Power consumption (max)	11.73 W
Power over Ethernet (PoE)	No
Power source	AC
Power supply included	Yes
Product colour	Black
Quality of Service (QoS) support	Yes
Rack mount kit	Yes
Rack mounting	Yes
Rackable	No
Rate limiting	Yes
Redundant-PSU	Yes
Resource CD	Yes
Stackable	No
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 70 °C
Store-and-forward	Yes
Sustainability compliance	Yes
Switch layer	L2
Switch type	Managed
Switching capacity	32 Gbit/s
Throughput	23.8 Mpps
User guide	Yes
Virtual LAN features	Port-based VLAN, Tagged VLAN
Viteza transfer	Gigabit
VLAN support	Yes
Width	294 mm

Configurație

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

10G support: NoAC input frequency: 50 - 60 HzAC input voltage: 100 - 240 VAuto MDI/MDI-X: YesAuto-negotiation: YesBasic switching RJ-45 Ethernet ports quantity: 16
