TP-LINK · NOD-TL-SG1016D

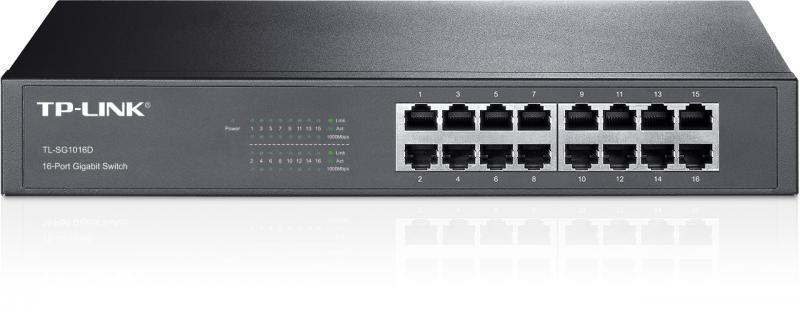

Switch TP-Link TL-SG1016D, 16 port, 10/100/1000 Mbps

Name: Switch TP-Link TL-SG1016D, 16 port, 10/100/1000 Mbps
Brand: TP-LINK
SKU: NOD-TL-SG1016D
Price: 347 RON
Availability: InStock

<table><tbody><tr><td>Numar porturi</td><td> 16x RJ-45 </td></tr><tr><td>Porturi</td><td> 16x RJ45 </td></tr><tr><td>Viteza de transfer</td><td> 10/100/1000 Mbps </td></tr><tr><td>Alimentare</td><td> Intrare: 100-240VAC, 50/60Hz<br/>Iesire: 12VDC/2.0A </td></tr><tr><td>Dimensiuni</td><td> 294 x 180 x 44 mm </td></tr><tr><td>Metoda forwarding</td><td> Store and Forward </td></tr></tbody></table>

287 lei

prețuri fără TVA · 347 lei cu TVA

Disponibil la furnizor · 31 buc·termen de livrare confirmat la comandă

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.287 lei

TP-LINK · NetworkingDoar pentru firme (B2B)

Switch TP-Link TL-SG1016D, 16 port, 10/100/1000 Mbps

SKU: NOD-TL-SG1016D

10G support: No
AC input frequency: 50 - 60 Hz
AC input voltage: 100 - 240 V
Auto MDI/MDI-X: Yes
Auto-negotiation: Yes
Basic switching RJ-45 Ethernet ports quantity: 16

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

287 leiprețuri fără TVA

Disponibil la furnizor · 31 buc·termen de livrare confirmat la comandă

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandTP-LINK

Cod produsNOD-TL-SG1016D

CategorieNetworking

10G supportNo

AC input frequency50 - 60 Hz

AC input voltage100 - 240 V

Auto MDI/MDI-XYes

Auto-negotiationYes

Basic switching RJ-45 Ethernet ports quantity16

Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)

Broadcast storm controlYes

Cable types supportedCat3, Cat4, Cat5, Cat5e

Cables includedAC

CertificationFCC, CE, RoHS

Compatible operating systemsMicrosoft Windows 2000/XP/2003/Vista/2008/7/2012/8/10 MacOS NetWare UNIX Linux

Compliance certificatesCE, Federal Communications Commission (FCC), RoHS

Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-TX, 1000BASE-T

Depth180 mm

FanlessYes

Flow control supportYes

Forwarding rate23.8 Mpps

Full duplexYes

Gigabit Ethernet (copper) ports quantity16

Harmonized System (HS) code85176990

Heat dissipation31.6 BTU/h

Height44 mm

IGMP snoopingYes

Installed SFP modules quantity0

Installed SFP+ modules quantity0

Jumbo frames9000

Jumbo frames supportYes

LAN port typeGigabit

LAN-Ports16

LayerUnmanaged

LED indicatorsYes

Link aggregationYes

MAC address table8000 entries

ManagementNu

Maximum cable length100 m

Montare in RackNu

Networking standardsIEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

Number of queues4

Number of VLANs32

Operating relative humidity (H-H)10 - 90%

Operating temperature (T-T)0 - 40 °C

Package depth400 mm

Package height80 mm

Package typeBox

Package weight1.85 kg

Package width250 mm

Packet buffer memory0.5 MB

PoENu

Port mirroringYes

Porturi RJ 4511-18

Power connectorDC-in jack

Power consumption (max)11.73 W

Power over Ethernet (PoE)No

Power sourceAC

Power supply includedYes

Product colourBlack

Quality of Service (QoS) supportYes

Rack mount kitYes

Rack mountingYes

RackableNo

Rate limitingYes

Redundant-PSUYes

StackableYes

Storage relative humidity (H-H)5 - 90%

Storage temperature (T-T)-40 - 70 °C

Store-and-forwardYes

Supported network protocolsCSMA/CD, TCP/IP

Sustainability complianceYes

Switch layerL2

Switch typeUnmanaged

Switching capacity32 Gbit/s

Throughput23.08 Mpps

User guideYes

Viteza transferGigabit

VLAN supportYes

Width294 mm

Specificații

Brand	TP-LINK
Cod produs	NOD-TL-SG1016D
Categorie	Networking
Garanție	Se confirmă la ofertare
Livrare	termen de livrare confirmat la comandă
10G support	No
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Broadcast storm control	Yes
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Cables included	AC
Certification	FCC, CE, RoHS
Compatible operating systems	Microsoft Windows 2000/XP/2003/Vista/2008/7/2012/8/10 MacOS NetWare UNIX Linux
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-TX, 1000BASE-T
Depth	180 mm
Fanless	Yes
Flow control support	Yes
Forwarding rate	23.8 Mpps
Full duplex	Yes
Gigabit Ethernet (copper) ports quantity	16
Harmonized System (HS) code	85176990
Heat dissipation	31.6 BTU/h
Height	44 mm
IGMP snooping	Yes
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Jumbo frames	9000
Jumbo frames support	Yes
LAN port type	Gigabit
LAN-Ports	16
Layer	Unmanaged
LED indicators	Yes
Link aggregation	Yes
MAC address table	8000 entries
Management	Nu
Maximum cable length	100 m
Montare in Rack	Nu
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Number of queues	4
Number of VLANs	32
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Package depth	400 mm
Package height	80 mm
Package type	Box
Package weight	1.85 kg
Package width	250 mm
Packet buffer memory	0.5 MB
PoE	Nu
Port mirroring	Yes
Porturi RJ 45	11-18
Power connector	DC-in jack
Power consumption (max)	11.73 W
Power over Ethernet (PoE)	No
Power source	AC
Power supply included	Yes
Product colour	Black
Quality of Service (QoS) support	Yes
Rack mount kit	Yes
Rack mounting	Yes
Rackable	No
Rate limiting	Yes
Redundant-PSU	Yes
Stackable	Yes
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 70 °C
Store-and-forward	Yes
Supported network protocols	CSMA/CD, TCP/IP
Sustainability compliance	Yes
Switch layer	L2
Switch type	Unmanaged
Switching capacity	32 Gbit/s
Throughput	23.08 Mpps
User guide	Yes
Viteza transfer	Gigabit
VLAN support	Yes
Width	294 mm

Configurație

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

10G support: NoAC input frequency: 50 - 60 HzAC input voltage: 100 - 240 VAuto MDI/MDI-X: YesAuto-negotiation: YesBasic switching RJ-45 Ethernet ports quantity: 16
