HIKVISION · NOD-DS-3E1520HP-SI-16P2T2F

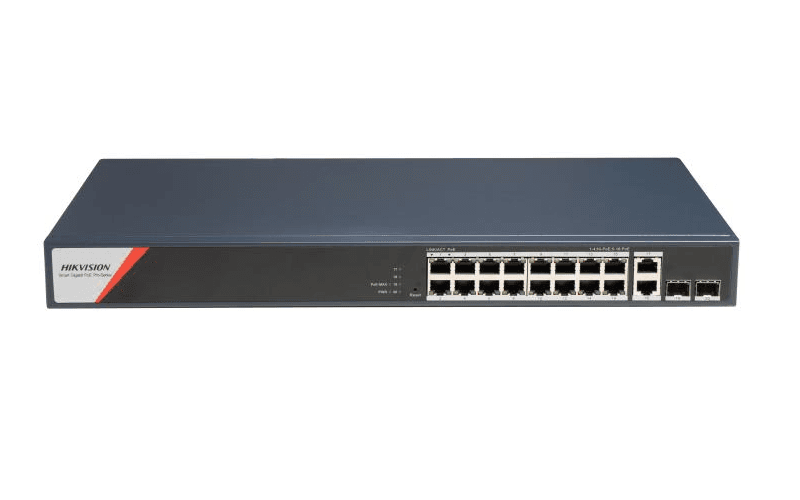

Switch PoE Hikvision DS-3E1520HP-SI-16P2T2F: 16 x 10/100/1000 PoE Ports, 2 × 10/100/1000 Mbps RJ45

Name: Switch PoE Hikvision DS-3E1520HP-SI-16P2T2F: 16 x 10/100/1000 PoE Ports, 2 × 10/100/1000 Mbps RJ45
Brand: HIKVISION
SKU: NOD-DS-3E1520HP-SI-16P2T2F
Price: 3884 RON
Availability: BackOrder

Switch PoE Hikvision DS-3E1520HP-SI-16P2T2F: 16 x 10/100/1000 PoE Ports, 2 × 10/100/1000 Mbps RJ45, 8 porturi PoE maxim 90W, buget PoE 230W, tensiune alimentare: 100-240V~ 50/60Hz 4 A, dimensiuni: 440 mm × 44 mm × 220.8 mm, greutate: 2.73kg, montare pe birou sau in rack.

3.210 lei

prețuri fără TVA · 3.884 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.3.210 lei

HIKVISION · NetworkingDoar pentru firme (B2B)

Switch PoE Hikvision DS-3E1520HP-SI-16P2T2F: 16 x 10/100/1000 PoE Ports, 2 × 10/100/1000 Mbps RJ45

SKU: NOD-DS-3E1520HP-SI-16P2T2F

10G support: No
AC input voltage: 100 - 240 V
Access Control List (ACL): Yes
Access Control List (ACL) rules: 128
Basic switching RJ-45 Ethernet ports quantity: 18
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

3.210 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandHIKVISION

Cod produsNOD-DS-3E1520HP-SI-16P2T2F

CategorieNetworking

10G supportNo

AC input voltage100 - 240 V

Access Control List (ACL)Yes

Access Control List (ACL) rules128

Basic switching RJ-45 Ethernet ports quantity18

Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)

Broadcast storm controlYes

Cable length detectionYes

Compliance certificatesCB, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD), RCM, REACH, RoHS, WEEE

Depth220.8 mm

DHCP featuresDHCP client, DHCP snooping

Fiber optic connectorSFP

Fiber ports quantity2

Forwarding rate29.76 Mpps

Gigabit Ethernet (copper) ports quantity18

Height44 mm

Housing materialMetal

Installed SFP modules quantity0

Installed SFP+ modules quantity0

IP Source Guard (IPSG)Yes

Link aggregationYes

Loop protectionYes

MAC address table8000 entries

ManagementSmart-managed

Montare in RackDa

Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt

Number of VLANs4094

Operating relative humidity (H-H)5 - 95%

Operating temperature (T-T)0 - 45 °C

Package weight3.31 kg

Packet buffer memory4.1 MB

PoEDa

Porturi RJ 4511-18

Porturi SFP1-2

Power connectorAC-in jack

Power consumption (max)250 W

Power over Ethernet (PoE)Yes

Power over Ethernet (PoE) ports quantity16

Power sourceAC/PoE

Quality of Service (QoS) supportYes

Queue scheduling algorithmsSP, Weighted Round Robin (WRR)

Rack mountingYes

Rate limitingYes

Spanning tree protocolYes

Storage relative humidity (H-H)5 - 95%

Storage temperature (T-T)-40 - 85 °C

Surge protectionYes

Surge protection voltage6 kV

Switch typeManaged

Switching capacity56 Gbit/s

Total Power over Ethernet (PoE) budget230 W

Viteza transferGigabit

VLAN supportYes

Web-based managementYes

Weight2.73 kg

Width440 mm

Specificații

Brand	HIKVISION
Cod produs	NOD-DS-3E1520HP-SI-16P2T2F
Categorie	Networking
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
10G support	No
AC input voltage	100 - 240 V
Access Control List (ACL)	Yes
Access Control List (ACL) rules	128
Basic switching RJ-45 Ethernet ports quantity	18
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Broadcast storm control	Yes
Cable length detection	Yes
Compliance certificates	CB, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD), RCM, REACH, RoHS, WEEE
Depth	220.8 mm
DHCP features	DHCP client, DHCP snooping
Fiber optic connector	SFP
Fiber ports quantity	2
Forwarding rate	29.76 Mpps
Gigabit Ethernet (copper) ports quantity	18
Height	44 mm
Housing material	Metal
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
IP Source Guard (IPSG)	Yes
Link aggregation	Yes
Loop protection	Yes
MAC address table	8000 entries
Management	Smart-managed
Montare in Rack	Da
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Number of VLANs	4094
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 45 °C
Package weight	3.31 kg
Packet buffer memory	4.1 MB
PoE	Da
Porturi RJ 45	11-18
Porturi SFP	1-2
Power connector	AC-in jack
Power consumption (max)	250 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	16
Power source	AC/PoE
Quality of Service (QoS) support	Yes
Queue scheduling algorithms	SP, Weighted Round Robin (WRR)
Rack mounting	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
Storage relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-40 - 85 °C
Surge protection	Yes
Surge protection voltage	6 kV
Switch type	Managed
Switching capacity	56 Gbit/s
Total Power over Ethernet (PoE) budget	230 W
Viteza transfer	Gigabit
VLAN support	Yes
Web-based management	Yes
Weight	2.73 kg
Width	440 mm

Configurație

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

10G support: NoAC input voltage: 100 - 240 VAccess Control List (ACL): YesAccess Control List (ACL) rules: 128Basic switching RJ-45 Ethernet ports quantity: 18Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
