D-LINK · NOD-DGS-1100-24PV2

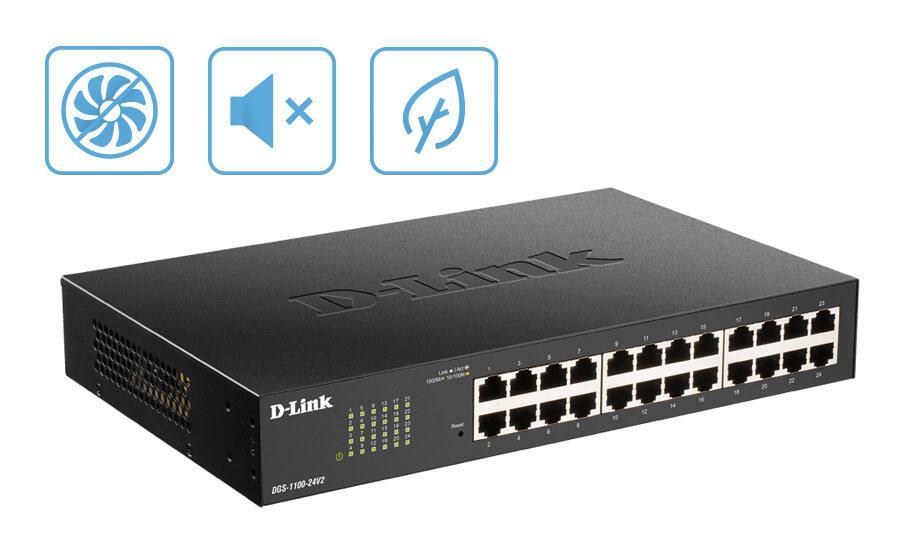

Switch D-Link Gigabit DGS-1100-24PV2, 24 port, 10/100/1000 Mbps

Name: Switch D-Link Gigabit DGS-1100-24PV2, 24 port, 10/100/1000 Mbps
Brand: D-LINK
SKU: NOD-DGS-1100-24PV2
Price: 2724 RON
Availability: BackOrder

<table><tbody><tr><td>Numar porturi</td><td> 24x RJ-45 </td></tr><tr><td>Porturi</td><td> 24x RJ45 </td></tr><tr><td>Viteza de transfer</td><td> 10/100/1000 Mbps </td></tr><tr><td>Management</td><td> Da </td></tr><tr><td>Putere consumata</td><td> 131.5 W </td></tr><tr><td>Alimentare</td><td> 100 - 240 V </td></tr><tr><td>PoE</td><td> Da, 12 porturi PoE </td></tr><tr><td>PoE Budget</td><td> 100 W </td></tr><tr><td>Dimensiuni</td><td> 280 x 230 x 44 mm </td></tr><tr><td>Greutate</td><td> 2 Kg </td></tr><tr><td>Montare in rack</td><td> 1U </td></tr><tr><td>Functii LED</td><td> Power, Link, Activity, Speed </td></tr><tr><td>Memorie Buffer</td><td> 4.1 MB </td></tr><tr><td>Memorie</td><td> Flash: 16 MB </td></tr><tr><td>Adrese MAC</td><td> 8K </td></tr><tr><td>Metoda forwarding</td><td> 35.71 </td></tr><tr><td>Routing/Switch Fabric</td><td> 48 Gbps </td></tr><tr><td>Standarde</td><td> IEEE 802.3, IEEE 802.3x, IEEE 802.3az </td></tr></tbody></table>

2.251 lei

prețuri fără TVA · 2.724 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.2.251 lei

D-LINK · NetworkingDoar pentru firme (B2B)

Switch D-Link Gigabit DGS-1100-24PV2, 24 port, 10/100/1000 Mbps

SKU: NOD-DGS-1100-24PV2

10G support: No
AC input voltage: 100 - 240 V
Auto MDI/MDI-X: Yes
Auto-negotiation: Yes
Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

2.251 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandD-LINK

Cod produsNOD-DGS-1100-24PV2

CategorieNetworking

10G supportNo

AC input voltage100 - 240 V

Auto MDI/MDI-XYes

Auto-negotiationYes

Basic switching RJ-45 Ethernet ports quantity24

Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)

Broadcast storm controlYes

Built-in processorYes

CertificationEMI FCC A, CE A, VCCI A, C-Tick, BSMI, CCC cUL, CE LVD, CB, BSMI, CCC

Copper ethernet cabling technology10BASE-T, 10BASE-TX, 1000BASE-T

Depth230 mm

DHCP featuresDHCP client

FanlessYes

Flash memory16 MB

Flow control supportYes

Forwarding rate35.71 Mpps

Full duplexYes

Harmonized System (HS) code85176990

Head-of-line (HOL) blockingYes

Heat dissipation107.5 BTU/h

Height44 mm

IGMP snoopingYes

Installed SFP modules quantity0

Installed SFP+ modules quantity0

Jumbo frames9216

Jumbo frames supportYes

LAN port typeGigabit

LED indicatorsYes

Link aggregationYes

MAC address table8000 entries

ManagementDa

Mean time between failures (MTBF)255003 h

Memory typeDRAM

Montare in RackDa

Multicast supportYes

Noise level0 dB

Number of queues4

Number of VLANs128

Operating altitude0 - 2000 m

Operating relative humidity (H-H)0 - 95%

Operating temperature (T-T)-5 - 50 °C

Packet buffer memory4.1 MB

PoENu

Port mirroringYes

Porturi RJ 4524-28

Power consumption (max)19.5 W

Power over Ethernet (PoE)Yes

Power over Ethernet (PoE) power per port30 W

Power over Ethernet plus (PoE+) ports quantity12

Processor frequency125 MHz

Product colourBlack

Quality of Service (QoS) supportYes

Queue scheduling algorithmsSPQ, Weighted Round Robin (WRR)

Rack mountingYes

Rate limitingYes

Security algorithmsSNMP, SSL/TLS

Spanning tree protocolYes

Storage relative humidity (H-H)0 - 95%

Storage temperature (T-T)-40 - 70 °C

Store-and-forwardYes

Switch layerL2

Switch typeManaged

Switching capacity48 Gbit/s

System event logYes

Total Power over Ethernet (PoE) budget100 W

Virtual LAN featuresPort-based VLAN, Voice VLAN

Viteza transferGigabit

VLAN supportYes

Web-based managementYes

Weight2.2 kg

Width280 mm

Specificații

Brand	D-LINK
Cod produs	NOD-DGS-1100-24PV2
Categorie	Networking
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
10G support	No
AC input voltage	100 - 240 V
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Broadcast storm control	Yes
Built-in processor	Yes
Certification	EMI FCC A, CE A, VCCI A, C-Tick, BSMI, CCC cUL, CE LVD, CB, BSMI, CCC
Copper ethernet cabling technology	10BASE-T, 10BASE-TX, 1000BASE-T
Depth	230 mm
DHCP features	DHCP client
Fanless	Yes
Flash memory	16 MB
Flow control support	Yes
Forwarding rate	35.71 Mpps
Full duplex	Yes
Harmonized System (HS) code	85176990
Head-of-line (HOL) blocking	Yes
Heat dissipation	107.5 BTU/h
Height	44 mm
IGMP snooping	Yes
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Jumbo frames	9216
Jumbo frames support	Yes
LAN port type	Gigabit
LED indicators	Yes
Link aggregation	Yes
MAC address table	8000 entries
Management	Da
Mean time between failures (MTBF)	255003 h
Memory type	DRAM
Montare in Rack	Da
Multicast support	Yes
Noise level	0 dB
Number of queues	4
Number of VLANs	128
Operating altitude	0 - 2000 m
Operating relative humidity (H-H)	0 - 95%
Operating temperature (T-T)	-5 - 50 °C
Packet buffer memory	4.1 MB
PoE	Nu
Port mirroring	Yes
Porturi RJ 45	24-28
Power consumption (max)	19.5 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) power per port	30 W
Power over Ethernet plus (PoE+) ports quantity	12
Processor frequency	125 MHz
Product colour	Black
Quality of Service (QoS) support	Yes
Queue scheduling algorithms	SPQ, Weighted Round Robin (WRR)
Rack mounting	Yes
Rate limiting	Yes
Security algorithms	SNMP, SSL/TLS
Spanning tree protocol	Yes
Storage relative humidity (H-H)	0 - 95%
Storage temperature (T-T)	-40 - 70 °C
Store-and-forward	Yes
Switch layer	L2
Switch type	Managed
Switching capacity	48 Gbit/s
System event log	Yes
Total Power over Ethernet (PoE) budget	100 W
Virtual LAN features	Port-based VLAN, Voice VLAN
Viteza transfer	Gigabit
VLAN support	Yes
Web-based management	Yes
Weight	2.2 kg
Width	280 mm

Configurație

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

10G support: NoAC input voltage: 100 - 240 VAuto MDI/MDI-X: YesAuto-negotiation: YesBasic switching RJ-45 Ethernet ports quantity: 24Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
