D-LINK · NOD-DGS-1520-52MP

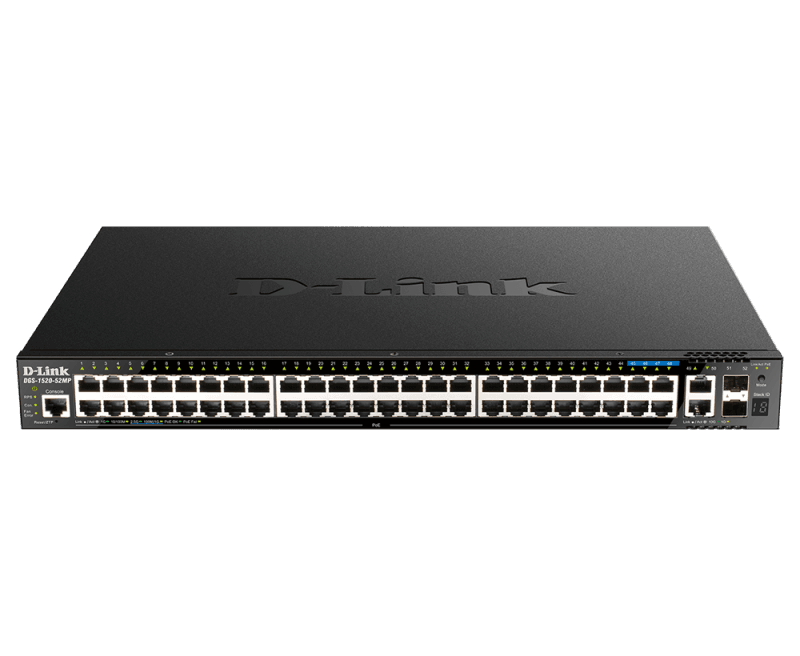

Switch D-Link DGS-1520-52MP, 48 porturi Gigabit, 2 porturi SFP+, Capacity 80Gbps, 16K MAC, 17" Rackmount, 1*fan

Name: Switch D-Link DGS-1520-52MP, 48 porturi Gigabit, 2 porturi SFP+, Capacity 80Gbps, 16K MAC, 17" Rackmount, 1*fan
Brand: D-LINK
SKU: NOD-DGS-1520-52MP
Price: 17195 RON
Availability: BackOrder

14.211 lei

prețuri fără TVA · 17.195 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.14.211 lei

D-LINK · NetworkingDoar pentru firme (B2B)

Switch D-Link DGS-1520-52MP, 48 porturi Gigabit, 2 porturi SFP+, Capacity 80Gbps, 16K MAC, 17" Rackmount, 1*fan

SKU: NOD-DGS-1520-52MP

10G Ethernet (copper) ports quantity: 2
10G support: Yes
2.5G Ethernet (copper) ports quantity: 4
AC input voltage: 100 - 240 V
Auto MDI/MDI-X: Yes
Basic switching RJ-45 Ethernet ports quantity: 44

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

14.211 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandD-LINK

Cod produsNOD-DGS-1520-52MP

CategorieNetworking

10G Ethernet (copper) ports quantity2

10G supportYes

2.5G Ethernet (copper) ports quantity4

AC input voltage100 - 240 V

Auto MDI/MDI-XYes

Basic switching RJ-45 Ethernet ports quantity44

Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)

BPDU filtering/protectionYes

CertificationCE Class A, FCC Class A, IC Class A, RCM Class A, VCCI Class A, BSMI Class A

Copper ethernet cabling technology10BASE-T, 100BASE-FX, 100BASE-TX, 1000BASE-T

Depth308.5 mm

DHCP featuresDHCP snooping

Fiber optic connectorSFP

Fiber ports quantity2

Flow control supportYes

Form factor1U

Forwarding rate139.88 Mpps

GARP VLAN Registration Protocol (GVRP)Yes

Harmonized System (HS) code85176990

Head-of-line (HOL) blockingYes

Heat dissipation1635.1 BTU/h

Height44 mm

IGMP snoopingYes

Jumbo frames12288

Jumbo frames supportYes

LAN-Port-TypeGigabit

LED indicatorsActivity, Link, Power, Speed

Link aggregationYes

Loop protectionYes

MAC address entriesStatic MAC address entries

MAC address table16384 entries

ManagementDa

Mean time between failures (MTBF)328174 h

Montare in RackDa

Multicast Listener Discovery (MLD) snoopingv1/v2

Noise level56.7 dB

Operating relative humidity (H-H)10 - 95%

Operating temperature (T-T)-5 - 50 °C

Physical stacking (units)8

PoENu

Porturi RJ 4528+

Porturi SFP1-2

Power consumption (max)459.5 W

Power over Ethernet (PoE)Yes

Power over Ethernet plus (PoE+) ports quantity44

Power sourceAC

Product colourBlack

Rack mountingYes

Routing protocolsOSPF, RIP, RIPng, VRRP

SFP module slots quantity2

SFP+ module slots quantity2

Spanning tree protocolYes

StackableYes

Static routeYes

Storage relative humidity (H-H)5 - 95%

Storage temperature (T-T)-40 - 70 °C

Store-and-forwardYes

Switch layerL3

Switch typeManaged

Switching capacity188 Gbit/s

Total Power over Ethernet (PoE) budget370 W

Virtual stacking (units)32

Viteza transferGigabit

VLAN supportYes

Web-based managementYes

Weight4.8 kg

Width441 mm

Specificații

Brand	D-LINK
Cod produs	NOD-DGS-1520-52MP
Categorie	Networking
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
10G Ethernet (copper) ports quantity	2
10G support	Yes
2.5G Ethernet (copper) ports quantity	4
AC input voltage	100 - 240 V
Auto MDI/MDI-X	Yes
Basic switching RJ-45 Ethernet ports quantity	44
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
BPDU filtering/protection	Yes
Certification	CE Class A, FCC Class A, IC Class A, RCM Class A, VCCI Class A, BSMI Class A
Copper ethernet cabling technology	10BASE-T, 100BASE-FX, 100BASE-TX, 1000BASE-T
Depth	308.5 mm
DHCP features	DHCP snooping
Fiber optic connector	SFP
Fiber ports quantity	2
Flow control support	Yes
Form factor	1U
Forwarding rate	139.88 Mpps
GARP VLAN Registration Protocol (GVRP)	Yes
Harmonized System (HS) code	85176990
Head-of-line (HOL) blocking	Yes
Heat dissipation	1635.1 BTU/h
Height	44 mm
IGMP snooping	Yes
Jumbo frames	12288
Jumbo frames support	Yes
LAN-Port-Type	Gigabit
LED indicators	Activity, Link, Power, Speed
Link aggregation	Yes
Loop protection	Yes
MAC address entries	Static MAC address entries
MAC address table	16384 entries
Management	Da
Mean time between failures (MTBF)	328174 h
Montare in Rack	Da
Multicast Listener Discovery (MLD) snooping	v1/v2
Noise level	56.7 dB
Operating relative humidity (H-H)	10 - 95%
Operating temperature (T-T)	-5 - 50 °C
Physical stacking (units)	8
PoE	Nu
Porturi RJ 45	28+
Porturi SFP	1-2
Power consumption (max)	459.5 W
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	44
Power source	AC
Product colour	Black
Rack mounting	Yes
Routing protocols	OSPF, RIP, RIPng, VRRP
SFP module slots quantity	2
SFP+ module slots quantity	2
Spanning tree protocol	Yes
Stackable	Yes
Static route	Yes
Storage relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-40 - 70 °C
Store-and-forward	Yes
Switch layer	L3
Switch type	Managed
Switching capacity	188 Gbit/s
Total Power over Ethernet (PoE) budget	370 W
Virtual stacking (units)	32
Viteza transfer	Gigabit
VLAN support	Yes
Web-based management	Yes
Weight	4.8 kg
Width	441 mm

Configurație

Switch D-Link DGS-1520-52MP, 48 porturi Gigabit, 2 porturi SFP+, Capacity 80Gbps, 16K MAC, 17" Rackmount, 1*fan

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

Switch D-Link DGS-1520-52MP, 48 porturi Gigabit, 2 porturi SFP+, Capacity 80Gbps, 16K MAC, 17" Rackmount, 1*fan

10G Ethernet (copper) ports quantity: 210G support: Yes2.5G Ethernet (copper) ports quantity: 4AC input voltage: 100 - 240 VAuto MDI/MDI-X: YesBasic switching RJ-45 Ethernet ports quantity: 44
