D-LINK · NOD-DGS-1210-28P

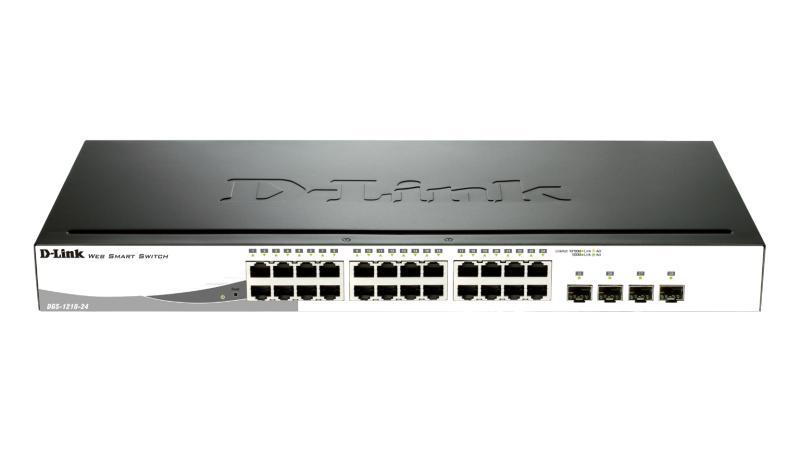

Switch D-Link DGS-1210-28P, 24 port, 10/100/1000 Mbps

Name: Switch D-Link DGS-1210-28P, 24 port, 10/100/1000 Mbps
Brand: D-LINK
SKU: NOD-DGS-1210-28P
Price: 4450 RON
Availability: BackOrder

<table><tbody><tr><td>Numar porturi</td><td> 24x RJ-45 </td></tr><tr><td>Porturi</td><td> 24x RJ45<br/>4x SFP </td></tr><tr><td>Viteza de transfer</td><td> 10/100/1000 Mbps </td></tr><tr><td>Putere consumata</td><td> 238.4 W (PoE on)<br/>27.4 W (PoE off) </td></tr><tr><td>Alimentare</td><td> 100 to 240 VAC 50/60 Hz internal universal power supply </td></tr><tr><td>PoE</td><td> Da </td></tr><tr><td>PoE Budget</td><td> 193 W </td></tr><tr><td>Dimensiuni</td><td> 440 x 250 x 44 mm </td></tr><tr><td>Greutate</td><td> 3.7 kg </td></tr><tr><td>Montare in rack</td><td> 1U </td></tr><tr><td>Functii LED</td><td> - Power (per device)<br/>- PoE Max (per Device)<br/>- Link/Activity/Speed (per 10/100/1000Base-T port)<br/>- Link/Activity/Speed (per SFP port)<br/>- Fan (per device)<br/>- Button to switch<br/>- LED display mode between<br/>- PoE and Link/Activity </td></tr><tr><td>Memorie Buffer</td><td> 41.7 Mpps </td></tr><tr><td>Adrese MAC</td><td> 16K </td></tr><tr><td>Altele</td><td> Ports 1 to 4: Up to 30 W<br/>Ports 5 to 24: Up to 15.4 W<br/>2x smart fans </td></tr></tbody></table>

3.678 lei

prețuri fără TVA · 4.450 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.3.678 lei

D-LINK · NetworkingDoar pentru firme (B2B)

Switch D-Link DGS-1210-28P, 24 port, 10/100/1000 Mbps

SKU: NOD-DGS-1210-28P

10G Ethernet (copper) ports quantity: 0
2.5G Ethernet (copper) ports quantity: 0
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V
Access Control List (ACL): Yes
Access Control List (ACL) ingress: 256

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

3.678 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandD-LINK

Cod produsNOD-DGS-1210-28P

CategorieNetworking

10G Ethernet (copper) ports quantity0

2.5G Ethernet (copper) ports quantity0

AC input frequency50/60 Hz

AC input voltage100 - 240 V

Access Control List (ACL)Yes

Access Control List (ACL) ingress256

Access Control List (ACL) rules256

Active link detectionYes

ARP inspectionYes

Authentication typeAAA, RADIUS, TACACS+

Auto MDI/MDI-XYes

Auto-negotiationYes

Basic switching RJ-45 Ethernet ports quantity24

Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)

BPDU filtering/protectionYes

Broadcast storm controlYes

Cable types supportedCat5, Cat5e

CertificationFCC Class A CE Class A ICES-003 VCCI Class A C-Tick BSMI

Combo SFP ports quantity4

Configuring Location Settings (CLI)Yes

Console portRJ-45

Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T

Depth140 mm

DHCP featuresDHCP server, DHCP client

Ethernet LAN data rates1000 Mbit/s

FanlessNo

Fiber ethernet cabling technology1000BASE-X

Flash memory32 MB

Flow control supportYes

Form factor1U

Forwarding rate41.7 Mpps

Full duplexYes

GARP VLAN Registration Protocol (GVRP)Yes

Gigabit Ethernet (copper) ports quantity24

Half duplexYes

Head-of-line (HOL) blockingYes

Heat dissipation900.36 BTU/h

Height44 mm

IGMP snoopingYes

Input voltage100 - 240 V

Installed SFP+ modules quantity0

Internal memory256 MB

IP-MAC-Port bindingYes

IPv4 routes64

IPv6 routes32

Jumbo frames10000

Jumbo frames supportYes

LAN port typeGigabit

LED indicatorsYes

Link aggregationYes

Loop protectionYes

MAC address filteringYes

MAC address table8000 entries

ManagementDa

Mean time between failures (MTBF)469262 h

Memory typeDDR3-SDRAM

MIB supportY

Montare in RackDa

Multicast featuresControllable multicast

Multicast Listener Discovery (MLD) snoopingMLD v1, MLD v2

Multicast supportYes

Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

Noise level51.7 dB

Number of fans2 fan(s)

Number of IP interfaces4

Number of multicast groups filtered256

Number of queues8

Number of static routes96

Number of VLANs256

Operating relative humidity (H-H)0 - 95%

Operating temperature (T-T)-5 - 50 °C

Package depth521 mm

Package height92 mm

Package weight4.93 kg

Package width365 mm

Packet buffer memory4.1 MB

Password protectionYes

PoEDa

Port mirroringYes

Porturi RJ 4524-28

Porturi SFP1-2

Power connectorAC-in jack

Power consumption (max)236.9 W

Power consumption (typical)238.4 W

Power over Ethernet (PoE)Yes

Power over Ethernet (PoE) ports quantity24

Power protection featuresSurge protection

Power sourceAC

Power supply includedYes

Product colourBlack

Quality of Service (QoS) supportYes

Queue scheduling algorithmsStrict Priority Queue (SPQ), Weighted Round Robin (WRR)

Rack mountingYes

Security algorithmsEAP, SNMP, SNMPv2, SNMPv3

SFP module slots quantity4

SFP+ module slots quantity4

Spanning tree protocolYes

SSH/SSL supportYes

StackableNo

Static routeYes

Storage relative humidity (H-H)0 - 95%

Storage temperature (T-T)-40 - 70 °C

Store-and-forwardYes

Sustainability certificatesUL ECOLOGO

Switch layerL2

Switch typeManaged

Switching capacity56 Gbit/s

System event logYes

Total Power over Ethernet (PoE) budget193 W

Traffic classificationYes

Virtual LAN featuresMAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN

Viteza transferGigabit

VLAN supportYes

Web-based managementYes

Weight2.15 kg

Width440 mm

Specificații

Brand	D-LINK
Cod produs	NOD-DGS-1210-28P
Categorie	Networking
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
10G Ethernet (copper) ports quantity	0
2.5G Ethernet (copper) ports quantity	0
AC input frequency	50/60 Hz
AC input voltage	100 - 240 V
Access Control List (ACL)	Yes
Access Control List (ACL) ingress	256
Access Control List (ACL) rules	256
Active link detection	Yes
ARP inspection	Yes
Authentication type	AAA, RADIUS, TACACS+
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
BPDU filtering/protection	Yes
Broadcast storm control	Yes
Cable types supported	Cat5, Cat5e
Certification	FCC Class A CE Class A ICES-003 VCCI Class A C-Tick BSMI
Combo SFP ports quantity	4
Configuring Location Settings (CLI)	Yes
Console port	RJ-45
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Depth	140 mm
DHCP features	DHCP server, DHCP client
Ethernet LAN data rates	1000 Mbit/s
Fanless	No
Fiber ethernet cabling technology	1000BASE-X
Flash memory	32 MB
Flow control support	Yes
Form factor	1U
Forwarding rate	41.7 Mpps
Full duplex	Yes
GARP VLAN Registration Protocol (GVRP)	Yes
Gigabit Ethernet (copper) ports quantity	24
Half duplex	Yes
Head-of-line (HOL) blocking	Yes
Heat dissipation	900.36 BTU/h
Height	44 mm
IGMP snooping	Yes
Input voltage	100 - 240 V
Installed SFP+ modules quantity	0
Internal memory	256 MB
IP-MAC-Port binding	Yes
IPv4 routes	64
IPv6 routes	32
Jumbo frames	10000
Jumbo frames support	Yes
LAN port type	Gigabit
LED indicators	Yes
Link aggregation	Yes
Loop protection	Yes
MAC address filtering	Yes
MAC address table	8000 entries
Management	Da
Mean time between failures (MTBF)	469262 h
Memory type	DDR3-SDRAM
MIB support	Y
Montare in Rack	Da
Multicast features	Controllable multicast
Multicast Listener Discovery (MLD) snooping	MLD v1, MLD v2
Multicast support	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Noise level	51.7 dB
Number of fans	2 fan(s)
Number of IP interfaces	4
Number of multicast groups filtered	256
Number of queues	8
Number of static routes	96
Number of VLANs	256
Operating relative humidity (H-H)	0 - 95%
Operating temperature (T-T)	-5 - 50 °C
Package depth	521 mm
Package height	92 mm
Package weight	4.93 kg
Package width	365 mm
Packet buffer memory	4.1 MB
Password protection	Yes
PoE	Da
Port mirroring	Yes
Porturi RJ 45	24-28
Porturi SFP	1-2
Power connector	AC-in jack
Power consumption (max)	236.9 W
Power consumption (typical)	238.4 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	24
Power protection features	Surge protection
Power source	AC
Power supply included	Yes
Product colour	Black
Quality of Service (QoS) support	Yes
Queue scheduling algorithms	Strict Priority Queue (SPQ), Weighted Round Robin (WRR)
Rack mounting	Yes
Security algorithms	EAP, SNMP, SNMPv2, SNMPv3
SFP module slots quantity	4
SFP+ module slots quantity	4
Spanning tree protocol	Yes
SSH/SSL support	Yes
Stackable	No
Static route	Yes
Storage relative humidity (H-H)	0 - 95%
Storage temperature (T-T)	-40 - 70 °C
Store-and-forward	Yes
Sustainability certificates	UL ECOLOGO
Switch layer	L2
Switch type	Managed
Switching capacity	56 Gbit/s
System event log	Yes
Total Power over Ethernet (PoE) budget	193 W
Traffic classification	Yes
Virtual LAN features	MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN
Viteza transfer	Gigabit
VLAN support	Yes
Web-based management	Yes
Weight	2.15 kg
Width	440 mm

Configurație

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

10G Ethernet (copper) ports quantity: 02.5G Ethernet (copper) ports quantity: 0AC input frequency: 50/60 HzAC input voltage: 100 - 240 VAccess Control List (ACL): YesAccess Control List (ACL) ingress: 256
