D-LINK · NOD-DGS-1210-28MP

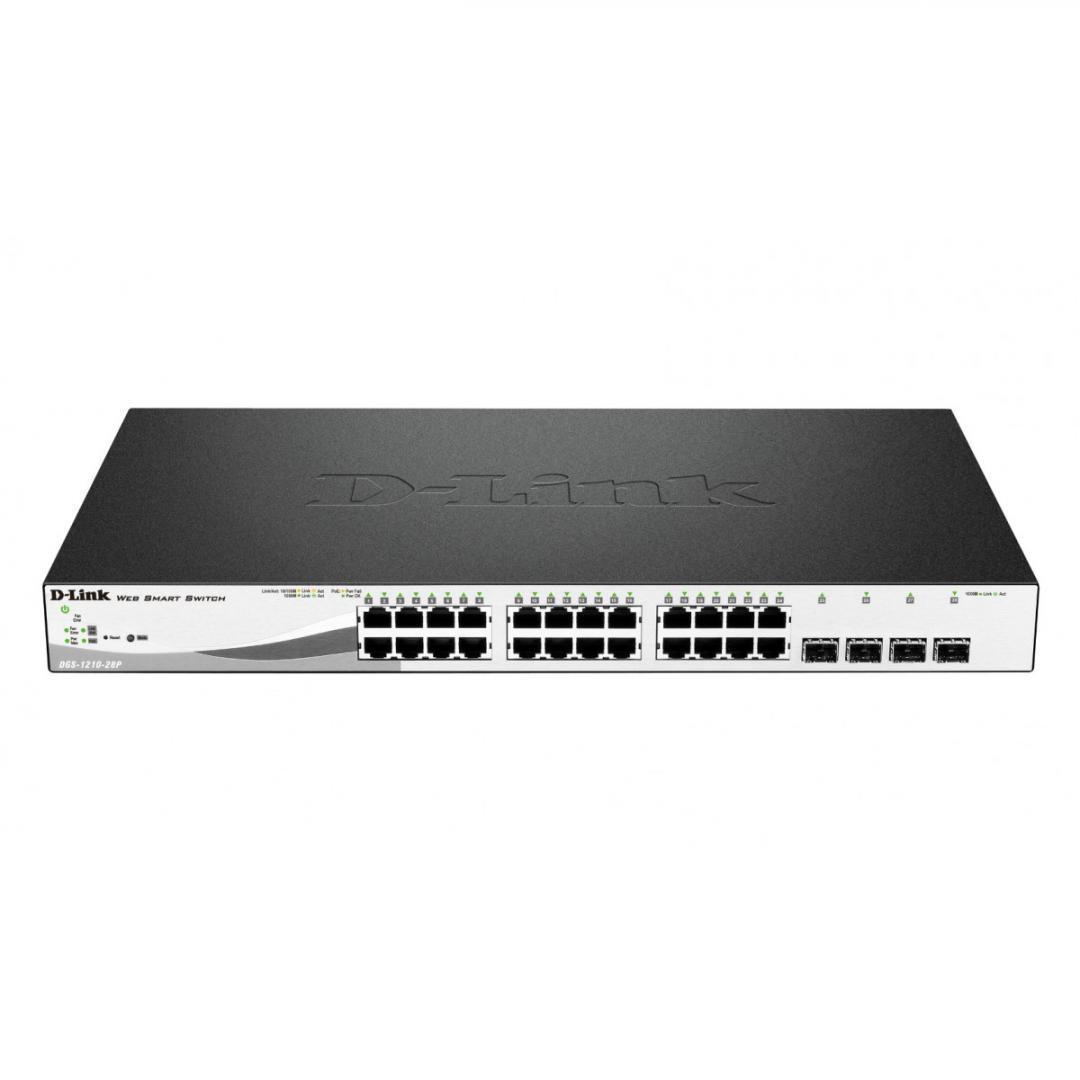

Switch D-link DGS-1210-28MP, 28 Port, 10/100/1000 Mbps

Name: Switch D-link DGS-1210-28MP, 28 Port, 10/100/1000 Mbps
Brand: D-LINK
SKU: NOD-DGS-1210-28MP
Price: 3083 RON
Availability: LimitedAvailability

<table><tbody><tr><td>Numar porturi</td><td> 28x RJ-45 </td></tr><tr><td>Porturi</td><td> 24x RJ45<br/>4x SFP </td></tr><tr><td>Viteza de transfer</td><td> 10/100/1000 Mbps </td></tr><tr><td>Management</td><td> Da </td></tr><tr><td>Putere consumata</td><td> 33.1 W </td></tr><tr><td>Alimentare</td><td> 100 to 240 VAC 50/60 Hz internal universal power supply </td></tr><tr><td>PoE</td><td> Da </td></tr><tr><td>PoE Budget</td><td> 454.4 W </td></tr><tr><td>Dimensiuni</td><td> 440 x 250 x 44 mm </td></tr><tr><td>Greutate</td><td> 3.86 kg </td></tr><tr><td>Montare in rack</td><td> 1U </td></tr><tr><td>Functii LED</td><td> - Power (per device)<br/>- PoE Max (per Device)<br/>- Link/Activity/Speed (per 10/100/1000Base-T port)<br/>- Link/Activity/Speed (per SFP port)<br/>- Fan (per device)<br/>- Button to switch<br/>- LED display mode between<br/>- PoE and Link/Activity </td></tr><tr><td>Memorie Buffer</td><td> 41.7 Mpps </td></tr><tr><td>Adrese MAC</td><td> 16K </td></tr><tr><td>Altele</td><td> 4x SFP </td></tr></tbody></table>

2.548 lei

prețuri fără TVA · 3.083 lei cu TVA

Disponibil la furnizor·termen de livrare confirmat la comandă

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.2.548 lei

D-LINK · NetworkingDoar pentru firme (B2B)

Switch D-link DGS-1210-28MP, 28 Port, 10/100/1000 Mbps

SKU: NOD-DGS-1210-28MP

10G support: No
AC input frequency: 50 - 60 Hz
AC input voltage: 100 - 240 V
Access Control List (ACL): Yes
Access Control List (ACL) rules: 256
Authentication: Guest VLAN, MAC-based authentication, Port-based authentication

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

2.548 leiprețuri fără TVA

Disponibil la furnizor·termen de livrare confirmat la comandă

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandD-LINK

Cod produsNOD-DGS-1210-28MP

CategorieNetworking

10G supportNo

AC input frequency50 - 60 Hz

AC input voltage100 - 240 V

Access Control List (ACL)Yes

Access Control List (ACL) rules256

AuthenticationGuest VLAN, MAC-based authentication, Port-based authentication

Auto MDI/MDI-XYes

Auto-negotiationYes

Basic switching RJ-45 Ethernet ports quantity24

Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)

BPDU filtering/protectionYes

Built-in processorYes

CertificationIEC61000-4-5, RoHS

Console portRJ-45

Copper ethernet cabling technology10BASE-T, 100BASE-TX, 100BASE-T, 1000BASE-T

Depth210 mm

DHCP featuresDHCP client

Electromagnetic compatibilityFCC A, CE A, VCCI, C-Tick, BSMI, CCC

Fiber ethernet cabling technology1000BASE-X

Fiber optic connectorSFP

Flash memory32 MB

Flow control supportYes

Form factor1U

Forwarding rate41.7 Mpps

Full duplexYes

Harmonized System (HS) code85176990

Heat dissipation850.58 BTU/h

Height44 mm

IGMP snoopingYes

Installed SFP modules quantity0

Installed SFP+ modules quantity0

Internal memory128 MB

IP routingYes

IP-MAC-Port bindingYes

Jumbo frames9216

Jumbo frames supportYes

LAN port typeGigabit

LED indicatorsActivity, Fan fail, Link, Power, Speed

Link aggregationYes

Loop protectionYes

MAC address table16000 entries

ManagementDa

Master (outer) cases per pallet (air)24 pc(s)

Master (outer) cases per pallet (sea)40 pc(s)

Mean time between failures (MTBF)294101 h

Memory typeDDR3-SDRAM

Montare in RackDa

Multicast Listener Discovery (MLD) snoopingMLD v1, MLD v2

Multicast supportYes

Noise level52.4 dB

Number of fans2 fan(s)

Number of queues8

Number of static routes32

Number of VLANs4094

Operating relative humidity (H-H)10 - 90%

Operating temperature (T-T)-5 - 50 °C

Package depth521 mm

Package height92 mm

Package weight5.18 kg

Package width365 mm

Packet buffer memory1.5 MB

Pallet gross length110 cm

Pallet gross weight (air)419.7 kg

Pallet gross weight (sea)682.9 kg

Pallet gross width120 cm

Pallet height (air)131.4 cm

Pallet height (sea)2.1 m

PoEDa

Port mirroringYes

Porturi RJ 4524-28

Porturi SFP3-4

Power consumption (typical)27.49 W

Power over Ethernet (PoE)Yes

Power over Ethernet (PoE) ports quantity24

Power sourceAC/DC

Product colourBlack, Grey

Products per pallet (air)72 pc(s)

Products per pallet (sea)120 pc(s)

Products per shipping (inner) case3 pc(s)

Quality of Service (QoS) supportYes

Rack mountingYes

Rate limitingYes

SafetyCCC, CE LVD, UL/cUL

Security algorithms802.1x RADIUS, SNMP, SSH

SFP module slots quantity4

SFP+ module slots quantity4

Shipping (inner) case gross weight16.4 kg

Shipping (inner) case height39.3 cm

Shipping (inner) case length53.9 cm

Shipping (inner) case net weight15.6 kg

Shipping (inner) case width29.5 cm

Spanning tree protocolYes

SSH/SSL supportYes

Storage relative humidity (H-H)5 - 90%

Storage temperature (T-T)-40 - 70 °C

Store-and-forwardYes

Switch layerL2

Switch typeManaged

Switching capacity56 Gbit/s

System event logYes

Traffic classificationYes

Virtual LAN featuresVoice VLAN, Tagged VLAN, MAC address-based VLAN, Port-based VLAN

Viteza transferGigabit

VLAN supportYes

Web-based managementYes

Weight3.86 kg

Width440 mm

Specificații

Brand	D-LINK
Cod produs	NOD-DGS-1210-28MP
Categorie	Networking
Garanție	Se confirmă la ofertare
Livrare	termen de livrare confirmat la comandă
10G support	No
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Access Control List (ACL)	Yes
Access Control List (ACL) rules	256
Authentication	Guest VLAN, MAC-based authentication, Port-based authentication
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
BPDU filtering/protection	Yes
Built-in processor	Yes
Certification	IEC61000-4-5, RoHS
Console port	RJ-45
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 100BASE-T, 1000BASE-T
Depth	210 mm
DHCP features	DHCP client
Electromagnetic compatibility	FCC A, CE A, VCCI, C-Tick, BSMI, CCC
Fiber ethernet cabling technology	1000BASE-X
Fiber optic connector	SFP
Flash memory	32 MB
Flow control support	Yes
Form factor	1U
Forwarding rate	41.7 Mpps
Full duplex	Yes
Harmonized System (HS) code	85176990
Heat dissipation	850.58 BTU/h
Height	44 mm
IGMP snooping	Yes
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Internal memory	128 MB
IP routing	Yes
IP-MAC-Port binding	Yes
Jumbo frames	9216
Jumbo frames support	Yes
LAN port type	Gigabit
LED indicators	Activity, Fan fail, Link, Power, Speed
Link aggregation	Yes
Loop protection	Yes
MAC address table	16000 entries
Management	Da
Master (outer) cases per pallet (air)	24 pc(s)
Master (outer) cases per pallet (sea)	40 pc(s)
Mean time between failures (MTBF)	294101 h
Memory type	DDR3-SDRAM
Montare in Rack	Da
Multicast Listener Discovery (MLD) snooping	MLD v1, MLD v2
Multicast support	Yes
Noise level	52.4 dB
Number of fans	2 fan(s)
Number of queues	8
Number of static routes	32
Number of VLANs	4094
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-5 - 50 °C
Package depth	521 mm
Package height	92 mm
Package weight	5.18 kg
Package width	365 mm
Packet buffer memory	1.5 MB
Pallet gross length	110 cm
Pallet gross weight (air)	419.7 kg
Pallet gross weight (sea)	682.9 kg
Pallet gross width	120 cm
Pallet height (air)	131.4 cm
Pallet height (sea)	2.1 m
PoE	Da
Port mirroring	Yes
Porturi RJ 45	24-28
Porturi SFP	3-4
Power consumption (typical)	27.49 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	24
Power source	AC/DC
Product colour	Black, Grey
Products per pallet (air)	72 pc(s)
Products per pallet (sea)	120 pc(s)
Products per shipping (inner) case	3 pc(s)
Quality of Service (QoS) support	Yes
Rack mounting	Yes
Rate limiting	Yes
Safety	CCC, CE LVD, UL/cUL
Security algorithms	802.1x RADIUS, SNMP, SSH
SFP module slots quantity	4
SFP+ module slots quantity	4
Shipping (inner) case gross weight	16.4 kg
Shipping (inner) case height	39.3 cm
Shipping (inner) case length	53.9 cm
Shipping (inner) case net weight	15.6 kg
Shipping (inner) case width	29.5 cm
Spanning tree protocol	Yes
SSH/SSL support	Yes
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 70 °C
Store-and-forward	Yes
Switch layer	L2
Switch type	Managed
Switching capacity	56 Gbit/s
System event log	Yes
Traffic classification	Yes
Virtual LAN features	Voice VLAN, Tagged VLAN, MAC address-based VLAN, Port-based VLAN
Viteza transfer	Gigabit
VLAN support	Yes
Web-based management	Yes
Weight	3.86 kg
Width	440 mm

Configurație

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

10G support: NoAC input frequency: 50 - 60 HzAC input voltage: 100 - 240 VAccess Control List (ACL): YesAccess Control List (ACL) rules: 256Authentication: Guest VLAN, MAC-based authentication, Port-based authentication
