D-LINK · NOD-DGS-1210-10P

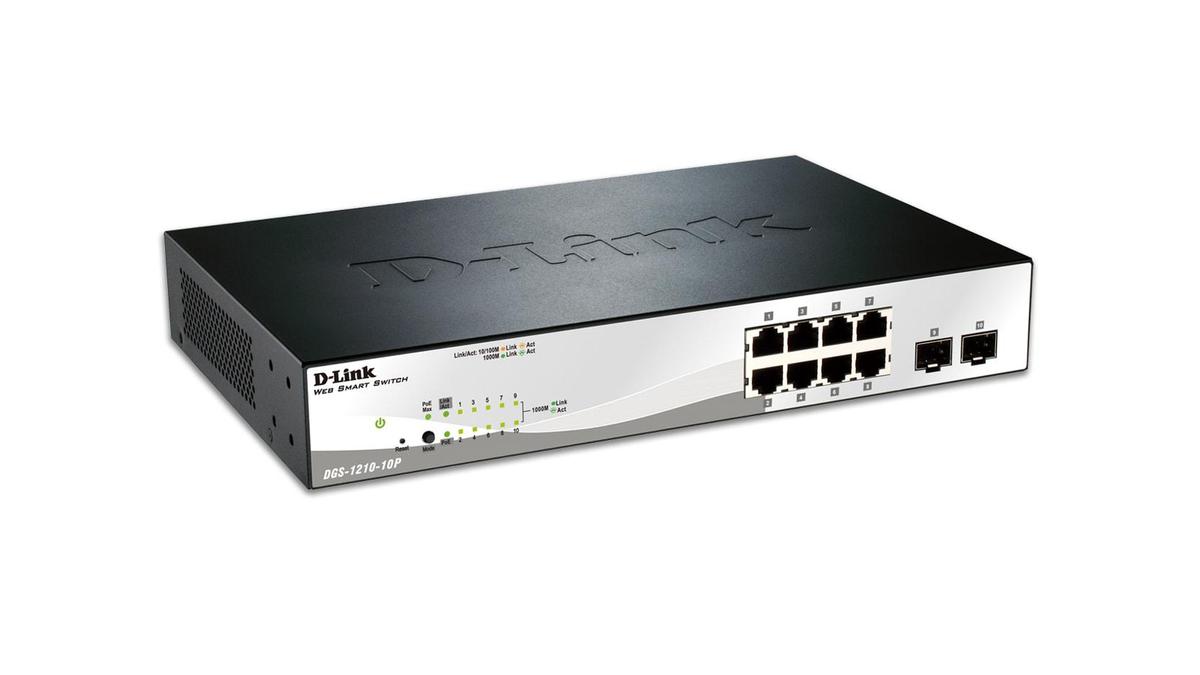

Switch D-Link DGS-1210-10P, 8 port, 10/100/1000 Mbps

Name: Switch D-Link DGS-1210-10P, 8 port, 10/100/1000 Mbps
Brand: D-LINK
SKU: NOD-DGS-1210-10P
Price: 947 RON
Availability: LimitedAvailability

Numar porturi 8x RJ-45 Porturi 8x RJ45<br/>2x SFP Viteza de transfer 10/100/1000 Mbps Management Da Putere consumata 109.6 W Alimentare 100-240V AC PoE Da PoE Budget 78 W Dimensiuni 280 x 180 x 44 mm Greutate 1.41 Kg Montare in rack 1U Functii LED Power, Fan Error, Link/Activity/Speed Memorie Buffer 1.5 MB Adrese MAC 16K Metoda forwarding 14.88 Mpps Routing/Switch Fabric 40 Gbps Standarde IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af

783 lei

prețuri fără TVA · 947 lei cu TVA

Disponibil la furnizor·termen de livrare confirmat la comandă

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.783 lei

D-LINK · NetworkingDoar pentru firme (B2B)

Switch D-Link DGS-1210-10P, 8 port, 10/100/1000 Mbps

SKU: NOD-DGS-1210-10P

10G support: No
Access Control List (ACL): Yes
Auto MDI/MDI-X: Yes
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Cable types supported: Cat5, Cat5e

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

783 leiprețuri fără TVA

Disponibil la furnizor·termen de livrare confirmat la comandă

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandD-LINK

Cod produsNOD-DGS-1210-10P

CategorieNetworking

10G supportNo

Access Control List (ACL)Yes

Auto MDI/MDI-XYes

Basic switching RJ-45 Ethernet ports quantity8

Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)

Cable types supportedCat5, Cat5e

CertificationEMI: CE Class A, VCCI Class A, FCC Class A, BSMI, CCC

Copper ethernet cabling technology10BASE-T, 100BASE-T, 1000BASE-T

Depth126 mm

Flow control supportYes

Form factor1U

Forwarding rate14.88 Mpps

Full duplexYes

Gigabit Ethernet (copper) ports quantity8

Harmonized System (HS) code85176990

Heat dissipation373.96 BTU/h

Height44 mm

Installed SFP modules quantity0

Installed SFP+ modules quantity0

LAN port typeGigabit

LED indicatorsYes

Link aggregationYes

MAC address filteringYes

MAC address table8000 entries

ManagementDa

Master (outer) cases per pallet (air)36 pc(s)

Master (outer) cases per pallet (sea)54 pc(s)

Mean time between failures (MTBF)729258 h

Montare in RackDa

Multicast supportYes

Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

Noise level0 dB

Operating relative humidity (H-H)0 - 95%

Operating temperature (T-T)-5 - 50 °C

Package depth331 mm

Package height72 mm

Package weight2.21 kg

Package width288 mm

Packet buffer memory0.512 MB

Pallet gross length110 cm

Pallet gross weight (air)449.5 kg

Pallet gross weight (sea)662 kg

Pallet gross width120 cm

Pallet height (air)140.3 cm

Pallet height (sea)2.04 m

PoEDa

Port mirroringYes

Porturi RJ 455-10

Porturi SFP1-2

Power connectorDC-in jack

Power consumption (max)80.6 W

Power over Ethernet (PoE)Yes

Power over Ethernet (PoE) ports quantity8

Power over Ethernet plus (PoE+) ports quantity2

Product colourBlack

Products per pallet (air)180 pc(s)

Products per pallet (sea)270 pc(s)

Products per shipping (inner) case5 pc(s)

Quality of Service (QoS) supportYes

Rack mountingYes

SFP module slots quantity2

SFP+ module slots quantity2

Shipping (inner) case gross weight11.8 kg

Shipping (inner) case height31.7 cm

Shipping (inner) case length38.2 cm

Shipping (inner) case net weight11.1 kg

Shipping (inner) case width34.6 cm

StackableYes

Storage relative humidity (H-H)0 - 95%

Storage temperature (T-T)-20 - 70 °C

Store-and-forwardYes

Switch layerL2

Switch typeManaged

Switching capacity20 Gbit/s

Total Power over Ethernet (PoE) budget78 W

Viteza transferGigabit

Web-based managementYes

Weight950 g

Width280 mm

Specificații

Brand	D-LINK
Cod produs	NOD-DGS-1210-10P
Categorie	Networking
Garanție	Se confirmă la ofertare
Livrare	termen de livrare confirmat la comandă
10G support	No
Access Control List (ACL)	Yes
Auto MDI/MDI-X	Yes
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Cable types supported	Cat5, Cat5e
Certification	EMI: CE Class A, VCCI Class A, FCC Class A, BSMI, CCC
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Depth	126 mm
Flow control support	Yes
Form factor	1U
Forwarding rate	14.88 Mpps
Full duplex	Yes
Gigabit Ethernet (copper) ports quantity	8
Harmonized System (HS) code	85176990
Heat dissipation	373.96 BTU/h
Height	44 mm
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
LAN port type	Gigabit
LED indicators	Yes
Link aggregation	Yes
MAC address filtering	Yes
MAC address table	8000 entries
Management	Da
Master (outer) cases per pallet (air)	36 pc(s)
Master (outer) cases per pallet (sea)	54 pc(s)
Mean time between failures (MTBF)	729258 h
Montare in Rack	Da
Multicast support	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Noise level	0 dB
Operating relative humidity (H-H)	0 - 95%
Operating temperature (T-T)	-5 - 50 °C
Package depth	331 mm
Package height	72 mm
Package weight	2.21 kg
Package width	288 mm
Packet buffer memory	0.512 MB
Pallet gross length	110 cm
Pallet gross weight (air)	449.5 kg
Pallet gross weight (sea)	662 kg
Pallet gross width	120 cm
Pallet height (air)	140.3 cm
Pallet height (sea)	2.04 m
PoE	Da
Port mirroring	Yes
Porturi RJ 45	5-10
Porturi SFP	1-2
Power connector	DC-in jack
Power consumption (max)	80.6 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	8
Power over Ethernet plus (PoE+) ports quantity	2
Product colour	Black
Products per pallet (air)	180 pc(s)
Products per pallet (sea)	270 pc(s)
Products per shipping (inner) case	5 pc(s)
Quality of Service (QoS) support	Yes
Rack mounting	Yes
SFP module slots quantity	2
SFP+ module slots quantity	2
Shipping (inner) case gross weight	11.8 kg
Shipping (inner) case height	31.7 cm
Shipping (inner) case length	38.2 cm
Shipping (inner) case net weight	11.1 kg
Shipping (inner) case width	34.6 cm
Stackable	Yes
Storage relative humidity (H-H)	0 - 95%
Storage temperature (T-T)	-20 - 70 °C
Store-and-forward	Yes
Switch layer	L2
Switch type	Managed
Switching capacity	20 Gbit/s
Total Power over Ethernet (PoE) budget	78 W
Viteza transfer	Gigabit
Web-based management	Yes
Weight	950 g
Width	280 mm

Configurație

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

10G support: NoAccess Control List (ACL): YesAuto MDI/MDI-X: YesBasic switching RJ-45 Ethernet ports quantity: 8Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)Cable types supported: Cat5, Cat5e
