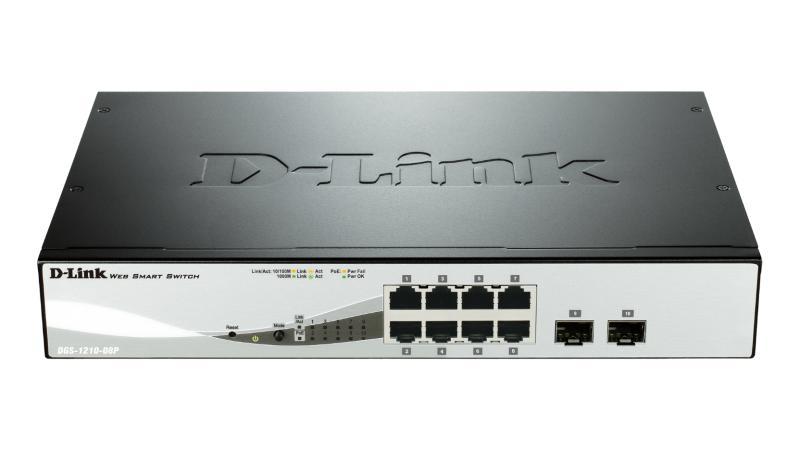

Switch D-Link DGS-1210-08P, 8 port, 10/100/1000 Mbps

D-LINK · NOD-DGS-1210-08P

Switch D-Link DGS-1210-08P, 8 port, 10/100/1000 Mbps

Name: Switch D-Link DGS-1210-08P, 8 port, 10/100/1000 Mbps
Brand: D-LINK
SKU: NOD-DGS-1210-08P
Price: 1629 RON
Availability: BackOrder

<table><tbody><tr><td>Numar porturi</td><td> 8x RJ-45 </td></tr><tr><td>Porturi</td><td> 8x RJ45<br/>2x SFP </td></tr><tr><td>Viteza de transfer</td><td> 10/100/1000 Mbps </td></tr><tr><td>Putere consumata</td><td> 60W </td></tr><tr><td>Alimentare</td><td> 10 to 240 VAC </td></tr><tr><td>PoE</td><td> Da </td></tr><tr><td>PoE Budget</td><td> 45 W </td></tr><tr><td>Dimensiuni</td><td> 280 x 180 x 44 mm </td></tr><tr><td>Montare in rack</td><td> 19 inch </td></tr><tr><td>Functii LED</td><td> - Power (per device)<br/>- Link/Activity/Speed/PoE (per 10/100/1000Base-T port)<br/>- Link/Activity/Speed (per SFP port)<br/>- Button to switch LED display mode between PoE and Link/Activity </td></tr><tr><td>Memorie Buffer</td><td> 6MB </td></tr><tr><td>Adrese MAC</td><td> 16K </td></tr></tbody></table>

1.346 lei

prețuri fără TVA · 1.629 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.1.346 lei

D-LINK · NetworkingDoar pentru firme (B2B)

Switch D-Link DGS-1210-08P, 8 port, 10/100/1000 Mbps

SKU: NOD-DGS-1210-08P

10G support: Yes
Access Control List (ACL): Yes
Auto MDI/MDI-X: Yes
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Broadcast storm control: Yes

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

1.346 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandD-LINK

Cod produsNOD-DGS-1210-08P

CategorieNetworking

10G supportYes

Access Control List (ACL)Yes

Auto MDI/MDI-XYes

Basic switching RJ-45 Ethernet ports quantity8

Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)

Broadcast storm controlYes

Cable managementYes

CertificationCE Class A

Copper ethernet cabling technology10BASE-T, 100BASE-T, 1000BASE-T

Data link protocolsIP

Depth126 mm

DHCP featuresDHCP server, DHCP client

Flow control supportYes

Forwarding rate14.88 Mpps

Full duplexYes

Half duplexYes

Harmonized System (HS) code85176990

Head-of-line (HOL) blockingYes

Heat dissipation279.59 BTU/h

Height44 mm

IGMP snoopingYes

Input voltage54 V

Installed SFP modules quantity0

Installed SFP+ modules quantity0

Jumbo frames10000

Jumbo frames supportYes

LAN port typeGigabit

LED indicatorsYes

Link aggregationYes

MAC address filteringYes

MAC address table8000 entries

ManagementDa

Management protocolsSNMP, RMON

Master (outer) cases per pallet (air)36 pc(s)

Master (outer) cases per pallet (sea)54 pc(s)

Mean time between failures (MTBF)729258 h

Montare in RackDa

Multicast supportYes

Networking standardsIEEE 802.1D, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af

Operating relative humidity (H-H)0 - 95%

Operating temperature (T-T)-5 - 50 °C

Package depth331 mm

Package height72 mm

Package weight2.17 kg

Package width288 mm

Packet buffer memory4.1 MB

Packet transfer speed14.9 Mp/s

Pallet gross length110 cm

Pallet gross weight (air)436.1 kg

Pallet gross weight (sea)644.9 kg

Pallet gross width120 cm

Pallet height (air)140.3 cm

Pallet height (sea)2.04 m

PoEDa

Port mirroringYes

Porturi RJ 455-10

Porturi SFP1-2

Power consumption (max)81.9 W

Power consumption (typical)2.5 W

Power LEDYes

Power over Ethernet (PoE)Yes

Power over Ethernet plus (PoE+) ports quantity8

Power sourceDC

Product colourBlack

Products per pallet (air)180 pc(s)

Products per pallet (sea)270 pc(s)

Products per shipping (inner) case5 pc(s)

Quality of Service (QoS) supportYes

Rack mountingYes

SafetycUL, LVD

SFP module slots quantity2

SFP+ module slots quantity2

Shipping (inner) case gross weight11.6 kg

Shipping (inner) case height31.7 cm

Shipping (inner) case length38.2 cm

Shipping (inner) case net weight10.8 kg

Shipping (inner) case width34.6 cm

Spanning tree protocolYes

SSH/SSL supportYes

StackableYes

Static port securityYes

Storage relative humidity (H-H)0 - 95%

Storage temperature (T-T)-20 - 70 °C

Store-and-forwardYes

Switch layerL2/L3

Switch typeManaged

Switching capacity20 Gbit/s

System event logYes

Total Power over Ethernet (PoE) budget65 W

Viteza transferGigabit

VLAN supportYes

Web-based managementYes

Weight950 g

Width280 mm

Specificații

Brand	D-LINK
Cod produs	NOD-DGS-1210-08P
Categorie	Networking
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
10G support	Yes
Access Control List (ACL)	Yes
Auto MDI/MDI-X	Yes
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Broadcast storm control	Yes
Cable management	Yes
Certification	CE Class A
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Data link protocols	IP
Depth	126 mm
DHCP features	DHCP server, DHCP client
Flow control support	Yes
Forwarding rate	14.88 Mpps
Full duplex	Yes
Half duplex	Yes
Harmonized System (HS) code	85176990
Head-of-line (HOL) blocking	Yes
Heat dissipation	279.59 BTU/h
Height	44 mm
IGMP snooping	Yes
Input voltage	54 V
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Jumbo frames	10000
Jumbo frames support	Yes
LAN port type	Gigabit
LED indicators	Yes
Link aggregation	Yes
MAC address filtering	Yes
MAC address table	8000 entries
Management	Da
Management protocols	SNMP, RMON
Master (outer) cases per pallet (air)	36 pc(s)
Master (outer) cases per pallet (sea)	54 pc(s)
Mean time between failures (MTBF)	729258 h
Montare in Rack	Da
Multicast support	Yes
Networking standards	IEEE 802.1D, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af
Operating relative humidity (H-H)	0 - 95%
Operating temperature (T-T)	-5 - 50 °C
Package depth	331 mm
Package height	72 mm
Package weight	2.17 kg
Package width	288 mm
Packet buffer memory	4.1 MB
Packet transfer speed	14.9 Mp/s
Pallet gross length	110 cm
Pallet gross weight (air)	436.1 kg
Pallet gross weight (sea)	644.9 kg
Pallet gross width	120 cm
Pallet height (air)	140.3 cm
Pallet height (sea)	2.04 m
PoE	Da
Port mirroring	Yes
Porturi RJ 45	5-10
Porturi SFP	1-2
Power consumption (max)	81.9 W
Power consumption (typical)	2.5 W
Power LED	Yes
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Power source	DC
Product colour	Black
Products per pallet (air)	180 pc(s)
Products per pallet (sea)	270 pc(s)
Products per shipping (inner) case	5 pc(s)
Quality of Service (QoS) support	Yes
Rack mounting	Yes
Safety	cUL, LVD
SFP module slots quantity	2
SFP+ module slots quantity	2
Shipping (inner) case gross weight	11.6 kg
Shipping (inner) case height	31.7 cm
Shipping (inner) case length	38.2 cm
Shipping (inner) case net weight	10.8 kg
Shipping (inner) case width	34.6 cm
Spanning tree protocol	Yes
SSH/SSL support	Yes
Stackable	Yes
Static port security	Yes
Storage relative humidity (H-H)	0 - 95%
Storage temperature (T-T)	-20 - 70 °C
Store-and-forward	Yes
Switch layer	L2/L3
Switch type	Managed
Switching capacity	20 Gbit/s
System event log	Yes
Total Power over Ethernet (PoE) budget	65 W
Viteza transfer	Gigabit
VLAN support	Yes
Web-based management	Yes
Weight	950 g
Width	280 mm

Configurație

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

10G support: YesAccess Control List (ACL): YesAuto MDI/MDI-X: YesBasic switching RJ-45 Ethernet ports quantity: 8Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)Broadcast storm control: Yes
