D-LINK · NOD-DGS-1100-05PDV2

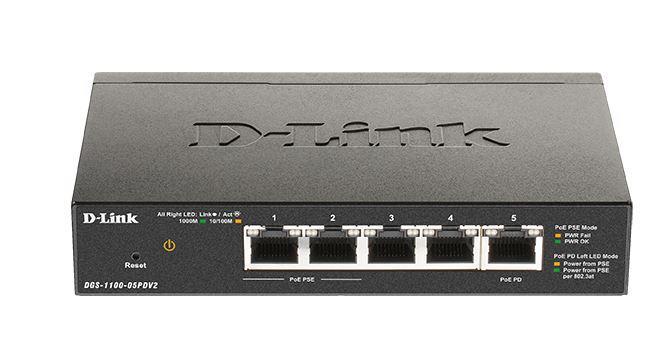

Switch D-Link DGS-1100-05PDV2, 5 port, 10/100/1000 Mbps

Name: Switch D-Link DGS-1100-05PDV2, 5 port, 10/100/1000 Mbps
Brand: D-LINK
SKU: NOD-DGS-1100-05PDV2
Price: 639 RON
Availability: BackOrder

D-Link Switch DGS-1100-05PDV2, 5 porturi Gigabit, 2 x 10/100/1000 Mbps(PoE), 3 x 10/100/1000 Mbps, Switching Capacity 10 Gbps, IEEE 802.3af,0.38 kg, 150 x 97 x 28 mm, Fanless.

528 lei

prețuri fără TVA · 639 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.528 lei

D-LINK · NetworkingDoar pentru firme (B2B)

Switch D-Link DGS-1100-05PDV2, 5 port, 10/100/1000 Mbps

SKU: NOD-DGS-1100-05PDV2

10G support: No
Auto MDI/MDI-X: Yes
Auto-negotiation: Yes
Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Broadcast storm control: Yes

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

528 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandD-LINK

Cod produsNOD-DGS-1100-05PDV2

CategorieNetworking

10G supportNo

Auto MDI/MDI-XYes

Auto-negotiationYes

Basic switching RJ-45 Ethernet ports quantity5

Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)

Broadcast storm controlYes

Compliance certificatesBSMI, CB, Federal Communications Commission (FCC), Low Voltage Directive (LVD), VCCI

Depth97 mm

DHCP featuresDHCP client

Ethernet LAN data rates10000 Mbit/s

FanlessYes

Flash memory2 MB

Flow control supportYes

Forwarding rate7.44 Mpps

Full duplexYes

Gigabit Ethernet (copper) ports quantity5

Half duplexYes

Harmonized System (HS) code85176990

Head-of-line (HOL) blockingYes

Height28 mm

IGMP entries128

IGMP snoopingYes

Installed SFP modules quantity0

Installed SFP+ modules quantity0

Jumbo frames9216

LAN port typeGigabit

MAC address entriesStatic MAC address entries

MAC address table2000 entries

ManagementDa

Mean time between failures (MTBF)2357475 h

Montare in RackDa

Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x

Noise level0 dB

Number of queues4

Number of trunks1

Number of VLANs4094

Operating relative humidity (H-H)0 - 90%

Operating temperature (T-T)0 - 40 °C

Packet buffer memory1 MB

PoEDa

Port mirroringYes

Porturi RJ 455-10

Power consumption (max)24.08 W

Power consumption (typical)3.24 W

Power over Ethernet (PoE)Yes

Power over Ethernet (PoE) ports quantity2

Power over Ethernet (PoE) power per port18 W

Power sourcePoE

Power supply includedNo

Product colourBlack

Quality of Service (QoS) supportYes

Queue scheduling algorithmsWeighted Round Robin (WRR)

Rack mountingNo

SSH/SSL supportYes

Static port securityYes

Storage relative humidity (H-H)0 - 95%

Storage temperature (T-T)-40 - 70 °C

Switch typeManaged

Switching capacity10 Gbit/s

Virtual LAN featuresManagement VLAN, Port-based VLAN, Tagged VLAN, Voice VLAN

Viteza transfer10G+

VLAN supportYes

Web-based managementYes

Weight380 g

Width150 mm

Specificații

Brand	D-LINK
Cod produs	NOD-DGS-1100-05PDV2
Categorie	Networking
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
10G support	No
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Broadcast storm control	Yes
Compliance certificates	BSMI, CB, Federal Communications Commission (FCC), Low Voltage Directive (LVD), VCCI
Depth	97 mm
DHCP features	DHCP client
Ethernet LAN data rates	10000 Mbit/s
Fanless	Yes
Flash memory	2 MB
Flow control support	Yes
Forwarding rate	7.44 Mpps
Full duplex	Yes
Gigabit Ethernet (copper) ports quantity	5
Half duplex	Yes
Harmonized System (HS) code	85176990
Head-of-line (HOL) blocking	Yes
Height	28 mm
IGMP entries	128
IGMP snooping	Yes
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Jumbo frames	9216
LAN port type	Gigabit
MAC address entries	Static MAC address entries
MAC address table	2000 entries
Management	Da
Mean time between failures (MTBF)	2357475 h
Montare in Rack	Da
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Noise level	0 dB
Number of queues	4
Number of trunks	1
Number of VLANs	4094
Operating relative humidity (H-H)	0 - 90%
Operating temperature (T-T)	0 - 40 °C
Packet buffer memory	1 MB
PoE	Da
Port mirroring	Yes
Porturi RJ 45	5-10
Power consumption (max)	24.08 W
Power consumption (typical)	3.24 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	2
Power over Ethernet (PoE) power per port	18 W
Power source	PoE
Power supply included	No
Product colour	Black
Quality of Service (QoS) support	Yes
Queue scheduling algorithms	Weighted Round Robin (WRR)
Rack mounting	No
SSH/SSL support	Yes
Static port security	Yes
Storage relative humidity (H-H)	0 - 95%
Storage temperature (T-T)	-40 - 70 °C
Switch type	Managed
Switching capacity	10 Gbit/s
Virtual LAN features	Management VLAN, Port-based VLAN, Tagged VLAN, Voice VLAN
Viteza transfer	10G+
VLAN support	Yes
Web-based management	Yes
Weight	380 g
Width	150 mm

Configurație

D-Link Switch DGS-1100-05PDV2, 5 porturi Gigabit, 2 x 10/100/1000 Mbps(PoE), 3 x 10/100/1000 Mbps, Switching Capacity 10 Gbps, IEEE 802.3af,0.38 kg, 150 x 97 x 28 mm, Fanless.

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

D-Link Switch DGS-1100-05PDV2, 5 porturi Gigabit, 2 x 10/100/1000 Mbps(PoE), 3 x 10/100/1000 Mbps, Switching Capacity 10 Gbps, IEEE 802.3af,0.38 kg, 150 x 97 x 28 mm, Fanless.

10G support: NoAuto MDI/MDI-X: YesAuto-negotiation: YesBasic switching RJ-45 Ethernet ports quantity: 5Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)Broadcast storm control: Yes
