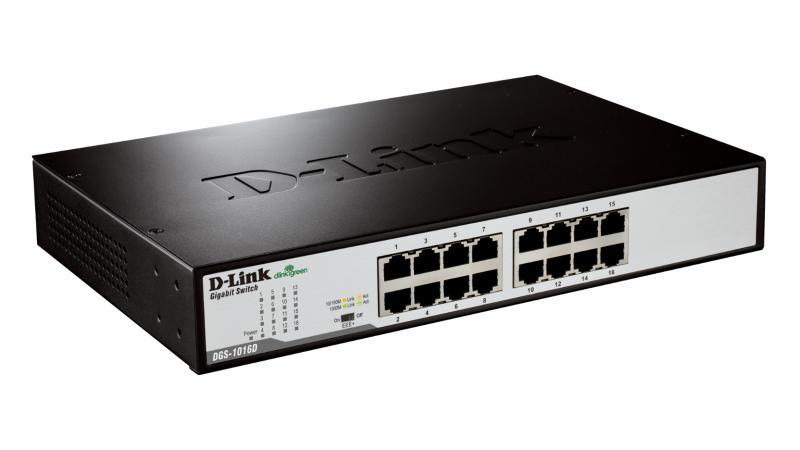

Switch D-Link DGS-1016D, 16 port, 10/100/1000 Mbps

D-LINK · NOD-DGS-1016D

Switch D-Link DGS-1016D, 16 port, 10/100/1000 Mbps

Name: Switch D-Link DGS-1016D, 16 port, 10/100/1000 Mbps
Brand: D-LINK
SKU: NOD-DGS-1016D
Price: 367 RON
Availability: LimitedAvailability

<table><tbody><tr><td>Numar porturi</td><td> 16x RJ-45 </td></tr><tr><td>Porturi</td><td> 16x RJ45 </td></tr><tr><td>Viteza de transfer</td><td> 10/100/1000 Mbps </td></tr><tr><td>Compatibilitate</td><td> 802.3 Ethernet<br/>802.3u Fast Ethernet<br/>802.3x Flow Control<br/>802.3ab Gigabit Ethernet </td></tr><tr><td>Putere consumata</td><td> 37.5 W </td></tr><tr><td>Alimentare</td><td> 100- 240VAC, 50/60Hz Internal Universal Power </td></tr><tr><td>Dimensiuni</td><td> 280 x 180 x 44mm </td></tr><tr><td>Greutate</td><td> 1.75 Kg </td></tr><tr><td>Functii LED</td><td> Per Unit: Power<br/>Per Port: Activity/Link, speed </td></tr><tr><td>Altele</td><td> MAC Address Table Size: 8K<br/>32Gbps Forwarding Capacity<br/>Store-and-forward<br/>Packet Buffer Memory On chip 512Kbytes Buffer Memory per device </td></tr></tbody></table>

303 lei

prețuri fără TVA · 367 lei cu TVA

Disponibil la furnizor·termen de livrare confirmat la comandă

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.303 lei

D-LINK · NetworkingDoar pentru firme (B2B)

Switch D-Link DGS-1016D, 16 port, 10/100/1000 Mbps

SKU: NOD-DGS-1016D

10G support: No
AC input frequency: 50 - 60 Hz
AC input voltage: 100 - 240 V
Active link detection: Yes
Auto MDI/MDI-X: Yes
Basic switching RJ-45 Ethernet ports quantity: 16

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

303 leiprețuri fără TVA

Disponibil la furnizor·termen de livrare confirmat la comandă

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandD-LINK

Cod produsNOD-DGS-1016D

CategorieNetworking

10G supportNo

AC input frequency50 - 60 Hz

AC input voltage100 - 240 V

Active link detectionYes

Auto MDI/MDI-XYes

Basic switching RJ-45 Ethernet ports quantity16

Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)

Broadcast storm controlYes

Cable types supportedCat3, Cat4, Cat5, Cat5e

CertificationcUL/UL CE LVD CCC CB BSMI

Copper ethernet cabling technology10BASE-T, 100BASE-T, 1000BASE-T

Depth125 mm

Electromagnetic compatibilityICES-003 Class A, FCC Class A, RCM Class A, BSMI Class A, CE Class A, VCCI A, CCC, KCC

Flow control supportYes

Form factor1U

Forwarding rate23.81 Mpps

Full duplexYes

Harmonized System (HS) code85176990

Heat dissipation34.3 BTU/h

Height44 mm

Housing materialMetal

Input current0.2 A

Installed SFP+ modules quantity0

Jumbo frames10000

Jumbo frames supportYes

LAN port typeGigabit

LED indicatorsActivity, Link, Power, Speed

MAC address auto-aging supportedYes

MAC address auto-learning supportedYes

MAC address table8000 entries

ManagementNu

Master (outer) cases per pallet (air)30 pc(s)

Master (outer) cases per pallet (sea)50 pc(s)

Maximum data transfer rate1 Gbit/s

Mean time between failures (MTBF)1882372 h

Montare in RackNu

Networking standardsIEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

Noise level0 dB

Number of queues8

Operating relative humidity (H-H)0 - 95%

Operating temperature (T-T)0 - 40 °C

Package depth328 mm

Package height108 mm

Package weight1.71 kg

Package width180 mm

Packet buffer memory0.5 MB

Packet forwarding rate (1 Gbps)14880 pps

Packet forwarding rate (10 Mbps)1488000 pps

Packet forwarding rate (100 Mbps)148800 pps

Pallet gross length110 cm

Pallet gross weight (air)295.7 kg

Pallet gross weight (sea)480.3 kg

Pallet gross width120 cm

Pallet height (air)121.2 cm

Pallet height (sea)193 cm

PoENu

Porturi RJ 4511-18

Power connectorAC-in jack

Power consumption (max)10.07 W

Power consumption (typical)11.7 W

Power over Ethernet (PoE)No

Power supply includedYes

Product colourBlack, Silver

Products per pallet (air)150 pc(s)

Products per pallet (sea)250 pc(s)

Products per shipping (inner) case5 pc(s)

Quality of Service (QoS) supportYes

Rack mountingYes

Shipping (inner) case gross weight9.21 kg

Shipping (inner) case height35.9 cm

Shipping (inner) case length57.2 cm

Shipping (inner) case net weight8.54 kg

Shipping (inner) case width19.7 cm

StackableYes

Storage relative humidity (H-H)0 - 95%

Storage temperature (T-T)-10 - 70 °C

Store-and-forwardYes

Switch typeUnmanaged

Switching capacity32 Gbit/s

Viteza transferGigabit

Weight1.02 kg

Width280 mm

Specificații

Brand	D-LINK
Cod produs	NOD-DGS-1016D
Categorie	Networking
Garanție	Se confirmă la ofertare
Livrare	termen de livrare confirmat la comandă
10G support	No
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Active link detection	Yes
Auto MDI/MDI-X	Yes
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Broadcast storm control	Yes
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Certification	cUL/UL CE LVD CCC CB BSMI
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Depth	125 mm
Electromagnetic compatibility	ICES-003 Class A, FCC Class A, RCM Class A, BSMI Class A, CE Class A, VCCI A, CCC, KCC
Flow control support	Yes
Form factor	1U
Forwarding rate	23.81 Mpps
Full duplex	Yes
Harmonized System (HS) code	85176990
Heat dissipation	34.3 BTU/h
Height	44 mm
Housing material	Metal
Input current	0.2 A
Installed SFP+ modules quantity	0
Jumbo frames	10000
Jumbo frames support	Yes
LAN port type	Gigabit
LED indicators	Activity, Link, Power, Speed
MAC address auto-aging supported	Yes
MAC address auto-learning supported	Yes
MAC address table	8000 entries
Management	Nu
Master (outer) cases per pallet (air)	30 pc(s)
Master (outer) cases per pallet (sea)	50 pc(s)
Maximum data transfer rate	1 Gbit/s
Mean time between failures (MTBF)	1882372 h
Montare in Rack	Nu
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Noise level	0 dB
Number of queues	8
Operating relative humidity (H-H)	0 - 95%
Operating temperature (T-T)	0 - 40 °C
Package depth	328 mm
Package height	108 mm
Package weight	1.71 kg
Package width	180 mm
Packet buffer memory	0.5 MB
Packet forwarding rate (1 Gbps)	14880 pps
Packet forwarding rate (10 Mbps)	1488000 pps
Packet forwarding rate (100 Mbps)	148800 pps
Pallet gross length	110 cm
Pallet gross weight (air)	295.7 kg
Pallet gross weight (sea)	480.3 kg
Pallet gross width	120 cm
Pallet height (air)	121.2 cm
Pallet height (sea)	193 cm
PoE	Nu
Porturi RJ 45	11-18
Power connector	AC-in jack
Power consumption (max)	10.07 W
Power consumption (typical)	11.7 W
Power over Ethernet (PoE)	No
Power supply included	Yes
Product colour	Black, Silver
Products per pallet (air)	150 pc(s)
Products per pallet (sea)	250 pc(s)
Products per shipping (inner) case	5 pc(s)
Quality of Service (QoS) support	Yes
Rack mounting	Yes
Shipping (inner) case gross weight	9.21 kg
Shipping (inner) case height	35.9 cm
Shipping (inner) case length	57.2 cm
Shipping (inner) case net weight	8.54 kg
Shipping (inner) case width	19.7 cm
Stackable	Yes
Storage relative humidity (H-H)	0 - 95%
Storage temperature (T-T)	-10 - 70 °C
Store-and-forward	Yes
Switch type	Unmanaged
Switching capacity	32 Gbit/s
Viteza transfer	Gigabit
Weight	1.02 kg
Width	280 mm
