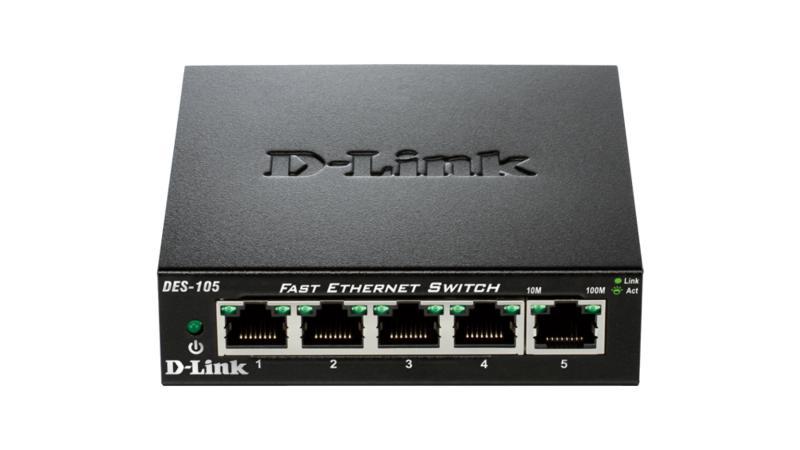

Switch D-Link DES-105, 5 port, 10/100 Mbps

D-LINK · NOD-DES-105

Switch D-Link DES-105, 5 port, 10/100 Mbps

Name: Switch D-Link DES-105, 5 port, 10/100 Mbps
Brand: D-LINK
SKU: NOD-DES-105
Price: 175 RON
Availability: BackOrder

<table><tbody><tr><td>General</td></tr><tr><td>Numar porturi</td><td> 5x RJ-45 </td></tr><tr><td>Porturi</td><td> 5x RJ45 </td></tr><tr><td>Viteza de transfer</td><td> 10/100 Mbps </td></tr><tr><td>Putere consumata</td><td> DC input: 2.01 W<br/>AC input: 3.10 W </td></tr><tr><td>Dimensiuni</td><td> 100 x 98 x 28 mm </td></tr><tr><td>Greutate</td><td> 265 g </td></tr><tr><td>Functii LED</td><td> Per port: Link/Activity<br/>Per device: Power </td></tr><tr><td>Memorie</td><td> 384 KB RAM </td></tr><tr><td>Adrese MAC</td><td> 2K </td></tr></tbody></table>

145 lei

prețuri fără TVA · 175 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.145 lei

D-LINK · NetworkingDoar pentru firme (B2B)

Switch D-Link DES-105, 5 port, 10/100 Mbps

SKU: NOD-DES-105

10G support: No
Auto MDI/MDI-X: Yes
Basic switching RJ-45 Ethernet ports quantity: 5
Certification: RoHS, FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB
Connectivity technology: Wired
Copper ethernet cabling technology: 100Base-TX, 10Base-T

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

145 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandD-LINK

Cod produsNOD-DES-105

CategorieNetworking

10G supportNo

Auto MDI/MDI-XYes

Basic switching RJ-45 Ethernet ports quantity5

CertificationRoHS, FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB

Connectivity technologyWired

Copper ethernet cabling technology100Base-TX, 10Base-T

Data transfer rate200 Mbit/s

Depth98 mm

Dimensions (WxDxH)100 x 98 x 28 mm

Flow control supportYes

Full duplexYes

Harmonized System (HS) code85176990

Height28 mm

Housing materialMetal

Input current1 A

Input voltage5 V

Jumbo frames supportYes

LAN port typeFastEthernet

LED indicatorsLink, Power, Yes

MAC address filteringYes

MAC address table2000 entries

ManagementNu

Master (outer) cases per pallet (air)75 pc(s)

Master (outer) cases per pallet (sea)75 pc(s)

Maximum data transfer rate0.1 Gbit/s

Mean time between failures (MTBF)495709 h

Montare in RackNu

Networking standardsIEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x

Operating relative humidity (H-H)10 - 90%

Operating temperature (T-T)0 - 50 °C

Package depth220 mm

Package height62 mm

Package weight450 g

Package width170 mm

Packet buffer memory0.384 MB

Pallet gross length120 cm

Pallet gross weight (air)434 kg

Pallet gross weight (sea)434 kg

Pallet gross width110 cm

Pallet height (air)2.04 m

Pallet height (sea)2.04 m

PoENu

Porturi RJ 455-10

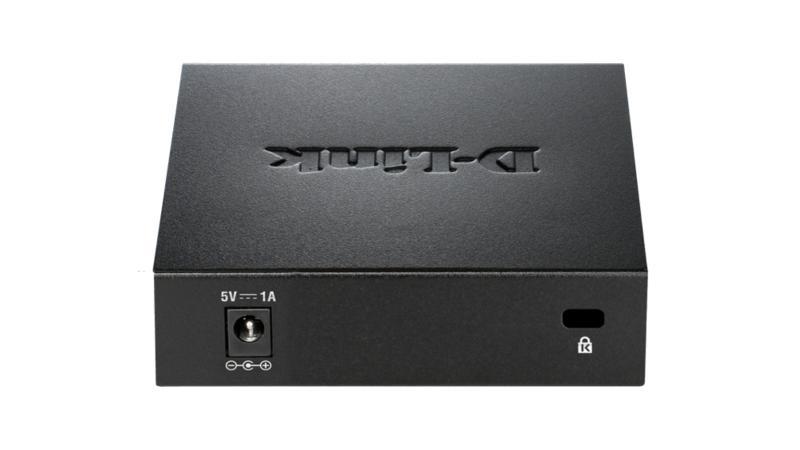

Power connectorDC-in jack

Power consumption (typical)3.10 W

Power over Ethernet (PoE)No

Product colourBlack

Products per pallet (air)750 pc(s)

Products per pallet (sea)750 pc(s)

Products per shipping (inner) case10 pc(s)

Quality of Service (QoS) supportYes

Rack mountingNo

Shipping (inner) case gross weight5.5 kg

Shipping (inner) case height36.6 cm

Shipping (inner) case length33.5 cm

Shipping (inner) case net weight4.5 kg

Shipping (inner) case width23 cm

Storage relative humidity (H-H)5 - 90%

Storage temperature (T-T)-10 - 70 °C

Store-and-forwardYes

Supported data transfer rates10/100 Mbps

Switch layerL2

Switch typeUnmanaged

Switching capacity1 Gbit/s

Viteza transferFast Ethernet

Weight265 g

Width100 mm

Specificații

Brand	D-LINK
Cod produs	NOD-DES-105
Categorie	Networking
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
10G support	No
Auto MDI/MDI-X	Yes
Basic switching RJ-45 Ethernet ports quantity	5
Certification	RoHS, FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB
Connectivity technology	Wired
Copper ethernet cabling technology	100Base-TX, 10Base-T
Data transfer rate	200 Mbit/s
Depth	98 mm
Dimensions (WxDxH)	100 x 98 x 28 mm
Flow control support	Yes
Full duplex	Yes
Harmonized System (HS) code	85176990
Height	28 mm
Housing material	Metal
Input current	1 A
Input voltage	5 V
Jumbo frames support	Yes
LAN port type	FastEthernet
LED indicators	Link, Power, Yes
MAC address filtering	Yes
MAC address table	2000 entries
Management	Nu
Master (outer) cases per pallet (air)	75 pc(s)
Master (outer) cases per pallet (sea)	75 pc(s)
Maximum data transfer rate	0.1 Gbit/s
Mean time between failures (MTBF)	495709 h
Montare in Rack	Nu
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 50 °C
Package depth	220 mm
Package height	62 mm
Package weight	450 g
Package width	170 mm
Packet buffer memory	0.384 MB
Pallet gross length	120 cm
Pallet gross weight (air)	434 kg
Pallet gross weight (sea)	434 kg
Pallet gross width	110 cm
Pallet height (air)	2.04 m
Pallet height (sea)	2.04 m
PoE	Nu
Porturi RJ 45	5-10
Power connector	DC-in jack
Power consumption (typical)	3.10 W
Power over Ethernet (PoE)	No
Product colour	Black
Products per pallet (air)	750 pc(s)
Products per pallet (sea)	750 pc(s)
Products per shipping (inner) case	10 pc(s)
Quality of Service (QoS) support	Yes
Rack mounting	No
Shipping (inner) case gross weight	5.5 kg
Shipping (inner) case height	36.6 cm
Shipping (inner) case length	33.5 cm
Shipping (inner) case net weight	4.5 kg
Shipping (inner) case width	23 cm
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-10 - 70 °C
Store-and-forward	Yes
Supported data transfer rates	10/100 Mbps
Switch layer	L2
Switch type	Unmanaged
Switching capacity	1 Gbit/s
Viteza transfer	Fast Ethernet
Weight	265 g
Width	100 mm

Configurație

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

10G support: NoAuto MDI/MDI-X: YesBasic switching RJ-45 Ethernet ports quantity: 5Certification: RoHS, FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CBConnectivity technology: WiredCopper ethernet cabling technology: 100Base-TX, 10Base-T
