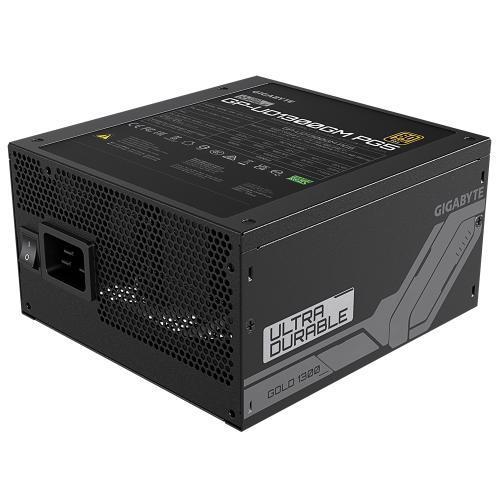

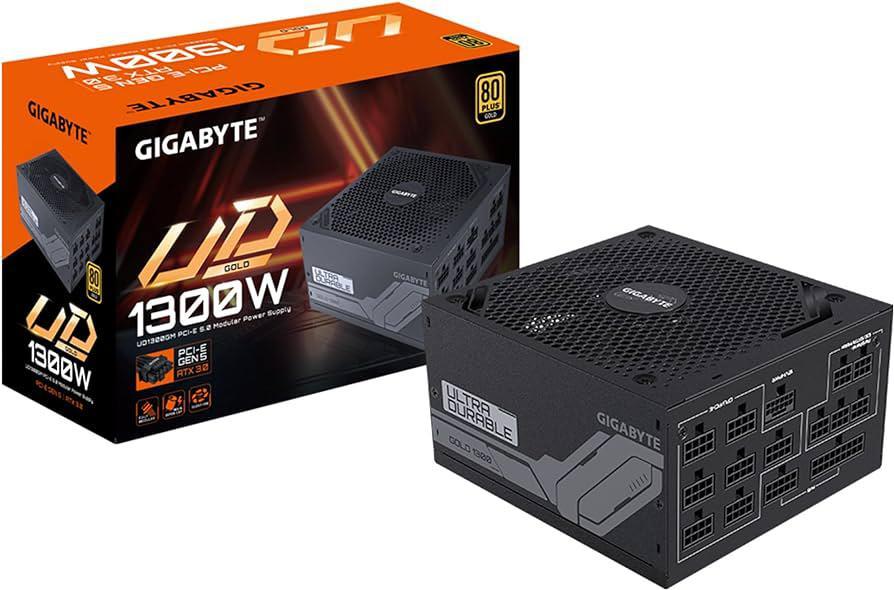

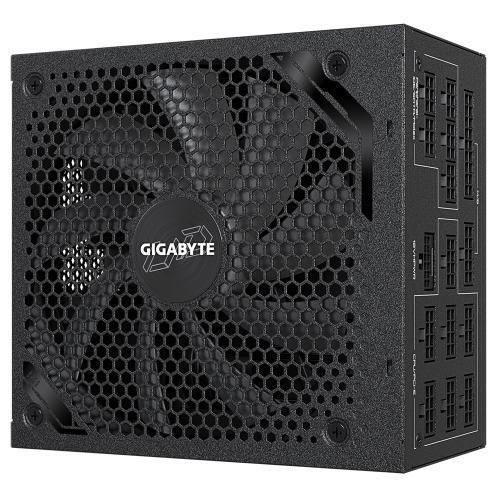

Sursa GIGABYTE UD1300GM PG5, 80+ Gold, 1300W

GIGABYTE · NOD-GP-UD1300GM PG5

Sursa GIGABYTE UD1300GM PG5, 80+ Gold, 1300W

Name: Sursa GIGABYTE UD1300GM PG5, 80+ Gold, 1300W
Brand: GIGABYTE
SKU: NOD-GP-UD1300GM PG5
Price: 1471 RON
Availability: BackOrder

Sursa GIGABYTE UD1300GM PG5, Active PFC (>0.9 typical), 1300W 80 PLUS GOLD, 140mm double ball bearing fan

1.216 lei

prețuri fără TVA · 1.471 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.1.216 lei

GIGABYTE · Laptopuri & PCDoar pentru firme (B2B)

Sursa GIGABYTE UD1300GM PG5, 80+ Gold, 1300W

SKU: NOD-GP-UD1300GM PG5

80 PLUS certification: 80 PLUS Gold
AC input frequency: 50 - 60 Hz
AC input voltage: 100 - 240 V
ATX power connector (20+4 pin): Yes
Cable tie(s) included: Yes
Cables included: CPU, PATA, Peripheral (Molex), SATA

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

1.216 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandGIGABYTE

Cod produsNOD-GP-UD1300GM PG5

CategorieLaptopuri & PC

80 PLUS certification80 PLUS Gold

AC input frequency50 - 60 Hz

AC input voltage100 - 240 V

ATX power connector (20+4 pin)Yes

Cable tie(s) includedYes

Cables includedCPU, PATA, Peripheral (Molex), SATA

Cabling typeFully-Modular

Certificare 80 Plus80 PLUS Gold

Combined power (+12V)1300 W

Combined power (+3.3V)125 W

Combined power (+5V)125 W

Combined power (+5Vsb)17.5 W

Combined power (-12V)3.6 W

Compliance certificatesCCC, CE, Federal Communications Commission (FCC), RoHS

ConectivitateFull - Modular

Cooling typeActive

CPU power connector (4+4 pin)Yes

Depth160 mm

Efficiency90%

Fan diameter12 cm

Fan locationTop

Height86 mm

Hold time16 ms

IlluminationNo

Iluminare RGBNu

Input current12 - 6 A

Max output current (+12V)108.3 A

Max output current (+3.3V)25 A

Max output current (+5V)25 A

Max output current (+5Vsb)3.5 A

Max output current (-12V)0.3 A

Maximum input current (@110V)6 A

Maximum input current (@220V)12 A

Mean time between failures (MTBF)100000 h

Motherboard power cable length61 cm

Motherboard power connector20+4 pin ATX

Noise level40 dB

Number of fans1 fan(s)

Number of PATA power connectors3

Number of SATA power connectors8

Package typeBox

PCI Express connectorYes

PCI Express power cable length70 cm

PCI Express power connectors (16-pin)1

PCI Express power connectors (6+2 pin)4

Peripheral (Molex) power cable length200,600 mm

Peripheral (Molex) power connectors (4-pin)2

PFCActive

Power Factor Correction (PFC) typeActive

Power protection featuresOver current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Power supply unit (PSU) form factorATX

Product colourBlack

PSU Power1300W

PSU TypeATX

PurposePC

SATA power cable length150,600 mm

Total power1300 W

Warranty period5 year(s)

Width150 mm

Specificații

Brand	GIGABYTE
Cod produs	NOD-GP-UD1300GM PG5
Categorie	Laptopuri & PC
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
80 PLUS certification	80 PLUS Gold
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
ATX power connector (20+4 pin)	Yes
Cable tie(s) included	Yes
Cables included	CPU, PATA, Peripheral (Molex), SATA
Cabling type	Fully-Modular
Certificare 80 Plus	80 PLUS Gold
Combined power (+12V)	1300 W
Combined power (+3.3V)	125 W
Combined power (+5V)	125 W
Combined power (+5Vsb)	17.5 W
Combined power (-12V)	3.6 W
Compliance certificates	CCC, CE, Federal Communications Commission (FCC), RoHS
Conectivitate	Full - Modular
Cooling type	Active
CPU power connector (4+4 pin)	Yes
Depth	160 mm
Efficiency	90%
Fan diameter	12 cm
Fan location	Top
Height	86 mm
Hold time	16 ms
Illumination	No
Iluminare RGB	Nu
Input current	12 - 6 A
Max output current (+12V)	108.3 A
Max output current (+3.3V)	25 A
Max output current (+5V)	25 A
Max output current (+5Vsb)	3.5 A
Max output current (-12V)	0.3 A
Maximum input current (@110V)	6 A
Maximum input current (@220V)	12 A
Mean time between failures (MTBF)	100000 h
Motherboard power cable length	61 cm
Motherboard power connector	20+4 pin ATX
Noise level	40 dB
Number of fans	1 fan(s)
Number of PATA power connectors	3
Number of SATA power connectors	8
Package type	Box
PCI Express connector	Yes
PCI Express power cable length	70 cm
PCI Express power connectors (16-pin)	1
PCI Express power connectors (6+2 pin)	4
Peripheral (Molex) power cable length	200,600 mm
Peripheral (Molex) power connectors (4-pin)	2
PFC	Active
Power Factor Correction (PFC) type	Active
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power supply unit (PSU) form factor	ATX
Product colour	Black
PSU Power	1300W
PSU Type	ATX
Purpose	PC
SATA power cable length	150,600 mm
Total power	1300 W
Warranty period	5 year(s)
Width	150 mm

Configurație

Sursa GIGABYTE UD1300GM PG5, Active PFC (>0.9 typical), 1300W 80 PLUS GOLD, 140mm double ball bearing fan

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

Sursa GIGABYTE UD1300GM PG5, Active PFC (>0.9 typical), 1300W 80 PLUS GOLD, 140mm double ball bearing fan

80 PLUS certification: 80 PLUS GoldAC input frequency: 50 - 60 HzAC input voltage: 100 - 240 VATX power connector (20+4 pin): YesCable tie(s) included: YesCables included: CPU, PATA, Peripheral (Molex), SATA
