DEEPCOOL · NOD-R-PN650M-FC0B-EU

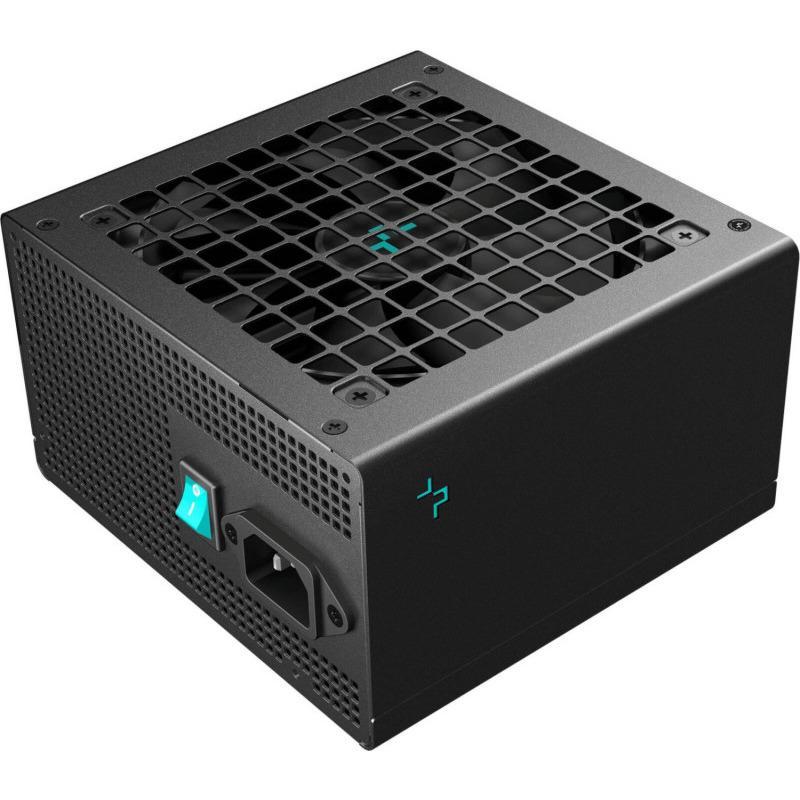

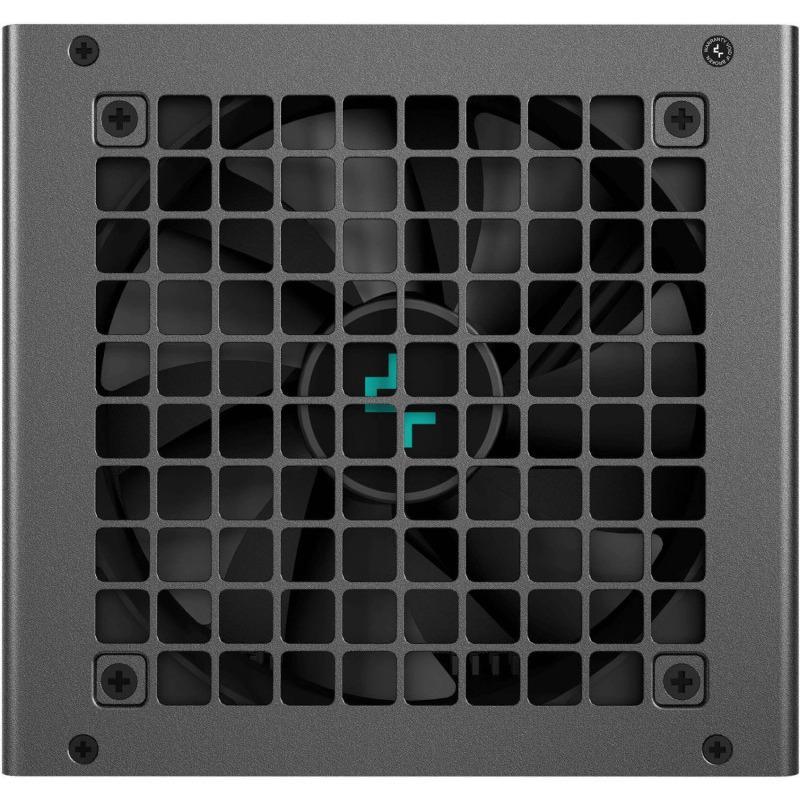

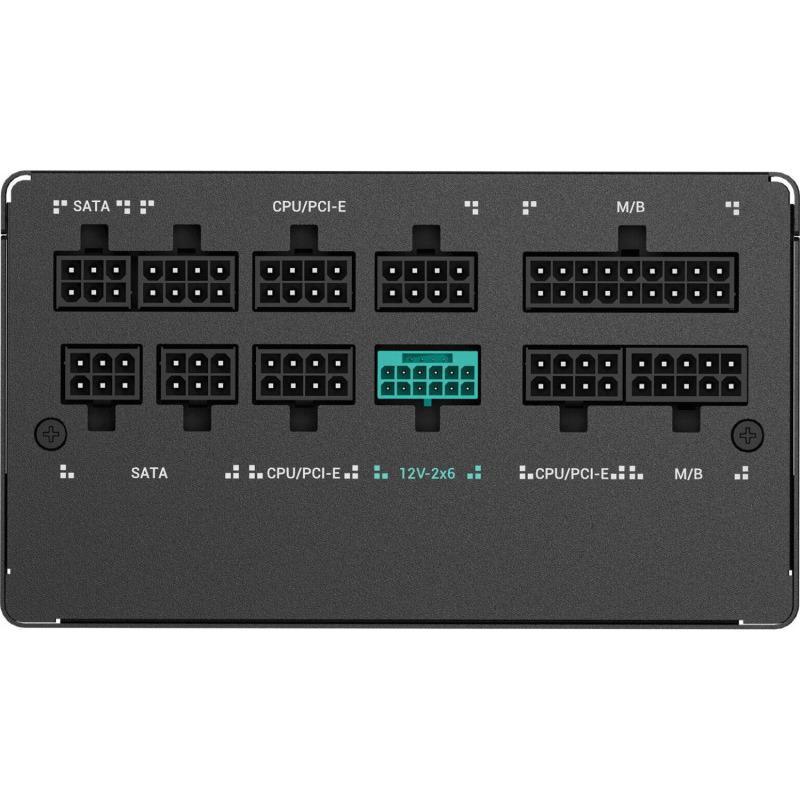

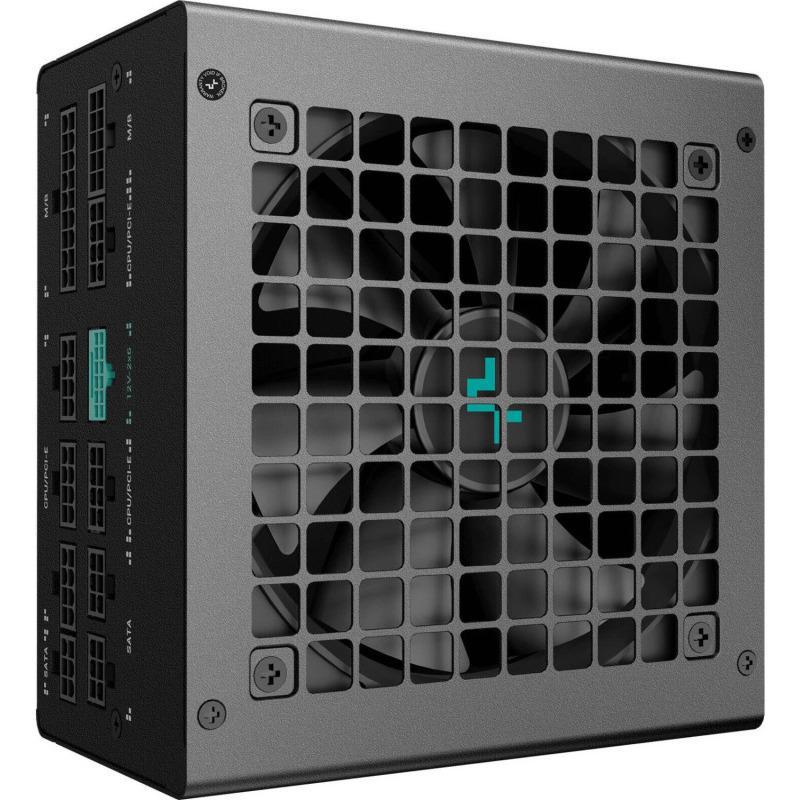

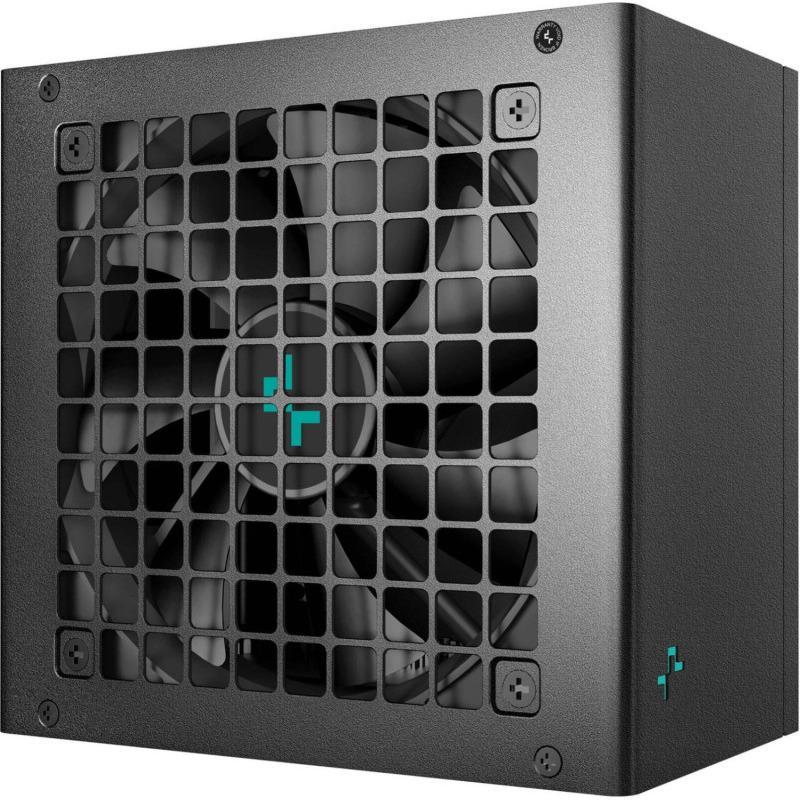

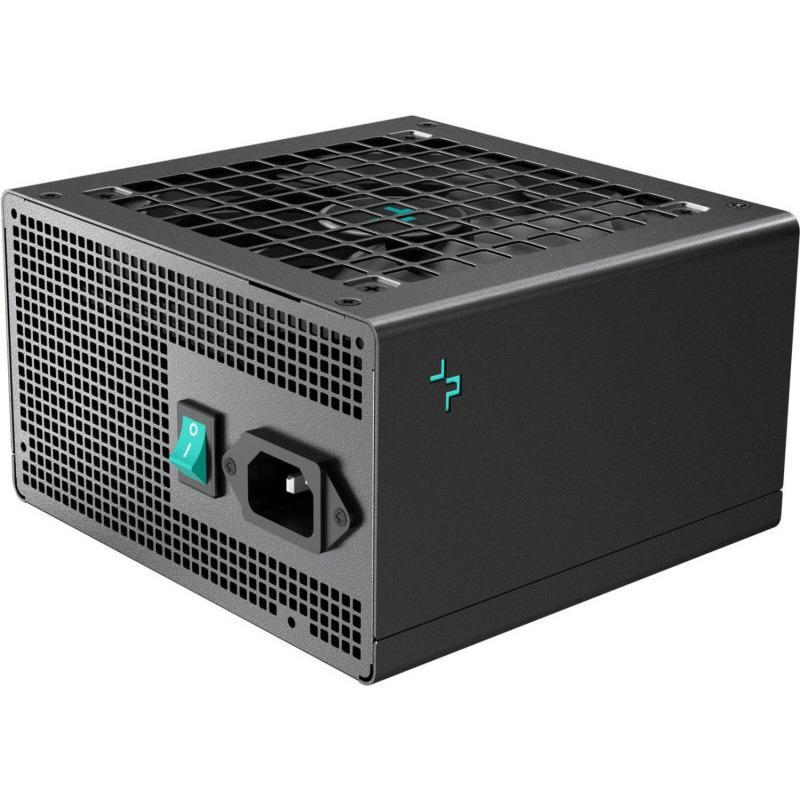

Sursa DEEPCOOL PN650M, 80+ Gold, 650W

Name: Sursa DEEPCOOL PN650M, 80+ Gold, 650W
Brand: DEEPCOOL
SKU: NOD-R-PN650M-FC0B-EU
Price: 635 RON
Availability: BackOrder

Sursa DEEPCOOL PN650M 650W 80 PLUS Gold, Active PFC+ Full Bridge SRC LLC+ DC to DC, Eficienta 90% sub incarcare tipica, Protectie OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO

525 lei

prețuri fără TVA · 635 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.525 lei

DEEPCOOL · Laptopuri & PCDoar pentru firme (B2B)

Sursa DEEPCOOL PN650M, 80+ Gold, 650W

SKU: NOD-R-PN650M-FC0B-EU

80 PLUS certification: 80 PLUS Gold
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V
ATX power connector (20+4 pin): Yes
ATX version: 3.1
Bearing technology: FDB

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

525 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandDEEPCOOL

Cod produsNOD-R-PN650M-FC0B-EU

CategorieLaptopuri & PC

80 PLUS certification80 PLUS Gold

AC input frequency50/60 Hz

AC input voltage100 - 240 V

ATX power connector (20+4 pin)Yes

ATX version3.1

Bearing technologyFDB

Cable tie(s) includedYes

Cables includedAC

Cabling typeFully-Modular

Certificare 80 Plus80 PLUS Gold

Combined power (+12V)648 W

Combined power (+3.3V)100 W

Combined power (+5V)100 W

Combined power (+5Vsb)15 W

Combined power (-12V)3.6 W

Compliance certificatesCCC, CE, EAC, Federal Communications Commission (FCC), RCM, RoHS, WEEE

ConectivitateFull - Modular

Cooling typeActive

CPU power cable length70 cm

CPU power connector (4+4 pin)Yes

Depth140 mm

Efficiency90%

Fan diameter12 cm

Fan locationTop

Height86 mm

Hold time16 ms

Iluminare RGBNu

Input current10 - 5 A

Max output current (+12V)54 A

Max output current (+3.3V)20 A

Max output current (+5V)20 A

Max output current (+5Vsb)3 A

Max output current (-12V)0.3 A

Mean time between failures (MTBF)100000 h

Motherboard power cable length55 cm

Motherboard power connector20+4 pin ATX

Number of fans1 fan(s)

Number of SATA power connectors8

On/off switchYes

Operating temperature (T-T)0 - 40 °C

Package typeBox

PCI Express power connectors (16-pin)1

PCI Express power connectors (6+2 pin)3

Peripheral (Molex) power cable length450 mm

Peripheral (Molex) power connectors (4-pin)2

PFCActive

Power Factor Correction (PFC) typeActive

Power supply unit (PSU) form factorATX

Product colourBlack

PSU Power650 W

PSU TypeATX

PurposePC

SATA power cable length550,750,450,650 mm

Sustainability certificatesTriman

Total power650 W

Warranty period10 year(s)

Width150 mm

Specificații

Brand	DEEPCOOL
Cod produs	NOD-R-PN650M-FC0B-EU
Categorie	Laptopuri & PC
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
80 PLUS certification	80 PLUS Gold
AC input frequency	50/60 Hz
AC input voltage	100 - 240 V
ATX power connector (20+4 pin)	Yes
ATX version	3.1
Bearing technology	FDB
Cable tie(s) included	Yes
Cables included	AC
Cabling type	Fully-Modular
Certificare 80 Plus	80 PLUS Gold
Combined power (+12V)	648 W
Combined power (+3.3V)	100 W
Combined power (+5V)	100 W
Combined power (+5Vsb)	15 W
Combined power (-12V)	3.6 W
Compliance certificates	CCC, CE, EAC, Federal Communications Commission (FCC), RCM, RoHS, WEEE
Conectivitate	Full - Modular
Cooling type	Active
CPU power cable length	70 cm
CPU power connector (4+4 pin)	Yes
Depth	140 mm
Efficiency	90%
Fan diameter	12 cm
Fan location	Top
Height	86 mm
Hold time	16 ms
Iluminare RGB	Nu
Input current	10 - 5 A
Max output current (+12V)	54 A
Max output current (+3.3V)	20 A
Max output current (+5V)	20 A
Max output current (+5Vsb)	3 A
Max output current (-12V)	0.3 A
Mean time between failures (MTBF)	100000 h
Motherboard power cable length	55 cm
Motherboard power connector	20+4 pin ATX
Number of fans	1 fan(s)
Number of SATA power connectors	8
On/off switch	Yes
Operating temperature (T-T)	0 - 40 °C
Package type	Box
PCI Express power connectors (16-pin)	1
PCI Express power connectors (6+2 pin)	3
Peripheral (Molex) power cable length	450 mm
Peripheral (Molex) power connectors (4-pin)	2
PFC	Active
Power Factor Correction (PFC) type	Active
Power supply unit (PSU) form factor	ATX
Product colour	Black
PSU Power	650 W
PSU Type	ATX
Purpose	PC
SATA power cable length	550,750,450,650 mm
Sustainability certificates	Triman
Total power	650 W
Warranty period	10 year(s)
Width	150 mm

Configurație

Sursa DEEPCOOL PN650M 650W 80 PLUS Gold, Active PFC+ Full Bridge SRC LLC+ DC to DC, Eficienta 90% sub incarcare tipica, Protectie OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

Sursa DEEPCOOL PN650M 650W 80 PLUS Gold, Active PFC+ Full Bridge SRC LLC+ DC to DC, Eficienta 90% sub incarcare tipica, Protectie OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO

80 PLUS certification: 80 PLUS GoldAC input frequency: 50/60 HzAC input voltage: 100 - 240 VATX power connector (20+4 pin): YesATX version: 3.1Bearing technology: FDB
