DEEPCOOL · NOD-R-PNA00M-FC0B-EU

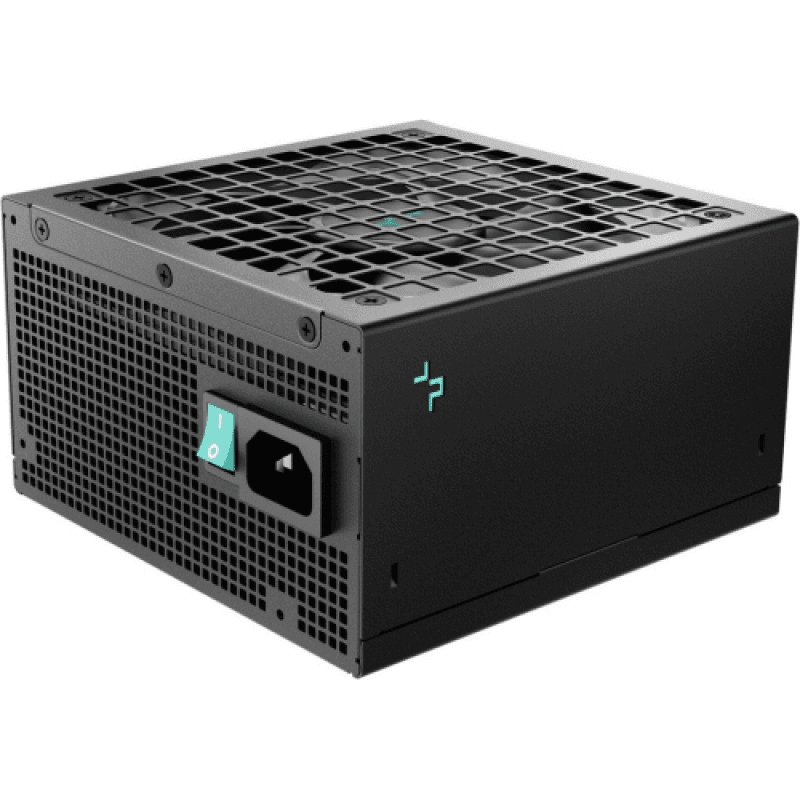

Sursa Deepcool PN1000-M, 80 PLUS Gold, 1000 W

Name: Sursa Deepcool PN1000-M, 80 PLUS Gold, 1000 W
Brand: DEEPCOOL
SKU: NOD-R-PNA00M-FC0B-EU
Price: 1002 RON
Availability: BackOrder

Sursa DEEPCOOL PN1000M 1000W 80 PLUS Gold, Active PFC+ Full Bridge SRC LLC+ DC to DC, Eficienta 90% sub incarcare tipica, Protectie OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO

828 lei

prețuri fără TVA · 1.002 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.828 lei

DEEPCOOL · Laptopuri & PCDoar pentru firme (B2B)

Sursa Deepcool PN1000-M, 80 PLUS Gold, 1000 W

SKU: NOD-R-PNA00M-FC0B-EU

+12V 1: 83.3 A
+3.3V: 22 A
+5V: 22 A
+5Vsb: 3 A
-12V: 0.3 A
12V-2x6 Pin PCI-E: 1

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

828 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandDEEPCOOL

Cod produsNOD-R-PNA00M-FC0B-EU

CategorieLaptopuri & PC

+12V 183.3 A

+3.3V22 A

+5V22 A

+5Vsb3 A

-12V0.3 A

12V-2x6 Pin PCI-E1

20+4 Pin ATX1

4+4 Pin ATX/EPS2

6+2 PCI-E3

80 PLUS certification80 PLUS Gold

AC input frequency50/60 Hz

ATX power connector (20+4 pin)Yes

ATX version3.1

Bearing technologyFDB

Cabling typeFully-Modular

Certificare80+ Gold

Certificare 80 Plus80 PLUS Gold

CertificationCE/FCC/CCC/TUV-RH/cTUVus/RCM/EAC/BIS

Compliance certificatesRoHS, WEEE

ConectivitateFull - Modular

Cooling typeActive

CPU power cable length70 cm

CPU power connector (4+4 pin)Yes

Depth150 mm

Dimensiuni150 x 86 x 150 mm

Efficiency90%

Eficienta90%

Fan diameter13.5 cm

Fan locationTop

Height86 mm

Hold time16 ms

Iluminare RGBNu

Mean time between failures (MTBF)100000 h

ModularYes

Molex2

Motherboard power cable length55 cm

Motherboard power connector20+4 pin ATX

Nivel zgomot24.12 dB(A)

Numar de ventilatoare1 x 135 mm

Number of fans1 fan(s)

Number of SATA power connectors8

On/off switchYes

Operating temperature (T-T)0 - 40 °C

PCI Express power connectors (16-pin)1

PCI Express power connectors (6+2 pin)3

Peripheral (Molex) power cable length930 mm

Peripheral (Molex) power connectors (4-pin)2

Permite AsamblarePremium

Permite Wire ManagementDa

PFCActive

Power Factor Correction (PFC) typeActive

Power Good signal delay range100 - 150 ms

Power supply unit (PSU) form factorATX

ProtectiiOPP, OVP, SCP, OTP, OCP, UVP, SIP, NLO

PSU Power1000 W

PSU TypeATX

PurposePC

Putere Sursa1000 W

Rail +12V1

Recomandat GamingDa

SATA8

SATA power cable length450,570,690,810 mm

Sursa ModularaDa, Full Modulara

Sustainability certificatesErP, Triman

Tip sursaATX 3.1

Total power1000 W

Width150 mm

Specificații

Brand	DEEPCOOL
Cod produs	NOD-R-PNA00M-FC0B-EU
Categorie	Laptopuri & PC
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
+12V 1	83.3 A
+3.3V	22 A
+5V	22 A
+5Vsb	3 A
-12V	0.3 A
12V-2x6 Pin PCI-E	1
20+4 Pin ATX	1
4+4 Pin ATX/EPS	2
6+2 PCI-E	3
80 PLUS certification	80 PLUS Gold
AC input frequency	50/60 Hz
ATX power connector (20+4 pin)	Yes
ATX version	3.1
Bearing technology	FDB
Cabling type	Fully-Modular
Certificare	80+ Gold
Certificare 80 Plus	80 PLUS Gold
Certification	CE/FCC/CCC/TUV-RH/cTUVus/RCM/EAC/BIS
Compliance certificates	RoHS, WEEE
Conectivitate	Full - Modular
Cooling type	Active
CPU power cable length	70 cm
CPU power connector (4+4 pin)	Yes
Depth	150 mm
Dimensiuni	150 x 86 x 150 mm
Efficiency	90%
Eficienta	90%
Fan diameter	13.5 cm
Fan location	Top
Height	86 mm
Hold time	16 ms
Iluminare RGB	Nu
Mean time between failures (MTBF)	100000 h
Modular	Yes
Molex	2
Motherboard power cable length	55 cm
Motherboard power connector	20+4 pin ATX
Nivel zgomot	24.12 dB(A)
Numar de ventilatoare	1 x 135 mm
Number of fans	1 fan(s)
Number of SATA power connectors	8
On/off switch	Yes
Operating temperature (T-T)	0 - 40 °C
PCI Express power connectors (16-pin)	1
PCI Express power connectors (6+2 pin)	3
Peripheral (Molex) power cable length	930 mm
Peripheral (Molex) power connectors (4-pin)	2
Permite Asamblare	Premium
Permite Wire Management	Da
PFC	Active
Power Factor Correction (PFC) type	Active
Power Good signal delay range	100 - 150 ms
Power supply unit (PSU) form factor	ATX
Protectii	OPP, OVP, SCP, OTP, OCP, UVP, SIP, NLO
PSU Power	1000 W
PSU Type	ATX
Purpose	PC
Putere Sursa	1000 W
Rail +12V	1
Recomandat Gaming	Da
SATA	8
SATA power cable length	450,570,690,810 mm
Sursa Modulara	Da, Full Modulara
Sustainability certificates	ErP, Triman
Tip sursa	ATX 3.1
Total power	1000 W
Width	150 mm

Configurație

Sursa DEEPCOOL PN1000M 1000W 80 PLUS Gold, Active PFC+ Full Bridge SRC LLC+ DC to DC, Eficienta 90% sub incarcare tipica, Protectie OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

Sursa DEEPCOOL PN1000M 1000W 80 PLUS Gold, Active PFC+ Full Bridge SRC LLC+ DC to DC, Eficienta 90% sub incarcare tipica, Protectie OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO

+12V 1: 83.3 A+3.3V: 22 A+5V: 22 A+5Vsb: 3 A-12V: 0.3 A12V-2x6 Pin PCI-E: 1
