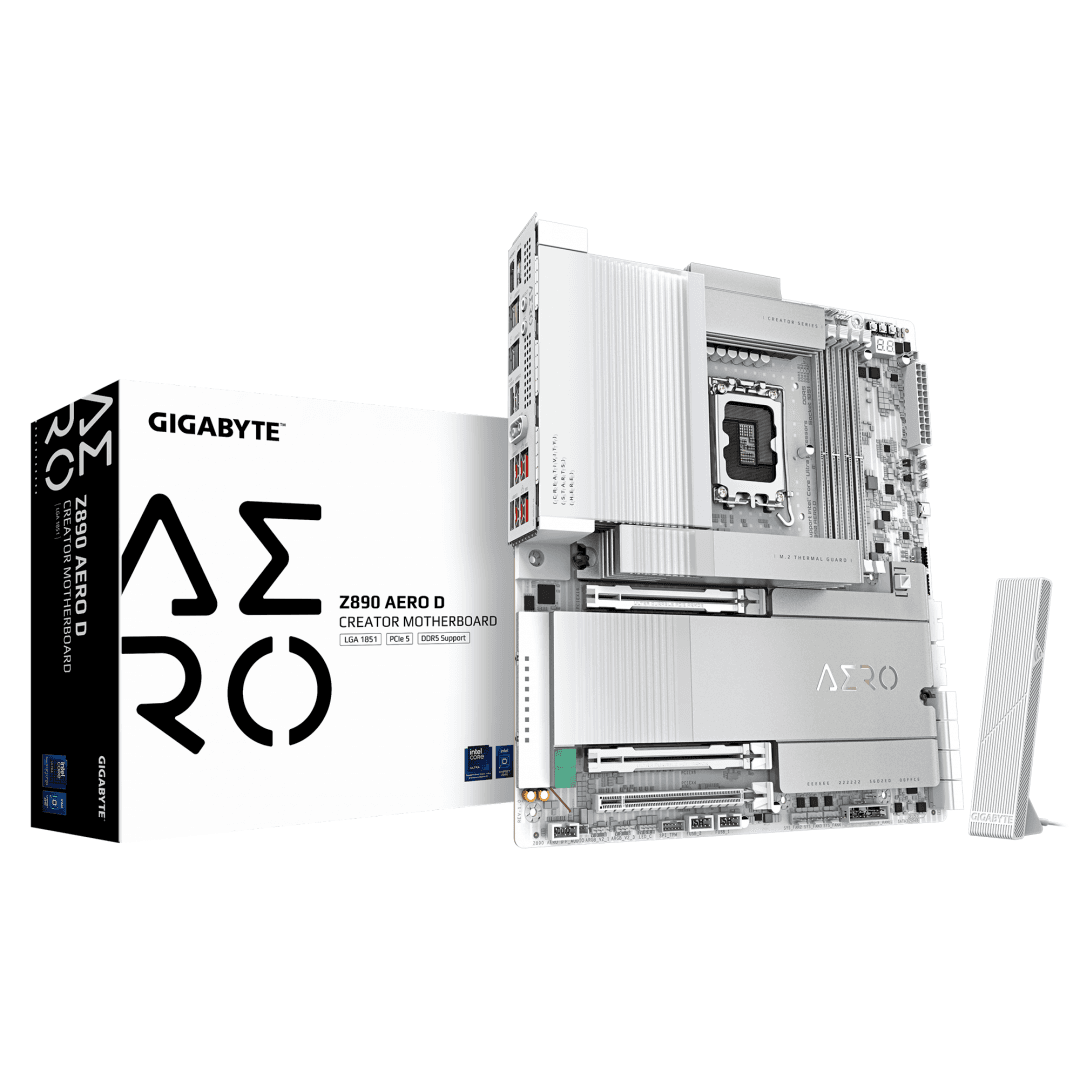

Placa de baza Gigabyte Z890 AERO D, Socket 1851, DDR5, E-ATX

GIGABYTE · NOD-Z890 AERO D

Placa de baza Gigabyte Z890 AERO D, Socket 1851, DDR5, E-ATX

Name: Placa de baza Gigabyte Z890 AERO D, Socket 1851, DDR5, E-ATX
Brand: GIGABYTE
SKU: NOD-Z890 AERO D
Price: 5070 RON
Availability: BackOrder

Placa de Baza GIGABYTE Z890 AERO D LGA1851, 4x DDR5, 2x Intel Thunderbolt 1x Front Intel Thunderbolt 1x HDMI, 3x PCIE x16, 4x M.2, 4x SATA 6GB/s, E-ATX

4.190 lei

prețuri fără TVA · 5.070 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.4.190 lei

GIGABYTE · ComponenteDoar pentru firme (B2B)

Placa de baza Gigabyte Z890 AERO D, Socket 1851, DDR5, E-ATX

SKU: NOD-Z890 AERO D

Bluetooth: Nu
1st M.2 highest PCI Express generation: 5.0
1st M.2 largest key size: 25110
2nd M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 25110
3rd M.2 highest PCI Express generation: 4.0

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

4.190 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandGIGABYTE

Cod produsNOD-Z890 AERO D

CategorieComponente

BluetoothNu

1st M.2 highest PCI Express generation5.0

1st M.2 largest key size25110

2nd M.2 highest PCI Express generation4.0

2nd M.2 largest key size25110

3rd M.2 highest PCI Express generation4.0

3rd M.2 largest key size22110

4th M.2 highest PCI Express generation4.0

4th M.2 largest key size22110

ACPI version5.0

Antenna includedYes

ATX Power connector (24-pin)Yes

Audio ChipESS ES9260

Audio output channels2.0 channels

Battery technologyLithium-Manganese Dioxide (LiMnO2)

Battery typeCR2032

Battery weight3 g

BIOS memory size256 Mbit

BIOS typeUEFI AMI

Bluetooth version5.4

Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software

Canale audio2.0

Chipset audio integratRealtek

Clear CMOS buttonYes

Clear CMOS jumperYes

Compatible processor seriesIntel Core Ultra (Series 2)

Component forPC

Country of originChina

CPU fan connectorYes

Depth285 mm

Desktop Management Interface (DMI) version2.7

DirectX version12.0

DisplayPorts quantity1

DVI-D ports quantity0

ECC сompatibilityECC & Non-ECC

EPS power connector (8-pin)Yes

Ethernet interface type10 Gigabit Ethernet

Ethernet LANYes

Ethernet LAN (RJ-45) ports2

FormatE-ATX

Front panel audio connectorYes

Front panel connectorYes

GamingNu

HDMIDa

HDMI ports quantity1

Headphone outputs1

Height35 mm

LAN controllerMarvell AQtion AQC113C

Line-inYes

Lithium weight per battery0.07 g

Maximum internal memory256 GB

Maximum internal memory per slot64 GB

Memorie maxima256 GB

Memory channelsDual-channel

Memory slots typeDIMM

Model ChipsetZ890

Motherboard chipsetIntel Z890

Motherboard chipset familyIntel

Motherboard form factorExtended ATX

Numar sloturi memorie4

Number of battery cells1

Number of chassis fan connectors6

Number of CPU fan connectors2

Number of EPS power connectors (8-pin)2

Number of HDDs supported8

Number of M.2 (M) slots4

Number of memory slots4

Number of RGB LED pin headers4

Number of SATA III connectors8

Number of storage drives supported12

Number of water pump connectors2

Onboard-CPUNo

Package depth33.5 mm

Package height430 mm

Package weight4 kg

Package width400 mm

Parallel processing technology supportNot supported

PC health monitoringFan, Noise, Temperature, Voltage

PCI0

PCI Express x16 (Gen 4.x) slots1

PCI Express x16 (Gen 5.x) slots2

Processor manufacturerIntel

Processor socketLGA 1851 (Socket V1)

Product colourWhite

RAID levels0, 1, 5, 10

RAID supportYes

RGB LED pin headerYes

RJ-45 LAN2

Screws includedYes

Serial-or-ParalelYes/No

Sloturi M.24

Soclu ProcesorSocket 1851

Supported memory clock speed (max)9500 MHz

Supported memory typesDDR5-SDRAM

Supported processor socketsLGA 1851

Supported storage drive interfacesM.2, SATA III

Supported storage drive typesHDD & SSD

System Management BIOS (SMBIOS) version2.7

ThunderboltDa

Thunderbolt headers1

Thunderbolt ports quantity2

Tip MemorieDDR5

Top Wi-Fi standardWi-Fi 7 (802.11be)

TPM connectorYes

Unbuffered memoryYes

USB 2.0 connectors2

USB 2.0 ports quantity0

USB 3.2 Gen 1 (3.1 Gen 1) connectors2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0

USB 3.2 Gen 2 (3.1 Gen 2) connectors0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity6

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0

USB 3.2 Gen 2x2 connectors2

USB Type CDa

VGA (D-Sub) ports quantity0

Video-ConnectionHDMI/DP

Weight3.42 kg

Wi-FIYes

Wi-Fi standardsWi-Fi 7 (802.11be)

Width30.5 mm

WiFi-AP antenna jack2

Windows operating systems supportedWindows 11 x64

WirelessDa

WLAN controller modelIntel Wi-Fi 7 BE200

Specificații

Brand	GIGABYTE
Cod produs	NOD-Z890 AERO D
Categorie	Componente
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
Bluetooth	Nu
1st M.2 highest PCI Express generation	5.0
1st M.2 largest key size	25110
2nd M.2 highest PCI Express generation	4.0
2nd M.2 largest key size	25110
3rd M.2 highest PCI Express generation	4.0
3rd M.2 largest key size	22110
4th M.2 highest PCI Express generation	4.0
4th M.2 largest key size	22110
ACPI version	5.0
Antenna included	Yes
ATX Power connector (24-pin)	Yes
Audio Chip	ESS ES9260
Audio output channels	2.0 channels
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Battery weight	3 g
BIOS memory size	256 Mbit
BIOS type	UEFI AMI
Bluetooth version	5.4
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Canale audio	2.0
Chipset audio integrat	Realtek
Clear CMOS button	Yes
Clear CMOS jumper	Yes
Compatible processor series	Intel Core Ultra (Series 2)
Component for	PC
Country of origin	China
CPU fan connector	Yes
Depth	285 mm
Desktop Management Interface (DMI) version	2.7
DirectX version	12.0
DisplayPorts quantity	1
DVI-D ports quantity	0
ECC сompatibility	ECC & Non-ECC
EPS power connector (8-pin)	Yes
Ethernet interface type	10 Gigabit Ethernet
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	2
Format	E-ATX
Front panel audio connector	Yes
Front panel connector	Yes
Gaming	Nu
HDMI	Da
HDMI ports quantity	1
Headphone outputs	1
Height	35 mm
LAN controller	Marvell AQtion AQC113C
Line-in	Yes
Lithium weight per battery	0.07 g
Maximum internal memory	256 GB
Maximum internal memory per slot	64 GB
Memorie maxima	256 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Model Chipset	Z890
Motherboard chipset	Intel Z890
Motherboard chipset family	Intel
Motherboard form factor	Extended ATX
Numar sloturi memorie	4
Number of battery cells	1
Number of chassis fan connectors	6
Number of CPU fan connectors	2
Number of EPS power connectors (8-pin)	2
Number of HDDs supported	8
Number of M.2 (M) slots	4
Number of memory slots	4
Number of RGB LED pin headers	4
Number of SATA III connectors	8
Number of storage drives supported	12
Number of water pump connectors	2
Onboard-CPU	No
Package depth	33.5 mm
Package height	430 mm
Package weight	4 kg
Package width	400 mm
Parallel processing technology support	Not supported
PC health monitoring	Fan, Noise, Temperature, Voltage
PCI	0
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	2
Processor manufacturer	Intel
Processor socket	LGA 1851 (Socket V1)
Product colour	White
RAID levels	0, 1, 5, 10
RAID support	Yes
RGB LED pin header	Yes
RJ-45 LAN	2
Screws included	Yes
Serial-or-Paralel	Yes/No
Sloturi M.2	4
Soclu Procesor	Socket 1851
Supported memory clock speed (max)	9500 MHz
Supported memory types	DDR5-SDRAM
Supported processor sockets	LGA 1851
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
System Management BIOS (SMBIOS) version	2.7
Thunderbolt	Da
Thunderbolt headers	1
Thunderbolt ports quantity	2
Tip Memorie	DDR5
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
TPM connector	Yes
Unbuffered memory	Yes
USB 2.0 connectors	2
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 3.2 Gen 2x2 connectors	2
USB Type C	Da
VGA (D-Sub) ports quantity	0
Video-Connection	HDMI/DP
Weight	3.42 kg
Wi-FI	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Width	30.5 mm
WiFi-AP antenna jack	2
Windows operating systems supported	Windows 11 x64
Wireless	Da
WLAN controller model	Intel Wi-Fi 7 BE200

Configurație

Placa de Baza GIGABYTE Z890 AERO D LGA1851, 4x DDR5, 2x Intel Thunderbolt 1x Front Intel Thunderbolt 1x HDMI, 3x PCIE x16, 4x M.2, 4x SATA 6GB/s, E-ATX

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

Placa de Baza GIGABYTE Z890 AERO D LGA1851, 4x DDR5, 2x Intel Thunderbolt 1x Front Intel Thunderbolt 1x HDMI, 3x PCIE x16, 4x M.2, 4x SATA 6GB/s, E-ATX

Bluetooth: Nu1st M.2 highest PCI Express generation: 5.01st M.2 largest key size: 251102nd M.2 highest PCI Express generation: 4.02nd M.2 largest key size: 251103rd M.2 highest PCI Express generation: 4.0
