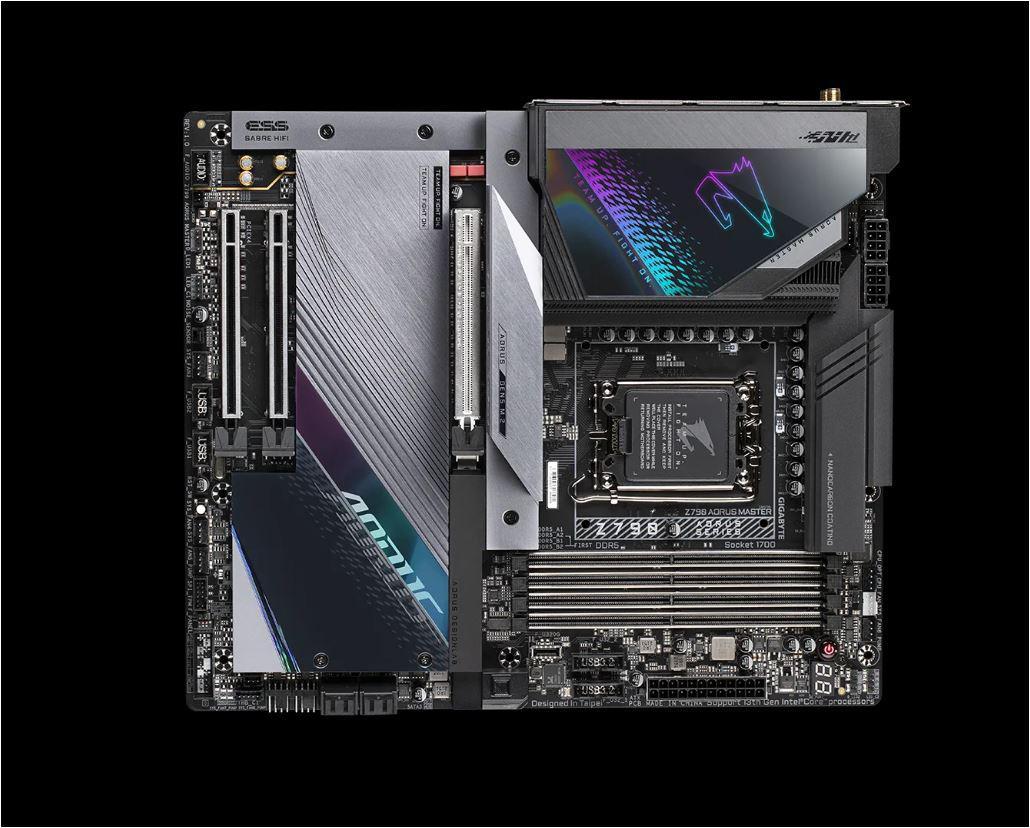

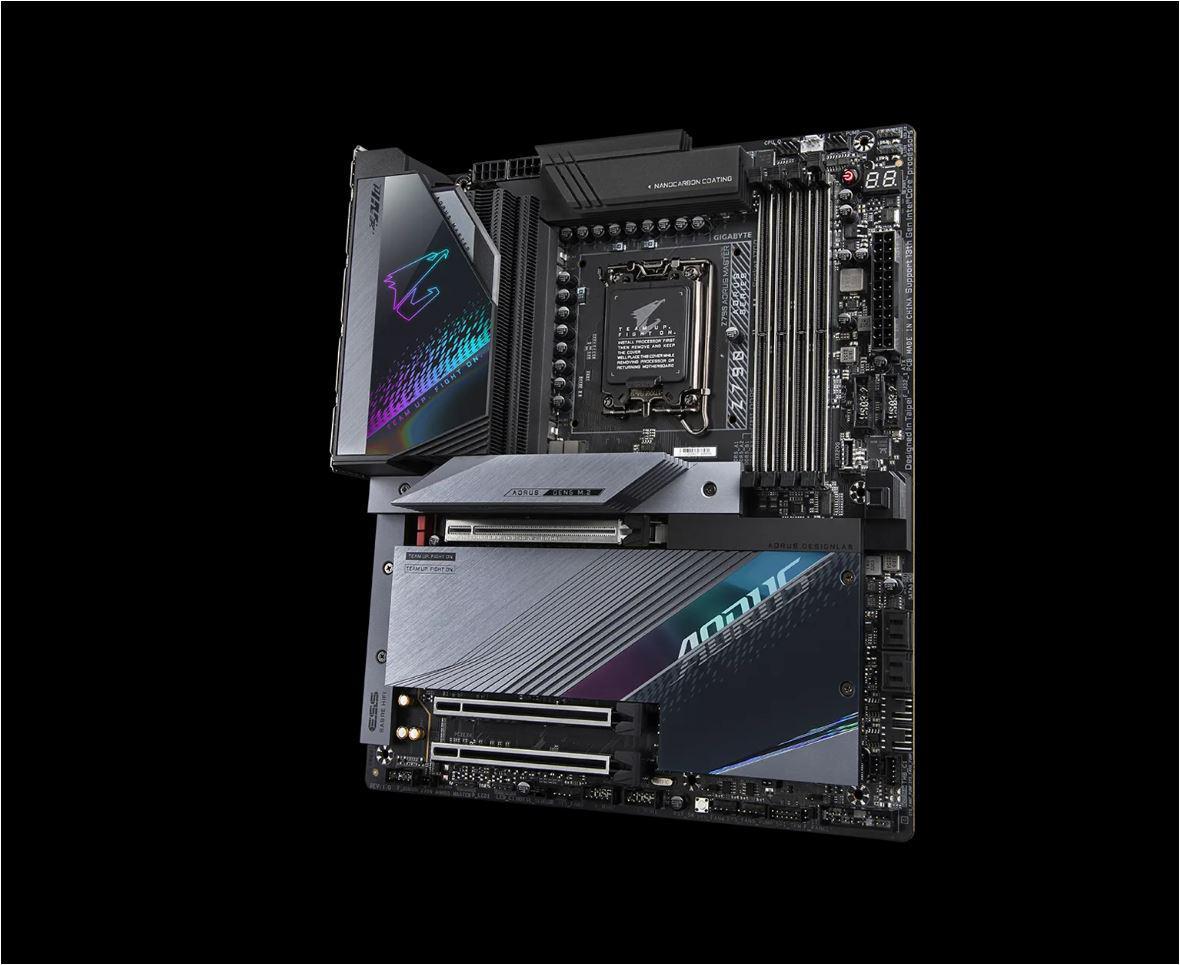

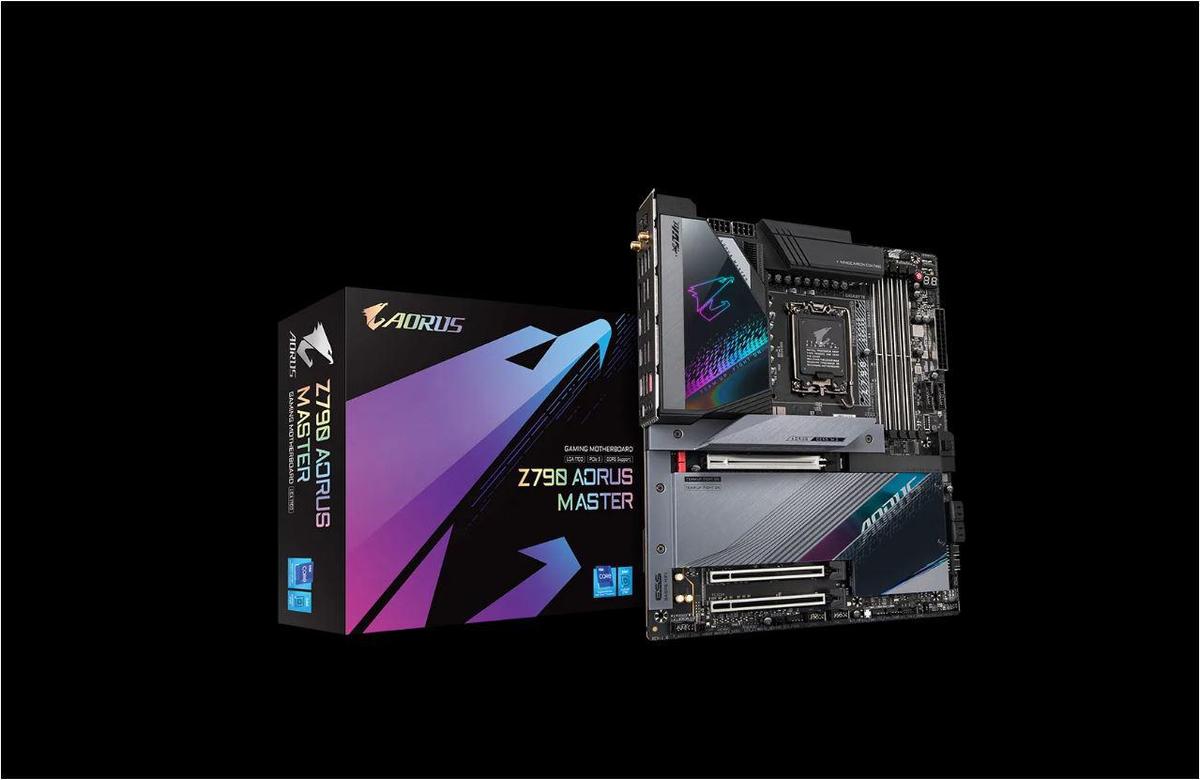

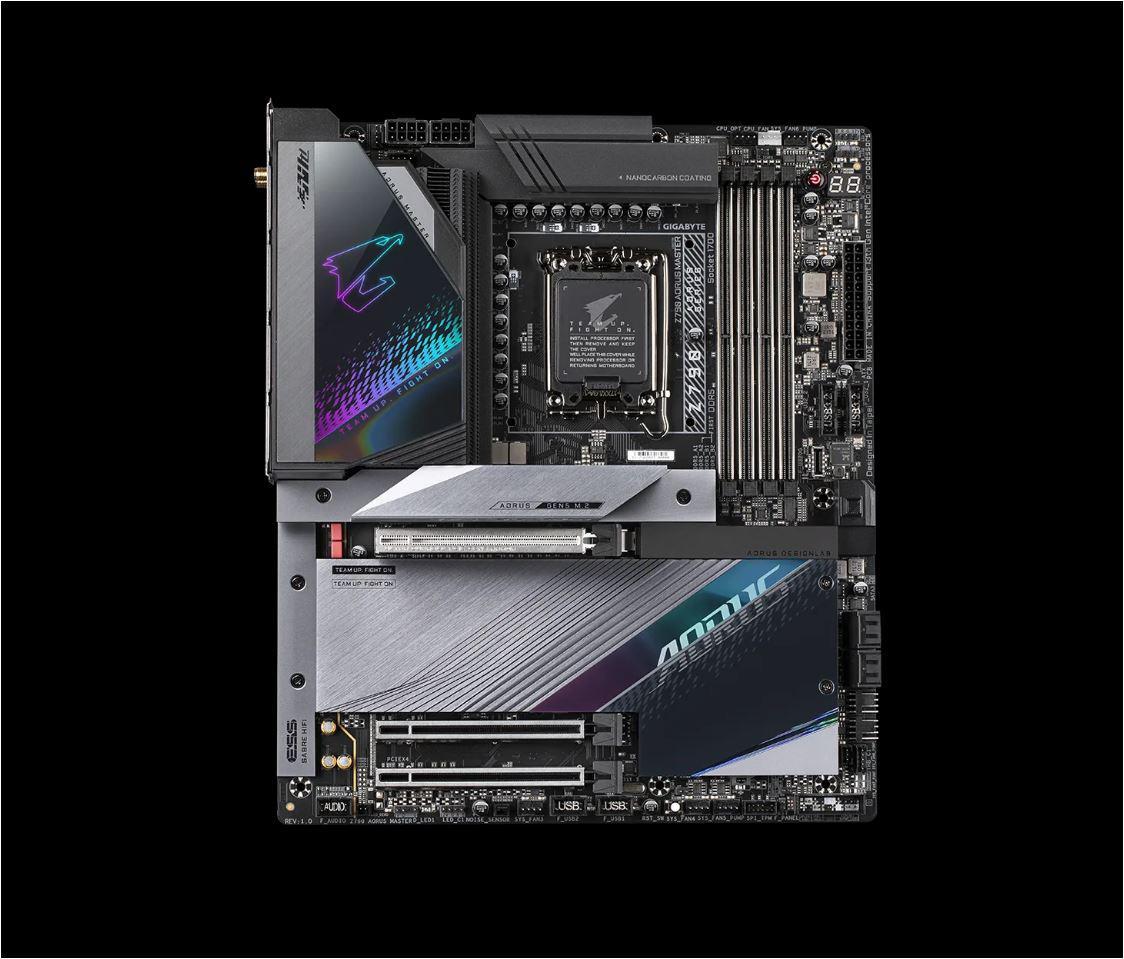

Placa de baza Gigabyte Z790 AORUS MASTER, Socket 1700, DDR5, E-ATX

GIGABYTE · NOD-Z790 AORUS MASTER

Placa de baza Gigabyte Z790 AORUS MASTER, Socket 1700, DDR5, E-ATX

Name: Placa de baza Gigabyte Z790 AORUS MASTER, Socket 1700, DDR5, E-ATX
Brand: GIGABYTE
SKU: NOD-Z790 AORUS MASTER
Price: 3935 RON
Availability: BackOrder

Placa de baza Gigabyte Z790 AORUS MASTER LGA 1700, Z790, PCIe Gen 5, EATX, 4x DIMM slots, DDR5 7950MHz(OC), 5 x M.2 , 4 x SATA, 10Gb LAN, WIFI 6E, DisplayPort, 11x USB, Type-C

3.252 lei

prețuri fără TVA · 3.935 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.3.252 lei

GIGABYTE · ComponenteDoar pentru firme (B2B)

Placa de baza Gigabyte Z790 AORUS MASTER, Socket 1700, DDR5, E-ATX

SKU: NOD-Z790 AORUS MASTER

Bluetooth: Da
12V power connector: Yes
ACPI version: 5.0
ATX Power connector (24-pin): Yes
Audio Chip: Realtek ALC1220-VB
Audio output channels: 7.1 channels

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

3.252 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandGIGABYTE

Cod produsNOD-Z790 AORUS MASTER

CategorieComponente

BluetoothDa

12V power connectorYes

ACPI version5.0

ATX Power connector (24-pin)Yes

Audio ChipRealtek ALC1220-VB

Audio output channels7.1 channels

Batteries includedYes

Battery technologyLithium-Manganese Dioxide (LiMnO2)

Battery typeCR2032

Battery weight3 g

BIOS memory size256 Mbit

BIOS typeUEFI AMI

Bluetooth version5.3

Cables includedSATA

Canale audio7.1

Chipset audio integratRealtek

Clear CMOS buttonYes

Clear CMOS jumperYes

Component forPC

Country of originTaiwan

CPU fan connectorYes

Depth260 mm

Desktop Management Interface (DMI) version2.7

DirectX version12.0

DisplayPort version1.2

DisplayPorts quantity1

DVI-D ports quantity0

ECC сompatibilityECC & Non-ECC

EPS power connector (8-pin)Yes

Ethernet interface type10 Gigabit Ethernet

Ethernet LANYes

Ethernet LAN (RJ-45) ports1

FormatE-ATX

Front panel audio connectorYes

Front panel connectorYes

GamingNu

HDCPYes

HDMINu

HDMI ports quantity0

Headphone outputs2

Height35 mm

LAN controllerMarvell AQtion AQC113C

Lithium weight per battery0.07 g

Maximum internal memory192 GB

Maximum internal memory supported by processor192 GB

Maximum resolution4096 x 2304 pixels

Memorie maxima192 GB

Memory channelsDual-channel

Memory slots typeDIMM

Microphone inYes

Model ChipsetZ790

Motherboard chipsetIntel Z790

Motherboard chipset familyIntel

Motherboard form factorExtended ATX

Numar sloturi memorie4

Number of battery cells1

Number of HDDs supported4

Number of M.2 (M) slots5

Number of memory slots4

Number of SATA III connectors4

Number of storage drives supported9

Onboard-CPUNo

Package depth294 mm

Package height80 mm

Package weight3.46 kg

Package width34.5 mm

Parallel processing technology supportCrossfire

PC health monitoringFan, Noise, Temperature, Voltage, Water cooling

PCI0

PCI Express x16 slots3

Processor manufacturerIntel

Processor socketLGA 1700

Product colourBlack

Products per shipping (inner) case1 pc(s)

RAID levels0, 1, 5, 10

RAID supportYes

RGB LED pin headerYes

RJ-45 LAN1

S/PDIF out portYes

Serial-or-ParalelNo/No

Sloturi M.25

Soclu ProcesorSocket 1700

Supported memory clock speed (max)8000 MHz

Supported memory clock speeds8000,7950,7900,7800,4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600 MHz

Supported memory module capacities1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB

Supported memory typesDDR5-SDRAM

Supported processor socketsLGA 1700

Supported storage drive interfacesM.2, PCI Express 4.0, PCI Express 5.0, SATA III

Supported storage drive typesHDD & SSD

System Management BIOS (SMBIOS) version2.7

ThunderboltNu

Thunderbolt headers2

Tip MemorieDDR5

Tip slot interfata graficaPCIe 5.0 x16

Top Wi-Fi standardWi-Fi 6E (802.11ax)

Total number of SATA connectors4

TPM connectorYes

Unbuffered memoryYes

USB 2.0 connectors2

USB 2.0 ports quantity0

USB 3.2 Gen 1 (3.1 Gen 1) connectors2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1

USB 3.2 Gen 2 (3.1 Gen 2) connectors1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity7

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0

USB 3.2 Gen 2x2 Type-C ports quantity2

USB connector typeUSB Type-A, USB Type-C

USB Type CDa

VGA (D-Sub) ports quantity0

Video-ConnectionDP

Warranty period3 year(s)

Wi-FIYes

Width30.5 mm

WiFi-AP antenna jack2

Windows operating systems supportedWindows 10 x64, Windows 11 x64

WirelessDa

WLAN controller modelKiller Wi-Fi 6E AX1690

Specificații

Brand	GIGABYTE
Cod produs	NOD-Z790 AORUS MASTER
Categorie	Componente
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
Bluetooth	Da
12V power connector	Yes
ACPI version	5.0
ATX Power connector (24-pin)	Yes
Audio Chip	Realtek ALC1220-VB
Audio output channels	7.1 channels
Batteries included	Yes
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Battery weight	3 g
BIOS memory size	256 Mbit
BIOS type	UEFI AMI
Bluetooth version	5.3
Cables included	SATA
Canale audio	7.1
Chipset audio integrat	Realtek
Clear CMOS button	Yes
Clear CMOS jumper	Yes
Component for	PC
Country of origin	Taiwan
CPU fan connector	Yes
Depth	260 mm
Desktop Management Interface (DMI) version	2.7
DirectX version	12.0
DisplayPort version	1.2
DisplayPorts quantity	1
DVI-D ports quantity	0
ECC сompatibility	ECC & Non-ECC
EPS power connector (8-pin)	Yes
Ethernet interface type	10 Gigabit Ethernet
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Format	E-ATX
Front panel audio connector	Yes
Front panel connector	Yes
Gaming	Nu
HDCP	Yes
HDMI	Nu
HDMI ports quantity	0
Headphone outputs	2
Height	35 mm
LAN controller	Marvell AQtion AQC113C
Lithium weight per battery	0.07 g
Maximum internal memory	192 GB
Maximum internal memory supported by processor	192 GB
Maximum resolution	4096 x 2304 pixels
Memorie maxima	192 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Microphone in	Yes
Model Chipset	Z790
Motherboard chipset	Intel Z790
Motherboard chipset family	Intel
Motherboard form factor	Extended ATX
Numar sloturi memorie	4
Number of battery cells	1
Number of HDDs supported	4
Number of M.2 (M) slots	5
Number of memory slots	4
Number of SATA III connectors	4
Number of storage drives supported	9
Onboard-CPU	No
Package depth	294 mm
Package height	80 mm
Package weight	3.46 kg
Package width	34.5 mm
Parallel processing technology support	Crossfire
PC health monitoring	Fan, Noise, Temperature, Voltage, Water cooling
PCI	0
PCI Express x16 slots	3
Processor manufacturer	Intel
Processor socket	LGA 1700
Product colour	Black
Products per shipping (inner) case	1 pc(s)
RAID levels	0, 1, 5, 10
RAID support	Yes
RGB LED pin header	Yes
RJ-45 LAN	1
S/PDIF out port	Yes
Serial-or-Paralel	No/No
Sloturi M.2	5
Soclu Procesor	Socket 1700
Supported memory clock speed (max)	8000 MHz
Supported memory clock speeds	8000,7950,7900,7800,4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600 MHz
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Supported memory types	DDR5-SDRAM
Supported processor sockets	LGA 1700
Supported storage drive interfaces	M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Supported storage drive types	HDD & SSD
System Management BIOS (SMBIOS) version	2.7
Thunderbolt	Nu
Thunderbolt headers	2
Tip Memorie	DDR5
Tip slot interfata grafica	PCIe 5.0 x16
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Total number of SATA connectors	4
TPM connector	Yes
Unbuffered memory	Yes
USB 2.0 connectors	2
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	7
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 3.2 Gen 2x2 Type-C ports quantity	2
USB connector type	USB Type-A, USB Type-C
USB Type C	Da
VGA (D-Sub) ports quantity	0
Video-Connection	DP
Warranty period	3 year(s)
Wi-FI	Yes
Width	30.5 mm
WiFi-AP antenna jack	2
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Wireless	Da
WLAN controller model	Killer Wi-Fi 6E AX1690

Configurație

Placa de baza Gigabyte Z790 AORUS MASTER LGA 1700, Z790, PCIe Gen 5, EATX, 4x DIMM slots, DDR5 7950MHz(OC), 5 x M.2 , 4 x SATA, 10Gb LAN, WIFI 6E, DisplayPort, 11x USB, Type-C

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

Placa de baza Gigabyte Z790 AORUS MASTER LGA 1700, Z790, PCIe Gen 5, EATX, 4x DIMM slots, DDR5 7950MHz(OC), 5 x M.2 , 4 x SATA, 10Gb LAN, WIFI 6E, DisplayPort, 11x USB, Type-C

Bluetooth: Da12V power connector: YesACPI version: 5.0ATX Power connector (24-pin): YesAudio Chip: Realtek ALC1220-VBAudio output channels: 7.1 channels
