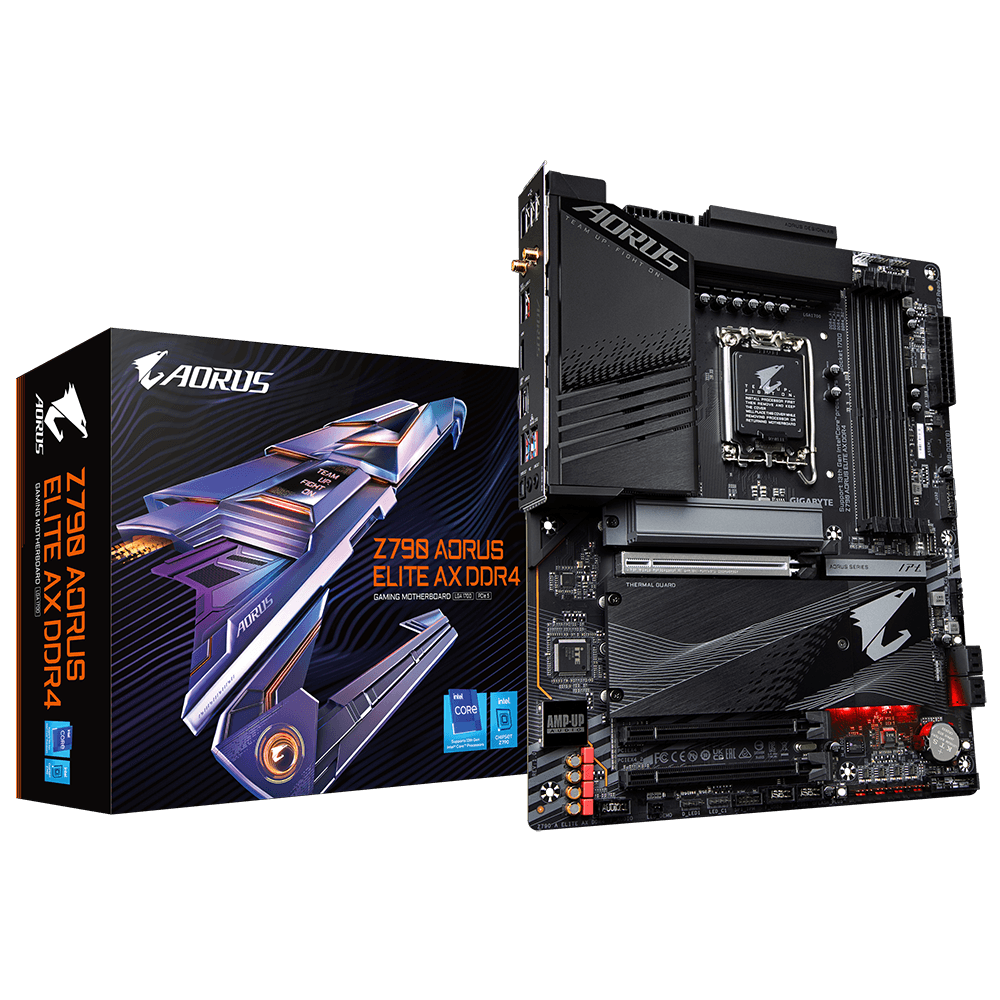

Placa de baza Gigabyte Z790 AORUS ELITE AX, Socket 1700, DDR4, ATX

GIGABYTE · NOD-Z790 A ELITE AX D4

Placa de baza Gigabyte Z790 AORUS ELITE AX, Socket 1700, DDR4, ATX

Name: Placa de baza Gigabyte Z790 AORUS ELITE AX, Socket 1700, DDR4, ATX
Brand: GIGABYTE
SKU: NOD-Z790 A ELITE AX D4
Price: 1990 RON
Availability: BackOrder

Placa de baza GIGABYTE Z790 AORUS ELITE AX DDR4 LGA 1700, Z790 Express Motherboard - 4x DDR4 - M.2 PCIe 4.0 - USB 3.2 - PCI-Express 5.0 16x - LAN 2.5 GbE - Wi-Fi 6E

1.645 lei

prețuri fără TVA · 1.990 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.1.645 lei

GIGABYTE · ComponenteDoar pentru firme (B2B)

Placa de baza Gigabyte Z790 AORUS ELITE AX, Socket 1700, DDR4, ATX

SKU: NOD-Z790 A ELITE AX D4

Bluetooth: Nu
12V power connector: Yes
ACPI version: 5.0
ATX Power connector (24-pin): Yes
Audio output channels: 7.1 channels
Batteries included: Yes

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

1.645 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandGIGABYTE

Cod produsNOD-Z790 A ELITE AX D4

CategorieComponente

BluetoothNu

12V power connectorYes

ACPI version5.0

ATX Power connector (24-pin)Yes

Audio output channels7.1 channels

Batteries includedYes

Battery technologyLithium-Manganese Dioxide (LiMnO2)

Battery typeCR2032

Battery weight3 g

BIOS memory size256 Mbit

BIOS typeUEFI AMI

Bluetooth version5.3

Bundled softwareNorton Internet Security

Cables includedSATA

Canale audio7.1

Chipset audio integratRealtek

Clear CMOS buttonYes

Clear CMOS jumperYes

Component forPC

Country of originChina

CPU fan connectorYes

Depth24.4 mm

Desktop Management Interface (DMI) version2.7

DirectX version12.0

DisplayPort version1.2

DisplayPorts quantity1

DVI-D ports quantity0

ECC сompatibilityECC & Non-ECC

EPS power connector (8-pin)Yes

Ethernet interface type2.5 Gigabit Ethernet

Ethernet LANYes

Ethernet LAN (RJ-45) ports1

FormatATX

Front panel audio connectorYes

Front panel connectorYes

GamingNu

HDCPYes

HDMIDa

HDMI ports quantity1

HDMI version2.0

Headphone outputs2

Height35 mm

Lithium weight per battery0.07 g

Maximum internal memory128 GB

Maximum internal memory supported by processor128 GB

Maximum resolution4096 x 2304 pixels

MB-FormatATX

MB-Socket1700

Memorie maxima128 GB

Memory channelsDual-channel

Memory slots typeDIMM

Microphone inYes

Model ChipsetZ790

Motherboard chipsetIntel Z790

Motherboard chipset familyIntel

Motherboard form factorATX

mSATA ports quantity0

Numar sloturi memorie4

Number of battery cells1

Number of HDDs supported4

Number of M.2 (M) slots4

Number of memory slots4

Number of SATA connectors0

Number of SATA II connectors0

Number of SATA III connectors4

Number of storage drives supported8

On-board graphics cardNo

Onboard-CPUNo

Package depth270 mm

Package height80 mm

Package weight2.32 kg

Package width335 mm

Parallel processing technology supportNot supported

PC health monitoringFan, Temperature, Voltage, Water cooling

PCI0

PCI Express x16 slots3

PCI-Ex10

PCI-Ex163

Processor manufacturerIntel

Processor socketLGA 1700

Product colourBlack

Products per shipping (inner) case1 pc(s)

RAID levels0, 1, 5, 10

RAID supportYes

RAM-Slots4

RGB LED pin headerYes

RJ-45 LAN1

S/PDIF out portYes

Serial-or-ParalelNo/No

Sloturi M.24

Soclu ProcesorSocket 1700

Supported memory clock speed (max)5333 MHz

Supported memory module capacities1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB

Supported memory typesDDR4-SDRAM

Supported processor socketsLGA 1700

Supported storage drive interfacesM.2, SATA III

Supported storage drive typesHDD & SSD

System Management BIOS (SMBIOS) version2.7

ThunderboltNu

Thunderbolt headers2

Tip MemorieDDR4

Tip slot interfata graficaPCIe 5.0 x16

Top Wi-Fi standardWi-Fi 6E (802.11ax)

Total number of SATA connectors4

TPM connectorYes

Unbuffered memoryYes

USB 2.0 connectors2

USB 2.0 ports quantity4

USB 3.2 Gen 1 (3.1 Gen 1) connectors1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0

USB 3.2 Gen 2 (3.1 Gen 2) connectors1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0

USB 3.2 Gen 2x2 Type-C ports quantity1

USB connector typeUSB Type-A, USB Type-C

USB Type CDa

USB34-8

VGA (D-Sub) ports quantity0

Video-ConnectionHDMI

Warranty period3 year(s)

Wi-FIYes

Width30.5 mm

WiFi-AP antenna jack2

Windows operating systems supportedWindows 10 x64, Windows 11 x64

WirelessDa

WLAN controller modelIntel Wi-Fi 6E AX211

Specificații

Brand	GIGABYTE
Cod produs	NOD-Z790 A ELITE AX D4
Categorie	Componente
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
Bluetooth	Nu
12V power connector	Yes
ACPI version	5.0
ATX Power connector (24-pin)	Yes
Audio output channels	7.1 channels
Batteries included	Yes
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Battery weight	3 g
BIOS memory size	256 Mbit
BIOS type	UEFI AMI
Bluetooth version	5.3
Bundled software	Norton Internet Security
Cables included	SATA
Canale audio	7.1
Chipset audio integrat	Realtek
Clear CMOS button	Yes
Clear CMOS jumper	Yes
Component for	PC
Country of origin	China
CPU fan connector	Yes
Depth	24.4 mm
Desktop Management Interface (DMI) version	2.7
DirectX version	12.0
DisplayPort version	1.2
DisplayPorts quantity	1
DVI-D ports quantity	0
ECC сompatibility	ECC & Non-ECC
EPS power connector (8-pin)	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Format	ATX
Front panel audio connector	Yes
Front panel connector	Yes
Gaming	Nu
HDCP	Yes
HDMI	Da
HDMI ports quantity	1
HDMI version	2.0
Headphone outputs	2
Height	35 mm
Lithium weight per battery	0.07 g
Maximum internal memory	128 GB
Maximum internal memory supported by processor	128 GB
Maximum resolution	4096 x 2304 pixels
MB-Format	ATX
MB-Socket	1700
Memorie maxima	128 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Microphone in	Yes
Model Chipset	Z790
Motherboard chipset	Intel Z790
Motherboard chipset family	Intel
Motherboard form factor	ATX
mSATA ports quantity	0
Numar sloturi memorie	4
Number of battery cells	1
Number of HDDs supported	4
Number of M.2 (M) slots	4
Number of memory slots	4
Number of SATA connectors	0
Number of SATA II connectors	0
Number of SATA III connectors	4
Number of storage drives supported	8
On-board graphics card	No
Onboard-CPU	No
Package depth	270 mm
Package height	80 mm
Package weight	2.32 kg
Package width	335 mm
Parallel processing technology support	Not supported
PC health monitoring	Fan, Temperature, Voltage, Water cooling
PCI	0
PCI Express x16 slots	3
PCI-Ex1	0
PCI-Ex16	3
Processor manufacturer	Intel
Processor socket	LGA 1700
Product colour	Black
Products per shipping (inner) case	1 pc(s)
RAID levels	0, 1, 5, 10
RAID support	Yes
RAM-Slots	4
RGB LED pin header	Yes
RJ-45 LAN	1
S/PDIF out port	Yes
Serial-or-Paralel	No/No
Sloturi M.2	4
Soclu Procesor	Socket 1700
Supported memory clock speed (max)	5333 MHz
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Supported memory types	DDR4-SDRAM
Supported processor sockets	LGA 1700
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
System Management BIOS (SMBIOS) version	2.7
Thunderbolt	Nu
Thunderbolt headers	2
Tip Memorie	DDR4
Tip slot interfata grafica	PCIe 5.0 x16
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Total number of SATA connectors	4
TPM connector	Yes
Unbuffered memory	Yes
USB 2.0 connectors	2
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 3.2 Gen 2x2 Type-C ports quantity	1
USB connector type	USB Type-A, USB Type-C
USB Type C	Da
USB3	4-8
VGA (D-Sub) ports quantity	0
Video-Connection	HDMI
Warranty period	3 year(s)
Wi-FI	Yes
Width	30.5 mm
WiFi-AP antenna jack	2
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Wireless	Da
WLAN controller model	Intel Wi-Fi 6E AX211

Configurație

Placa de baza GIGABYTE Z790 AORUS ELITE AX DDR4 LGA 1700, Z790 Express Motherboard - 4x DDR4 - M.2 PCIe 4.0 - USB 3.2 - PCI-Express 5.0 16x - LAN 2.5 GbE - Wi-Fi 6E

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

Placa de baza GIGABYTE Z790 AORUS ELITE AX DDR4 LGA 1700, Z790 Express Motherboard - 4x DDR4 - M.2 PCIe 4.0 - USB 3.2 - PCI-Express 5.0 16x - LAN 2.5 GbE - Wi-Fi 6E

Bluetooth: Nu12V power connector: YesACPI version: 5.0ATX Power connector (24-pin): YesAudio output channels: 7.1 channelsBatteries included: Yes
