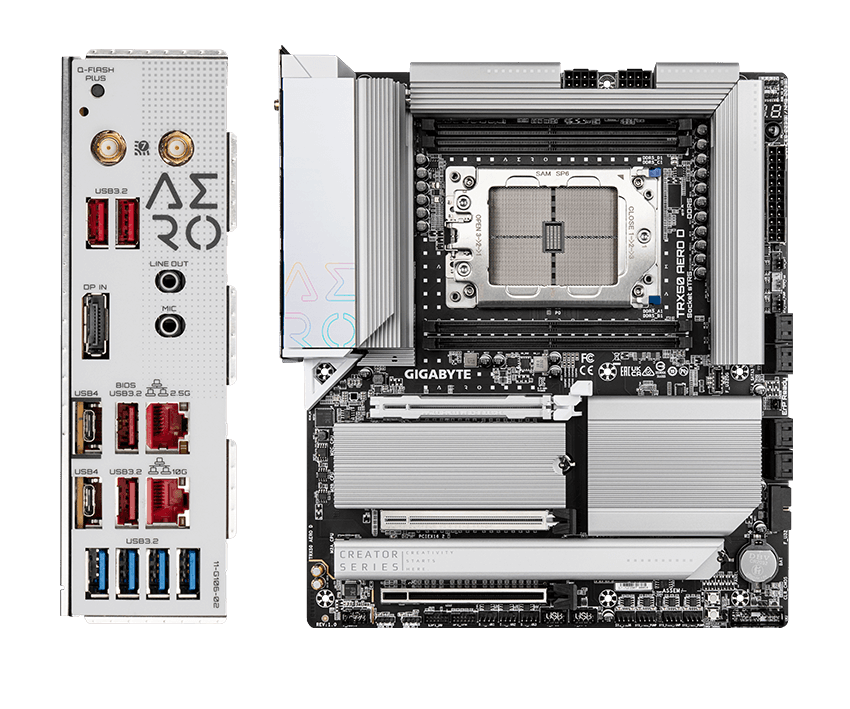

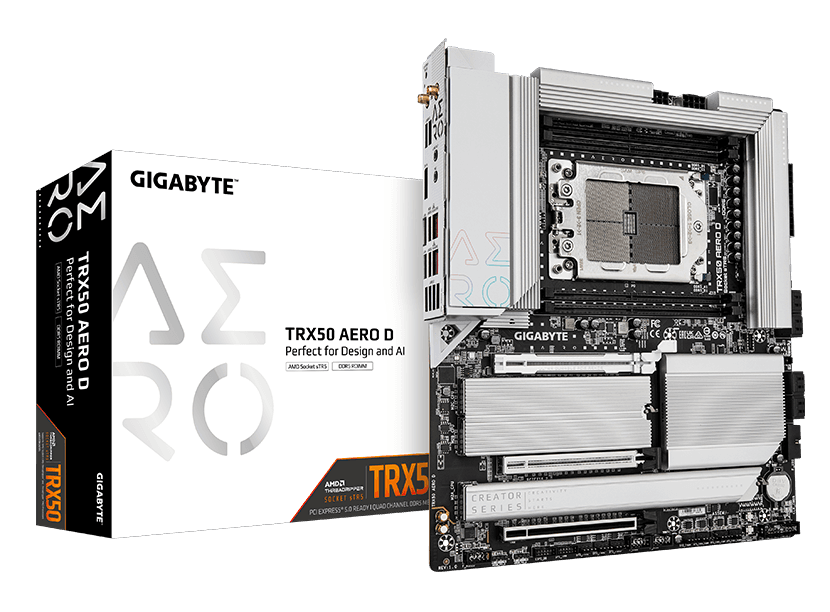

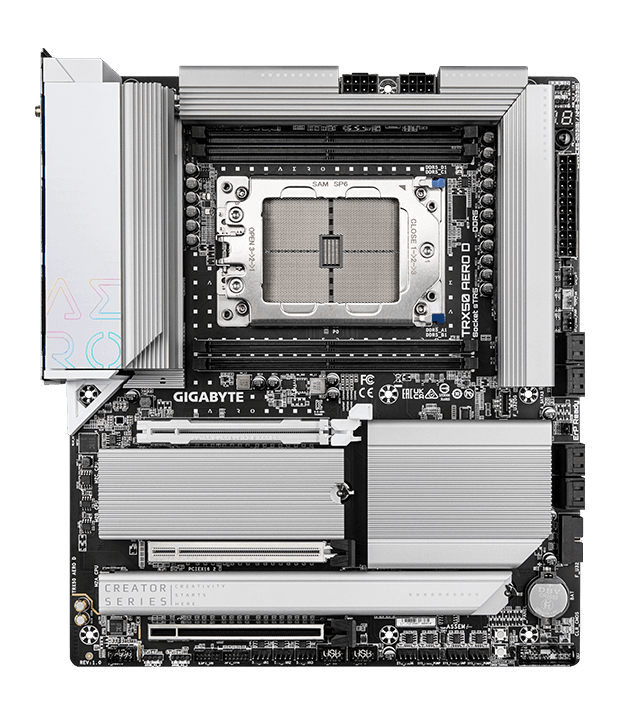

Placa de baza Gigabyte TRX50 AERO D, Socket sTR5, DDR5, E-ATX

GIGABYTE · NOD-TRX50 AERO D

Placa de baza Gigabyte TRX50 AERO D, Socket sTR5, DDR5, E-ATX

Name: Placa de baza Gigabyte TRX50 AERO D, Socket sTR5, DDR5, E-ATX
Brand: GIGABYTE
SKU: NOD-TRX50 AERO D
Price: 5196 RON
Availability: BackOrder

Placa de baza GIGAVYTE TRX50 AERO D sTR5 4xDDR5, 3x PCIE x16, 4x M.2, 8x SATA 6gb/s, E-ATX

4.294 lei

prețuri fără TVA · 5.196 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.4.294 lei

GIGABYTE · ComponenteDoar pentru firme (B2B)

Placa de baza Gigabyte TRX50 AERO D, Socket sTR5, DDR5, E-ATX

SKU: NOD-TRX50 AERO D

Bluetooth: Nu
ACPI version: 5.0
ATX Power connector (24-pin): Yes
Audio Chip: Realtek ALC4080
Audio connector: Yes
Audio output channels: 2.0 channels

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

4.294 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandGIGABYTE

Cod produsNOD-TRX50 AERO D

CategorieComponente

BluetoothNu

ACPI version5.0

ATX Power connector (24-pin)Yes

Audio ChipRealtek ALC4080

Audio connectorYes

Audio output channels2.0 channels

Battery technologyLithium-Manganese Dioxide (LiMnO2)

Battery typeCR2032

Battery weight3 g

BIOS memory size256 Mbit

BIOS typeUEFI AMI

Bluetooth version5.3

Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software

Canale audio2.0

Chipset audio integratRealtek

Clear CMOS buttonYes

Clear CMOS jumperYes

Compatible processor seriesAMD Ryzen Threadripper 1000 Series

Component forPC

Country of originChina

CPU fan connectorYes

Depth264 mm

Desktop Management Interface (DMI) version2.7

DirectX version12.0

DisplayPorts quantity1

DVI-D ports quantity0

ECC сompatibilityECC

EPS power connector (8-pin)Yes

Ethernet interface type10 Gigabit Ethernet

Ethernet LANYes

Ethernet LAN (RJ-45) ports2

FormatE-ATX

GamingNu

HDMINu

HDMI ports quantity0

Headphone outputs2

Height35 mm

Lithium weight per battery0.07 g

Maximum internal memory1 TB

Maximum internal memory supported by processor1 TB

Maximum number of SMP processors1

Memorie maxima1 TB

Memory channelsQuad-channel

Memory slots typeDIMM

Model ChipsetTRX50

Motherboard chipsetAMD TRX50

Motherboard chipset familyAMD

Motherboard form factorExtended ATX

Numar sloturi memorie4

Number of battery cells1

Number of chassis fan connectors10

Number of HDDs supported8

Number of M.2 (M) slots4

Number of memory slots4

Number of SATA III connectors8

Number of storage drives supported12

Onboard-CPUNo

Package depth294 mm

Package height80 mm

Package weight3.04 kg

Package width34.5 mm

PC health monitoringFan, Temperature, Voltage, Water cooling

PCI0

PCI Express x16 (Gen 4.x) slots1

PCI Express x16 (Gen 5.x) slots2

PCI Express x16 slots3

Processor manufacturerAMD

Processor socketSocket sTR5

RAID levels0, 1, 10

RAID supportYes

RGB LED pin headerYes

RJ-45 LAN2

Serial-or-ParalelNo/No

Sloturi M.24

Soclu ProcesorSocket sTR5

Supported memory clock speed (max)7800 MHz

Supported memory clock speeds4400,4800,5200,5600,6000,6400,6800,7000,7200,7600,7800 MHz

Supported memory module capacities1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB, 64GB, 128GB, 128MB, 256MB

Supported memory typesDDR5-SDRAM

Supported storage drive interfacesM.2, SATA

Supported storage drive typesSSD

System Management BIOS (SMBIOS) version2.7

ThunderboltNu

Tip MemorieDDR5

Top Wi-Fi standardWi-Fi 7 (802.11be)

Total number of SATA connectors8

USB 2.0 connectors2

USB 2.0 ports quantity0

USB 3.2 Gen 1 (3.1 Gen 1) connectors1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0

USB 3.2 Gen 2 (3.1 Gen 2) connectors0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity4

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity2

USB 3.2 Gen 2x2 connectors1

USB Type CDa

VGA (D-Sub) ports quantity0

Video-ConnectionHDMI/DP

Wi-FIYes

Width30.5 mm

Windows operating systems supportedWindows 11 x64

WirelessDa

Specificații

Brand	GIGABYTE
Cod produs	NOD-TRX50 AERO D
Categorie	Componente
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
Bluetooth	Nu
ACPI version	5.0
ATX Power connector (24-pin)	Yes
Audio Chip	Realtek ALC4080
Audio connector	Yes
Audio output channels	2.0 channels
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Battery weight	3 g
BIOS memory size	256 Mbit
BIOS type	UEFI AMI
Bluetooth version	5.3
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Canale audio	2.0
Chipset audio integrat	Realtek
Clear CMOS button	Yes
Clear CMOS jumper	Yes
Compatible processor series	AMD Ryzen Threadripper 1000 Series
Component for	PC
Country of origin	China
CPU fan connector	Yes
Depth	264 mm
Desktop Management Interface (DMI) version	2.7
DirectX version	12.0
DisplayPorts quantity	1
DVI-D ports quantity	0
ECC сompatibility	ECC
EPS power connector (8-pin)	Yes
Ethernet interface type	10 Gigabit Ethernet
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	2
Format	E-ATX
Gaming	Nu
HDMI	Nu
HDMI ports quantity	0
Headphone outputs	2
Height	35 mm
Lithium weight per battery	0.07 g
Maximum internal memory	1 TB
Maximum internal memory supported by processor	1 TB
Maximum number of SMP processors	1
Memorie maxima	1 TB
Memory channels	Quad-channel
Memory slots type	DIMM
Model Chipset	TRX50
Motherboard chipset	AMD TRX50
Motherboard chipset family	AMD
Motherboard form factor	Extended ATX
Numar sloturi memorie	4
Number of battery cells	1
Number of chassis fan connectors	10
Number of HDDs supported	8
Number of M.2 (M) slots	4
Number of memory slots	4
Number of SATA III connectors	8
Number of storage drives supported	12
Onboard-CPU	No
Package depth	294 mm
Package height	80 mm
Package weight	3.04 kg
Package width	34.5 mm
PC health monitoring	Fan, Temperature, Voltage, Water cooling
PCI	0
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	2
PCI Express x16 slots	3
Processor manufacturer	AMD
Processor socket	Socket sTR5
RAID levels	0, 1, 10
RAID support	Yes
RGB LED pin header	Yes
RJ-45 LAN	2
Serial-or-Paralel	No/No
Sloturi M.2	4
Soclu Procesor	Socket sTR5
Supported memory clock speed (max)	7800 MHz
Supported memory clock speeds	4400,4800,5200,5600,6000,6400,6800,7000,7200,7600,7800 MHz
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB, 64GB, 128GB, 128MB, 256MB
Supported memory types	DDR5-SDRAM
Supported storage drive interfaces	M.2, SATA
Supported storage drive types	SSD
System Management BIOS (SMBIOS) version	2.7
Thunderbolt	Nu
Tip Memorie	DDR5
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Total number of SATA connectors	8
USB 2.0 connectors	2
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB 3.2 Gen 2x2 connectors	1
USB Type C	Da
VGA (D-Sub) ports quantity	0
Video-Connection	HDMI/DP
Wi-FI	Yes
Width	30.5 mm
Windows operating systems supported	Windows 11 x64
Wireless	Da
