GIGABYTE · NOD-H610M D3W DDR4

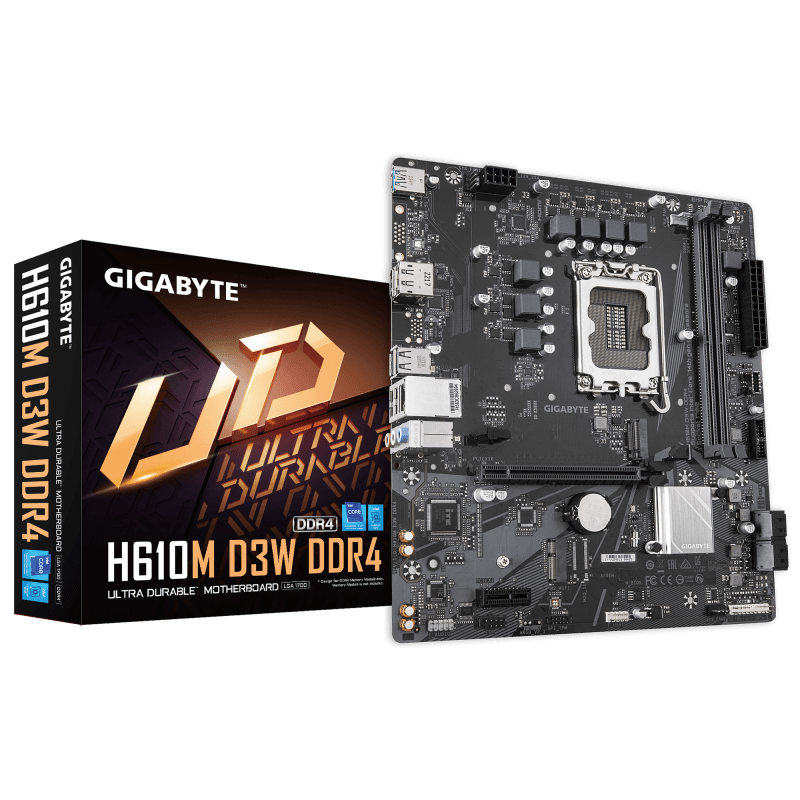

Placa de baza Gigabyte H610M D3W, Socket 1700, DDR4, Micro-ATX

Name: Placa de baza Gigabyte H610M D3W, Socket 1700, DDR4, Micro-ATX
Brand: GIGABYTE
SKU: NOD-H610M D3W DDR4
Price: 407 RON
Availability: LimitedAvailability

Placa de Baza GIGABYTE H610M D3W DDR4 LGA1700, 2x DDR4, 1x DP 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x1 2x M.2, 4x SATA 6GB/s, mATX

336 lei

prețuri fără TVA · 407 lei cu TVA

Disponibil la furnizor·termen de livrare confirmat la comandă

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.336 lei

GIGABYTE · ComponenteDoar pentru firme (B2B)

Placa de baza Gigabyte H610M D3W, Socket 1700, DDR4, Micro-ATX

SKU: NOD-H610M D3W DDR4

Bluetooth: Nu
1st M.2 highest PCI Express generation: 3.0
1st M.2 largest key size: 2280
ACPI version: 5.0
ATX Power connector (24-pin): Yes
Audio Chip: Realtek ALC897

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

336 leiprețuri fără TVA

Disponibil la furnizor·termen de livrare confirmat la comandă

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandGIGABYTE

Cod produsNOD-H610M D3W DDR4

CategorieComponente

BluetoothNu

1st M.2 highest PCI Express generation3.0

1st M.2 largest key size2280

ACPI version5.0

ATX Power connector (24-pin)Yes

Audio ChipRealtek ALC897

Audio output channels7.1 channels

Batteries includedYes

Battery technologyLithium-Manganese Dioxide (LiMnO2)

Battery typeCR2032

Battery weight3 g

BIOS memory size128 Mbit

BIOS typeUEFI AMI

Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software

Canale audio7.1

Chipset audio integratRealtek

Clear CMOS jumperYes

Component forPC

Country of originChina

CPU fan connectorYes

Depth220 mm

Desktop Management Interface (DMI) version2.7

DirectX version12.0

DisplayPort version1.2

DisplayPorts quantity1

DVI-D ports quantity0

ECC сompatibilityECC & Non-ECC

EPS power connector (8-pin)Yes

Ethernet interface typeGigabit Ethernet

Ethernet LANYes

Ethernet LAN (RJ-45) ports1

FormatMicro-ATX

Front panel audio connectorYes

Front panel connectorYes

GamingNu

HDMIDa

HDMI ports quantity1

HDMI version2.1

Height35 mm

LAN controllerRealtek RTL8111H

Line-inYes

Lithium weight per battery0.07 g

Maximum internal memory64 GB

Maximum internal memory per slot32 GB

MB-Formatmicro-ATX

MB-Socket1700

Memorie maxima64 GB

Memory channelsDual-channel

Memory slots typeDIMM

Microphone inYes

Model ChipsetH610

Motherboard chipsetIntel H610

Motherboard chipset familyIntel

Motherboard form factormicro ATX

Numar sloturi memorie2

Number of battery cells1

Number of chassis fan connectors2

Number of CPU fan connectors1

Number of EPS power connectors (8-pin)1

Number of HDDs supported4

Number of M.2 (M) slots1

Number of memory slots2

Number of SATA III connectors4

Number of storage drives supported5

Onboard-CPUNo

Package depth265 mm

Package height54 mm

Package weight800 g

Package width265 mm

Parallel processing technology supportNot supported

PC health monitoringFan, Temperature, Voltage, Water cooling

PCI0

PCI Express x1 (Gen 3.x) slots1

PCI Express x16 (Gen 4.x) slots1

PCI-Ex11

PCI-Ex161

Power source typeATX

Processor manufacturerIntel

Processor socketLGA 1700

Product colourGrey

Products per shipping (inner) case1 pc(s)

RAM-Slots2

RJ-45 LAN1

Screws includedYes

Serial port headers1

Serial-or-ParalelNo/No

Sloturi M.22

Soclu ProcesorSocket 1700

Supported memory clock speed (max)3200 MHz

Supported memory clock speeds2133,2400,2666,2933,3000,3200 MHz

Supported memory typesDDR4-SDRAM

Supported processor socketsLGA 1700

Supported storage drive interfacesM.2, SATA III

Supported storage drive typesHDD & SSD

System Management BIOS (SMBIOS) version2.7

ThunderboltNu

Tip MemorieDDR4

Tip slot interfata graficaPCIe 4.0 x16

TPM connectorYes

Unbuffered memoryYes

USB 2.0 connectors1

USB 2.0 ports quantity4

USB 3.2 Gen 1 (3.1 Gen 1) connectors2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0

USB 3.2 Gen 2 (3.1 Gen 2) connectors0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0

USB34-8

VGA (D-Sub) ports quantity0

Video-ConnectionHDMI

Warranty period3 year(s)

Weight770 g

Wi-FINo

Width244 mm

Windows operating systems supportedWindows 10, Windows 11

WirelessNu

Specificații

Brand	GIGABYTE
Cod produs	NOD-H610M D3W DDR4
Categorie	Componente
Garanție	Se confirmă la ofertare
Livrare	termen de livrare confirmat la comandă
Bluetooth	Nu
1st M.2 highest PCI Express generation	3.0
1st M.2 largest key size	2280
ACPI version	5.0
ATX Power connector (24-pin)	Yes
Audio Chip	Realtek ALC897
Audio output channels	7.1 channels
Batteries included	Yes
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Battery weight	3 g
BIOS memory size	128 Mbit
BIOS type	UEFI AMI
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Canale audio	7.1
Chipset audio integrat	Realtek
Clear CMOS jumper	Yes
Component for	PC
Country of origin	China
CPU fan connector	Yes
Depth	220 mm
Desktop Management Interface (DMI) version	2.7
DirectX version	12.0
DisplayPort version	1.2
DisplayPorts quantity	1
DVI-D ports quantity	0
ECC сompatibility	ECC & Non-ECC
EPS power connector (8-pin)	Yes
Ethernet interface type	Gigabit Ethernet
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Format	Micro-ATX
Front panel audio connector	Yes
Front panel connector	Yes
Gaming	Nu
HDMI	Da
HDMI ports quantity	1
HDMI version	2.1
Height	35 mm
LAN controller	Realtek RTL8111H
Line-in	Yes
Lithium weight per battery	0.07 g
Maximum internal memory	64 GB
Maximum internal memory per slot	32 GB
MB-Format	micro-ATX
MB-Socket	1700
Memorie maxima	64 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Microphone in	Yes
Model Chipset	H610
Motherboard chipset	Intel H610
Motherboard chipset family	Intel
Motherboard form factor	micro ATX
Numar sloturi memorie	2
Number of battery cells	1
Number of chassis fan connectors	2
Number of CPU fan connectors	1
Number of EPS power connectors (8-pin)	1
Number of HDDs supported	4
Number of M.2 (M) slots	1
Number of memory slots	2
Number of SATA III connectors	4
Number of storage drives supported	5
Onboard-CPU	No
Package depth	265 mm
Package height	54 mm
Package weight	800 g
Package width	265 mm
Parallel processing technology support	Not supported
PC health monitoring	Fan, Temperature, Voltage, Water cooling
PCI	0
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
PCI-Ex1	1
PCI-Ex16	1
Power source type	ATX
Processor manufacturer	Intel
Processor socket	LGA 1700
Product colour	Grey
Products per shipping (inner) case	1 pc(s)
RAM-Slots	2
RJ-45 LAN	1
Screws included	Yes
Serial port headers	1
Serial-or-Paralel	No/No
Sloturi M.2	2
Soclu Procesor	Socket 1700
Supported memory clock speed (max)	3200 MHz
Supported memory clock speeds	2133,2400,2666,2933,3000,3200 MHz
Supported memory types	DDR4-SDRAM
Supported processor sockets	LGA 1700
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
System Management BIOS (SMBIOS) version	2.7
Thunderbolt	Nu
Tip Memorie	DDR4
Tip slot interfata grafica	PCIe 4.0 x16
TPM connector	Yes
Unbuffered memory	Yes
USB 2.0 connectors	1
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB3	4-8
VGA (D-Sub) ports quantity	0
Video-Connection	HDMI
Warranty period	3 year(s)
Weight	770 g
Wi-FI	No
Width	244 mm
Windows operating systems supported	Windows 10, Windows 11
Wireless	Nu

Configurație

Placa de Baza GIGABYTE H610M D3W DDR4 LGA1700, 2x DDR4, 1x DP 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x1 2x M.2, 4x SATA 6GB/s, mATX

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

Placa de Baza GIGABYTE H610M D3W DDR4 LGA1700, 2x DDR4, 1x DP 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x1 2x M.2, 4x SATA 6GB/s, mATX

Bluetooth: Nu1st M.2 highest PCI Express generation: 3.01st M.2 largest key size: 2280ACPI version: 5.0ATX Power connector (24-pin): YesAudio Chip: Realtek ALC897
