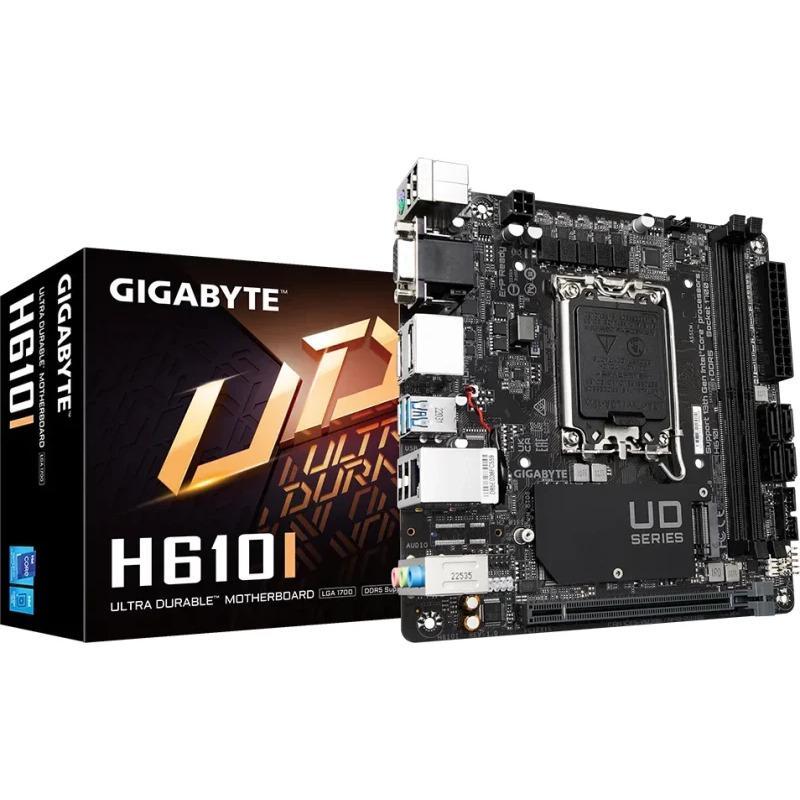

Placa de baza Gigabyte H610I, Socket 1700, DDR5, Mini-ITX

GIGABYTE · NOD-H610I

Placa de baza Gigabyte H610I, Socket 1700, DDR5, Mini-ITX

Name: Placa de baza Gigabyte H610I, Socket 1700, DDR5, Mini-ITX
Brand: GIGABYTE
SKU: NOD-H610I
Price: 552 RON
Availability: LimitedAvailability

Placa de Baza GIGABYTE H610I LGA1700, 2x DDR5, 1x D-Sub 1x HDMI 2x DP, 1x PCIE X16, 1x M.2, 4x SATA 6GB/s, Mini-ITX

456 lei

prețuri fără TVA · 552 lei cu TVA

Disponibil la furnizor·termen de livrare confirmat la comandă

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.456 lei

GIGABYTE · ComponenteDoar pentru firme (B2B)

Placa de baza Gigabyte H610I, Socket 1700, DDR5, Mini-ITX

SKU: NOD-H610I

Bluetooth: Nu
12V power connector: Yes
ACPI version: 5.0
ATX Power connector (24-pin): Yes
Audio Chip: Realtek ALC897
Audio output channels: 7.1 channels

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

456 leiprețuri fără TVA

Disponibil la furnizor·termen de livrare confirmat la comandă

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandGIGABYTE

Cod produsNOD-H610I

CategorieComponente

BluetoothNu

12V power connectorYes

ACPI version5.0

ATX Power connector (24-pin)Yes

Audio ChipRealtek ALC897

Audio output channels7.1 channels

Batteries includedYes

Battery technologyLithium-Manganese Dioxide (LiMnO2)

Battery typeCR2032

Battery weight3 g

BIOS memory size256 Mbit

BIOS typeUEFI AMI

Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software

Cables includedSATA

Canale audio7.1

Chassis intrusion connectorYes

Chipset audio integratRealtek

Clear CMOS buttonYes

Clear CMOS jumperYes

Component forPC

Cooling typeActive

Country of originChina

CPU fan connectorYes

Depth170 mm

Desktop Management Interface (DMI) version2.7

DisplayPort version1.2

DisplayPorts quantity2

DVI-D ports quantity0

ECC сompatibilityECC & Non-ECC

Ethernet interface typeGigabit Ethernet

Ethernet LANYes

Ethernet LAN (RJ-45) ports1

FormatMini-ITX

Front panel audio connectorYes

Front panel connectorYes

GamingNu

Graphics cardHD Graphics

Graphics card familyIntel

HDCPYes

HDMIDa

HDMI ports quantity1

HDMI version2.0

Headphone outputs3

Height35 mm

Lithium weight per battery0.07 g

Maximum internal memory64 GB

Maximum internal memory supported by processor64 GB

Maximum resolution4096 x 2304 pixels

Memorie maxima64 GB

Memory channelsDual-channel

Memory slots typeDIMM

Microphone inYes

Model ChipsetH610

Motherboard chipsetIntel H610 Express

Motherboard chipset familyIntel

Motherboard form factormini ITX

Numar sloturi memorie2

Number of battery cells1

Number of chassis fan connectors2

Number of HDDs supported1

Number of M.2 (M) slots1

Number of memory slots2

Number of SATA III connectors4

Number of storage drives supported5

Onboard-CPUNo

Package depth180 mm

Package height65 mm

Package weight590 g

Package width222 mm

Parallel processing technology supportNot supported

PC health monitoringFan, Temperature, Voltage

PCI0

PCI Express x16 slots1

Power source typeATX

Processor manufacturerIntel

Processor socketLGA 1700

Product colourBlack

Products per shipping (inner) case1 pc(s)

PS/2 ports quantity1

RGB LED pin headerYes

RJ-45 LAN1

Serial port headers1

Serial-or-ParalelNo/No

Sloturi M.21

Soclu ProcesorSocket 1700

Supported memory clock speed (max)5600 MHz

Supported memory clock speeds5600, 5200, 4800, 4400 MHz

Supported memory module capacities1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB

Supported memory typesDDR5-SDRAM

Supported processor socketsLGA 1700

Supported storage drive interfacesM.2, SATA III

Supported storage drive typesHDD & SSD

System Management BIOS (SMBIOS) version2.7

ThunderboltNu

Tip MemorieDDR5

Tip slot interfata graficaPCIe 3.0 x16

TPM connectorYes

Unbuffered memoryYes

USB 2.0 connectors1

USB 2.0 ports quantity4

USB 3.2 Gen 1 (3.1 Gen 1) connectors1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0

USB 3.2 Gen 2 (3.1 Gen 2) connectors0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0

USB connector typeUSB Type-A

USB Type CDa

VGA (D-Sub) ports quantity1

Video-ConnectionHDMI/DP

Warranty period3 year(s)

Wi-FINo

Width170 mm

Windows operating systems supportedWindows 10 x64, Windows 11 x64

WirelessNu

Specificații

Brand	GIGABYTE
Cod produs	NOD-H610I
Categorie	Componente
Garanție	Se confirmă la ofertare
Livrare	termen de livrare confirmat la comandă
Bluetooth	Nu
12V power connector	Yes
ACPI version	5.0
ATX Power connector (24-pin)	Yes
Audio Chip	Realtek ALC897
Audio output channels	7.1 channels
Batteries included	Yes
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Battery weight	3 g
BIOS memory size	256 Mbit
BIOS type	UEFI AMI
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Cables included	SATA
Canale audio	7.1
Chassis intrusion connector	Yes
Chipset audio integrat	Realtek
Clear CMOS button	Yes
Clear CMOS jumper	Yes
Component for	PC
Cooling type	Active
Country of origin	China
CPU fan connector	Yes
Depth	170 mm
Desktop Management Interface (DMI) version	2.7
DisplayPort version	1.2
DisplayPorts quantity	2
DVI-D ports quantity	0
ECC сompatibility	ECC & Non-ECC
Ethernet interface type	Gigabit Ethernet
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Format	Mini-ITX
Front panel audio connector	Yes
Front panel connector	Yes
Gaming	Nu
Graphics card	HD Graphics
Graphics card family	Intel
HDCP	Yes
HDMI	Da
HDMI ports quantity	1
HDMI version	2.0
Headphone outputs	3
Height	35 mm
Lithium weight per battery	0.07 g
Maximum internal memory	64 GB
Maximum internal memory supported by processor	64 GB
Maximum resolution	4096 x 2304 pixels
Memorie maxima	64 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Microphone in	Yes
Model Chipset	H610
Motherboard chipset	Intel H610 Express
Motherboard chipset family	Intel
Motherboard form factor	mini ITX
Numar sloturi memorie	2
Number of battery cells	1
Number of chassis fan connectors	2
Number of HDDs supported	1
Number of M.2 (M) slots	1
Number of memory slots	2
Number of SATA III connectors	4
Number of storage drives supported	5
Onboard-CPU	No
Package depth	180 mm
Package height	65 mm
Package weight	590 g
Package width	222 mm
Parallel processing technology support	Not supported
PC health monitoring	Fan, Temperature, Voltage
PCI	0
PCI Express x16 slots	1
Power source type	ATX
Processor manufacturer	Intel
Processor socket	LGA 1700
Product colour	Black
Products per shipping (inner) case	1 pc(s)
PS/2 ports quantity	1
RGB LED pin header	Yes
RJ-45 LAN	1
Serial port headers	1
Serial-or-Paralel	No/No
Sloturi M.2	1
Soclu Procesor	Socket 1700
Supported memory clock speed (max)	5600 MHz
Supported memory clock speeds	5600, 5200, 4800, 4400 MHz
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Supported memory types	DDR5-SDRAM
Supported processor sockets	LGA 1700
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
System Management BIOS (SMBIOS) version	2.7
Thunderbolt	Nu
Tip Memorie	DDR5
Tip slot interfata grafica	PCIe 3.0 x16
TPM connector	Yes
Unbuffered memory	Yes
USB 2.0 connectors	1
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB connector type	USB Type-A
USB Type C	Da
VGA (D-Sub) ports quantity	1
Video-Connection	HDMI/DP
Warranty period	3 year(s)
Wi-FI	No
Width	170 mm
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Wireless	Nu
