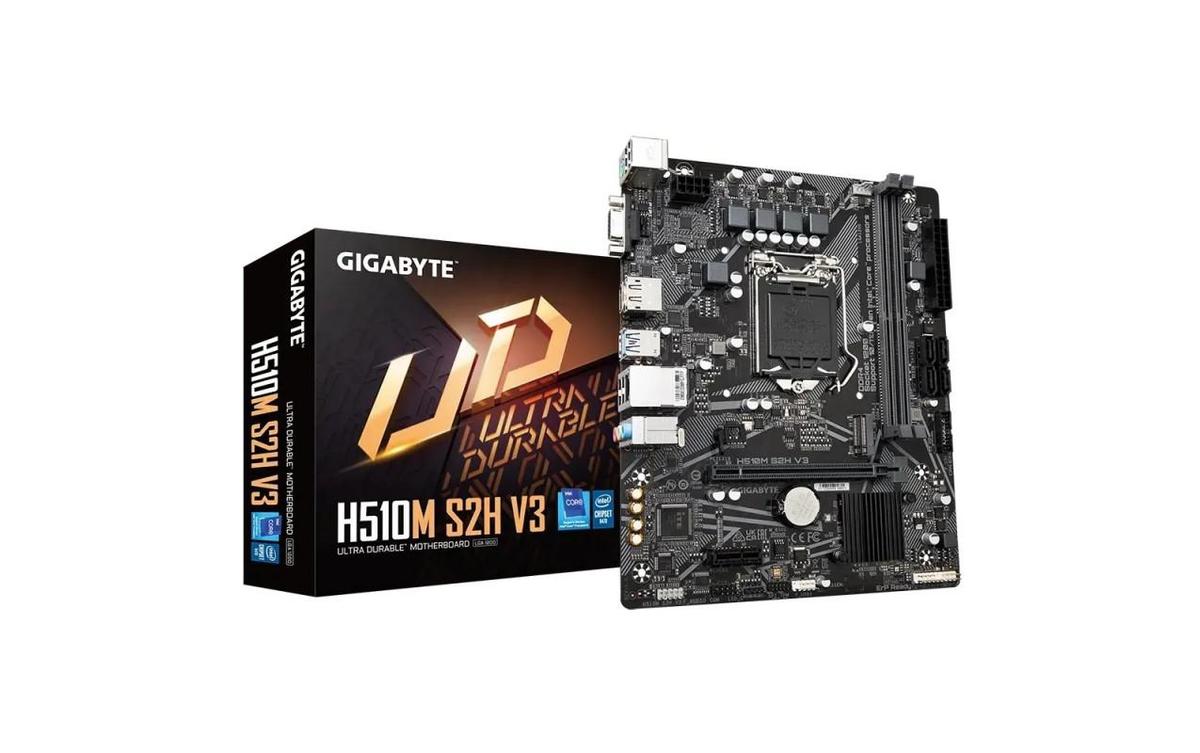

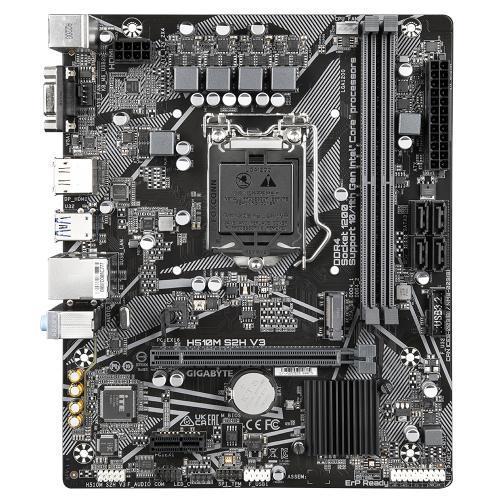

Placa de baza Gigabyte H510M S2H V3, Socket 1200, DDR4, Micro-ATX

GIGABYTE · NOD-H510M S2H V3

Placa de baza Gigabyte H510M S2H V3, Socket 1200, DDR4, Micro-ATX

Name: Placa de baza Gigabyte H510M S2H V3, Socket 1200, DDR4, Micro-ATX
Brand: GIGABYTE
SKU: NOD-H510M S2H V3
Price: 483 RON
Availability: BackOrder

Placa de baza Gigabyte H510M S2H V3 LGA 1200 Intel® H510M Ultra Durable Motherboard with 6+2 Phases Digital VRM, PCIe 4.0* Design, Realtek 8118 Gaming LAN, 3 Display Interfaces Support , Anti-Sulfur Resistor, Smart Fan 6 Supports 11th and 10th Gen Intel® Core™ Series Processors Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs Ultra-Fast M.2 with PCIe Gen3 X4 & SATA Interface GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management 3 Display Interfaces Support High Quality Audio Capacitors and Audio Noise Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP GIGABYTE APP Center, Simple and Easy Use Anti-Sulfur Resistors Design https://www.gigabyte.com/Motherboard/H510M-S2H-V3-rev-10/sp#sp

399 lei

prețuri fără TVA · 483 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.399 lei

GIGABYTE · ComponenteDoar pentru firme (B2B)

Placa de baza Gigabyte H510M S2H V3, Socket 1200, DDR4, Micro-ATX

SKU: NOD-H510M S2H V3

Bluetooth: Nu
12V power connector: Yes
ACPI version: 5.0
ATX Power connector (24-pin): Yes
Audio output channels: 7.1 channels
Batteries included: Yes

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

399 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandGIGABYTE

Cod produsNOD-H510M S2H V3

CategorieComponente

BluetoothNu

12V power connectorYes

ACPI version5.0

ATX Power connector (24-pin)Yes

Audio output channels7.1 channels

Batteries includedYes

Battery technologyLithium-Manganese Dioxide (LiMnO2)

Battery typeCR2032

Battery weight3 g

BIOS memory size128 Mbit

BIOS typeUEFI AMI

Cables includedSATA

Canale audio7.1

Chipset audio integratRealtek

Clear CMOS jumperYes

Component forPC

Country of originChina

CPU fan connectorYes

Depth185 mm

Desktop Management Interface (DMI) version2.7

DirectX version12.0

DisplayPort version1.2

DisplayPorts quantity1

Drivers includedYes

DVI-D ports quantity0

ECC сompatibilityECC & Non-ECC

EPS power connector (8-pin)Yes

Ethernet interface typeGigabit Ethernet

Ethernet LANYes

Ethernet LAN (RJ-45) ports1

FormatMicro-ATX

Front panel audio connectorYes

Front panel connectorYes

GamingDa

HDCPYes

HDMIDa

HDMI ports quantity1

Height35 mm

Lithium weight per battery0.07 g

Maximum internal memory64 GB

Maximum internal memory supported by processor64 GB

Maximum resolution4096 x 2304 pixels

MB-Formatmicro-ATX

MB-Socket1200

Memorie maxima64 GB

Memory channelsDual-channel

Memory slots typeDIMM

Microphone inYes

Model ChipsetH510

Motherboard chipsetIntel H470 Express

Motherboard chipset familyIntel

Motherboard form factormicro ATX

Numar sloturi memorie2

Number of battery cells1

Number of chassis fan connectors2

Number of displays supported2

Number of HDDs supported4

Number of M.2 (M) slots1

Number of memory slots2

Number of SATA III connectors4

Number of storage drives supported5

Onboard-CPUNo

Package depth235 mm

Package height52 mm

Package weight760 g

Package width265 mm

Parallel processing technology supportNot supported

PC health monitoringFan, Temperature, Voltage

PCI0

PCI Express x1 slots2

PCI Express x16 slots1

PCI-Ex11

PCI-Ex161

Processor manufacturerIntel

Processor socketLGA 1200 (Socket H5)

Product colourBrown

Products per shipping (inner) case1 pc(s)

PS/2 ports quantity2

RAM-Slots2

RGB LED pin headerYes

RJ-45 LAN1

Serial port headers1

Serial-or-ParalelNo/No

Sloturi M.21

Soclu ProcesorSocket 1200

Supported memory clock speed (max)3200 MHz

Supported memory clock speeds2133,2400,2666,2933,3000,3200 MHz

Supported memory module capacities1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB

Supported memory typesDDR4-SDRAM

Supported processor socketsLGA 1200 (Socket H5)

Supported storage drive interfacesM.2, PCI Express 3.0, SATA III

Supported storage drive typesHDD & SSD

System Management BIOS (SMBIOS) version2.7

ThunderboltNu

Tip MemorieDDR4

Tip slot interfata graficaPCIe 4.0 x16

Total number of SATA connectors4

TPM connectorYes

Unbuffered memoryYes

USB 2.0 connectors1

USB 2.0 ports quantity4

USB 3.2 Gen 1 (3.1 Gen 1) connectors1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0

USB 3.2 Gen 2 (3.1 Gen 2) connectors0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0

USB connector typeUSB Type-A

USB Type CDa

USB34-8

VGA (D-Sub) ports quantity1

Video-ConnectionDVI/HDMI/DP

Warranty period3 year(s)

Wi-FINo

Width226 mm

Windows operating systems supportedWindows 10 x64, Windows 11 x64

WirelessNu

Specificații

Brand	GIGABYTE
Cod produs	NOD-H510M S2H V3
Categorie	Componente
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
Bluetooth	Nu
12V power connector	Yes
ACPI version	5.0
ATX Power connector (24-pin)	Yes
Audio output channels	7.1 channels
Batteries included	Yes
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Battery weight	3 g
BIOS memory size	128 Mbit
BIOS type	UEFI AMI
Cables included	SATA
Canale audio	7.1
Chipset audio integrat	Realtek
Clear CMOS jumper	Yes
Component for	PC
Country of origin	China
CPU fan connector	Yes
Depth	185 mm
Desktop Management Interface (DMI) version	2.7
DirectX version	12.0
DisplayPort version	1.2
DisplayPorts quantity	1
Drivers included	Yes
DVI-D ports quantity	0
ECC сompatibility	ECC & Non-ECC
EPS power connector (8-pin)	Yes
Ethernet interface type	Gigabit Ethernet
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Format	Micro-ATX
Front panel audio connector	Yes
Front panel connector	Yes
Gaming	Da
HDCP	Yes
HDMI	Da
HDMI ports quantity	1
Height	35 mm
Lithium weight per battery	0.07 g
Maximum internal memory	64 GB
Maximum internal memory supported by processor	64 GB
Maximum resolution	4096 x 2304 pixels
MB-Format	micro-ATX
MB-Socket	1200
Memorie maxima	64 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Microphone in	Yes
Model Chipset	H510
Motherboard chipset	Intel H470 Express
Motherboard chipset family	Intel
Motherboard form factor	micro ATX
Numar sloturi memorie	2
Number of battery cells	1
Number of chassis fan connectors	2
Number of displays supported	2
Number of HDDs supported	4
Number of M.2 (M) slots	1
Number of memory slots	2
Number of SATA III connectors	4
Number of storage drives supported	5
Onboard-CPU	No
Package depth	235 mm
Package height	52 mm
Package weight	760 g
Package width	265 mm
Parallel processing technology support	Not supported
PC health monitoring	Fan, Temperature, Voltage
PCI	0
PCI Express x1 slots	2
PCI Express x16 slots	1
PCI-Ex1	1
PCI-Ex16	1
Processor manufacturer	Intel
Processor socket	LGA 1200 (Socket H5)
Product colour	Brown
Products per shipping (inner) case	1 pc(s)
PS/2 ports quantity	2
RAM-Slots	2
RGB LED pin header	Yes
RJ-45 LAN	1
Serial port headers	1
Serial-or-Paralel	No/No
Sloturi M.2	1
Soclu Procesor	Socket 1200
Supported memory clock speed (max)	3200 MHz
Supported memory clock speeds	2133,2400,2666,2933,3000,3200 MHz
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Supported memory types	DDR4-SDRAM
Supported processor sockets	LGA 1200 (Socket H5)
Supported storage drive interfaces	M.2, PCI Express 3.0, SATA III
Supported storage drive types	HDD & SSD
System Management BIOS (SMBIOS) version	2.7
Thunderbolt	Nu
Tip Memorie	DDR4
Tip slot interfata grafica	PCIe 4.0 x16
Total number of SATA connectors	4
TPM connector	Yes
Unbuffered memory	Yes
USB 2.0 connectors	1
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB connector type	USB Type-A
USB Type C	Da
USB3	4-8
VGA (D-Sub) ports quantity	1
Video-Connection	DVI/HDMI/DP
Warranty period	3 year(s)
Wi-FI	No
Width	226 mm
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Wireless	Nu
