GIGABYTE · NOD-B860M GAMING WIFI6

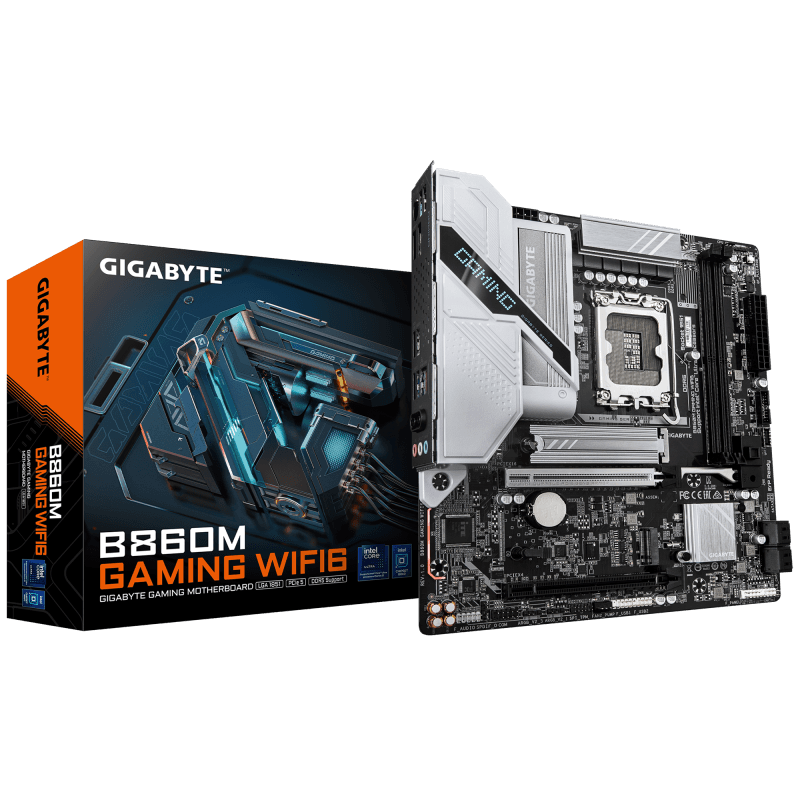

Placa de baza Gigabyte B860M GAMING WIFI6, Socket 1851, DDR5, Micro-ATX

Name: Placa de baza Gigabyte B860M GAMING WIFI6, Socket 1851, DDR5, Micro-ATX
Brand: GIGABYTE
SKU: NOD-B860M GAMING WIFI6
Price: 870 RON
Availability: InStock

Placa de baza Gigabyte B860M GAMING WIFI6E

719 lei

prețuri fără TVA · 870 lei cu TVA

Disponibil la furnizor · 9 buc·termen de livrare confirmat la comandă

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.719 lei

GIGABYTE · ComponenteDoar pentru firme (B2B)

Placa de baza Gigabyte B860M GAMING WIFI6, Socket 1851, DDR5, Micro-ATX

SKU: NOD-B860M GAMING WIFI6

Bluetooth: Da
1st M.2 highest PCI Express generation: 5.0
1st M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 2280
ACPI version: 5.0

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

719 leiprețuri fără TVA

Disponibil la furnizor · 9 buc·termen de livrare confirmat la comandă

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandGIGABYTE

Cod produsNOD-B860M GAMING WIFI6

CategorieComponente

BluetoothDa

1st M.2 highest PCI Express generation5.0

1st M.2 largest key size2280

2nd M.2 highest PCI Express generation4.0

2nd M.2 largest key size2280

ACPI version5.0

Antenna includedYes

ATX Power connector (24-pin)Yes

Audio ChipRealtek ALC897

Audio output channels7.1 channels

Batteries includedYes

Battery capacity220 mAh

Battery technologyLithium-Manganese Dioxide (LiMnO2)

Battery typeCR2032

Battery weight3 g

BIOS memory size256 Mbit

BIOS typeUEFI AMI

Bluetooth version5.3

Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software

Canale audio7.1

Chipset audio integratRealtek

Clear CMOS jumperYes

Compatible processor seriesIntel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)

Component forPC

Cooling typePassive

CPU fan connectorYes

Depth225 mm

Desktop Management Interface (DMI) version2.7

DirectX version12.0

DisplayPort version2.1

DisplayPorts quantity1

DVI-D ports quantity0

ECC сompatibilityECC & Non-ECC

EPS power connector (8-pin)Yes

Ethernet interface type2.5 Gigabit Ethernet

Ethernet LANYes

Ethernet LAN (RJ-45) ports1

FormatMicro-ATX

Front panel audio connectorYes

Front panel connectorYes

GamingDa

HDCPYes

HDMIDa

HDMI ports quantity1

HDMI version2.1

Headphone outputs1

Height35 mm

LAN controllerRealtek RTL8125

Line-inYes

Lithium weight per battery0.07 g

Maximum internal memory128 GB

Maximum internal memory per slot64 GB

Maximum resolution4096 x 2160 pixels

Memorie maxima128 GB

Memory channelsDual-channel

Memory slots typeDIMM

Microphone inYes

Model ChipsetB860

Motherboard chipset familyIntel

Motherboard form factormicro ATX

Numar sloturi memorie2

Number of battery cells1

Number of chassis fan connectors2

Number of CPU fan connectors2

Number of EPS power connectors (8-pin)1

Number of HDDs supported4

Number of M.2 (M) slots2

Number of memory slots2

Number of RGB LED pin headers4

Number of SATA III connectors4

Number of storage drives supported6

Number of water pump connectors2

Package depth268 mm

Package height68 mm

Package weight1.29 kg

Package width270 mm

Parallel processing technology supportNot supported

PC health monitoringFan, Temperature, Voltage, Water cooling

PCI Express x16 (Gen 4.x) slots1

PCI Express x16 (Gen 5.x) slots1

Power source typeATX

Processor manufacturerIntel

Processor socketLGA 1851 (Socket V1)

Product colourBrown

Products per shipping (inner) case1 pc(s)

RAID levels0, 1, 5, 10

RAID supportYes

RGB LED pin headerYes

RJ-45 LAN1

Screws includedYes

Sloturi M.22

Soclu ProcesorSocket 1851

Supported memory clock speed (max)9066 MHz

Supported memory clock speeds5600,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600,8800,9066 MHz

Supported memory typesDDR5-SDRAM

Supported processor socketsLGA 1851

Supported storage drive interfacesM.2, SATA III

Supported storage drive typesHDD & SSD

System Management BIOS (SMBIOS) version2.7

ThunderboltDa

Thunderbolt headers2

Tip MemorieDDR5

Tip slot interfata graficaPCIe 5.0 x16

Top Wi-Fi standardWi-Fi 6 (802.11ax)

TPM connectorYes

Unbuffered memoryYes

USB 2.0 connectors2

USB 2.0 ports quantity3

USB 3.2 Gen 1 (3.1 Gen 1) connectors1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0

USB 3.2 Gen 2 (3.1 Gen 2) connectors1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0

USB Type CDa

VGA (D-Sub) ports quantity0

Weight12.3 kg

Wi-FIYes

Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Width244 mm

WiFi-AP antenna jack2

Windows operating systems supportedWindows 10 x64, Windows 11 x64

WirelessDa

WLAN controller modelRealtek RTL8851BE

Specificații

Brand	GIGABYTE
Cod produs	NOD-B860M GAMING WIFI6
Categorie	Componente
Garanție	Se confirmă la ofertare
Livrare	termen de livrare confirmat la comandă
Bluetooth	Da
1st M.2 highest PCI Express generation	5.0
1st M.2 largest key size	2280
2nd M.2 highest PCI Express generation	4.0
2nd M.2 largest key size	2280
ACPI version	5.0
Antenna included	Yes
ATX Power connector (24-pin)	Yes
Audio Chip	Realtek ALC897
Audio output channels	7.1 channels
Batteries included	Yes
Battery capacity	220 mAh
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Battery weight	3 g
BIOS memory size	256 Mbit
BIOS type	UEFI AMI
Bluetooth version	5.3
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Canale audio	7.1
Chipset audio integrat	Realtek
Clear CMOS jumper	Yes
Compatible processor series	Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
Component for	PC
Cooling type	Passive
CPU fan connector	Yes
Depth	225 mm
Desktop Management Interface (DMI) version	2.7
DirectX version	12.0
DisplayPort version	2.1
DisplayPorts quantity	1
DVI-D ports quantity	0
ECC сompatibility	ECC & Non-ECC
EPS power connector (8-pin)	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Format	Micro-ATX
Front panel audio connector	Yes
Front panel connector	Yes
Gaming	Da
HDCP	Yes
HDMI	Da
HDMI ports quantity	1
HDMI version	2.1
Headphone outputs	1
Height	35 mm
LAN controller	Realtek RTL8125
Line-in	Yes
Lithium weight per battery	0.07 g
Maximum internal memory	128 GB
Maximum internal memory per slot	64 GB
Maximum resolution	4096 x 2160 pixels
Memorie maxima	128 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Microphone in	Yes
Model Chipset	B860
Motherboard chipset family	Intel
Motherboard form factor	micro ATX
Numar sloturi memorie	2
Number of battery cells	1
Number of chassis fan connectors	2
Number of CPU fan connectors	2
Number of EPS power connectors (8-pin)	1
Number of HDDs supported	4
Number of M.2 (M) slots	2
Number of memory slots	2
Number of RGB LED pin headers	4
Number of SATA III connectors	4
Number of storage drives supported	6
Number of water pump connectors	2
Package depth	268 mm
Package height	68 mm
Package weight	1.29 kg
Package width	270 mm
Parallel processing technology support	Not supported
PC health monitoring	Fan, Temperature, Voltage, Water cooling
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
Power source type	ATX
Processor manufacturer	Intel
Processor socket	LGA 1851 (Socket V1)
Product colour	Brown
Products per shipping (inner) case	1 pc(s)
RAID levels	0, 1, 5, 10
RAID support	Yes
RGB LED pin header	Yes
RJ-45 LAN	1
Screws included	Yes
Sloturi M.2	2
Soclu Procesor	Socket 1851
Supported memory clock speed (max)	9066 MHz
Supported memory clock speeds	5600,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600,8800,9066 MHz
Supported memory types	DDR5-SDRAM
Supported processor sockets	LGA 1851
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
System Management BIOS (SMBIOS) version	2.7
Thunderbolt	Da
Thunderbolt headers	2
Tip Memorie	DDR5
Tip slot interfata grafica	PCIe 5.0 x16
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
TPM connector	Yes
Unbuffered memory	Yes
USB 2.0 connectors	2
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB Type C	Da
VGA (D-Sub) ports quantity	0
Weight	12.3 kg
Wi-FI	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Width	244 mm
WiFi-AP antenna jack	2
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Wireless	Da
WLAN controller model	Realtek RTL8851BE

Configurație

Placa de baza Gigabyte B860M GAMING WIFI6E

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

Placa de baza Gigabyte B860M GAMING WIFI6E

Bluetooth: Da1st M.2 highest PCI Express generation: 5.01st M.2 largest key size: 22802nd M.2 highest PCI Express generation: 4.02nd M.2 largest key size: 2280ACPI version: 5.0
