GIGABYTE · NOD-B760M G X WF6E GEN5

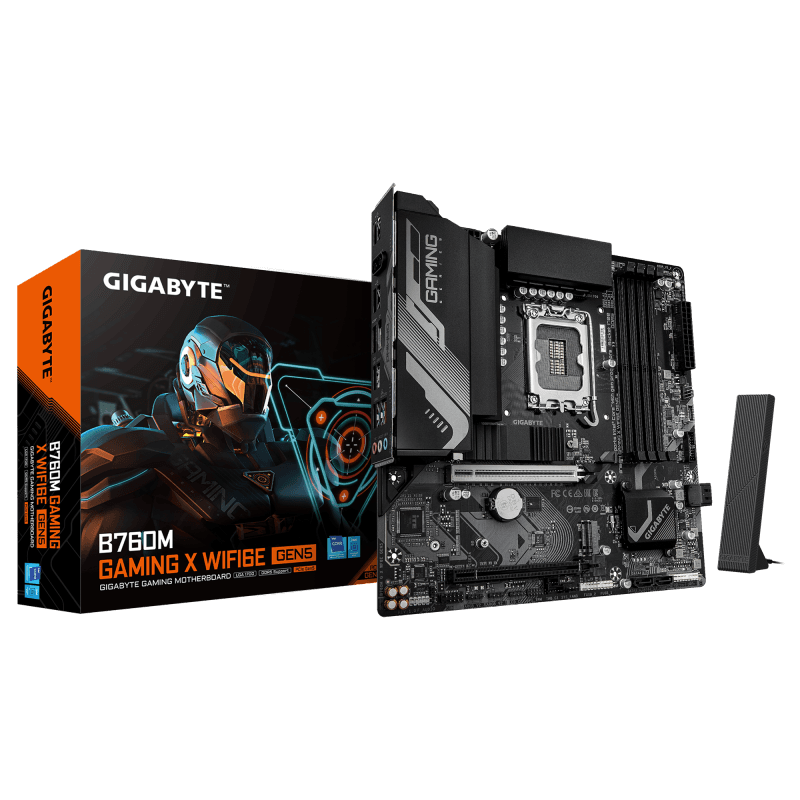

Placa de baza Gigabyte B760M Gaming X WiFi6E Gen5, LGA 1700, DDR5, Micro-ATX

Name: Placa de baza Gigabyte B760M Gaming X WiFi6E Gen5, LGA 1700, DDR5, Micro-ATX
Brand: GIGABYTE
SKU: NOD-B760M G X WF6E GEN5
Price: 1083 RON
Availability: InStock

GIGABYTE B760M GAMING X WIFI6E GEN5. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

895 lei

prețuri fără TVA · 1.083 lei cu TVA

Disponibil la furnizor · 32 buc·termen de livrare confirmat la comandă

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.895 lei

GIGABYTE · ComponenteDoar pentru firme (B2B)

Placa de baza Gigabyte B760M Gaming X WiFi6E Gen5, LGA 1700, DDR5, Micro-ATX

SKU: NOD-B760M G X WF6E GEN5

Bluetooth: Da
12V power connector: Yes
1st M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 22110

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

895 leiprețuri fără TVA

Disponibil la furnizor · 32 buc·termen de livrare confirmat la comandă

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandGIGABYTE

Cod produsNOD-B760M G X WF6E GEN5

CategorieComponente

BluetoothDa

12V power connectorYes

1st M.2 highest PCI Express generation4.0

1st M.2 largest key size2280

2nd M.2 highest PCI Express generation4.0

2nd M.2 largest key size22110

ACPI version5.0

Antenna includedYes

ATX Power connector (24-pin)Yes

Audio ChipRealtek ALC897

Audio output channels7.1 channels

Batteries includedYes

Battery technologyLithium-Manganese Dioxide (LiMnO2)

Battery typeCR2032

Battery weight3 g

BIOS memory size256 Mbit

BIOS typeUEFI AMI

Bluetooth version5.3

Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software

Canale audio7.1

Chipset audio integratRealtek

Clear CMOS jumperYes

Component forPC

Cooling typePassive

Country of originChina

CPU fan connectorYes

Depth244 mm

Desktop Management Interface (DMI) version2.7

DirectX version12.0

DisplayPort version1.2

DisplayPorts quantity1

DVI-D ports quantity0

ECC сompatibilityECC & Non-ECC

EPS power connector (8-pin)Yes

Ethernet interface type2.5 Gigabit Ethernet

Ethernet LANYes

Ethernet LAN (RJ-45) ports1

FormatMicro-ATX

Front panel audio connectorYes

Front panel connectorYes

GamingDa

HDCPYes

HDMIDa

HDMI ports quantity1

HDMI version2.1

Headphone outputs1

Height35 mm

LAN controllerRealtek RTL8125

Line-inYes

Lithium weight per battery0.07 g

Maximum internal memory256 GB

Maximum internal memory per slot64 GB

Maximum resolution4096 x 2304 pixels

Memorie maxima256 GB

Memory channelsDual-channel

Memory slots typeDIMM

Microphone inYes

Model ChipsetB760

Motherboard chipsetIntel B760

Motherboard chipset familyIntel

Motherboard form factormicro ATX

Numar sloturi memorie4

Number of battery cells1

Number of chassis fan connectors3

Number of CPU fan connectors1

Number of EPS power connectors (8-pin)1

Number of HDDs supported4

Number of M.2 (M) slots2

Number of memory slots4

Number of RGB LED pin headers4

Number of SATA III connectors4

Number of storage drives supported6

Package depth268 mm

Package height68 mm

Package weight1.6 kg

Package width270 mm

Parallel processing technology supportNot supported

PC health monitoringFan, Temperature, Voltage, Water cooling

PCI Express x16 (Gen 3.x) slots1

PCI Express x16 (Gen 5.x) slots1

Power source typeATX

Processor manufacturerIntel

Processor socketLGA 1700

Product colourDark brown

Products per shipping (inner) case1 pc(s)

RAID levels0, 1, 5, 10

RAID supportYes

RGB LED pin headerYes

RJ-45 LAN1

S/PDIF out connectorYes

Screws includedYes

Serial port headers1

Sloturi M.22

Soclu ProcesorSocket 1700

Supported memory clock speed (max)5600 MHz

Supported memory clock speeds5600,5200,4800,4400 MHz

Supported memory typesDDR5-SDRAM

Supported processor socketsLGA 1700

Supported storage drive interfacesM.2, PCI Express 4.0, SATA III

Supported storage drive typesHDD & SSD

System Management BIOS (SMBIOS) version2.7

ThunderboltNu

Thunderbolt headers2

Tip MemorieDDR5

Tip slot interfata graficaPCIe 5.0 x16

Top Wi-Fi standardWi-Fi 6E (802.11ax)

TPM connectorYes

Unbuffered memoryYes

USB 2.0 connectors2

USB 2.0 ports quantity5

USB 3.2 Gen 1 (3.1 Gen 1) connectors1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0

USB 3.2 Gen 2 (3.1 Gen 2) connectors1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0

VGA (D-Sub) ports quantity0

Warranty period3 year(s)

Weight1.42 kg

Wi-FIYes

Width244 mm

WiFi-AP antenna jack2

Windows operating systems supportedWindows 10 x64, Windows 11 x64

WirelessDa

WLAN controller modelIntel Wi-Fi 6E AX210

Specificații

Brand	GIGABYTE
Cod produs	NOD-B760M G X WF6E GEN5
Categorie	Componente
Garanție	Se confirmă la ofertare
Livrare	termen de livrare confirmat la comandă
Bluetooth	Da
12V power connector	Yes
1st M.2 highest PCI Express generation	4.0
1st M.2 largest key size	2280
2nd M.2 highest PCI Express generation	4.0
2nd M.2 largest key size	22110
ACPI version	5.0
Antenna included	Yes
ATX Power connector (24-pin)	Yes
Audio Chip	Realtek ALC897
Audio output channels	7.1 channels
Batteries included	Yes
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Battery weight	3 g
BIOS memory size	256 Mbit
BIOS type	UEFI AMI
Bluetooth version	5.3
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Canale audio	7.1
Chipset audio integrat	Realtek
Clear CMOS jumper	Yes
Component for	PC
Cooling type	Passive
Country of origin	China
CPU fan connector	Yes
Depth	244 mm
Desktop Management Interface (DMI) version	2.7
DirectX version	12.0
DisplayPort version	1.2
DisplayPorts quantity	1
DVI-D ports quantity	0
ECC сompatibility	ECC & Non-ECC
EPS power connector (8-pin)	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Format	Micro-ATX
Front panel audio connector	Yes
Front panel connector	Yes
Gaming	Da
HDCP	Yes
HDMI	Da
HDMI ports quantity	1
HDMI version	2.1
Headphone outputs	1
Height	35 mm
LAN controller	Realtek RTL8125
Line-in	Yes
Lithium weight per battery	0.07 g
Maximum internal memory	256 GB
Maximum internal memory per slot	64 GB
Maximum resolution	4096 x 2304 pixels
Memorie maxima	256 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Microphone in	Yes
Model Chipset	B760
Motherboard chipset	Intel B760
Motherboard chipset family	Intel
Motherboard form factor	micro ATX
Numar sloturi memorie	4
Number of battery cells	1
Number of chassis fan connectors	3
Number of CPU fan connectors	1
Number of EPS power connectors (8-pin)	1
Number of HDDs supported	4
Number of M.2 (M) slots	2
Number of memory slots	4
Number of RGB LED pin headers	4
Number of SATA III connectors	4
Number of storage drives supported	6
Package depth	268 mm
Package height	68 mm
Package weight	1.6 kg
Package width	270 mm
Parallel processing technology support	Not supported
PC health monitoring	Fan, Temperature, Voltage, Water cooling
PCI Express x16 (Gen 3.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
Power source type	ATX
Processor manufacturer	Intel
Processor socket	LGA 1700
Product colour	Dark brown
Products per shipping (inner) case	1 pc(s)
RAID levels	0, 1, 5, 10
RAID support	Yes
RGB LED pin header	Yes
RJ-45 LAN	1
S/PDIF out connector	Yes
Screws included	Yes
Serial port headers	1
Sloturi M.2	2
Soclu Procesor	Socket 1700
Supported memory clock speed (max)	5600 MHz
Supported memory clock speeds	5600,5200,4800,4400 MHz
Supported memory types	DDR5-SDRAM
Supported processor sockets	LGA 1700
Supported storage drive interfaces	M.2, PCI Express 4.0, SATA III
Supported storage drive types	HDD & SSD
System Management BIOS (SMBIOS) version	2.7
Thunderbolt	Nu
Thunderbolt headers	2
Tip Memorie	DDR5
Tip slot interfata grafica	PCIe 5.0 x16
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
TPM connector	Yes
Unbuffered memory	Yes
USB 2.0 connectors	2
USB 2.0 ports quantity	5
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
VGA (D-Sub) ports quantity	0
Warranty period	3 year(s)
Weight	1.42 kg
Wi-FI	Yes
Width	244 mm
WiFi-AP antenna jack	2
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Wireless	Da
WLAN controller model	Intel Wi-Fi 6E AX210

Configurație

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

Bluetooth: Da12V power connector: Yes1st M.2 highest PCI Express generation: 4.01st M.2 largest key size: 22802nd M.2 highest PCI Express generation: 4.02nd M.2 largest key size: 22110
