Placa de baza Gigabyte B760M D3HP, Socket 1700, DDR5, Micro-ATX

GIGABYTE · NOD-B760M D3HP

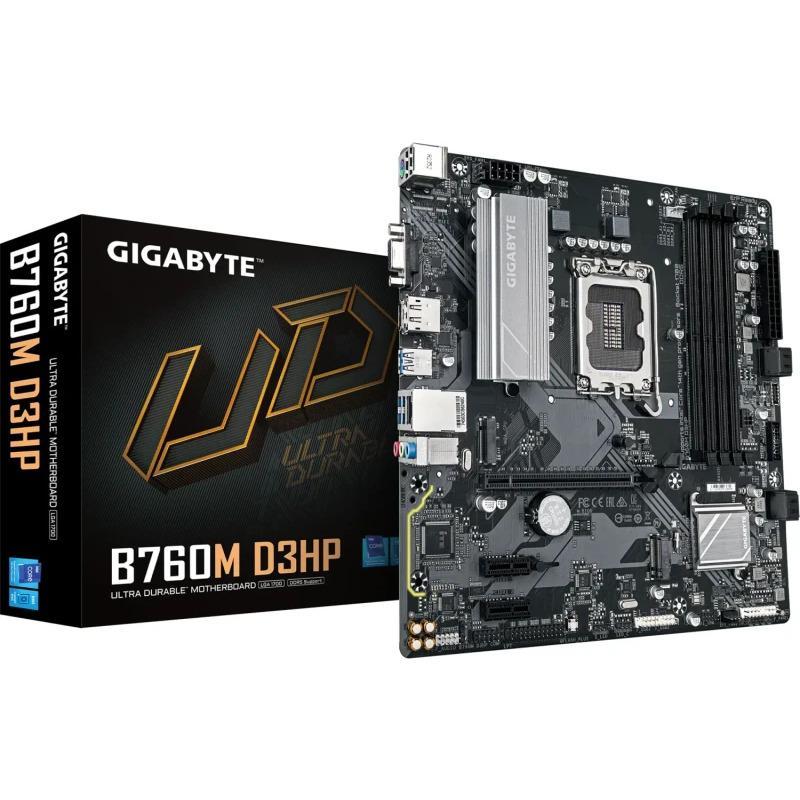

Placa de baza Gigabyte B760M D3HP, Socket 1700, DDR5, Micro-ATX

Name: Placa de baza Gigabyte B760M D3HP, Socket 1700, DDR5, Micro-ATX
Brand: GIGABYTE
SKU: NOD-B760M D3HP
Price: 508 RON
Availability: InStock

Placa de Baza GIGABYTE B760M D3HP LGA1700, 4x DDR5, 1x D-Sub 1x HDMI 1x DP, 1x PCIE 4.0 x16 2x PCIE 3.0 x1, 2x M.2, 4x SATA 6GB/s, mATX

420 lei

prețuri fără TVA · 508 lei cu TVA

Disponibil la furnizor · 23 buc·termen de livrare confirmat la comandă

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.420 lei

GIGABYTE · ComponenteDoar pentru firme (B2B)

Placa de baza Gigabyte B760M D3HP, Socket 1700, DDR5, Micro-ATX

SKU: NOD-B760M D3HP

Bluetooth: Nu
12V power connector: Yes
1st M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 2280

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

420 leiprețuri fără TVA

Disponibil la furnizor · 23 buc·termen de livrare confirmat la comandă

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandGIGABYTE

Cod produsNOD-B760M D3HP

CategorieComponente

BluetoothNu

12V power connectorYes

1st M.2 highest PCI Express generation4.0

1st M.2 largest key size2280

2nd M.2 highest PCI Express generation4.0

2nd M.2 largest key size2280

ACPI version5.0

ATX Power connector (24-pin)Yes

Audio output channels7.1 channels

Batteries includedYes

Battery technologyLithium-Manganese Dioxide (LiMnO2)

Battery typeCR2032

Battery weight3 g

BIOS memory size128 Mbit

BIOS typeUEFI AMI

Bundled softwareNorton Internet Security

Canale audio7.1

Chipset audio integratRealtek

Clear CMOS jumperYes

Component forPC

CPU fan connectorYes

Depth24.4 mm

Desktop Management Interface (DMI) version2.7

DirectX version12.0

DisplayPort version1.2

DisplayPorts quantity1

DVI-D ports quantity0

ECC сompatibilityECC & Non-ECC

EPS power connector (8-pin)Yes

Ethernet interface typeGigabit Ethernet

Ethernet LANYes

Ethernet LAN (RJ-45) ports1

FormatMicro-ATX

Front panel audio connectorYes

Front panel connectorYes

GamingNu

HDCPYes

HDMIDa

HDMI ports quantity1

HDMI version2.1

Headphone outputs1

Height35 mm

LAN controllerRealtek RTL8111H

Line-inYes

Lithium weight per battery0.07 g

Maximum internal memory256 GB

Maximum internal memory per slot64 GB

Maximum resolution4096 x 2304 pixels

MB-Formatmicro-ATX

MB-Socket1700

Memorie maxima256 GB

Memory channelsDual-channel

Memory slots typeDIMM

Microphone inYes

Model ChipsetB760

Motherboard chipsetIntel B760 Express

Motherboard chipset familyIntel

Motherboard form factormicro ATX

Numar sloturi memorie4

Number of battery cells1

Number of chassis fan connectors3

Number of CPU fan connectors1

Number of EPS power connectors (8-pin)1

Number of HDDs supported4

Number of M.2 (M) slots2

Number of memory slots4

Number of RGB LED pin headers2

Number of SATA III connectors4

Number of storage drives supported6

Onboard-CPUNo

Package depth268 mm

Package height68 mm

Package weight12.1 kg

Package width270 mm

Parallel connectorYes

Parallel processing technology supportNot supported

PC health monitoringFan, Temperature, Voltage, Water cooling

PCI0

PCI Express x1 (Gen 3.x) slots2

PCI Express x16 (Gen 4.x) slots1

PCI-Ex12

PCI-Ex161

Power source typeATX

Processor manufacturerIntel

Processor socketLGA 1700

Product colourBrown

Products per shipping (inner) case1 pc(s)

PS/2 ports quantity1

RAID levels0, 1, 5, 10

RAID supportYes

RAM-Slots4

RGB LED pin headerYes

RJ-45 LAN1

S/PDIF out connectorYes

Screws includedYes

Serial port headers1

Serial-or-ParalelNo/No

Sloturi M.22

Soclu ProcesorSocket 1700

Supported memory clock speed (max)5600 MHz

Supported memory clock speeds4400,4800,5200,5600 MHz

Supported memory typesDDR5-SDRAM

Supported processor socketsLGA 1700

Supported storage drive interfacesM.2, SATA III

Supported storage drive typesHDD & SSD

System Management BIOS (SMBIOS) version2.7

ThunderboltNu

Tip MemorieDDR5

Tip slot interfata graficaPCIe 4.0 x16

TPM connectorYes

Unbuffered memoryYes

USB 2.0 connectors2

USB 2.0 ports quantity2

USB 3.2 Gen 1 (3.1 Gen 1) connectors2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0

USB 3.2 Gen 2 (3.1 Gen 2) connectors0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0

USB Type CDa

USB34-8

VGA (D-Sub) ports quantity1

Video-ConnectionHDMI/DP

Warranty period3 year(s)

Weight720 g

Wi-FINo

Width244 mm

Windows operating systems supportedWindows 10, Windows 11

WirelessNu

Specificații

Brand	GIGABYTE
Cod produs	NOD-B760M D3HP
Categorie	Componente
Garanție	Se confirmă la ofertare
Livrare	termen de livrare confirmat la comandă
Bluetooth	Nu
12V power connector	Yes
1st M.2 highest PCI Express generation	4.0
1st M.2 largest key size	2280
2nd M.2 highest PCI Express generation	4.0
2nd M.2 largest key size	2280
ACPI version	5.0
ATX Power connector (24-pin)	Yes
Audio output channels	7.1 channels
Batteries included	Yes
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Battery weight	3 g
BIOS memory size	128 Mbit
BIOS type	UEFI AMI
Bundled software	Norton Internet Security
Canale audio	7.1
Chipset audio integrat	Realtek
Clear CMOS jumper	Yes
Component for	PC
CPU fan connector	Yes
Depth	24.4 mm
Desktop Management Interface (DMI) version	2.7
DirectX version	12.0
DisplayPort version	1.2
DisplayPorts quantity	1
DVI-D ports quantity	0
ECC сompatibility	ECC & Non-ECC
EPS power connector (8-pin)	Yes
Ethernet interface type	Gigabit Ethernet
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Format	Micro-ATX
Front panel audio connector	Yes
Front panel connector	Yes
Gaming	Nu
HDCP	Yes
HDMI	Da
HDMI ports quantity	1
HDMI version	2.1
Headphone outputs	1
Height	35 mm
LAN controller	Realtek RTL8111H
Line-in	Yes
Lithium weight per battery	0.07 g
Maximum internal memory	256 GB
Maximum internal memory per slot	64 GB
Maximum resolution	4096 x 2304 pixels
MB-Format	micro-ATX
MB-Socket	1700
Memorie maxima	256 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Microphone in	Yes
Model Chipset	B760
Motherboard chipset	Intel B760 Express
Motherboard chipset family	Intel
Motherboard form factor	micro ATX
Numar sloturi memorie	4
Number of battery cells	1
Number of chassis fan connectors	3
Number of CPU fan connectors	1
Number of EPS power connectors (8-pin)	1
Number of HDDs supported	4
Number of M.2 (M) slots	2
Number of memory slots	4
Number of RGB LED pin headers	2
Number of SATA III connectors	4
Number of storage drives supported	6
Onboard-CPU	No
Package depth	268 mm
Package height	68 mm
Package weight	12.1 kg
Package width	270 mm
Parallel connector	Yes
Parallel processing technology support	Not supported
PC health monitoring	Fan, Temperature, Voltage, Water cooling
PCI	0
PCI Express x1 (Gen 3.x) slots	2
PCI Express x16 (Gen 4.x) slots	1
PCI-Ex1	2
PCI-Ex16	1
Power source type	ATX
Processor manufacturer	Intel
Processor socket	LGA 1700
Product colour	Brown
Products per shipping (inner) case	1 pc(s)
PS/2 ports quantity	1
RAID levels	0, 1, 5, 10
RAID support	Yes
RAM-Slots	4
RGB LED pin header	Yes
RJ-45 LAN	1
S/PDIF out connector	Yes
Screws included	Yes
Serial port headers	1
Serial-or-Paralel	No/No
Sloturi M.2	2
Soclu Procesor	Socket 1700
Supported memory clock speed (max)	5600 MHz
Supported memory clock speeds	4400,4800,5200,5600 MHz
Supported memory types	DDR5-SDRAM
Supported processor sockets	LGA 1700
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
System Management BIOS (SMBIOS) version	2.7
Thunderbolt	Nu
Tip Memorie	DDR5
Tip slot interfata grafica	PCIe 4.0 x16
TPM connector	Yes
Unbuffered memory	Yes
USB 2.0 connectors	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB Type C	Da
USB3	4-8
VGA (D-Sub) ports quantity	1
Video-Connection	HDMI/DP
Warranty period	3 year(s)
Weight	720 g
Wi-FI	No
Width	244 mm
Windows operating systems supported	Windows 10, Windows 11
Wireless	Nu

Configurație

Placa de Baza GIGABYTE B760M D3HP LGA1700, 4x DDR5, 1x D-Sub 1x HDMI 1x DP, 1x PCIE 4.0 x16 2x PCIE 3.0 x1, 2x M.2, 4x SATA 6GB/s, mATX

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

Placa de Baza GIGABYTE B760M D3HP LGA1700, 4x DDR5, 1x D-Sub 1x HDMI 1x DP, 1x PCIE 4.0 x16 2x PCIE 3.0 x1, 2x M.2, 4x SATA 6GB/s, mATX

Bluetooth: Nu12V power connector: Yes1st M.2 highest PCI Express generation: 4.01st M.2 largest key size: 22802nd M.2 highest PCI Express generation: 4.02nd M.2 largest key size: 2280
