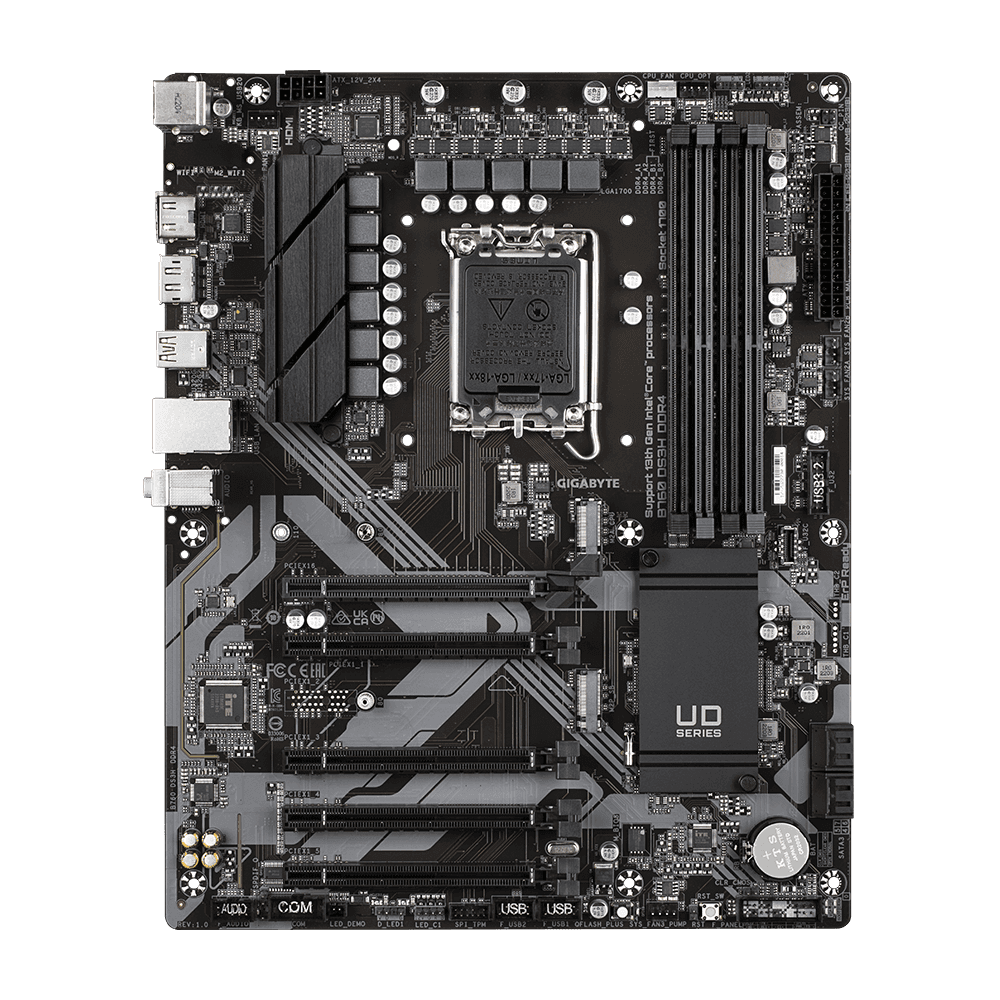

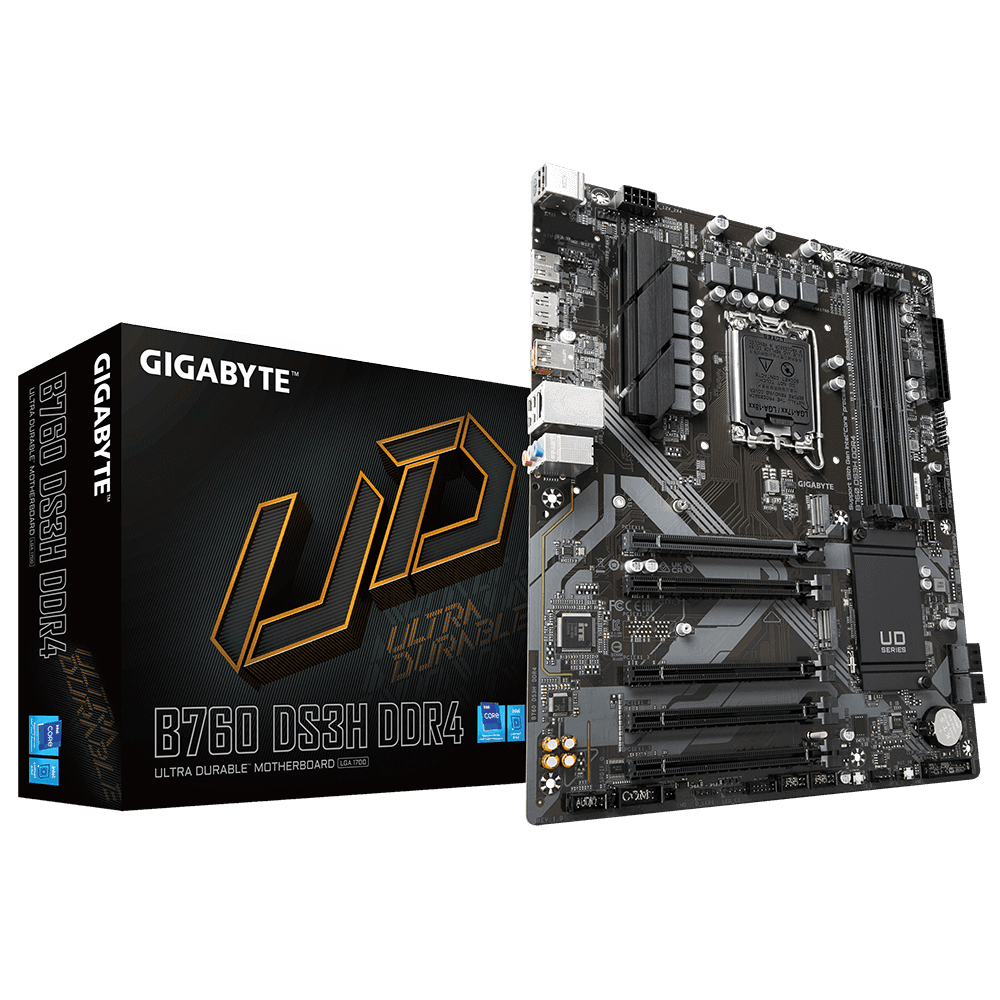

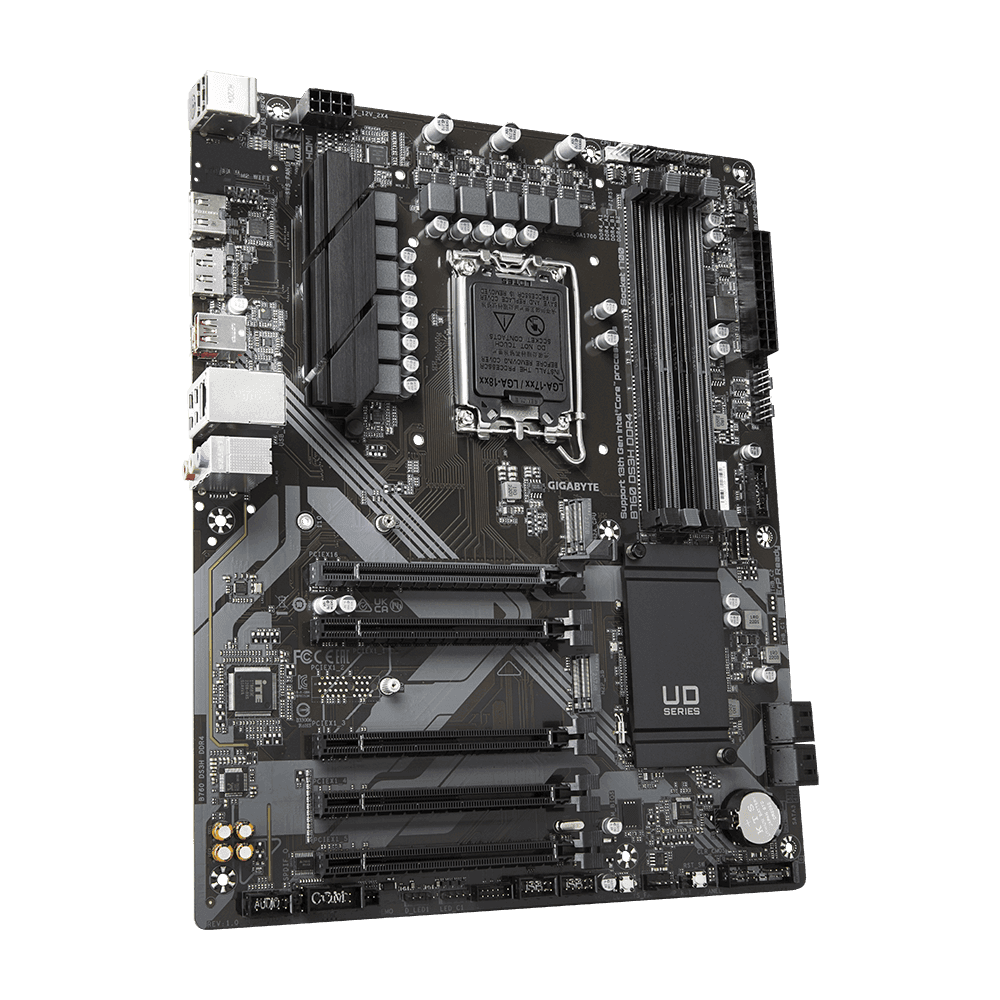

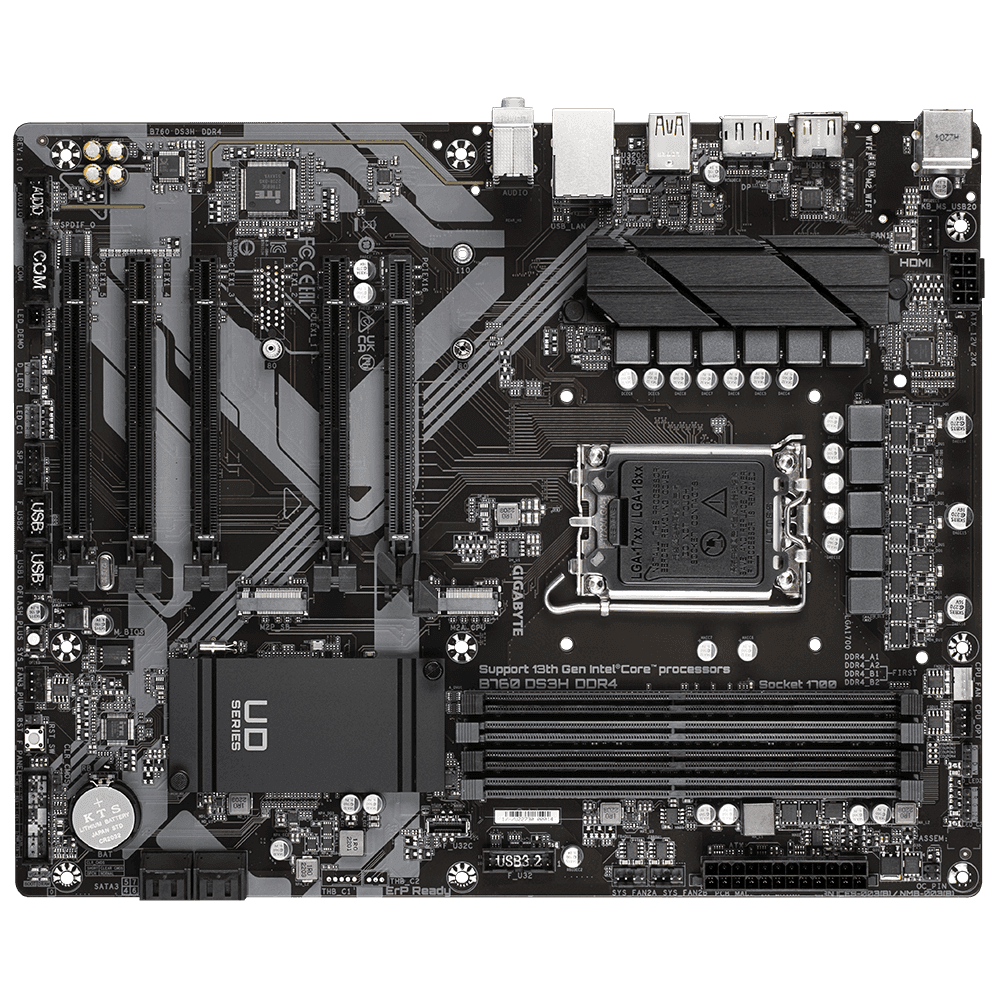

Placa de baza Gigabyte B760 DS3H, Socket 1700, DDR5, ATX

GIGABYTE · NOD-B760 DS3H

Placa de baza Gigabyte B760 DS3H, Socket 1700, DDR5, ATX

Name: Placa de baza Gigabyte B760 DS3H, Socket 1700, DDR5, ATX
Brand: GIGABYTE
SKU: NOD-B760 DS3H
Price: 1095 RON
Availability: BackOrder

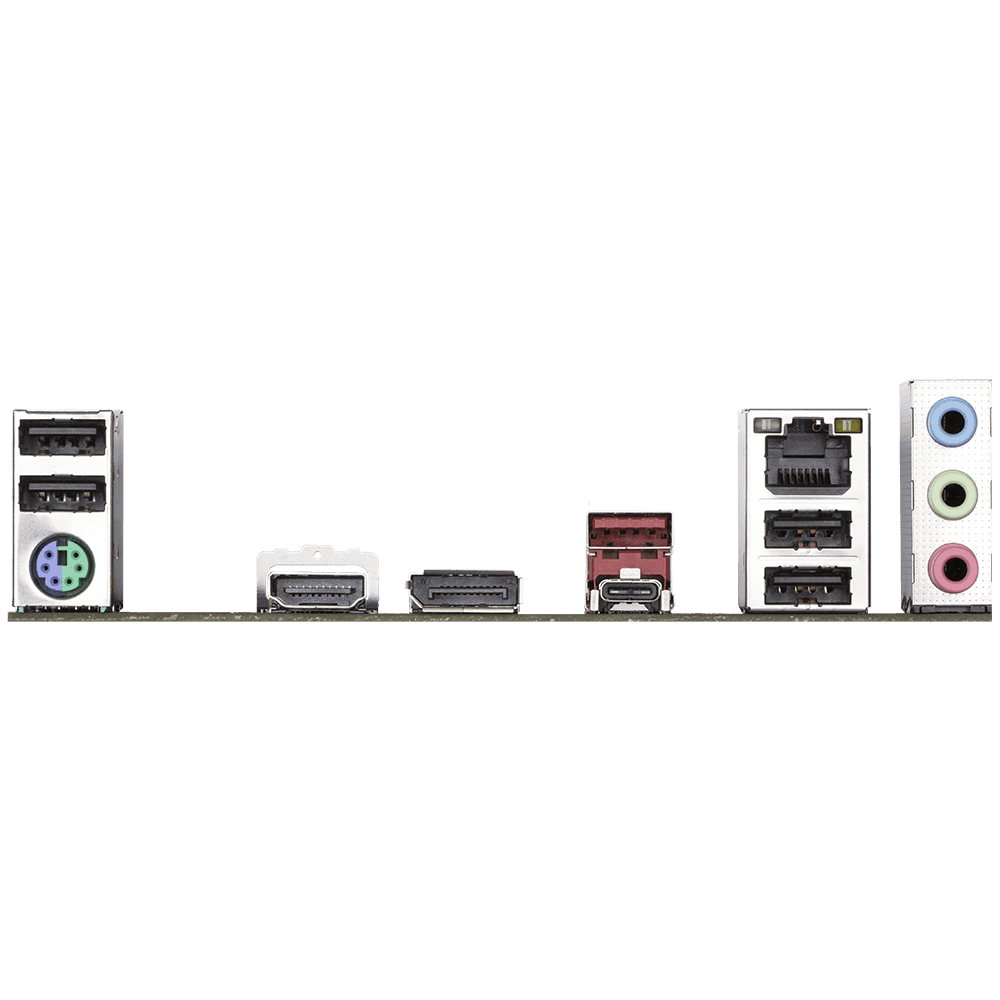

Placa de baza GIGABYTE B760 DS3H LGA1700, 4x DDR5 7600MHz, 1x HDMI, 1x DisplayPort, 5x PCIe x16, 2x M.2, 4x SATA 6Gbps, LAN 1Gbps, ATX

905 lei

prețuri fără TVA · 1.095 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.905 lei

GIGABYTE · ComponenteDoar pentru firme (B2B)

Placa de baza Gigabyte B760 DS3H, Socket 1700, DDR5, ATX

SKU: NOD-B760 DS3H

Bluetooth: Nu
12V power connector: Yes
1st M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 22110
2nd M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 2280

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

905 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandGIGABYTE

Cod produsNOD-B760 DS3H

CategorieComponente

BluetoothNu

12V power connectorYes

1st M.2 highest PCI Express generation4.0

1st M.2 largest key size22110

2nd M.2 highest PCI Express generation4.0

2nd M.2 largest key size2280

ACPI version5.0

ATX Power connector (24-pin)Yes

Audio output channels7.1 channels

Batteries includedYes

Battery technologyLithium-Manganese Dioxide (LiMnO2)

Battery typeCR2032

Battery weight3 g

BIOS memory size128 Mbit

BIOS typeUEFI AMI

Bundled softwareNorton Internet Security

Cables includedSATA

Canale audio7.1

Chipset audio integratRealtek

Clear CMOS jumperYes

Component forPC

Country of originChina

CPU fan connectorYes

Depth24.4 mm

Desktop Management Interface (DMI) version2.7

DirectX version12.0

DisplayPort version1.2

DisplayPorts quantity1

DVI-D ports quantity0

ECC сompatibilityECC & Non-ECC

EPS power connector (8-pin)Yes

Ethernet interface typeGigabit Ethernet

Ethernet LANYes

Ethernet LAN (RJ-45) ports1

FormatATX

Front panel audio connectorYes

Front panel connectorYes

GamingNu

HDCPYes

HDMIDa

HDMI ports quantity1

HDMI version2.0

Headphone outputs3

Height35 mm

Lithium weight per battery0.07 g

Maximum internal memory256 GB

Maximum internal memory supported by processor192 GB

Maximum resolution4096 x 2304 pixels

MB-FormatATX

MB-Socket1700

Memorie maxima192 GB

Memory channelsDual-channel

Memory slots typeDIMM

Microphone inYes

Model ChipsetB760

Motherboard chipsetIntel B760 Express

Motherboard chipset familyIntel

Motherboard form factorATX

Numar sloturi memorie4

Number of battery cells1

Number of HDDs supported4

Number of M.2 (M) slots2

Number of memory slots4

Number of SATA III connectors4

Number of storage drives supported6

Onboard-CPUNo

Package depth270 mm

Package height80 mm

Package weight1.51 kg

Package width335 mm

Parallel processing technology supportNot supported

PC health monitoringFan, Temperature, Voltage, Water cooling

PCI0

PCI Express x16 slots5

PCI-Ex10

PCI-Ex165

Processor manufacturerIntel

Processor socketLGA 1700

Product colourBrown

Products per shipping (inner) case1 pc(s)

PS/2 ports quantity1

RAID levels0, 1, 5, 10

RAID supportYes

RAM-Slots4

RGB LED pin headerYes

RJ-45 LAN1

S/PDIF out connectorYes

Serial port headers1

Serial-or-ParalelNo/No

Sloturi M.22

Soclu ProcesorSocket 1700

Supported memory clock speed (max)7600 MHz

Supported memory clock speeds4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600 MHz

Supported memory module capacities1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB

Supported memory typesDDR5-SDRAM

Supported processor socketsLGA 1700

Supported storage drive interfacesM.2, SATA III

Supported storage drive typesHDD & SSD

System Management BIOS (SMBIOS) version2.7

ThunderboltNu

Tip MemorieDDR5

Tip slot interfata graficaPCIe 4.0 x16

Total number of SATA connectors4

TPM connectorYes

Unbuffered memoryYes

USB 2.0 connectors2

USB 2.0 ports quantity4

USB 3.2 Gen 1 (3.1 Gen 1) connectors2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0

USB 3.2 Gen 2 (3.1 Gen 2) connectors0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0

USB 3.2 Gen 2x2 Type-C ports quantity1

USB connector typeUSB Type-A, USB Type-C

USB Type CDa

USB34-8

VGA (D-Sub) ports quantity0

Video-ConnectionDP

Warranty period3 year(s)

Wi-FINo

Width30.5 mm

Windows operating systems supportedWindows 10 x64, Windows 11 x64

WirelessNu

Specificații

Brand	GIGABYTE
Cod produs	NOD-B760 DS3H
Categorie	Componente
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
Bluetooth	Nu
12V power connector	Yes
1st M.2 highest PCI Express generation	4.0
1st M.2 largest key size	22110
2nd M.2 highest PCI Express generation	4.0
2nd M.2 largest key size	2280
ACPI version	5.0
ATX Power connector (24-pin)	Yes
Audio output channels	7.1 channels
Batteries included	Yes
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Battery weight	3 g
BIOS memory size	128 Mbit
BIOS type	UEFI AMI
Bundled software	Norton Internet Security
Cables included	SATA
Canale audio	7.1
Chipset audio integrat	Realtek
Clear CMOS jumper	Yes
Component for	PC
Country of origin	China
CPU fan connector	Yes
Depth	24.4 mm
Desktop Management Interface (DMI) version	2.7
DirectX version	12.0
DisplayPort version	1.2
DisplayPorts quantity	1
DVI-D ports quantity	0
ECC сompatibility	ECC & Non-ECC
EPS power connector (8-pin)	Yes
Ethernet interface type	Gigabit Ethernet
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Format	ATX
Front panel audio connector	Yes
Front panel connector	Yes
Gaming	Nu
HDCP	Yes
HDMI	Da
HDMI ports quantity	1
HDMI version	2.0
Headphone outputs	3
Height	35 mm
Lithium weight per battery	0.07 g
Maximum internal memory	256 GB
Maximum internal memory supported by processor	192 GB
Maximum resolution	4096 x 2304 pixels
MB-Format	ATX
MB-Socket	1700
Memorie maxima	192 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Microphone in	Yes
Model Chipset	B760
Motherboard chipset	Intel B760 Express
Motherboard chipset family	Intel
Motherboard form factor	ATX
Numar sloturi memorie	4
Number of battery cells	1
Number of HDDs supported	4
Number of M.2 (M) slots	2
Number of memory slots	4
Number of SATA III connectors	4
Number of storage drives supported	6
Onboard-CPU	No
Package depth	270 mm
Package height	80 mm
Package weight	1.51 kg
Package width	335 mm
Parallel processing technology support	Not supported
PC health monitoring	Fan, Temperature, Voltage, Water cooling
PCI	0
PCI Express x16 slots	5
PCI-Ex1	0
PCI-Ex16	5
Processor manufacturer	Intel
Processor socket	LGA 1700
Product colour	Brown
Products per shipping (inner) case	1 pc(s)
PS/2 ports quantity	1
RAID levels	0, 1, 5, 10
RAID support	Yes
RAM-Slots	4
RGB LED pin header	Yes
RJ-45 LAN	1
S/PDIF out connector	Yes
Serial port headers	1
Serial-or-Paralel	No/No
Sloturi M.2	2
Soclu Procesor	Socket 1700
Supported memory clock speed (max)	7600 MHz
Supported memory clock speeds	4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600 MHz
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Supported memory types	DDR5-SDRAM
Supported processor sockets	LGA 1700
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
System Management BIOS (SMBIOS) version	2.7
Thunderbolt	Nu
Tip Memorie	DDR5
Tip slot interfata grafica	PCIe 4.0 x16
Total number of SATA connectors	4
TPM connector	Yes
Unbuffered memory	Yes
USB 2.0 connectors	2
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 3.2 Gen 2x2 Type-C ports quantity	1
USB connector type	USB Type-A, USB Type-C
USB Type C	Da
USB3	4-8
VGA (D-Sub) ports quantity	0
Video-Connection	DP
Warranty period	3 year(s)
Wi-FI	No
Width	30.5 mm
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Wireless	Nu

Configurație

Placa de baza GIGABYTE B760 DS3H LGA1700, 4x DDR5 7600MHz, 1x HDMI, 1x DisplayPort, 5x PCIe x16, 2x M.2, 4x SATA 6Gbps, LAN 1Gbps, ATX

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

Placa de baza GIGABYTE B760 DS3H LGA1700, 4x DDR5 7600MHz, 1x HDMI, 1x DisplayPort, 5x PCIe x16, 2x M.2, 4x SATA 6Gbps, LAN 1Gbps, ATX

Bluetooth: Nu12V power connector: Yes1st M.2 highest PCI Express generation: 4.01st M.2 largest key size: 221102nd M.2 highest PCI Express generation: 4.02nd M.2 largest key size: 2280
