GIGABYTE · NOD-B650E EAGLE WIFI6E

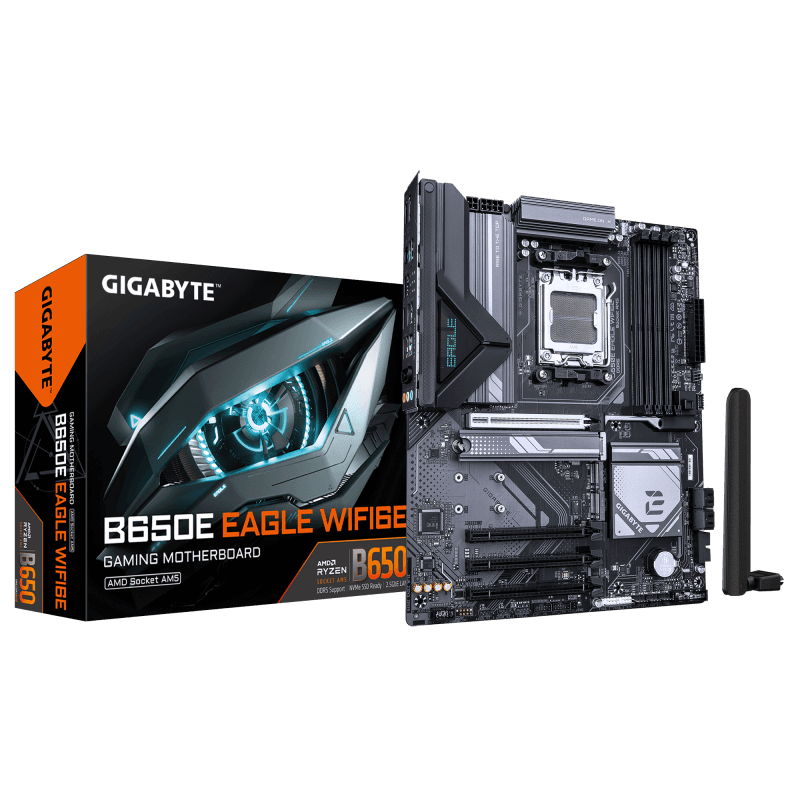

Placa de baza Gigabyte B650E EAGLE WIFI6E, Socket AM5, DDR5, ATX

Name: Placa de baza Gigabyte B650E EAGLE WIFI6E, Socket AM5, DDR5, ATX
Brand: GIGABYTE
SKU: NOD-B650E EAGLE WIFI6E
Price: 915 RON
Availability: InStock

PLaca de baza Gigabyte B650E EAGLE WIFI6E

756 lei

prețuri fără TVA · 915 lei cu TVA

Disponibil la furnizor · 50 buc·termen de livrare confirmat la comandă

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.756 lei

GIGABYTE · ComponenteDoar pentru firme (B2B)

Placa de baza Gigabyte B650E EAGLE WIFI6E, Socket AM5, DDR5, ATX

SKU: NOD-B650E EAGLE WIFI6E

Bluetooth: Da
12V power connector: Yes
1st M.2 highest PCI Express generation: 5.0
1st M.2 largest key size: 22110
2nd M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 22110

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

756 leiprețuri fără TVA

Disponibil la furnizor · 50 buc·termen de livrare confirmat la comandă

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandGIGABYTE

Cod produsNOD-B650E EAGLE WIFI6E

CategorieComponente

BluetoothDa

12V power connectorYes

1st M.2 highest PCI Express generation5.0

1st M.2 largest key size22110

2nd M.2 highest PCI Express generation4.0

2nd M.2 largest key size22110

3rd M.2 highest PCI Express generation4.0

3rd M.2 largest key size22110

ACPI version5.0

Antenna includedYes

ATX Power connector (24-pin)Yes

Audio ChipRealtek ALC897

Audio output channels7.1 channels

Batteries includedYes

Battery technologyLithium-Manganese Dioxide (LiMnO2)

Battery typeCR2032

Battery weight3 g

BIOS memory size256 Mbit

BIOS typeUEFI AMI

Bluetooth version5.3

Bundled softwareNorton® Internet Security (OEM version)

Canale audio7.1

Chipset audio integratRealtek

Clear CMOS jumperYes

Compatible processor seriesAMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Component forPC

Cooling typePassive

Country of originChina

CPU fan connectorYes

Depth24.4 mm

Desktop Management Interface (DMI) version2.7

DirectX version12.0

DisplayPort version1.4

DVI-D ports quantity0

ECC сompatibilityNon-ECC

EPS power connector (8-pin)Yes

Ethernet interface type2.5 Gigabit Ethernet

Ethernet LANYes

Ethernet LAN (RJ-45) ports1

FormatATX

Front panel audio connectorYes

Front panel connectorYes

GamingNu

HDCPYes

HDCP version2.3

HDMIDa

HDMI ports quantity1

HDMI version2.1

Headphone outputs1

Height35 mm

LAN controllerRealtek RTL8125

Line-inYes

Lithium weight per battery0.07 g

Maximum internal memory256 GB

Maximum internal memory per slot64 GB

Maximum resolution4096 x 2160 pixels

MB-FormatATX

MB-SocketAM5

Memorie maxima256 GB

Memory channelsDual-channel

Memory slots typeDIMM

Microphone inYes

Model ChipsetB650

Motherboard chipsetAMD B650

Motherboard chipset familyAMD

Motherboard form factorATX

Numar sloturi memorie4

Number of battery cells1

Number of chassis fan connectors4

Number of CPU fan connectors2

Number of EPS power connectors (8-pin)1

Number of HDDs supported4

Number of M.2 (M) slots3

Number of memory slots4

Number of RGB LED pin headers4

Number of SATA III connectors4

Number of storage drives supported7

Number of water pump connectors2

Onboard-CPUYes

Package depth270 mm

Package height80 mm

Package weight1.89 kg

Package width335 mm

Parallel processing technology supportNot supported

PC health monitoringFan, Temperature, Voltage, Water cooling

PCI2

PCI Express x1 (Gen 3.x) slots2

PCI Express x16 (Gen 3.x) slots2

PCI Express x16 (Gen 4.x) slots1

PCI Express x16 (Gen 5.x) slots1

PCI-Ex10

PCI-Ex161

Peripheral (Molex) power connectors (4-pin)1

Power source typeATX

Processor manufacturerAMD

Processor socketSocket AM5

Product colourDark brown

Products per shipping (inner) case1 pc(s)

PS/2 ports quantity1

RAID levels0, 1, 5, 10

RAID supportYes

RAM-Slots4

RGB LED pin headerYes

RJ-45 LAN1

Screws includedYes

Serial-or-ParalelNo/No

Sloturi M.23

Soclu ProcesorSocket AM5

Supported memory clock speed (max)8200 MHz

Supported memory clock speeds8200,8000,7950,7900,7800,7600,7200,6800,6600,6400,6200,6000,5600,5200,4800 MHz

Supported memory typesDDR5-SDRAM

Supported processor socketsSocket AM5

Supported storage drive interfacesM.2, SATA III

Supported storage drive typesHDD & SSD

System Management BIOS (SMBIOS) version2.7

ThunderboltNu

Tip MemorieDDR5

Tip slot interfata graficaPCIe 5.0 x16

Top Wi-Fi standardWi-Fi 6E (802.11ax)

TPM connectorYes

Unbuffered memoryYes

USB 2.0 connectors2

USB 2.0 ports quantity4

USB 3.2 Gen 1 (3.1 Gen 1) connectors2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1

USB 3.2 Gen 2 (3.1 Gen 2) connectors0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0

USB Type CDa

VGA (D-Sub) ports quantity0

Warranty period3 year(s)

Weight16.8 kg

Wi-FIYes

Width30.5 mm

WiFi-AP antenna jack2

Windows operating systems supportedWindows 10 x64, Windows 11 x64

WirelessDa

WLAN controller modelMediaTek MT7902

Specificații

Brand	GIGABYTE
Cod produs	NOD-B650E EAGLE WIFI6E
Categorie	Componente
Garanție	Se confirmă la ofertare
Livrare	termen de livrare confirmat la comandă
Bluetooth	Da
12V power connector	Yes
1st M.2 highest PCI Express generation	5.0
1st M.2 largest key size	22110
2nd M.2 highest PCI Express generation	4.0
2nd M.2 largest key size	22110
3rd M.2 highest PCI Express generation	4.0
3rd M.2 largest key size	22110
ACPI version	5.0
Antenna included	Yes
ATX Power connector (24-pin)	Yes
Audio Chip	Realtek ALC897
Audio output channels	7.1 channels
Batteries included	Yes
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Battery weight	3 g
BIOS memory size	256 Mbit
BIOS type	UEFI AMI
Bluetooth version	5.3
Bundled software	Norton® Internet Security (OEM version)
Canale audio	7.1
Chipset audio integrat	Realtek
Clear CMOS jumper	Yes
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Component for	PC
Cooling type	Passive
Country of origin	China
CPU fan connector	Yes
Depth	24.4 mm
Desktop Management Interface (DMI) version	2.7
DirectX version	12.0
DisplayPort version	1.4
DVI-D ports quantity	0
ECC сompatibility	Non-ECC
EPS power connector (8-pin)	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Format	ATX
Front panel audio connector	Yes
Front panel connector	Yes
Gaming	Nu
HDCP	Yes
HDCP version	2.3
HDMI	Da
HDMI ports quantity	1
HDMI version	2.1
Headphone outputs	1
Height	35 mm
LAN controller	Realtek RTL8125
Line-in	Yes
Lithium weight per battery	0.07 g
Maximum internal memory	256 GB
Maximum internal memory per slot	64 GB
Maximum resolution	4096 x 2160 pixels
MB-Format	ATX
MB-Socket	AM5
Memorie maxima	256 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Microphone in	Yes
Model Chipset	B650
Motherboard chipset	AMD B650
Motherboard chipset family	AMD
Motherboard form factor	ATX
Numar sloturi memorie	4
Number of battery cells	1
Number of chassis fan connectors	4
Number of CPU fan connectors	2
Number of EPS power connectors (8-pin)	1
Number of HDDs supported	4
Number of M.2 (M) slots	3
Number of memory slots	4
Number of RGB LED pin headers	4
Number of SATA III connectors	4
Number of storage drives supported	7
Number of water pump connectors	2
Onboard-CPU	Yes
Package depth	270 mm
Package height	80 mm
Package weight	1.89 kg
Package width	335 mm
Parallel processing technology support	Not supported
PC health monitoring	Fan, Temperature, Voltage, Water cooling
PCI	2
PCI Express x1 (Gen 3.x) slots	2
PCI Express x16 (Gen 3.x) slots	2
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
PCI-Ex1	0
PCI-Ex16	1
Peripheral (Molex) power connectors (4-pin)	1
Power source type	ATX
Processor manufacturer	AMD
Processor socket	Socket AM5
Product colour	Dark brown
Products per shipping (inner) case	1 pc(s)
PS/2 ports quantity	1
RAID levels	0, 1, 5, 10
RAID support	Yes
RAM-Slots	4
RGB LED pin header	Yes
RJ-45 LAN	1
Screws included	Yes
Serial-or-Paralel	No/No
Sloturi M.2	3
Soclu Procesor	Socket AM5
Supported memory clock speed (max)	8200 MHz
Supported memory clock speeds	8200,8000,7950,7900,7800,7600,7200,6800,6600,6400,6200,6000,5600,5200,4800 MHz
Supported memory types	DDR5-SDRAM
Supported processor sockets	Socket AM5
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
System Management BIOS (SMBIOS) version	2.7
Thunderbolt	Nu
Tip Memorie	DDR5
Tip slot interfata grafica	PCIe 5.0 x16
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
TPM connector	Yes
Unbuffered memory	Yes
USB 2.0 connectors	2
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB Type C	Da
VGA (D-Sub) ports quantity	0
Warranty period	3 year(s)
Weight	16.8 kg
Wi-FI	Yes
Width	30.5 mm
WiFi-AP antenna jack	2
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Wireless	Da
WLAN controller model	MediaTek MT7902

Configurație

PLaca de baza Gigabyte B650E EAGLE WIFI6E

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

PLaca de baza Gigabyte B650E EAGLE WIFI6E

Bluetooth: Da12V power connector: Yes1st M.2 highest PCI Express generation: 5.01st M.2 largest key size: 221102nd M.2 highest PCI Express generation: 4.02nd M.2 largest key size: 22110
