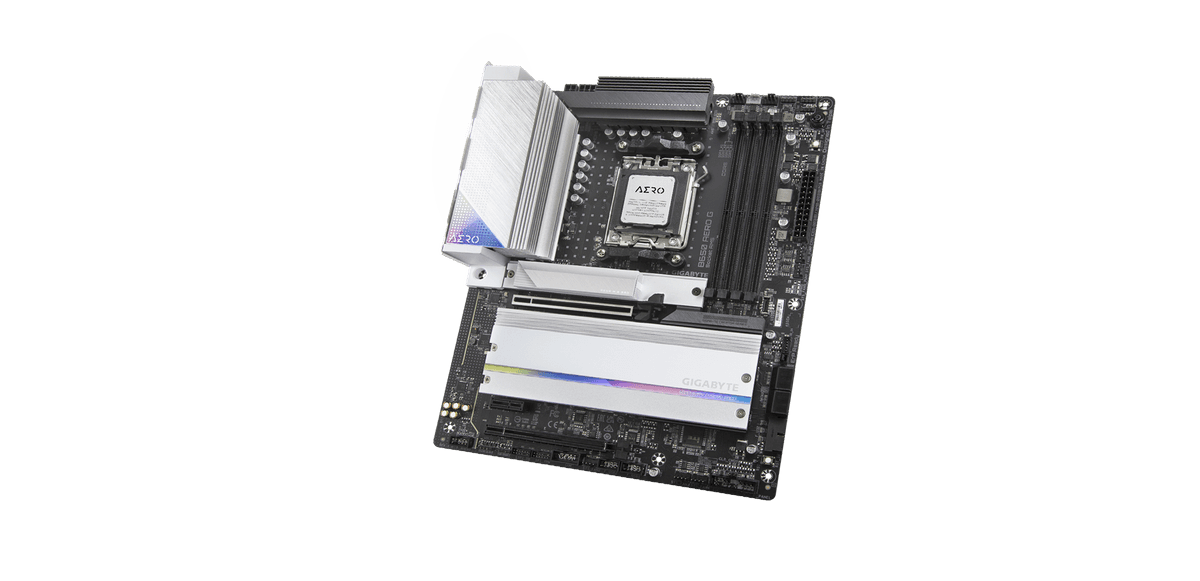

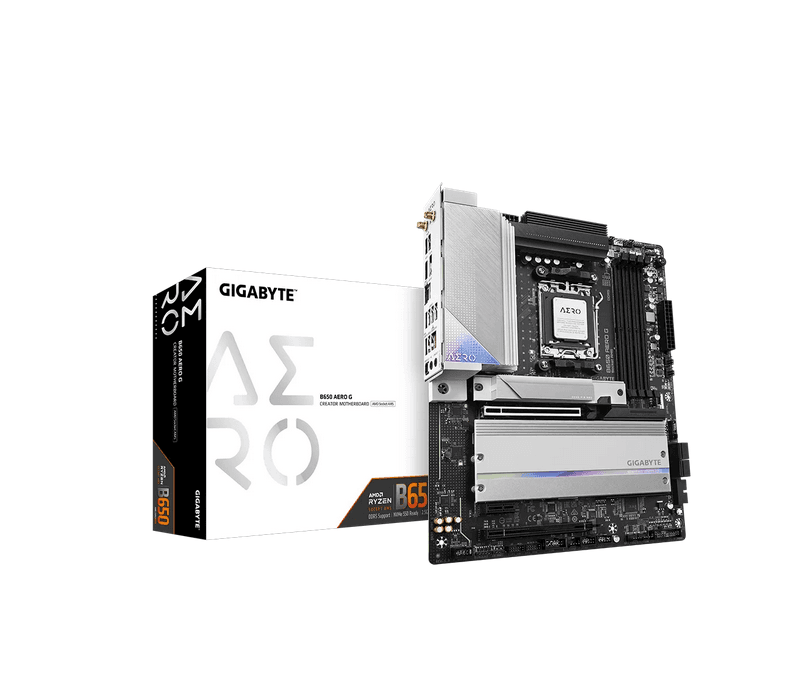

Placa de baza Gigabyte B650 AERO G, Socket AM5, DDR5, ATX

GIGABYTE · NOD-B650 AERO G

Placa de baza Gigabyte B650 AERO G, Socket AM5, DDR5, ATX

Name: Placa de baza Gigabyte B650 AERO G, Socket AM5, DDR5, ATX
Brand: GIGABYTE
SKU: NOD-B650 AERO G
Price: 1942 RON
Availability: BackOrder

Placa de baza Gigabyte B650 AERO G AM5 4x DDR5, 3x PCIE x16, 3x M.2, 1x USB TYPE-C 1x HDMI, 4x SATA 6GB/s, ATX

1.605 lei

prețuri fără TVA · 1.942 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.1.605 lei

GIGABYTE · ComponenteDoar pentru firme (B2B)

Placa de baza Gigabyte B650 AERO G, Socket AM5, DDR5, ATX

SKU: NOD-B650 AERO G

Bluetooth: Nu
12V power connector: Yes
1st M.2 highest PCI Express generation: 5.0
1st M.2 largest key size: 25110
2nd M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 25110

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

1.605 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandGIGABYTE

Cod produsNOD-B650 AERO G

CategorieComponente

BluetoothNu

12V power connectorYes

1st M.2 highest PCI Express generation5.0

1st M.2 largest key size25110

2nd M.2 highest PCI Express generation4.0

2nd M.2 largest key size25110

3rd M.2 highest PCI Express generation4.0

3rd M.2 largest key size25110

ACPI version5.0

Antenna includedYes

ATX Power connector (24-pin)Yes

Audio output channels7.1 channels

Batteries includedYes

Battery technologyLithium-Manganese Dioxide (LiMnO2)

Battery typeCR2032

Battery weight3 g

BIOS memory size256 Mbit

BIOS typeUEFI AMI

Bluetooth version5.2

Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software

Canale audio7.1

Chipset audio integratRealtek

Clear CMOS jumperYes

Compatible processor seriesAMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Component forPC

Country of originChina

CPU fan connectorYes

Depth24.4 mm

Desktop Management Interface (DMI) version2.7

DirectX version12.0

Discrete graphics supportYes

DisplayPort version1.4

DisplayPorts quantity1

DVI-D ports quantity0

ECC сompatibilityNon-ECC

EPS power connector (8-pin)Yes

Ethernet interface type2.5 Gigabit Ethernet

Ethernet LANYes

Ethernet LAN (RJ-45) ports1

FormatATX

Front panel audio connectorYes

Front panel connectorYes

GamingNu

HDCPYes

HDMIDa

HDMI ports quantity1

HDMI version2.1

Height35 mm

Line-inYes

Lithium weight per battery0.07 g

Maximum internal memory256 GB

Maximum internal memory per slot64 GB

Maximum resolution4096 x 2160 pixels

Memorie maxima256 GB

Memory channelsDual-channel

Memory slots typeDIMM

Microphone inYes

Model ChipsetB650

Motherboard chipsetAMD B650

Motherboard chipset familyAMD

Motherboard form factorATX

Numar sloturi memorie4

Number of battery cells1

Number of chassis fan connectors6

Number of HDDs supported4

Number of M.2 (M) slots3

Number of memory slots4

Number of RGB LED pin headers5

Number of SATA III connectors4

Number of storage drives supported7

Number of temperature sensor headers2

Number of water pump connectors3

Onboard-CPUNo

Package depth270 mm

Package height80 mm

Package weight24.9 kg

Package width335 mm

Parallel processing technology supportNot supported

PC health monitoringFan, Noise, Temperature, Voltage, Water cooling

PCI0

PCI Express x16 (Gen 3.x) slots1

PCI Express x16 (Gen 4.x) slots2

Power source typeATX

Processor manufacturerAMD

Processor socketSocket AM5

Product colourBlack

Products per shipping (inner) case1 pc(s)

RAID levels0, 1, 10

RAID supportYes

RGB LED pin headerYes

RJ-45 LAN1

S/PDIF out portYes

Screws includedYes

Serial port headers1

Serial-or-ParalelNo/No

Sloturi M.23

Soclu ProcesorSocket AM5

Supported memory clock speed (max)8000 MHz

Supported memory clock speeds8000,7800,7600,7200,7000,6800,6666,6600,6400,6200,6000,5600,5200,4800,4400 MHz

Supported memory typesDDR5-SDRAM

Supported processor socketsSocket AM5

Supported storage drive interfacesM.2, SATA III

Supported storage drive typesHDD & SSD

System Management BIOS (SMBIOS) version2.7

ThunderboltNu

Tip MemorieDDR5

Top Wi-Fi standardWi-Fi 6E (802.11ax)

TPM connectorYes

Unbuffered memoryYes

USB 2.0 connectors2

USB 2.0 ports quantity2

USB 3.2 Gen 1 (3.1 Gen 1) connectors1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0

USB 3.2 Gen 2 (3.1 Gen 2) connectors0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity3

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1

USB 3.2 Gen 2x2 connectors1

USB Type CDa

VGA (D-Sub) ports quantity0

Video-ConnectionHDMI

Warranty period3 year(s)

Wi-FIYes

Width30.5 mm

WiFi-AP antenna jack2

Windows operating systems supportedWindows 10 x64, Windows 11 x64

WirelessDa

WLAN controller modelRZ616

Specificații

Brand	GIGABYTE
Cod produs	NOD-B650 AERO G
Categorie	Componente
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
Bluetooth	Nu
12V power connector	Yes
1st M.2 highest PCI Express generation	5.0
1st M.2 largest key size	25110
2nd M.2 highest PCI Express generation	4.0
2nd M.2 largest key size	25110
3rd M.2 highest PCI Express generation	4.0
3rd M.2 largest key size	25110
ACPI version	5.0
Antenna included	Yes
ATX Power connector (24-pin)	Yes
Audio output channels	7.1 channels
Batteries included	Yes
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Battery weight	3 g
BIOS memory size	256 Mbit
BIOS type	UEFI AMI
Bluetooth version	5.2
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Canale audio	7.1
Chipset audio integrat	Realtek
Clear CMOS jumper	Yes
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Component for	PC
Country of origin	China
CPU fan connector	Yes
Depth	24.4 mm
Desktop Management Interface (DMI) version	2.7
DirectX version	12.0
Discrete graphics support	Yes
DisplayPort version	1.4
DisplayPorts quantity	1
DVI-D ports quantity	0
ECC сompatibility	Non-ECC
EPS power connector (8-pin)	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Format	ATX
Front panel audio connector	Yes
Front panel connector	Yes
Gaming	Nu
HDCP	Yes
HDMI	Da
HDMI ports quantity	1
HDMI version	2.1
Height	35 mm
Line-in	Yes
Lithium weight per battery	0.07 g
Maximum internal memory	256 GB
Maximum internal memory per slot	64 GB
Maximum resolution	4096 x 2160 pixels
Memorie maxima	256 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Microphone in	Yes
Model Chipset	B650
Motherboard chipset	AMD B650
Motherboard chipset family	AMD
Motherboard form factor	ATX
Numar sloturi memorie	4
Number of battery cells	1
Number of chassis fan connectors	6
Number of HDDs supported	4
Number of M.2 (M) slots	3
Number of memory slots	4
Number of RGB LED pin headers	5
Number of SATA III connectors	4
Number of storage drives supported	7
Number of temperature sensor headers	2
Number of water pump connectors	3
Onboard-CPU	No
Package depth	270 mm
Package height	80 mm
Package weight	24.9 kg
Package width	335 mm
Parallel processing technology support	Not supported
PC health monitoring	Fan, Noise, Temperature, Voltage, Water cooling
PCI	0
PCI Express x16 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	2
Power source type	ATX
Processor manufacturer	AMD
Processor socket	Socket AM5
Product colour	Black
Products per shipping (inner) case	1 pc(s)
RAID levels	0, 1, 10
RAID support	Yes
RGB LED pin header	Yes
RJ-45 LAN	1
S/PDIF out port	Yes
Screws included	Yes
Serial port headers	1
Serial-or-Paralel	No/No
Sloturi M.2	3
Soclu Procesor	Socket AM5
Supported memory clock speed (max)	8000 MHz
Supported memory clock speeds	8000,7800,7600,7200,7000,6800,6666,6600,6400,6200,6000,5600,5200,4800,4400 MHz
Supported memory types	DDR5-SDRAM
Supported processor sockets	Socket AM5
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
System Management BIOS (SMBIOS) version	2.7
Thunderbolt	Nu
Tip Memorie	DDR5
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
TPM connector	Yes
Unbuffered memory	Yes
USB 2.0 connectors	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 2x2 connectors	1
USB Type C	Da
VGA (D-Sub) ports quantity	0
Video-Connection	HDMI
Warranty period	3 year(s)
Wi-FI	Yes
Width	30.5 mm
WiFi-AP antenna jack	2
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Wireless	Da
WLAN controller model	RZ616

Configurație

Placa de baza Gigabyte B650 AERO G AM5 4x DDR5, 3x PCIE x16, 3x M.2, 1x USB TYPE-C 1x HDMI, 4x SATA 6GB/s, ATX

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

Placa de baza Gigabyte B650 AERO G AM5 4x DDR5, 3x PCIE x16, 3x M.2, 1x USB TYPE-C 1x HDMI, 4x SATA 6GB/s, ATX

Bluetooth: Nu12V power connector: Yes1st M.2 highest PCI Express generation: 5.01st M.2 largest key size: 251102nd M.2 highest PCI Express generation: 4.02nd M.2 largest key size: 25110
