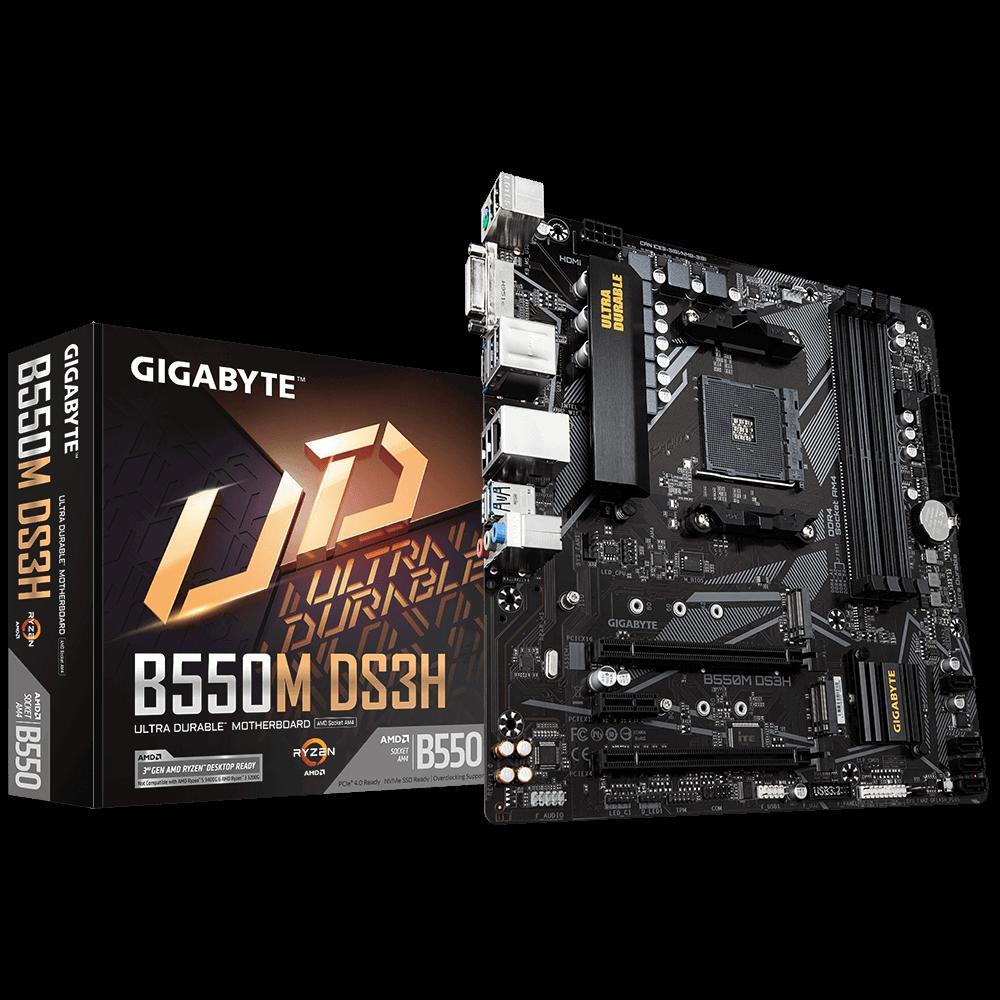

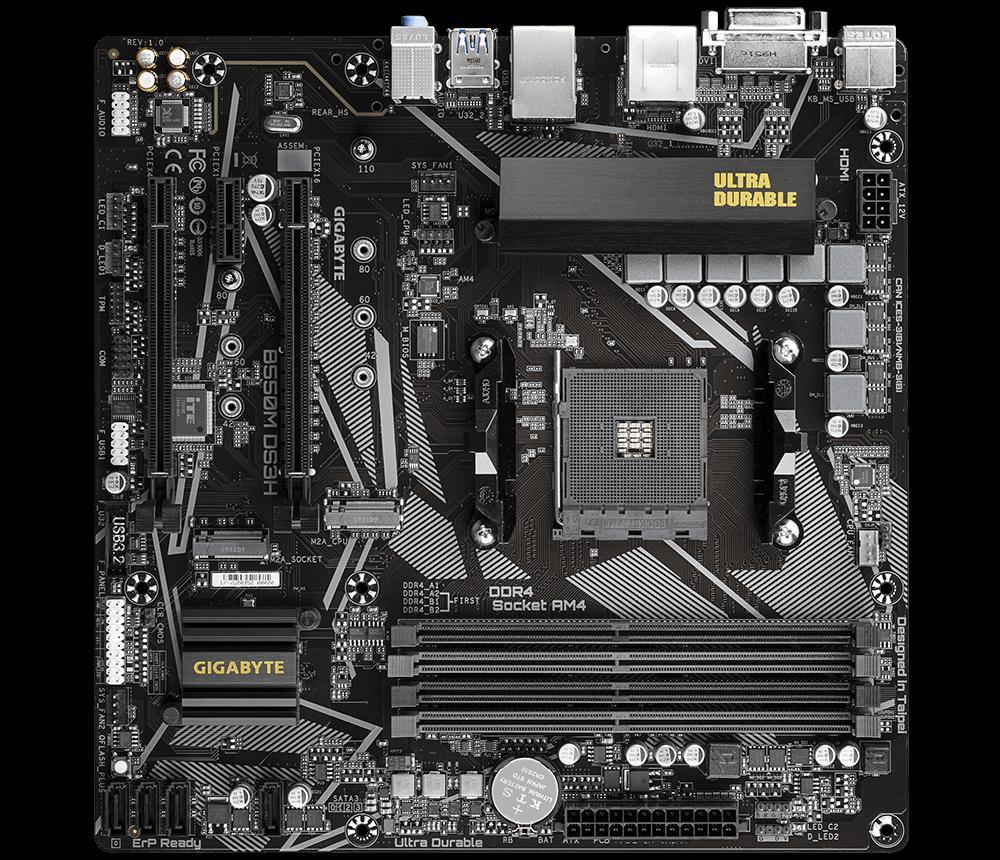

Placa de baza Gigabyte B550M DS3H, Socket AM4, DDR4, Micro-ATX

GIGABYTE · NOD-B550M DS3H

Placa de baza Gigabyte B550M DS3H, Socket AM4, DDR4, Micro-ATX

Name: Placa de baza Gigabyte B550M DS3H, Socket AM4, DDR4, Micro-ATX
Brand: GIGABYTE
SKU: NOD-B550M DS3H
Price: 618 RON
Availability: BackOrder

<ul><li>Condensatoare audio high-end. Placile de baza GIGABYTE folosesc condensatoare audio de inalta calitate. Aceste condensatoare de inalta calitate ajuta la furnizarea audio de inalta rezolutie si fidelitate inalta pentru a oferi cele mai realiste efecte sonore pentru gameri.</li><li>Audio noise guard. Placile de baza GIGABYTE dispun de un dispozitiv de protectie a zgomotului audio care separa in mod esential componentele audio analogice sensibile ale placii de potentialele poluari sonore la nivelul PCB.</li></ul>

511 lei

prețuri fără TVA · 618 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.511 lei

GIGABYTE · ComponenteDoar pentru firme (B2B)

Placa de baza Gigabyte B550M DS3H, Socket AM4, DDR4, Micro-ATX

SKU: NOD-B550M DS3H

Bluetooth: Nu
12V power connector: Yes
1st M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 22110
2nd M.2 highest PCI Express generation: 3.0
2nd M.2 largest key size: 2280

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

511 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandGIGABYTE

Cod produsNOD-B550M DS3H

CategorieComponente

BluetoothNu

12V power connectorYes

1st M.2 highest PCI Express generation4.0

1st M.2 largest key size22110

2nd M.2 highest PCI Express generation3.0

2nd M.2 largest key size2280

ACPI version5.0

ATX Power connector (24-pin)Yes

Audio ChipRealtek ALC897

Audio output channels7.1 channels

Batteries includedYes

Battery technologyLithium-Manganese Dioxide (LiMnO2)

Battery typeCR2032

Battery weight3 g

BIOS memory size128 Mbit

BIOS typeUEFI AMI

Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software

Cables includedSATA

Canale audio7.1

Chipset audio integratRealtek

Clear CMOS jumperYes

Compatible processor seriesAMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series

Component forPC

Cooling typePassive

Country of originChina

CPU fan connectorYes

CPU încorporatNo

Depth24.4 mm

Desktop Management Interface (DMI) version2.7

DirectX version12.0

Discrete graphics supportYes

Drivers includedYes

DVI-D ports quantity1

ECC сompatibilityECC & Non-ECC

EPS power connector (8-pin)Yes

eSATA ports quantity0

Ethernet interface typeGigabit Ethernet

Ethernet LANYes

Ethernet LAN (RJ-45) ports1

Firewire (IEEE 1394) ports0

FormatMicro-ATX

Front panel audio connectorYes

Front panel connectorYes

GamingDa

Harmonized System (HS) code84733020

HDCPYes

HDMIDa

HDMI ports quantity1

HDMI version2.1

Headphone outputs1

Height35 mm

LAN controllerRealtek RTL8111H

Line-inYes

Lithium weight per battery0.07 g

Maximum internal memory128 GB

Maximum internal memory per slot32 GB

Maximum internal memory supported by processor128 GB

Maximum number of SMP processors1

Maximum resolution4096 x 2160 pixels

MB-Formatmicro-ATX

MB-SocketAM4

Memorie maxima128 GB

Memory channelsDual-channel

Memory slots typeDIMM

Microphone inYes

Model ChipsetB550

Motherboard chipsetAMD B550

Motherboard chipset familyAMD

Motherboard form factormicro ATX

Numar sloturi memorie4

Number of battery cells1

Number of chassis fan connectors2

Number of CPU fan connectors1

Number of EPS power connectors (8-pin)1

Number of HDDs supported4

Number of M.2 (M) slots2

Number of memory slots4

Number of Parallel ATA connectors0

Number of RGB LED pin headers5

Number of SATA II connectors0

Number of SATA III connectors4

Number of storage drives supported6

Number of water pump connectors2

Package depth265 mm

Package height54 mm

Package weight927 g

Package width265 mm

Parallel processing technology supportNot supported

PC health monitoringFan, Temperature, Voltage

PCI0

PCI Express x1 (Gen 3.x) slots1

PCI Express x16 (Gen 3.x) slots1

PCI Express x16 (Gen 4.x) slots1

PCI Express x16 slots2

PCI-Ex11

PCI-Ex162

Power fan connectorYes

Power source typeATX

Processor manufacturerAMD

Processor socketSocket AM4

Product colourBrown

Products per shipping (inner) case1 pc(s)

PS/2 ports quantity1

RAID levels0, 1, 10

RAID supportYes

RAM-Slots4

RGB LED pin headerYes

RJ-45 LAN1

Screws includedYes

Serial port headers1

Serial-or-ParalelNo/No

Sloturi M.22

Soclu ProcesorSocket AM4

Supported memory clock speed (max)4733 MHz

Supported memory clock speeds4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz

Supported memory typesDDR4-SDRAM

Supported processor socketsSocket AM4

Supported storage drive interfacesSATA III

Supported storage drive typesHDD & SSD

System Management BIOS (SMBIOS) version2.7

ThunderboltNu

Tip MemorieDDR4

Tip slot interfata graficaPCIe 4.0 x16

Total number of SATA connectors4

TPM connectorYes

Unbuffered memoryYes

USB 2.0 connectors1

USB 2.0 ports quantity4

USB 3.2 Gen 1 (3.1 Gen 1) connectors1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0

USB 3.2 Gen 2 (3.1 Gen 2) connectors0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0

USB connector typeUSB Type-A

USB Type CDa

USB32

VGA (D-Sub) ports quantity0

Video-ConnectionDVI/HDMI

Warranty period3 year(s)

Weight630 g

Wi-FINo

Width244 mm

Windows operating systems supportedWindows 10 x64, Windows 11 x64

WirelessNu

Specificații

Brand	GIGABYTE
Cod produs	NOD-B550M DS3H
Categorie	Componente
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
Bluetooth	Nu
12V power connector	Yes
1st M.2 highest PCI Express generation	4.0
1st M.2 largest key size	22110
2nd M.2 highest PCI Express generation	3.0
2nd M.2 largest key size	2280
ACPI version	5.0
ATX Power connector (24-pin)	Yes
Audio Chip	Realtek ALC897
Audio output channels	7.1 channels
Batteries included	Yes
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Battery weight	3 g
BIOS memory size	128 Mbit
BIOS type	UEFI AMI
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Cables included	SATA
Canale audio	7.1
Chipset audio integrat	Realtek
Clear CMOS jumper	Yes
Compatible processor series	AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
Component for	PC
Cooling type	Passive
Country of origin	China
CPU fan connector	Yes
CPU încorporat	No
Depth	24.4 mm
Desktop Management Interface (DMI) version	2.7
DirectX version	12.0
Discrete graphics support	Yes
Drivers included	Yes
DVI-D ports quantity	1
ECC сompatibility	ECC & Non-ECC
EPS power connector (8-pin)	Yes
eSATA ports quantity	0
Ethernet interface type	Gigabit Ethernet
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Firewire (IEEE 1394) ports	0
Format	Micro-ATX
Front panel audio connector	Yes
Front panel connector	Yes
Gaming	Da
Harmonized System (HS) code	84733020
HDCP	Yes
HDMI	Da
HDMI ports quantity	1
HDMI version	2.1
Headphone outputs	1
Height	35 mm
LAN controller	Realtek RTL8111H
Line-in	Yes
Lithium weight per battery	0.07 g
Maximum internal memory	128 GB
Maximum internal memory per slot	32 GB
Maximum internal memory supported by processor	128 GB
Maximum number of SMP processors	1
Maximum resolution	4096 x 2160 pixels
MB-Format	micro-ATX
MB-Socket	AM4
Memorie maxima	128 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Microphone in	Yes
Model Chipset	B550
Motherboard chipset	AMD B550
Motherboard chipset family	AMD
Motherboard form factor	micro ATX
Numar sloturi memorie	4
Number of battery cells	1
Number of chassis fan connectors	2
Number of CPU fan connectors	1
Number of EPS power connectors (8-pin)	1
Number of HDDs supported	4
Number of M.2 (M) slots	2
Number of memory slots	4
Number of Parallel ATA connectors	0
Number of RGB LED pin headers	5
Number of SATA II connectors	0
Number of SATA III connectors	4
Number of storage drives supported	6
Number of water pump connectors	2
Package depth	265 mm
Package height	54 mm
Package weight	927 g
Package width	265 mm
Parallel processing technology support	Not supported
PC health monitoring	Fan, Temperature, Voltage
PCI	0
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 slots	2
PCI-Ex1	1
PCI-Ex16	2
Power fan connector	Yes
Power source type	ATX
Processor manufacturer	AMD
Processor socket	Socket AM4
Product colour	Brown
Products per shipping (inner) case	1 pc(s)
PS/2 ports quantity	1
RAID levels	0, 1, 10
RAID support	Yes
RAM-Slots	4
RGB LED pin header	Yes
RJ-45 LAN	1
Screws included	Yes
Serial port headers	1
Serial-or-Paralel	No/No
Sloturi M.2	2
Soclu Procesor	Socket AM4
Supported memory clock speed (max)	4733 MHz
Supported memory clock speeds	4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz
Supported memory types	DDR4-SDRAM
Supported processor sockets	Socket AM4
Supported storage drive interfaces	SATA III
Supported storage drive types	HDD & SSD
System Management BIOS (SMBIOS) version	2.7
Thunderbolt	Nu
Tip Memorie	DDR4
Tip slot interfata grafica	PCIe 4.0 x16
Total number of SATA connectors	4
TPM connector	Yes
Unbuffered memory	Yes
USB 2.0 connectors	1
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB connector type	USB Type-A
USB Type C	Da
USB3	2
VGA (D-Sub) ports quantity	0
Video-Connection	DVI/HDMI
Warranty period	3 year(s)
Weight	630 g
Wi-FI	No
Width	244 mm
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Wireless	Nu

Configurație

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

Bluetooth: Nu12V power connector: Yes1st M.2 highest PCI Express generation: 4.01st M.2 largest key size: 221102nd M.2 highest PCI Express generation: 3.02nd M.2 largest key size: 2280
