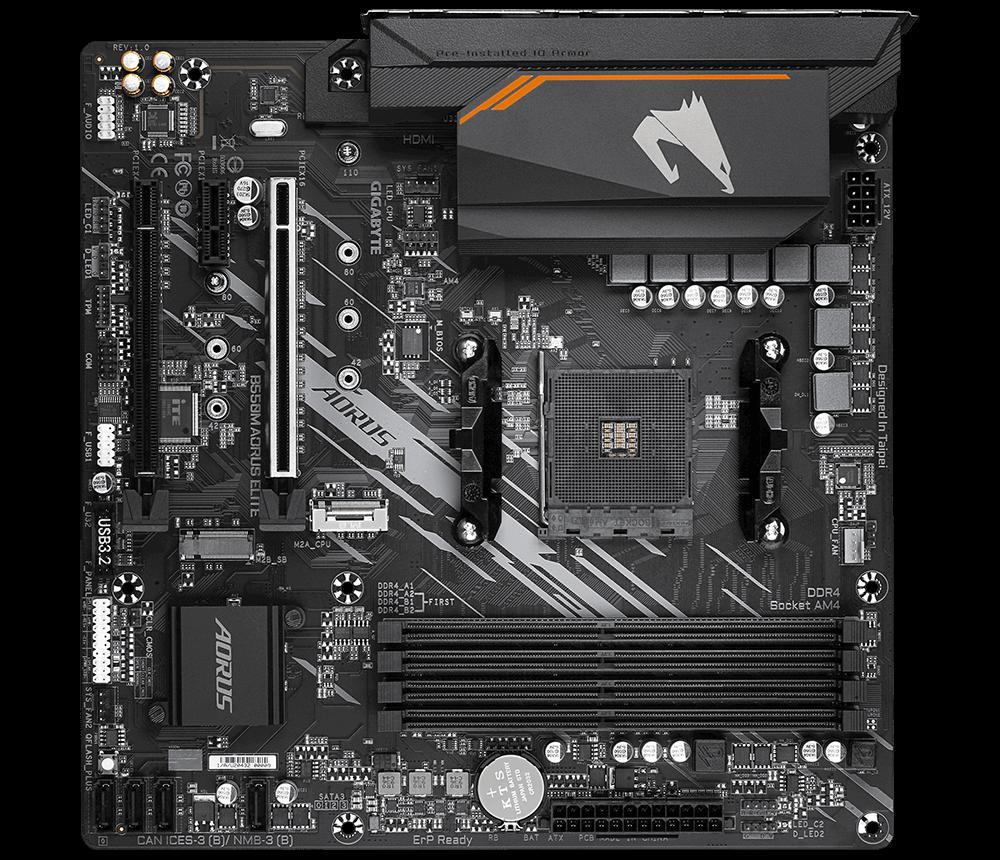

Placa de baza Gigabyte B550M AORUS ELITE, Socket AM4, DDR4, Micro-ATX

GIGABYTE · NOD-B550M AORUS ELITE

Placa de baza Gigabyte B550M AORUS ELITE, Socket AM4, DDR4, Micro-ATX

Name: Placa de baza Gigabyte B550M AORUS ELITE, Socket AM4, DDR4, Micro-ATX
Brand: GIGABYTE
SKU: NOD-B550M AORUS ELITE
Price: 552 RON
Availability: InStock

Pentru a sprijini pe deplin cele mai recente procesoare AMD Ryzen ™ de la cel de-al 3-lea gen, placile de baza B550 sunt echipate cu solutia de putere finala, care este adevarata, digitala si cu mai multe faze. Dupa nenumarate experimente si testari, GIGABYTE prezinta placile de baza B550 imbatabile pentru entuziasti.

456 lei

prețuri fără TVA · 552 lei cu TVA

Disponibil la furnizor · 9 buc·termen de livrare confirmat la comandă

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.456 lei

GIGABYTE · ComponenteDoar pentru firme (B2B)

Placa de baza Gigabyte B550M AORUS ELITE, Socket AM4, DDR4, Micro-ATX

SKU: NOD-B550M AORUS ELITE

Bluetooth: Nu
12V power connector: Yes
ACPI version: 5.0
ATX Power connector (24-pin): Yes
Audio Chip: Realtek ALC887
Audio output channels: 7.1 channels

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

456 leiprețuri fără TVA

Disponibil la furnizor · 9 buc·termen de livrare confirmat la comandă

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandGIGABYTE

Cod produsNOD-B550M AORUS ELITE

CategorieComponente

BluetoothNu

12V power connectorYes

ACPI version5.0

ATX Power connector (24-pin)Yes

Audio ChipRealtek ALC887

Audio output channels7.1 channels

Battery technologyLithium-Manganese Dioxide (LiMnO2)

Battery typeCR2032

Battery weight3 g

BIOS memory size256 Mbit

BIOS typeUEFI AMI

Bundled softwareNorton® Internet Security (OEM version), Realtek® 8118 Gaming LAN Bandwidth Control Utility

Cables includedSATA

Canale audio7.1

Chipset audio integratRealtek

Clear CMOS buttonYes

Clear CMOS jumperYes

Compatible processor seriesAMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series

Component forPC

Cooling typeActive

Country of originChina

CPU fan connectorYes

CPU încorporatNo

Depth24.4 mm

Desktop Management Interface (DMI) version2.7

Digital audio optical out1

DirectX version12.0

Discrete graphics supportYes

Drivers includedYes

DVI-D ports quantity1

ECC сompatibilityECC & Non-ECC

eSATA ports quantity0

Ethernet interface typeGigabit Ethernet

Ethernet LANYes

Firewire (IEEE 1394) ports0

FormatMicro-ATX

Front panel audio connectorYes

Front panel connectorYes

GamingDa

Harmonized System (HS) code84733020

HDCPYes

HDMIDa

HDMI ports quantity1

HDMI version2.1

Headphone outputs1

Height35 mm

Lithium weight per battery0.07 g

Maximum internal memory128 GB

Maximum internal memory supported by processor128 GB

Maximum number of SMP processors1

Maximum resolution4096 x 2160 pixels

MB-Formatmicro-ATX

MB-SocketAM4

Memorie maxima128 GB

Memory channelsDual-channel

Memory slots typeDIMM

Microphone inYes

Model ChipsetB550

Motherboard chipsetAMD B550

Motherboard chipset familyAMD

Motherboard form factormicro ATX

Numar sloturi memorie4

Number of battery cells1

Number of chassis fan connectors2

Number of displays supported2

Number of HDDs supported4

Number of M.2 (M) slots2

Number of memory slots4

Number of Parallel ATA connectors0

Number of SATA II connectors0

Number of SATA III connectors4

Number of storage drives supported6

Package depth265 mm

Package height65 mm

Package weight1.27 kg

Package width265 mm

Parallel processing technology supportNot supported

PC health monitoringCPU, Fan, LED, Power supply, Temperature, Voltage

PCI0

PCI Express x1 (Gen 3.x) slots1

PCI Express x1 slots1

PCI Express x16 slots1

PCI Express x4 slots1

PCI-Ex11

PCI-Ex161

Power fan connectorYes

Power source typeATX

Processor manufacturerAMD

Processor socketSocket AM4

Product colourBrown

PS/2 ports quantity1

RAID levels0, 1, 10

RAM-Slots4

RGB LED pin headerYes

RJ-45 LAN1

Serial port headers1

Serial ports quantity1

Serial-or-ParalelNo/No

Sloturi M.22

Soclu ProcesorSocket AM4

Supported memory clock speed (max)4733 MHz

Supported memory clock speeds2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4733 MHz

Supported memory module capacities1GB, 2GB, 4GB, 16GB, 32GB

Supported memory typesDDR4-SDRAM

Supported processor socketsSocket AM4

Supported storage drive interfacesM.2, SATA III

Supported storage drive typesHDD & SSD

System Management BIOS (SMBIOS) version2.7

ThunderboltNu

Tip MemorieDDR4

Tip slot interfata graficaPCIe 4.0 x16

Total number of SATA connectors4

TPM connectorYes

Unbuffered memoryYes

USB 2.0 connectors1

USB 2.0 ports quantity4

USB 3.2 Gen 1 (3.1 Gen 1) connectors1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0

USB 3.2 Gen 2 (3.1 Gen 2) connectors0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0

USB connector typeUSB Type-A

USB Type CDa

USB34-8

VGA (D-Sub) ports quantity0

Video-ConnectionDVI/HDMI

Wi-FINo

Width244 mm

Windows operating systems supportedWindows 10 x64, Windows 11 x64

WirelessNu

Specificații

Brand	GIGABYTE
Cod produs	NOD-B550M AORUS ELITE
Categorie	Componente
Garanție	Se confirmă la ofertare
Livrare	termen de livrare confirmat la comandă
Bluetooth	Nu
12V power connector	Yes
ACPI version	5.0
ATX Power connector (24-pin)	Yes
Audio Chip	Realtek ALC887
Audio output channels	7.1 channels
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Battery weight	3 g
BIOS memory size	256 Mbit
BIOS type	UEFI AMI
Bundled software	Norton® Internet Security (OEM version), Realtek® 8118 Gaming LAN Bandwidth Control Utility
Cables included	SATA
Canale audio	7.1
Chipset audio integrat	Realtek
Clear CMOS button	Yes
Clear CMOS jumper	Yes
Compatible processor series	AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series
Component for	PC
Cooling type	Active
Country of origin	China
CPU fan connector	Yes
CPU încorporat	No
Depth	24.4 mm
Desktop Management Interface (DMI) version	2.7
Digital audio optical out	1
DirectX version	12.0
Discrete graphics support	Yes
Drivers included	Yes
DVI-D ports quantity	1
ECC сompatibility	ECC & Non-ECC
eSATA ports quantity	0
Ethernet interface type	Gigabit Ethernet
Ethernet LAN	Yes
Firewire (IEEE 1394) ports	0
Format	Micro-ATX
Front panel audio connector	Yes
Front panel connector	Yes
Gaming	Da
Harmonized System (HS) code	84733020
HDCP	Yes
HDMI	Da
HDMI ports quantity	1
HDMI version	2.1
Headphone outputs	1
Height	35 mm
Lithium weight per battery	0.07 g
Maximum internal memory	128 GB
Maximum internal memory supported by processor	128 GB
Maximum number of SMP processors	1
Maximum resolution	4096 x 2160 pixels
MB-Format	micro-ATX
MB-Socket	AM4
Memorie maxima	128 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Microphone in	Yes
Model Chipset	B550
Motherboard chipset	AMD B550
Motherboard chipset family	AMD
Motherboard form factor	micro ATX
Numar sloturi memorie	4
Number of battery cells	1
Number of chassis fan connectors	2
Number of displays supported	2
Number of HDDs supported	4
Number of M.2 (M) slots	2
Number of memory slots	4
Number of Parallel ATA connectors	0
Number of SATA II connectors	0
Number of SATA III connectors	4
Number of storage drives supported	6
Package depth	265 mm
Package height	65 mm
Package weight	1.27 kg
Package width	265 mm
Parallel processing technology support	Not supported
PC health monitoring	CPU, Fan, LED, Power supply, Temperature, Voltage
PCI	0
PCI Express x1 (Gen 3.x) slots	1
PCI Express x1 slots	1
PCI Express x16 slots	1
PCI Express x4 slots	1
PCI-Ex1	1
PCI-Ex16	1
Power fan connector	Yes
Power source type	ATX
Processor manufacturer	AMD
Processor socket	Socket AM4
Product colour	Brown
PS/2 ports quantity	1
RAID levels	0, 1, 10
RAM-Slots	4
RGB LED pin header	Yes
RJ-45 LAN	1
Serial port headers	1
Serial ports quantity	1
Serial-or-Paralel	No/No
Sloturi M.2	2
Soclu Procesor	Socket AM4
Supported memory clock speed (max)	4733 MHz
Supported memory clock speeds	2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4733 MHz
Supported memory module capacities	1GB, 2GB, 4GB, 16GB, 32GB
Supported memory types	DDR4-SDRAM
Supported processor sockets	Socket AM4
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
System Management BIOS (SMBIOS) version	2.7
Thunderbolt	Nu
Tip Memorie	DDR4
Tip slot interfata grafica	PCIe 4.0 x16
Total number of SATA connectors	4
TPM connector	Yes
Unbuffered memory	Yes
USB 2.0 connectors	1
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB connector type	USB Type-A
USB Type C	Da
USB3	4-8
VGA (D-Sub) ports quantity	0
Video-Connection	DVI/HDMI
Wi-FI	No
Width	244 mm
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Wireless	Nu
