GIGABYTE · NOD-B550 EAGLE

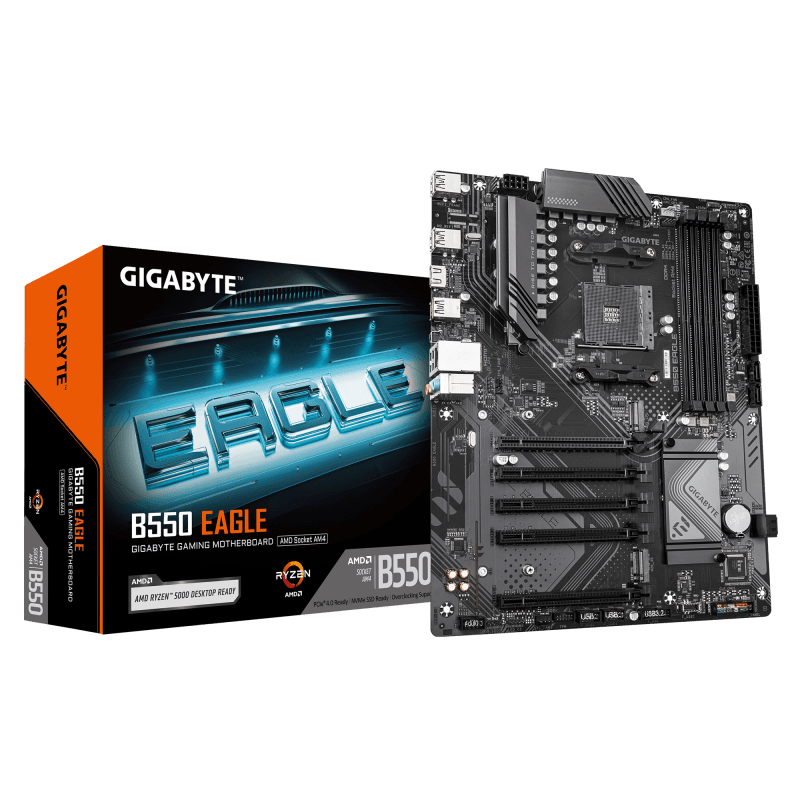

Placa de baza Gigabyte B550 EAGLE, Socket AM4, DDR4, ATX

Name: Placa de baza Gigabyte B550 EAGLE, Socket AM4, DDR4, ATX
Brand: GIGABYTE
SKU: NOD-B550 EAGLE
Price: 537 RON
Availability: InStock

Placa de Baza GIGABYTE B550 EAGLE AM4, 4x DDR4, 1x HDMI, 1x PCIE 4.0 x16 4x PCIE 3.0 x16, 2x M.2, 4x SATA 6GB/s, ATX

444 lei

prețuri fără TVA · 537 lei cu TVA

Disponibil la furnizor · 9 buc·termen de livrare confirmat la comandă

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.444 lei

GIGABYTE · ComponenteDoar pentru firme (B2B)

Placa de baza Gigabyte B550 EAGLE, Socket AM4, DDR4, ATX

SKU: NOD-B550 EAGLE

Bluetooth: Nu
1st M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 22110
2nd M.2 highest PCI Express generation: 3.0
2nd M.2 largest key size: 22110
ACPI version: 5.0

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

444 leiprețuri fără TVA

Disponibil la furnizor · 9 buc·termen de livrare confirmat la comandă

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandGIGABYTE

Cod produsNOD-B550 EAGLE

CategorieComponente

BluetoothNu

1st M.2 highest PCI Express generation4.0

1st M.2 largest key size22110

2nd M.2 highest PCI Express generation3.0

2nd M.2 largest key size22110

ACPI version5.0

ATX Power connector (24-pin)Yes

Audio ChipRealtek ALC897

Audio output channels7.1 channels

Batteries includedYes

Battery technologyLithium-Manganese Dioxide (LiMnO2)

Battery typeCR2032

Battery weight3 g

BIOS memory size128 Mbit

BIOS typeUEFI AMI

Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software

Canale audio7.1

Chipset audio integratRealtek

Clear CMOS jumperYes

Compatible processor seriesAMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series

Component forPC

Cooling typePassive

CPU fan connectorYes

Depth24.4 mm

Desktop Management Interface (DMI) version2.7

DirectX version12.0

DVI-D ports quantity0

ECC сompatibilityECC & Non-ECC

EPS power connector (8-pin)Yes

Ethernet interface typeGigabit Ethernet

Ethernet LANYes

Ethernet LAN (RJ-45) ports1

FormatATX

Front panel audio connectorYes

Front panel connectorYes

GamingNu

HDCPYes

HDMIDa

HDMI ports quantity1

HDMI version2.1

Headphone outputs1

Height35 mm

LAN controllerRealtek RTL8111H

Line-inYes

Lithium weight per battery0.07 g

Maximum internal memory128 GB

Maximum internal memory per slot32 GB

Maximum resolution4096 x 2160 pixels

MB-FormatATX

MB-SocketAM5

Memorie maxima128 GB

Memory channelsDual-channel

Memory slots typeDIMM

Microphone inYes

Model ChipsetB550

Motherboard chipsetAMD B550

Motherboard chipset familyAMD

Motherboard form factorATX

Numar sloturi memorie4

Number of battery cells1

Number of chassis fan connectors3

Number of CPU fan connectors2

Number of EPS power connectors (8-pin)1

Number of HDDs supported4

Number of M.2 (M) slots2

Number of memory slots4

Number of RGB LED pin headers5

Number of SATA III connectors4

Number of storage drives supported6

Number of water pump connectors1

Onboard-CPUNo

Package depth270 mm

Package height80 mm

Package weight1.48 kg

Package width335 mm

Parallel processing technology supportNot supported

PC health monitoringFan, Temperature, Voltage, Water cooling

PCI0

PCI Express x1 (Gen 3.x) slots4

PCI Express x16 (Gen 4.x) slots1

PCI-Ex10

PCI-Ex165

Power source typeATX

Processor manufacturerAMD

Processor socketSocket AM4

Product colourDark brown

Products per shipping (inner) case1 pc(s)

RAID levels0, 1, 10

RAID supportYes

RAM-Slots4

RGB LED pin headerYes

RJ-45 LAN1

Screws includedYes

Serial-or-ParalelNo/No

Sloturi M.22

Soclu ProcesorSocket AM4

Supported memory clock speed (max)3200 MHz

Supported memory clock speeds3200,2933,2667,2400,2133 MHz

Supported memory typesDDR4-SDRAM

Supported processor socketsSocket AM4

Supported storage drive interfacesM.2, PCI Express 4.0, SATA III

Supported storage drive typesHDD & SSD

System Management BIOS (SMBIOS) version2.7

ThunderboltNu

Tip MemorieDDR4

Tip slot interfata graficaPCIe 4.0 x16

TPM connectorYes

Unbuffered memoryYes

USB 2.0 connectors2

USB 2.0 ports quantity4

USB 3.2 Gen 1 (3.1 Gen 1) connectors2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1

USB 3.2 Gen 2 (3.1 Gen 2) connectors0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0

USB34-8

VGA (D-Sub) ports quantity0

Video-ConnectionHDMI

Warranty period3 year(s)

Weight12.5 kg

Wi-FINo

Width30.5 mm

Windows operating systems supportedWindows 10 x64, Windows 11 x64

WirelessNu

Specificații

Brand	GIGABYTE
Cod produs	NOD-B550 EAGLE
Categorie	Componente
Garanție	Se confirmă la ofertare
Livrare	termen de livrare confirmat la comandă
Bluetooth	Nu
1st M.2 highest PCI Express generation	4.0
1st M.2 largest key size	22110
2nd M.2 highest PCI Express generation	3.0
2nd M.2 largest key size	22110
ACPI version	5.0
ATX Power connector (24-pin)	Yes
Audio Chip	Realtek ALC897
Audio output channels	7.1 channels
Batteries included	Yes
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Battery weight	3 g
BIOS memory size	128 Mbit
BIOS type	UEFI AMI
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Canale audio	7.1
Chipset audio integrat	Realtek
Clear CMOS jumper	Yes
Compatible processor series	AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
Component for	PC
Cooling type	Passive
CPU fan connector	Yes
Depth	24.4 mm
Desktop Management Interface (DMI) version	2.7
DirectX version	12.0
DVI-D ports quantity	0
ECC сompatibility	ECC & Non-ECC
EPS power connector (8-pin)	Yes
Ethernet interface type	Gigabit Ethernet
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Format	ATX
Front panel audio connector	Yes
Front panel connector	Yes
Gaming	Nu
HDCP	Yes
HDMI	Da
HDMI ports quantity	1
HDMI version	2.1
Headphone outputs	1
Height	35 mm
LAN controller	Realtek RTL8111H
Line-in	Yes
Lithium weight per battery	0.07 g
Maximum internal memory	128 GB
Maximum internal memory per slot	32 GB
Maximum resolution	4096 x 2160 pixels
MB-Format	ATX
MB-Socket	AM5
Memorie maxima	128 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Microphone in	Yes
Model Chipset	B550
Motherboard chipset	AMD B550
Motherboard chipset family	AMD
Motherboard form factor	ATX
Numar sloturi memorie	4
Number of battery cells	1
Number of chassis fan connectors	3
Number of CPU fan connectors	2
Number of EPS power connectors (8-pin)	1
Number of HDDs supported	4
Number of M.2 (M) slots	2
Number of memory slots	4
Number of RGB LED pin headers	5
Number of SATA III connectors	4
Number of storage drives supported	6
Number of water pump connectors	1
Onboard-CPU	No
Package depth	270 mm
Package height	80 mm
Package weight	1.48 kg
Package width	335 mm
Parallel processing technology support	Not supported
PC health monitoring	Fan, Temperature, Voltage, Water cooling
PCI	0
PCI Express x1 (Gen 3.x) slots	4
PCI Express x16 (Gen 4.x) slots	1
PCI-Ex1	0
PCI-Ex16	5
Power source type	ATX
Processor manufacturer	AMD
Processor socket	Socket AM4
Product colour	Dark brown
Products per shipping (inner) case	1 pc(s)
RAID levels	0, 1, 10
RAID support	Yes
RAM-Slots	4
RGB LED pin header	Yes
RJ-45 LAN	1
Screws included	Yes
Serial-or-Paralel	No/No
Sloturi M.2	2
Soclu Procesor	Socket AM4
Supported memory clock speed (max)	3200 MHz
Supported memory clock speeds	3200,2933,2667,2400,2133 MHz
Supported memory types	DDR4-SDRAM
Supported processor sockets	Socket AM4
Supported storage drive interfaces	M.2, PCI Express 4.0, SATA III
Supported storage drive types	HDD & SSD
System Management BIOS (SMBIOS) version	2.7
Thunderbolt	Nu
Tip Memorie	DDR4
Tip slot interfata grafica	PCIe 4.0 x16
TPM connector	Yes
Unbuffered memory	Yes
USB 2.0 connectors	2
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB3	4-8
VGA (D-Sub) ports quantity	0
Video-Connection	HDMI
Warranty period	3 year(s)
Weight	12.5 kg
Wi-FI	No
Width	30.5 mm
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Wireless	Nu

Configurație

Placa de Baza GIGABYTE B550 EAGLE AM4, 4x DDR4, 1x HDMI, 1x PCIE 4.0 x16 4x PCIE 3.0 x16, 2x M.2, 4x SATA 6GB/s, ATX

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

Placa de Baza GIGABYTE B550 EAGLE AM4, 4x DDR4, 1x HDMI, 1x PCIE 4.0 x16 4x PCIE 3.0 x16, 2x M.2, 4x SATA 6GB/s, ATX

Bluetooth: Nu1st M.2 highest PCI Express generation: 4.01st M.2 largest key size: 221102nd M.2 highest PCI Express generation: 3.02nd M.2 largest key size: 22110ACPI version: 5.0
