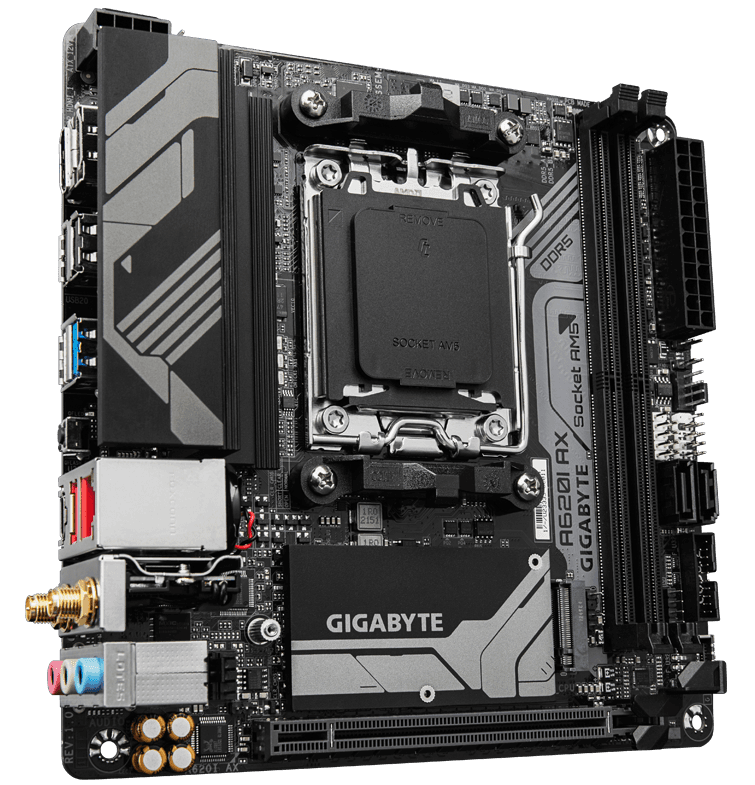

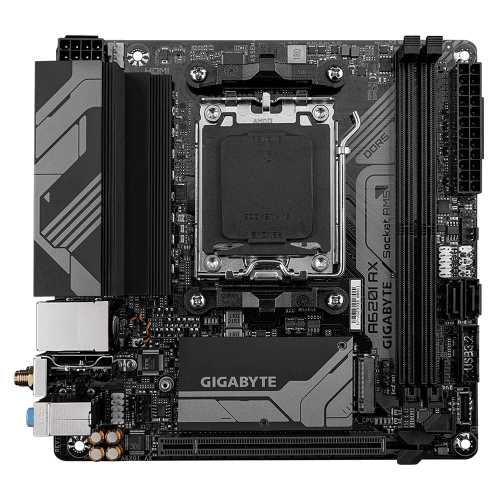

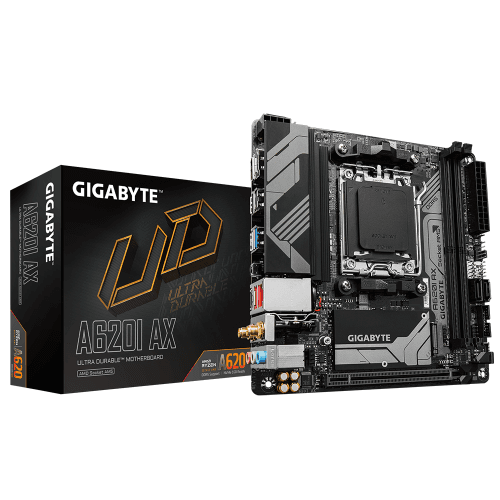

Placa de baza Gigabyte A620I AX, Socket AM5, DDR5, Mini-ITX

GIGABYTE · NOD-A620I AX

Placa de baza Gigabyte A620I AX, Socket AM5, DDR5, Mini-ITX

Name: Placa de baza Gigabyte A620I AX, Socket AM5, DDR5, Mini-ITX
Brand: GIGABYTE
SKU: NOD-A620I AX
Price: 750 RON
Availability: InStock

MB GIGABYTE A620I AX (rev. 1.0) AM5, 2xDDR5, 1x Display Port, 1x HDMI, mini-ITX https://www.gigabyte.com/Motherboard/A620I-AX-rev-10/sp#sp

620 lei

prețuri fără TVA · 750 lei cu TVA

Disponibil la furnizor · 9 buc·termen de livrare confirmat la comandă

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.620 lei

GIGABYTE · ComponenteDoar pentru firme (B2B)

Placa de baza Gigabyte A620I AX, Socket AM5, DDR5, Mini-ITX

SKU: NOD-A620I AX

Bluetooth: Da
12V power connector: Yes
ACPI version: 5.0
ATX Power connector (24-pin): Yes
Audio connector: Yes
Audio output channels: 7.1 channels

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

620 leiprețuri fără TVA

Disponibil la furnizor · 9 buc·termen de livrare confirmat la comandă

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandGIGABYTE

Cod produsNOD-A620I AX

CategorieComponente

BluetoothDa

12V power connectorYes

ACPI version5.0

ATX Power connector (24-pin)Yes

Audio connectorYes

Audio output channels7.1 channels

Battery technologyLithium-Manganese Dioxide (LiMnO2)

Battery typeCR2032

Battery weight3 g

BIOS memory size256 Mbit

BIOS typeUEFI AMI

Bluetooth version5.3

Bundled softwareNorton Internet Security

Cables includedSATA

Canale audio7.1

Chassis intrusion connectorYes

Chipset audio integratRealtek

Clear CMOS jumperYes

Compatible processor seriesAMD Ryzen 7000 Series

Component forPC

Country of originChina

CPU fan connectorYes

Depth170 mm

Desktop Management Interface (DMI) version2.7

DirectX version12.0

DisplayPort version1.4

DisplayPorts quantity1

DVI-D ports quantity0

ECC сompatibilityNon-ECC

EPS power connector (8-pin)Yes

Ethernet interface type2.5 Gigabit Ethernet

Ethernet LANYes

FormatMini-ITX

Front panel audio connectorYes

Front panel connectorYes

GamingNu

HDCPYes

HDMIDa

HDMI ports quantity1

HDMI version2.1

Headphone outputs3

Height35 mm

Lithium weight per battery0.07 g

Maximum internal memory96 GB

Maximum internal memory supported by processor96 GB

Maximum resolution4096 x 2160 pixels

Memorie maxima96 GB

Memory channelsDual-channel

Memory slots typeDIMM

Microphone inYes

Model ChipsetA620

Motherboard chipsetAMD A620

Motherboard chipset familyAMD

Motherboard form factormini ITX

Numar sloturi memorie2

Number of battery cells1

Number of HDDs supported2

Number of M.2 (M) slots1

Number of memory slots2

Number of SATA III connectors2

Number of storage drives supported3

Onboard-CPUNo

Package depth180 mm

Package height65 mm

Package weight860 g

Package width222 mm

Parallel processing technology supportNot supported

PC health monitoringFan, Temperature, Voltage, Water cooling

PCI0

PCI Express x16 slots1

Processor manufacturerAMD

Processor socketSocket AM5

Product colourBrown

RAID levels0, 1

RAID supportYes

RGB LED pin headerYes

RJ-45 LAN1

Serial-or-ParalelNo/No

Sloturi M.21

Soclu ProcesorSocket AM5

Supported memory clock speed (max)6400 MHz

Supported memory clock speeds4400,4800,5200,5600,6000,6200,6400 MHz

Supported memory module capacities1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB

Supported memory typesDDR5-SDRAM

Supported processor socketsSocket AM5

Supported storage drive interfacesM.2, SATA III

Supported storage drive typesHDD & SSD

System Management BIOS (SMBIOS) version2.7

ThunderboltNu

Tip MemorieDDR5

Tip slot interfata graficaPCIe 4.0 x16

Top Wi-Fi standardWi-Fi 6E (802.11ax)

Total number of SATA connectors2

Unbuffered memoryYes

USB 2.0 connectors1

USB 2.0 ports quantity3

USB 3.2 Gen 1 (3.1 Gen 1) connectors2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1

USB 3.2 Gen 2 (3.1 Gen 2) connectors0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0

USB connector typeUSB Type-A, USB Type-C

USB Type CDa

VGA (D-Sub) ports quantity0

Video-ConnectionHDMI/DP

Wi-FIYes

Width170 mm

WiFi-AP antenna jack2

Windows operating systems supportedWindows 10 x64, Windows 11 x64

WirelessDa

WLAN controller modelRealtek RTL8852CE

Specificații

Brand	GIGABYTE
Cod produs	NOD-A620I AX
Categorie	Componente
Garanție	Se confirmă la ofertare
Livrare	termen de livrare confirmat la comandă
Bluetooth	Da
12V power connector	Yes
ACPI version	5.0
ATX Power connector (24-pin)	Yes
Audio connector	Yes
Audio output channels	7.1 channels
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Battery weight	3 g
BIOS memory size	256 Mbit
BIOS type	UEFI AMI
Bluetooth version	5.3
Bundled software	Norton Internet Security
Cables included	SATA
Canale audio	7.1
Chassis intrusion connector	Yes
Chipset audio integrat	Realtek
Clear CMOS jumper	Yes
Compatible processor series	AMD Ryzen 7000 Series
Component for	PC
Country of origin	China
CPU fan connector	Yes
Depth	170 mm
Desktop Management Interface (DMI) version	2.7
DirectX version	12.0
DisplayPort version	1.4
DisplayPorts quantity	1
DVI-D ports quantity	0
ECC сompatibility	Non-ECC
EPS power connector (8-pin)	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Ethernet LAN	Yes
Format	Mini-ITX
Front panel audio connector	Yes
Front panel connector	Yes
Gaming	Nu
HDCP	Yes
HDMI	Da
HDMI ports quantity	1
HDMI version	2.1
Headphone outputs	3
Height	35 mm
Lithium weight per battery	0.07 g
Maximum internal memory	96 GB
Maximum internal memory supported by processor	96 GB
Maximum resolution	4096 x 2160 pixels
Memorie maxima	96 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Microphone in	Yes
Model Chipset	A620
Motherboard chipset	AMD A620
Motherboard chipset family	AMD
Motherboard form factor	mini ITX
Numar sloturi memorie	2
Number of battery cells	1
Number of HDDs supported	2
Number of M.2 (M) slots	1
Number of memory slots	2
Number of SATA III connectors	2
Number of storage drives supported	3
Onboard-CPU	No
Package depth	180 mm
Package height	65 mm
Package weight	860 g
Package width	222 mm
Parallel processing technology support	Not supported
PC health monitoring	Fan, Temperature, Voltage, Water cooling
PCI	0
PCI Express x16 slots	1
Processor manufacturer	AMD
Processor socket	Socket AM5
Product colour	Brown
RAID levels	0, 1
RAID support	Yes
RGB LED pin header	Yes
RJ-45 LAN	1
Serial-or-Paralel	No/No
Sloturi M.2	1
Soclu Procesor	Socket AM5
Supported memory clock speed (max)	6400 MHz
Supported memory clock speeds	4400,4800,5200,5600,6000,6200,6400 MHz
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Supported memory types	DDR5-SDRAM
Supported processor sockets	Socket AM5
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
System Management BIOS (SMBIOS) version	2.7
Thunderbolt	Nu
Tip Memorie	DDR5
Tip slot interfata grafica	PCIe 4.0 x16
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Total number of SATA connectors	2
Unbuffered memory	Yes
USB 2.0 connectors	1
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB connector type	USB Type-A, USB Type-C
USB Type C	Da
VGA (D-Sub) ports quantity	0
Video-Connection	HDMI/DP
Wi-FI	Yes
Width	170 mm
WiFi-AP antenna jack	2
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Wireless	Da
WLAN controller model	Realtek RTL8852CE
