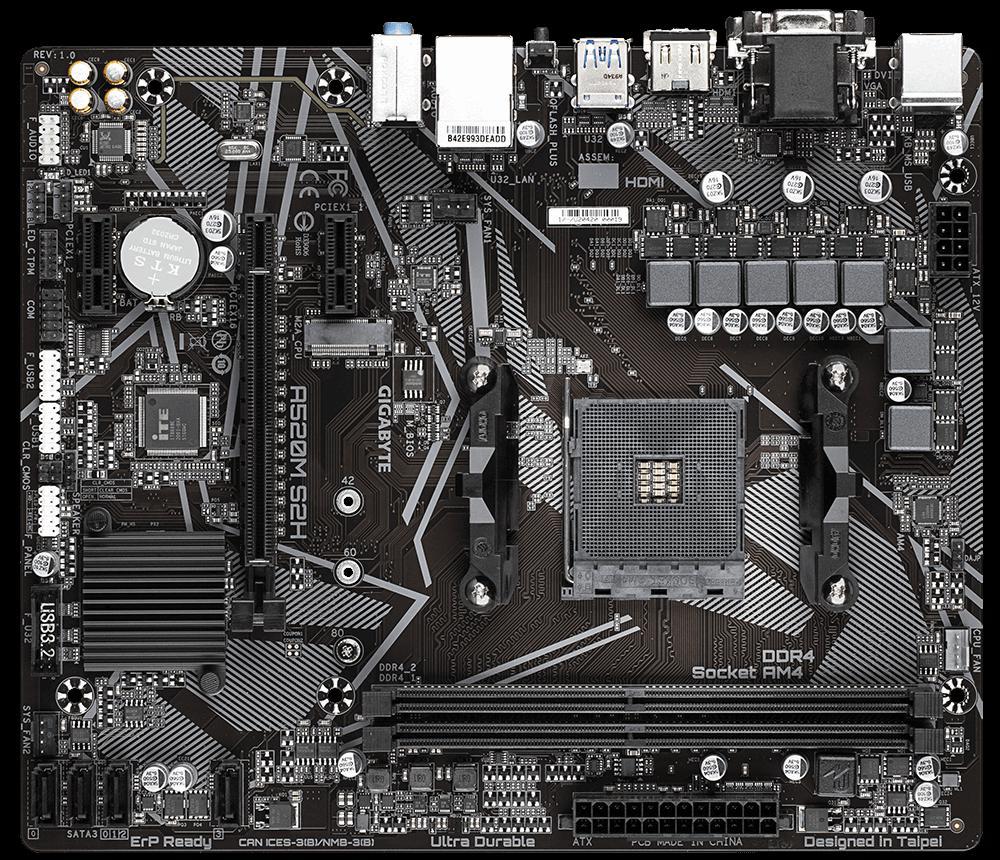

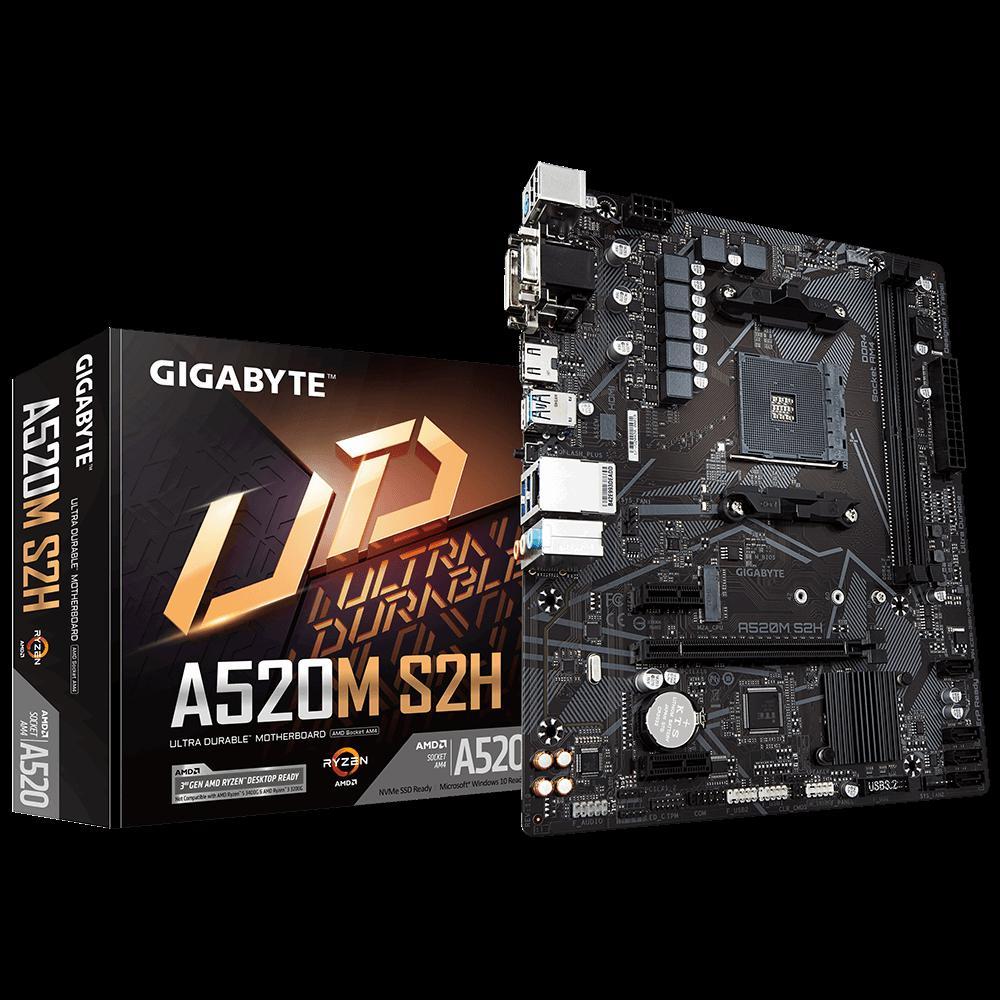

Placa de baza Gigabyte A520M S2H, Socket AM4, DDR4, Micro-ATX

GIGABYTE · NOD-A520M S2H

Placa de baza Gigabyte A520M S2H, Socket AM4, DDR4, Micro-ATX

Name: Placa de baza Gigabyte A520M S2H, Socket AM4, DDR4, Micro-ATX
Brand: GIGABYTE
SKU: NOD-A520M S2H
Price: 328 RON
Availability: BackOrder

Te poti baza pe chipset-ul AMD A520 care it ofera performanta plung-and-play si conectivitatea de care ai nevoie.GIGABYTE UD utilizeaza un MOSFET digital PWM + Low RDS (on) MOSFETs pentru a sprijini procesoarele AMD Ryzen™ 3 gen, oferind o precizie incredibila in furnizarea puterii la componentele cele mai infometate si sensibile la energie de pe placa de baza, precum si la furnizarea performantei imbunatatite a sistemului si la scalabilitatea hardware finala. In plus, placile de baza GIGABYTE folosesc condensatoare audio de inalta calitate. Aceste condensatoare de inalta calitate ajuta la furnizarea audio de inalta rezolutie si fidelitate inalta pentru a oferi cele mai realiste efecte sonore pentru gameri.

271 lei

prețuri fără TVA · 328 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.271 lei

GIGABYTE · ComponenteDoar pentru firme (B2B)

Placa de baza Gigabyte A520M S2H, Socket AM4, DDR4, Micro-ATX

SKU: NOD-A520M S2H

Bluetooth: Nu
ACPI version: 5.0
ATX Power connector (24-pin): Yes
Audio output channels: 7.1 channels
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

271 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandGIGABYTE

Cod produsNOD-A520M S2H

CategorieComponente

BluetoothNu

ACPI version5.0

ATX Power connector (24-pin)Yes

Audio output channels7.1 channels

Battery technologyLithium-Manganese Dioxide (LiMnO2)

Battery typeCR2032

Battery weight3 g

BIOS memory size128 Mbit

BIOS typeUEFI AMI

Canale audio7.1

Chipset audio integratRealtek

Clear CMOS buttonYes

Clear CMOS jumperYes

Compatible processor seriesAMD Ryzen 3000 Series

Component forPC

Country of originChina

CPU fan connectorYes

CPU încorporatNo

Depth20.5 mm

Desktop Management Interface (DMI) version2.7

DVI-D ports quantity1

ECC сompatibilityECC & Non-ECC

Ethernet LANYes

FormatMicro-ATX

GamingNu

Harmonized System (HS) code84733020

HDCPYes

HDMIDa

HDMI ports quantity1

Height35 mm

Lithium weight per battery0.07 g

Maximum internal memory64 GB

Maximum internal memory supported by processor64 GB

Maximum number of SMP processors1

Memorie maxima64 GB

Memory channelsDual-channel

Memory slots typeDIMM

Model ChipsetA520

Motherboard chipsetAMD A520

Motherboard chipset familyAMD

Motherboard form factormicro ATX

Numar sloturi memorie2

Number of battery cells1

Number of chassis fan connectors2

Number of memory slots2

Number of SATA II connectors0

Number of SATA III connectors4

Package depth235 mm

Package height52 mm

Package weight740 g

Package width265 mm

PCI0

Power fan connectorYes

Processor manufacturerAMD

Processor socketSocket AM4

PS/2 ports quantity1

RAID levels0, 1, 10

RAID supportYes

RGB LED pin headerYes

RJ-45 LAN1

Serial-or-ParalelNo/No

Soclu ProcesorSocket AM4

Supported memory clock speeds2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4866,5000 MHz

Supported memory typesDDR4-SDRAM

Supported processor socketsSocket AM4

Supported storage drive interfacesM.2, PCI Express 3.0, SATA

System Management BIOS (SMBIOS) version2.7

ThunderboltNu

Tip MemorieDDR4

USB 2.0 connectors2

USB 2.0 ports quantity2

USB 3.2 Gen 1 (3.1 Gen 1) connectors1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0

USB 3.2 Gen 2 (3.1 Gen 2) connectors0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0

USB Type CDa

VGA (D-Sub) ports quantity1

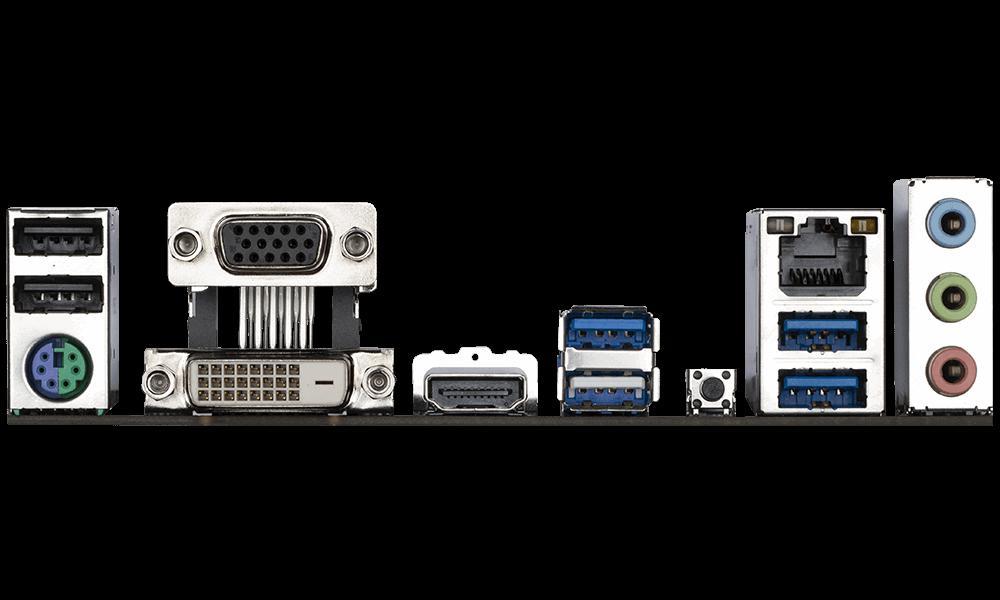

Video-ConnectionVGA/DVI/HDMI

Width244 mm

Specificații

Brand	GIGABYTE
Cod produs	NOD-A520M S2H
Categorie	Componente
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
Bluetooth	Nu
ACPI version	5.0
ATX Power connector (24-pin)	Yes
Audio output channels	7.1 channels
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Battery weight	3 g
BIOS memory size	128 Mbit
BIOS type	UEFI AMI
Canale audio	7.1
Chipset audio integrat	Realtek
Clear CMOS button	Yes
Clear CMOS jumper	Yes
Compatible processor series	AMD Ryzen 3000 Series
Component for	PC
Country of origin	China
CPU fan connector	Yes
CPU încorporat	No
Depth	20.5 mm
Desktop Management Interface (DMI) version	2.7
DVI-D ports quantity	1
ECC сompatibility	ECC & Non-ECC
Ethernet LAN	Yes
Format	Micro-ATX
Gaming	Nu
Harmonized System (HS) code	84733020
HDCP	Yes
HDMI	Da
HDMI ports quantity	1
Height	35 mm
Lithium weight per battery	0.07 g
Maximum internal memory	64 GB
Maximum internal memory supported by processor	64 GB
Maximum number of SMP processors	1
Memorie maxima	64 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Model Chipset	A520
Motherboard chipset	AMD A520
Motherboard chipset family	AMD
Motherboard form factor	micro ATX
Numar sloturi memorie	2
Number of battery cells	1
Number of chassis fan connectors	2
Number of memory slots	2
Number of SATA II connectors	0
Number of SATA III connectors	4
Package depth	235 mm
Package height	52 mm
Package weight	740 g
Package width	265 mm
PCI	0
Power fan connector	Yes
Processor manufacturer	AMD
Processor socket	Socket AM4
PS/2 ports quantity	1
RAID levels	0, 1, 10
RAID support	Yes
RGB LED pin header	Yes
RJ-45 LAN	1
Serial-or-Paralel	No/No
Soclu Procesor	Socket AM4
Supported memory clock speeds	2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4866,5000 MHz
Supported memory types	DDR4-SDRAM
Supported processor sockets	Socket AM4
Supported storage drive interfaces	M.2, PCI Express 3.0, SATA
System Management BIOS (SMBIOS) version	2.7
Thunderbolt	Nu
Tip Memorie	DDR4
USB 2.0 connectors	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB Type C	Da
VGA (D-Sub) ports quantity	1
Video-Connection	VGA/DVI/HDMI
Width	244 mm

Configurație

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

Bluetooth: NuACPI version: 5.0ATX Power connector (24-pin): YesAudio output channels: 7.1 channelsBattery technology: Lithium-Manganese Dioxide (LiMnO2)Battery type: CR2032
