GIGABYTE · NOD-A520M H ARGB

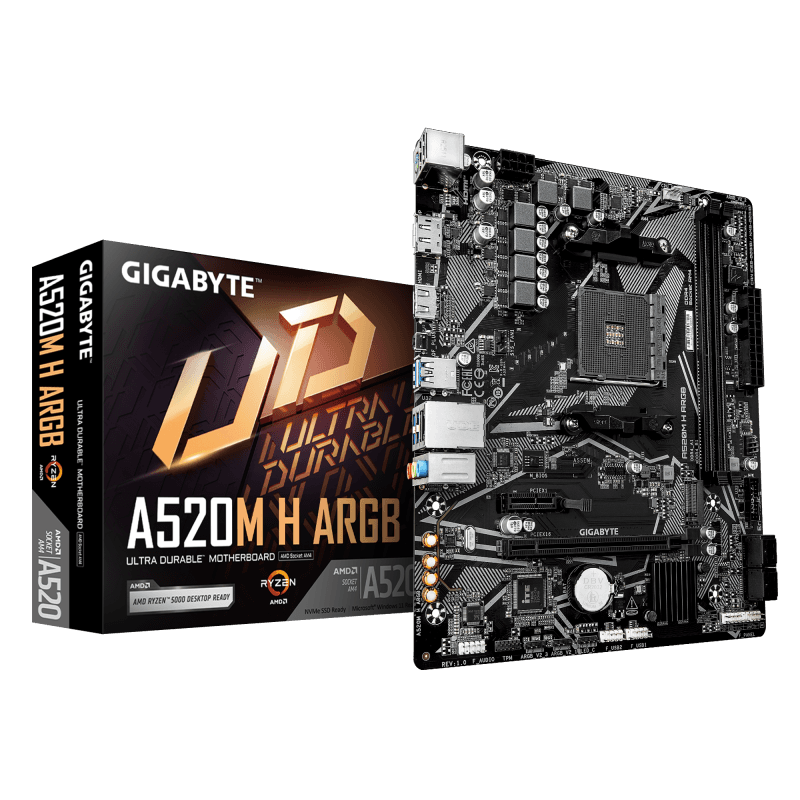

Placa de baza Gigabyte A520M H ARGB, Socket AM4, DDR4, Micro-ATX

Name: Placa de baza Gigabyte A520M H ARGB, Socket AM4, DDR4, Micro-ATX
Brand: GIGABYTE
SKU: NOD-A520M H ARGB
Price: 407 RON
Availability: InStock

GIGABYTE A520M H ARGB. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series, AMD Ryzen PRO 3000 Series,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 5120 x 2880 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H

336 lei

prețuri fără TVA · 407 lei cu TVA

Disponibil la furnizor · 19 buc·termen de livrare confirmat la comandă

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.336 lei

GIGABYTE · ComponenteDoar pentru firme (B2B)

Placa de baza Gigabyte A520M H ARGB, Socket AM4, DDR4, Micro-ATX

SKU: NOD-A520M H ARGB

Bluetooth: Nu
12V power connector: Yes
1st M.2 highest PCI Express generation: 3.0
1st M.2 largest key size: 2280
ACPI version: 5.0
ATX Power connector (24-pin): Yes

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

336 leiprețuri fără TVA

Disponibil la furnizor · 19 buc·termen de livrare confirmat la comandă

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandGIGABYTE

Cod produsNOD-A520M H ARGB

CategorieComponente

BluetoothNu

12V power connectorYes

1st M.2 highest PCI Express generation3.0

1st M.2 largest key size2280

ACPI version5.0

ATX Power connector (24-pin)Yes

Audio ChipRealtek ALC897

Audio output channels7.1 channels

Batteries includedYes

Battery capacity220 mAh

Battery technologyLithium-Manganese Dioxide (LiMnO2)

Battery typeCR2032

Battery weight3 g

BIOS memory size128 Mbit

BIOS typeUEFI AMI

Bundled softwareNorton® Internet Security (OEM version)

Canale audio7.1

Chipset audio integratRealtek

Clear CMOS jumperYes

Component forPC

Cooling typePassive

Country of originChina

CPU fan connectorYes

Depth198 mm

Desktop Management Interface (DMI) version2.7

DirectX version12.0

DisplayPort version1.4

DisplayPorts quantity1

DVI-D ports quantity0

ECC сompatibilityECC & Non-ECC

EPS power connector (8-pin)Yes

Ethernet interface typeGigabit Ethernet

Ethernet LANYes

Ethernet LAN (RJ-45) ports1

FormatMicro-ATX

Front panel audio connectorYes

Front panel connectorYes

GamingNu

HDCPYes

HDCP version2.3

HDMIDa

HDMI ports quantity1

HDMI version2.1

Headphone outputs1

Height35 mm

LAN controllerRealtek RTL8111H

Line-inYes

Lithium weight per battery0.07 g

Maximum internal memory64 GB

Maximum internal memory per slot32 GB

Maximum resolution5120 x 2880 pixels

Memorie maxima64 GB

Memory channelsDual-channel

Memory slots typeDIMM

Microphone inYes

Model ChipsetA520

Motherboard chipsetAMD A520

Motherboard chipset familyAMD

Motherboard form factormicro ATX

Numar sloturi memorie2

Number of battery cells1

Number of chassis fan connectors2

Number of CPU fan connectors1

Number of EPS power connectors (8-pin)1

Number of HDDs supported4

Number of M.2 (M) slots1

Number of memory slots2

Number of RGB LED pin headers4

Number of SATA III connectors4

Number of storage drives supported5

Package depth235 mm

Package height52 mm

Package weight772 g

Package width265 mm

Parallel processing technology supportNot supported

PC health monitoringFan, Temperature, Voltage

PCI Express x1 (Gen 3.x) slots1

PCI Express x16 (Gen 3.x) slots1

Power source typeATX

Processor manufacturerAMD

Processor socketSocket AM4

Product colourDark brown

Products per shipping (inner) case1 pc(s)

PS/2 ports quantity1

RAID levels0, 1, 10

RAID supportYes

RGB LED pin headerYes

RJ-45 LAN1

Screws includedYes

Sloturi M.21

Soclu ProcesorSocket AM4

Supported memory clock speed (max)5100 MHz

Supported memory clock speeds2133,2400,2667,2933,3200,3400,3466,3600,3733,3866,4000,4133,4266,4400,4600,4800,5100 MHz

Supported memory typesDDR4-SDRAM

Supported processor socketsSocket AM4

Supported storage drive interfacesM.2, PCI Express 3.0, SATA III

Supported storage drive typesHDD & SSD

System Management BIOS (SMBIOS) version2.7

ThunderboltNu

Tip MemorieDDR4

Tip slot interfata graficaPCIe 3.0 x16

TPM connectorYes

Unbuffered memoryYes

USB 2.0 connectors2

USB 2.0 ports quantity2

USB 3.2 Gen 1 (3.1 Gen 1) connectors1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0

USB 3.2 Gen 2 (3.1 Gen 2) connectors0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0

VGA (D-Sub) ports quantity0

Warranty period3 year(s)

Weight700 g

Wi-FINo

Width233 mm

Windows operating systems supportedWindows 10 x64, Windows 11 x64

WirelessNu

Specificații

Brand	GIGABYTE
Cod produs	NOD-A520M H ARGB
Categorie	Componente
Garanție	Se confirmă la ofertare
Livrare	termen de livrare confirmat la comandă
Bluetooth	Nu
12V power connector	Yes
1st M.2 highest PCI Express generation	3.0
1st M.2 largest key size	2280
ACPI version	5.0
ATX Power connector (24-pin)	Yes
Audio Chip	Realtek ALC897
Audio output channels	7.1 channels
Batteries included	Yes
Battery capacity	220 mAh
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Battery weight	3 g
BIOS memory size	128 Mbit
BIOS type	UEFI AMI
Bundled software	Norton® Internet Security (OEM version)
Canale audio	7.1
Chipset audio integrat	Realtek
Clear CMOS jumper	Yes
Component for	PC
Cooling type	Passive
Country of origin	China
CPU fan connector	Yes
Depth	198 mm
Desktop Management Interface (DMI) version	2.7
DirectX version	12.0
DisplayPort version	1.4
DisplayPorts quantity	1
DVI-D ports quantity	0
ECC сompatibility	ECC & Non-ECC
EPS power connector (8-pin)	Yes
Ethernet interface type	Gigabit Ethernet
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Format	Micro-ATX
Front panel audio connector	Yes
Front panel connector	Yes
Gaming	Nu
HDCP	Yes
HDCP version	2.3
HDMI	Da
HDMI ports quantity	1
HDMI version	2.1
Headphone outputs	1
Height	35 mm
LAN controller	Realtek RTL8111H
Line-in	Yes
Lithium weight per battery	0.07 g
Maximum internal memory	64 GB
Maximum internal memory per slot	32 GB
Maximum resolution	5120 x 2880 pixels
Memorie maxima	64 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Microphone in	Yes
Model Chipset	A520
Motherboard chipset	AMD A520
Motherboard chipset family	AMD
Motherboard form factor	micro ATX
Numar sloturi memorie	2
Number of battery cells	1
Number of chassis fan connectors	2
Number of CPU fan connectors	1
Number of EPS power connectors (8-pin)	1
Number of HDDs supported	4
Number of M.2 (M) slots	1
Number of memory slots	2
Number of RGB LED pin headers	4
Number of SATA III connectors	4
Number of storage drives supported	5
Package depth	235 mm
Package height	52 mm
Package weight	772 g
Package width	265 mm
Parallel processing technology support	Not supported
PC health monitoring	Fan, Temperature, Voltage
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 3.x) slots	1
Power source type	ATX
Processor manufacturer	AMD
Processor socket	Socket AM4
Product colour	Dark brown
Products per shipping (inner) case	1 pc(s)
PS/2 ports quantity	1
RAID levels	0, 1, 10
RAID support	Yes
RGB LED pin header	Yes
RJ-45 LAN	1
Screws included	Yes
Sloturi M.2	1
Soclu Procesor	Socket AM4
Supported memory clock speed (max)	5100 MHz
Supported memory clock speeds	2133,2400,2667,2933,3200,3400,3466,3600,3733,3866,4000,4133,4266,4400,4600,4800,5100 MHz
Supported memory types	DDR4-SDRAM
Supported processor sockets	Socket AM4
Supported storage drive interfaces	M.2, PCI Express 3.0, SATA III
Supported storage drive types	HDD & SSD
System Management BIOS (SMBIOS) version	2.7
Thunderbolt	Nu
Tip Memorie	DDR4
Tip slot interfata grafica	PCIe 3.0 x16
TPM connector	Yes
Unbuffered memory	Yes
USB 2.0 connectors	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
VGA (D-Sub) ports quantity	0
Warranty period	3 year(s)
Weight	700 g
Wi-FI	No
Width	233 mm
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Wireless	Nu

Configurație

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

Bluetooth: Nu12V power connector: Yes1st M.2 highest PCI Express generation: 3.01st M.2 largest key size: 2280ACPI version: 5.0ATX Power connector (24-pin): Yes
