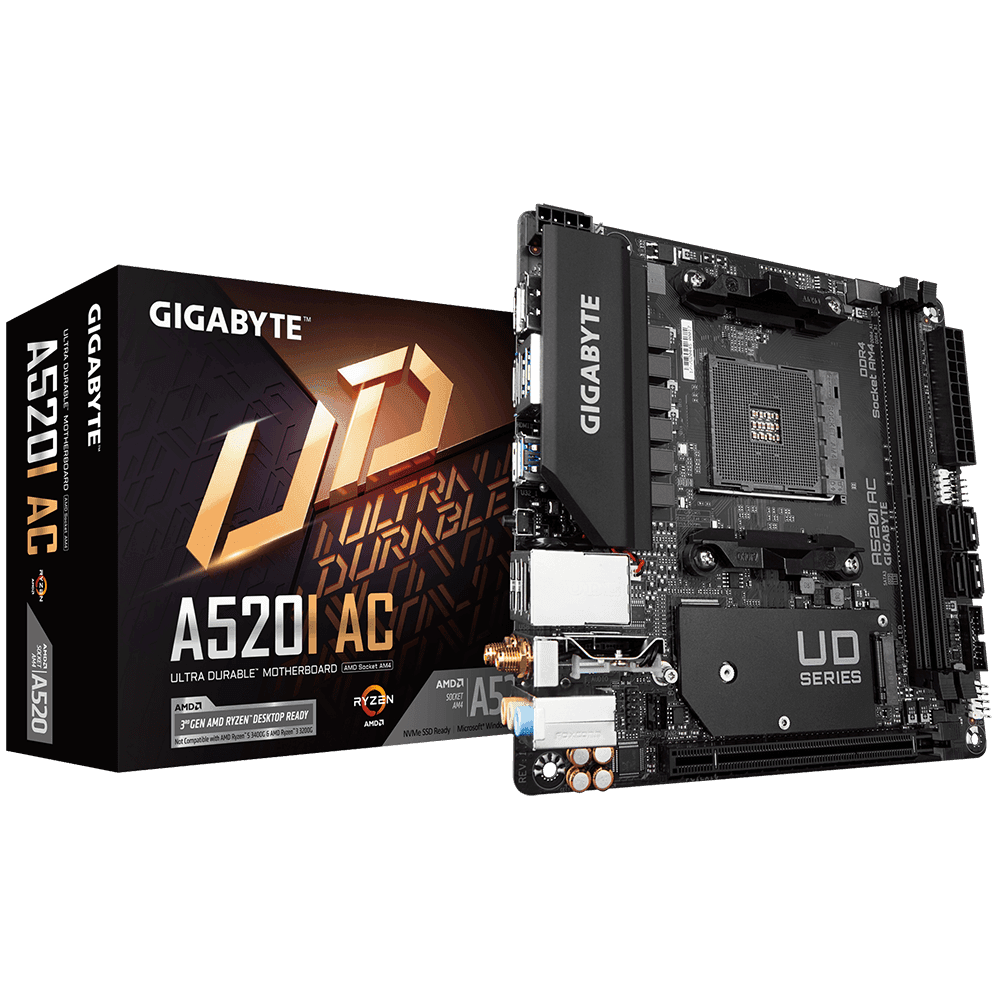

Placa de baza Gigabyte A520I AC, Socket AM4, DDR4, Micro-ATX

GIGABYTE · NOD-A520I AC

Placa de baza Gigabyte A520I AC, Socket AM4, DDR4, Micro-ATX

Name: Placa de baza Gigabyte A520I AC, Socket AM4, DDR4, Micro-ATX
Brand: GIGABYTE
SKU: NOD-A520I AC
Price: 580 RON
Availability: InStock

Placa de baza Gigabyte A520I AC AM4 DDR4, 2x sloturi RAM, max. 64GB, frecventa maxima suportata 5300MHz, 1x DisplayPort, 1x HDMI, 1x PCIe x16, 1x M.2, 4x conectori SATA 6GB/s, 1x LAN 1Gbps, WIFI, Bluetooth 4.2, microATX

479 lei

prețuri fără TVA · 580 lei cu TVA

Disponibil la furnizor · 7 buc·termen de livrare confirmat la comandă

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.479 lei

GIGABYTE · ComponenteDoar pentru firme (B2B)

Placa de baza Gigabyte A520I AC, Socket AM4, DDR4, Micro-ATX

SKU: NOD-A520I AC

Bluetooth: Da
ACPI version: 5.0
ATX Power connector (24-pin): Yes
Audio Chip: Realtek ALC887
Audio connector: Yes
Audio output channels: 7.1 channels

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

479 leiprețuri fără TVA

Disponibil la furnizor · 7 buc·termen de livrare confirmat la comandă

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandGIGABYTE

Cod produsNOD-A520I AC

CategorieComponente

BluetoothDa

ACPI version5.0

ATX Power connector (24-pin)Yes

Audio ChipRealtek ALC887

Audio connectorYes

Audio output channels7.1 channels

Battery technologyLithium-Manganese Dioxide (LiMnO2)

Battery typeCR2032

Battery weight3 g

BIOS memory size128 Mbit

BIOS typeUEFI AMI

Bluetooth version4.2

Bundled softwareNorton® Internet Security (OEM version), Realtek® 8118 Gaming LAN Bandwidth Control Utility

Canale audio7.1

Chipset audio integratRealtek

Clear CMOS jumperYes

Compatible processor seriesAMD Ryzen 3000 Series

Component forPC

Country of originChina

CPU fan connectorYes

Depth170 mm

Desktop Management Interface (DMI) version2.7

DirectX version12.0

DisplayPort version1.4

DisplayPorts quantity1

DVI-D ports quantity0

ECC сompatibilityECC & Non-ECC

EPS power connector (8-pin)Yes

Ethernet interface typeGigabit Ethernet

Ethernet LANYes

FormatMicro-ATX

Front panel audio connectorYes

Front panel connectorYes

GamingDa

HDCPYes

HDMINu

HDMI ports quantity2

HDMI version2.1

Headphone outputs3

Height35 mm

Lithium weight per battery0.07 g

Maximum internal memory64 GB

Maximum internal memory supported by processor64 GB

Maximum resolution5120 x 2880 pixels

Memorie maxima64 GB

Memory channelsDual-channel

Memory slots typeDIMM

Model ChipsetA520

Motherboard chipsetAMD A520

Motherboard chipset familyAMD

Motherboard form factormini ITX

mSATA ports quantity0

Numar sloturi memorie2

Number of battery cells1

Number of displays supported3

Number of HDDs supported4

Number of M.2 (M) slots1

Number of memory slots2

Number of Parallel ATA connectors0

Number of SATA connectors0

Number of SATA II connectors0

Number of SATA III connectors4

Number of storage drives supported5

On-board graphics cardNo

Onboard-CPUNo

Parallel processing technology supportNot supported

PC health monitoringFan, Temperature, Voltage

PCI3

PCI Express x16 slots1

Power fan connectorYes

Processor manufacturerAMD

Processor socketSocket AM4

RAID levels0, 1, 10

RAID supportYes

RGB LED pin headerYes

RJ-45 LAN1

Serial port headers1

Serial-or-ParalelNo/No

Sloturi M.21

Soclu ProcesorSocket AM4

Supported memory clock speed (max)5300 MHz

Supported memory clock speeds2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4866,5000,5100,5200 MHz

Supported memory module capacities1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB

Supported memory typesDDR4-SDRAM

Supported processor socketsSocket AM4

Supported storage drive interfacesM.2, SATA III

System Management BIOS (SMBIOS) version2.7

ThunderboltNu

Tip MemorieDDR4

Tip slot interfata graficaPCIe 3.0 x16

Top Wi-Fi standardWi-Fi 5 (802.11ac)

Total number of SATA connectors4

TPM connectorYes

Unbuffered memoryYes

USB 2.0 connectors1

USB 2.0 ports quantity2

USB 3.2 Gen 1 (3.1 Gen 1) connectors1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0

USB 3.2 Gen 2 (3.1 Gen 2) connectors0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0

USB Type CDa

VGA (D-Sub) ports quantity0

Video-ConnectionHDMI/DP

Wi-FIYes

Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Width170 mm

WiFi-AP antenna jack2

Windows operating systems supportedWindows 10 x64, Windows 11 x64

WirelessDa

Specificații

Brand	GIGABYTE
Cod produs	NOD-A520I AC
Categorie	Componente
Garanție	Se confirmă la ofertare
Livrare	termen de livrare confirmat la comandă
Bluetooth	Da
ACPI version	5.0
ATX Power connector (24-pin)	Yes
Audio Chip	Realtek ALC887
Audio connector	Yes
Audio output channels	7.1 channels
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Battery weight	3 g
BIOS memory size	128 Mbit
BIOS type	UEFI AMI
Bluetooth version	4.2
Bundled software	Norton® Internet Security (OEM version), Realtek® 8118 Gaming LAN Bandwidth Control Utility
Canale audio	7.1
Chipset audio integrat	Realtek
Clear CMOS jumper	Yes
Compatible processor series	AMD Ryzen 3000 Series
Component for	PC
Country of origin	China
CPU fan connector	Yes
Depth	170 mm
Desktop Management Interface (DMI) version	2.7
DirectX version	12.0
DisplayPort version	1.4
DisplayPorts quantity	1
DVI-D ports quantity	0
ECC сompatibility	ECC & Non-ECC
EPS power connector (8-pin)	Yes
Ethernet interface type	Gigabit Ethernet
Ethernet LAN	Yes
Format	Micro-ATX
Front panel audio connector	Yes
Front panel connector	Yes
Gaming	Da
HDCP	Yes
HDMI	Nu
HDMI ports quantity	2
HDMI version	2.1
Headphone outputs	3
Height	35 mm
Lithium weight per battery	0.07 g
Maximum internal memory	64 GB
Maximum internal memory supported by processor	64 GB
Maximum resolution	5120 x 2880 pixels
Memorie maxima	64 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Model Chipset	A520
Motherboard chipset	AMD A520
Motherboard chipset family	AMD
Motherboard form factor	mini ITX
mSATA ports quantity	0
Numar sloturi memorie	2
Number of battery cells	1
Number of displays supported	3
Number of HDDs supported	4
Number of M.2 (M) slots	1
Number of memory slots	2
Number of Parallel ATA connectors	0
Number of SATA connectors	0
Number of SATA II connectors	0
Number of SATA III connectors	4
Number of storage drives supported	5
On-board graphics card	No
Onboard-CPU	No
Parallel processing technology support	Not supported
PC health monitoring	Fan, Temperature, Voltage
PCI	3
PCI Express x16 slots	1
Power fan connector	Yes
Processor manufacturer	AMD
Processor socket	Socket AM4
RAID levels	0, 1, 10
RAID support	Yes
RGB LED pin header	Yes
RJ-45 LAN	1
Serial port headers	1
Serial-or-Paralel	No/No
Sloturi M.2	1
Soclu Procesor	Socket AM4
Supported memory clock speed (max)	5300 MHz
Supported memory clock speeds	2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4866,5000,5100,5200 MHz
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Supported memory types	DDR4-SDRAM
Supported processor sockets	Socket AM4
Supported storage drive interfaces	M.2, SATA III
System Management BIOS (SMBIOS) version	2.7
Thunderbolt	Nu
Tip Memorie	DDR4
Tip slot interfata grafica	PCIe 3.0 x16
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Total number of SATA connectors	4
TPM connector	Yes
Unbuffered memory	Yes
USB 2.0 connectors	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB Type C	Da
VGA (D-Sub) ports quantity	0
Video-Connection	HDMI/DP
Wi-FI	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Width	170 mm
WiFi-AP antenna jack	2
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Wireless	Da
