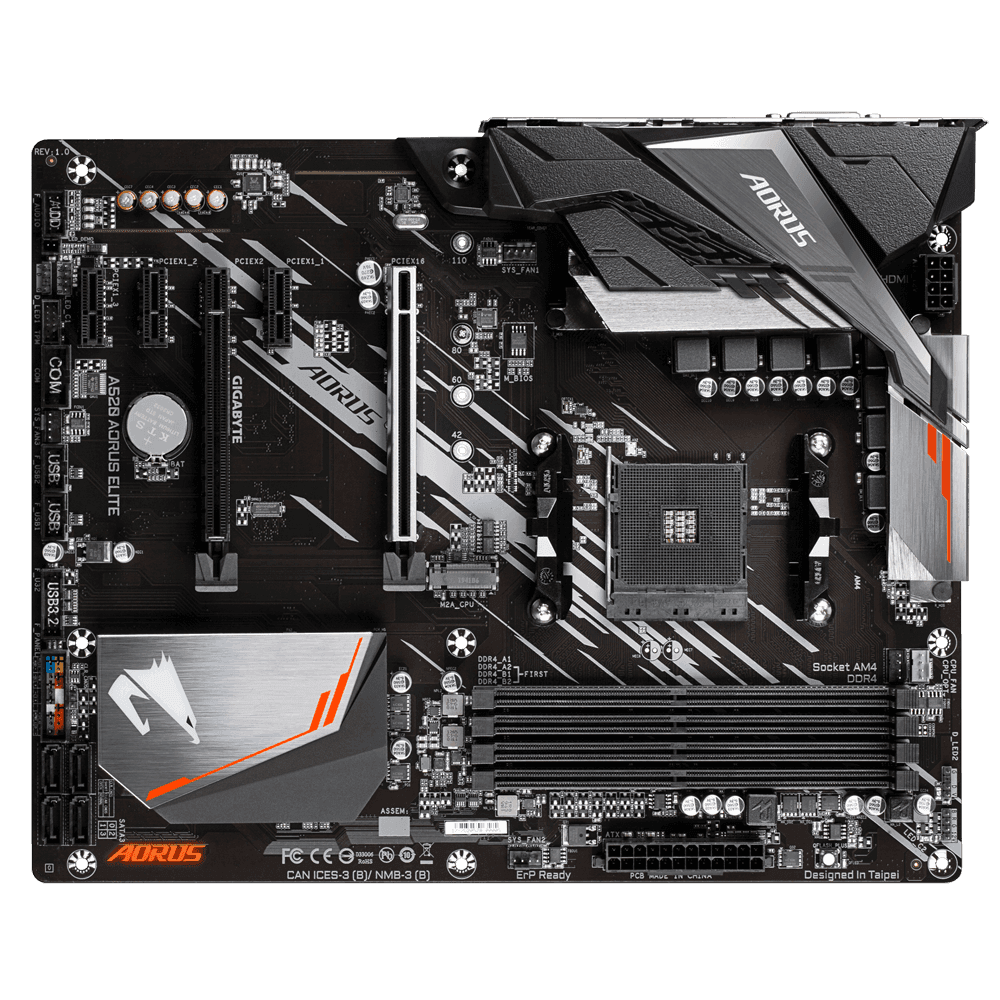

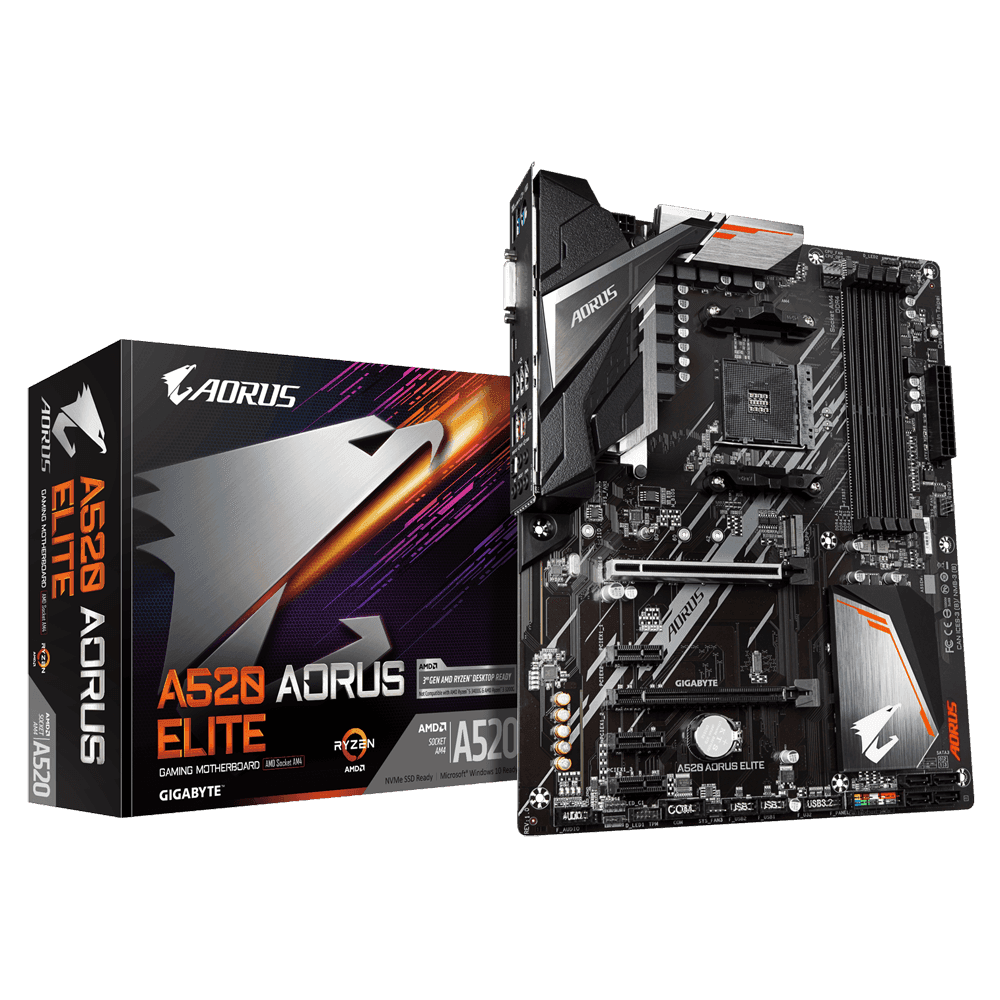

Placa de baza Gigabyte A520 AORUS ELITE, Socket AM4, DDR4, ATX

GIGABYTE · NOD-A520 AORUS ELITE

Placa de baza Gigabyte A520 AORUS ELITE, Socket AM4, DDR4, ATX

Name: Placa de baza Gigabyte A520 AORUS ELITE, Socket AM4, DDR4, ATX
Brand: GIGABYTE
SKU: NOD-A520 AORUS ELITE
Price: 529 RON
Availability: BackOrder

Te poti baza pe chipset-ul AMD A520 care it ofera performanta plung-and-play si conectivitatea de care ai nevoie.Nucleul AORUS este inspirat de natura agresiva a soimului si priceperea de vanatoare. Soimul isi foloseste unghiile ascutite pentru a lovi rapid prada cu eficienta si precizie exceptionale, calitati care sunt exemplificate in detaliile fine ale designului AORUS.GIGABYTE UD utilizeaza un MOSFET digital PWM + Low RDS (on) MOSFETs pentru a sprijini procesoarele AMD Ryzen™ 3 gen, oferind o precizie incredibila in furnizarea puterii la componentele cele mai infometate si sensibile la energie de pe placa de baza, precum si la furnizarea performantei imbunatatite a sistemului si la scalabilitatea hardware finala.

437 lei

prețuri fără TVA · 529 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.437 lei

GIGABYTE · ComponenteDoar pentru firme (B2B)

Placa de baza Gigabyte A520 AORUS ELITE, Socket AM4, DDR4, ATX

SKU: NOD-A520 AORUS ELITE

Bluetooth: Nu
ACPI version: 5.0
ATX Power connector (24-pin): Yes
Audio Chip: Realtek ALC1200
Audio output channels: 7.1 channels
Batteries included: Yes

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

437 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandGIGABYTE

Cod produsNOD-A520 AORUS ELITE

CategorieComponente

BluetoothNu

ACPI version5.0

ATX Power connector (24-pin)Yes

Audio ChipRealtek ALC1200

Audio output channels7.1 channels

Batteries includedYes

Battery technologyLithium-Manganese Dioxide (LiMnO2)

Battery typeCR2032

Battery weight3 g

BIOS memory size128 Mbit

BIOS typeUEFI AMI

Bundled softwareNorton® Internet Security (OEM version), Realtek® 8118 Gaming LAN Bandwidth Control Utility

Canale audio7.1

Chipset audio integratRealtek

Clear CMOS jumperYes

Compatible processor seriesAMD Ryzen 3000 Series

Component forPC

Country of originChina

CPU fan connectorYes

CPU încorporatNo

Depth24.4 mm

Desktop Management Interface (DMI) version2.7

DVI-D ports quantity1

ECC сompatibilityECC & Non-ECC

EPS power connector (8-pin)Yes

Ethernet interface typeGigabit Ethernet

Ethernet LANYes

Ethernet LAN (RJ-45) ports1

FormatATX

Front panel audio connectorYes

Front panel connectorYes

GamingDa

Harmonized System (HS) code84733020

HDCPYes

HDMIDa

HDMI ports quantity1

HDMI version2.1

Headphone outputs5

Height35 mm

Lithium weight per battery0.07 g

Maximum internal memory128 GB

Maximum resolution4096 x 2160 pixels

Memorie maxima128 GB

Memory channelsDual-channel

Memory slots typeDIMM

Model ChipsetA520

Motherboard chipsetAMD A520

Motherboard chipset familyAMD

Motherboard form factorATX

Numar sloturi memorie4

Number of battery cells1

Number of M.2 (M) slots1

Number of memory slots4

Number of SATA III connectors4

Number of storage drives supported5

Package depth270 mm

Package height80 mm

Package weight13.5 kg

Package width335 mm

PC health monitoringFan, Temperature, Voltage

PCI0

PCI Express x1 slots3

PCI Express x16 slots1

Power fan connectorYes

Processor manufacturerAMD

Processor socketSocket AM4

Products per shipping (inner) case1 pc(s)

PS/2 ports quantity1

RAID levels0, 1, 10

RGB LED pin headerYes

RJ-45 LAN1

S/PDIF out portYes

Serial port headers1

Serial-or-ParalelNo/No

Sloturi M.21

Soclu ProcesorSocket AM4

Supported memory clock speeds2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4733 MHz

Supported memory typesDDR4-SDRAM

Supported processor socketsSocket AM4

Supported storage drive interfacesM.2, SATA III

System Management BIOS (SMBIOS) version2.7

ThunderboltNu

Tip MemorieDDR4

TPM connectorYes

Unbuffered memoryYes

USB 2.0 connectors2

USB 2.0 ports quantity4

USB 3.2 Gen 1 (3.1 Gen 1) connectors1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1

USB Type CDa

Video-ConnectionDVI/HDMI

Warranty period3 year(s)

Width30.5 mm

Windows operating systems supportedWindows 10 x64

WirelessNu

Specificații

Brand	GIGABYTE
Cod produs	NOD-A520 AORUS ELITE
Categorie	Componente
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
Bluetooth	Nu
ACPI version	5.0
ATX Power connector (24-pin)	Yes
Audio Chip	Realtek ALC1200
Audio output channels	7.1 channels
Batteries included	Yes
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Battery weight	3 g
BIOS memory size	128 Mbit
BIOS type	UEFI AMI
Bundled software	Norton® Internet Security (OEM version), Realtek® 8118 Gaming LAN Bandwidth Control Utility
Canale audio	7.1
Chipset audio integrat	Realtek
Clear CMOS jumper	Yes
Compatible processor series	AMD Ryzen 3000 Series
Component for	PC
Country of origin	China
CPU fan connector	Yes
CPU încorporat	No
Depth	24.4 mm
Desktop Management Interface (DMI) version	2.7
DVI-D ports quantity	1
ECC сompatibility	ECC & Non-ECC
EPS power connector (8-pin)	Yes
Ethernet interface type	Gigabit Ethernet
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Format	ATX
Front panel audio connector	Yes
Front panel connector	Yes
Gaming	Da
Harmonized System (HS) code	84733020
HDCP	Yes
HDMI	Da
HDMI ports quantity	1
HDMI version	2.1
Headphone outputs	5
Height	35 mm
Lithium weight per battery	0.07 g
Maximum internal memory	128 GB
Maximum resolution	4096 x 2160 pixels
Memorie maxima	128 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Model Chipset	A520
Motherboard chipset	AMD A520
Motherboard chipset family	AMD
Motherboard form factor	ATX
Numar sloturi memorie	4
Number of battery cells	1
Number of M.2 (M) slots	1
Number of memory slots	4
Number of SATA III connectors	4
Number of storage drives supported	5
Package depth	270 mm
Package height	80 mm
Package weight	13.5 kg
Package width	335 mm
PC health monitoring	Fan, Temperature, Voltage
PCI	0
PCI Express x1 slots	3
PCI Express x16 slots	1
Power fan connector	Yes
Processor manufacturer	AMD
Processor socket	Socket AM4
Products per shipping (inner) case	1 pc(s)
PS/2 ports quantity	1
RAID levels	0, 1, 10
RGB LED pin header	Yes
RJ-45 LAN	1
S/PDIF out port	Yes
Serial port headers	1
Serial-or-Paralel	No/No
Sloturi M.2	1
Soclu Procesor	Socket AM4
Supported memory clock speeds	2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4733 MHz
Supported memory types	DDR4-SDRAM
Supported processor sockets	Socket AM4
Supported storage drive interfaces	M.2, SATA III
System Management BIOS (SMBIOS) version	2.7
Thunderbolt	Nu
Tip Memorie	DDR4
TPM connector	Yes
Unbuffered memory	Yes
USB 2.0 connectors	2
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB Type C	Da
Video-Connection	DVI/HDMI
Warranty period	3 year(s)
Width	30.5 mm
Windows operating systems supported	Windows 10 x64
Wireless	Nu
