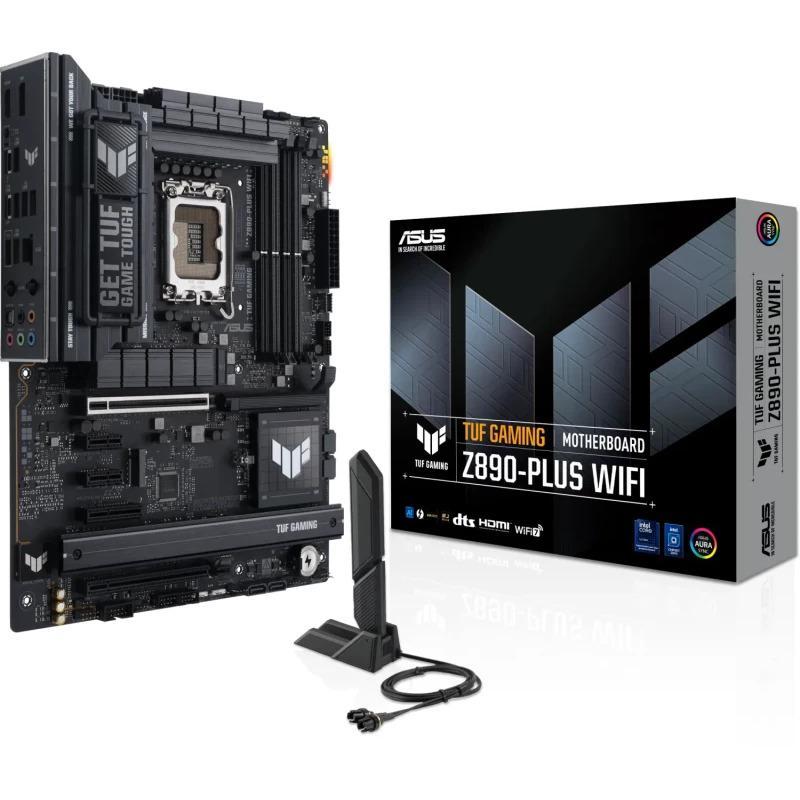

Placa de baza ASUS TUF GAMING Z890-PLUS WIFI, Socket 1851, DDR5, ATX

ASUS · NOD-TUF GAMING Z890-PLUS WIFI

Placa de baza ASUS TUF GAMING Z890-PLUS WIFI, Socket 1851, DDR5, ATX

Name: Placa de baza ASUS TUF GAMING Z890-PLUS WIFI, Socket 1851, DDR5, ATX
Brand: ASUS
SKU: NOD-TUF GAMING Z890-PLUS WIFI
Price: 2524 RON
Availability: BackOrder

Placa de Baza ASUS TUF GAMING Z890-PLUS WIFI LGA1851, 4x DDR5, 1x DP 1x HDMI 2x Intel Thunderbolt 1x USB Type-c, 1x PCIE 5.0 x16 1x PCIE 4.0 x16 1x PCIE 4.0 x4 2x PCIE 4.0 x1, 4x M.2, 4x SATA 6GB/s, ATX

2.086 lei

prețuri fără TVA · 2.524 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.2.086 lei

ASUS · ComponenteDoar pentru firme (B2B)

Placa de baza ASUS TUF GAMING Z890-PLUS WIFI, Socket 1851, DDR5, ATX

SKU: NOD-TUF GAMING Z890-PLUS WIFI

Bluetooth: Da
12V power connector: Yes
ATX Power connector (24-pin): Yes
Audio Chip: Realtek ALC1220P
Audio output channels: 7.1 channels
Back-to-BIOS button: Yes

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

2.086 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandASUS

Cod produsNOD-TUF GAMING Z890-PLUS WIFI

CategorieComponente

BluetoothDa

12V power connectorYes

ATX Power connector (24-pin)Yes

Audio ChipRealtek ALC1220P

Audio output channels7.1 channels

Back-to-BIOS buttonYes

BIOS memory size256 Mbit

BIOS typeUEFI AMI

Bluetooth version5.4

Cables includedSATA

Canale audio7.1

Chassis intrusion connectorYes

Chipset audio integratRealtek

Compatible processor seriesIntel Core Ultra (Series 2)

Component forPC

Cooling typePassive

CPU fan connectorYes

Depth24.4 mm

DisplayPort version1.4

DisplayPorts quantity1

DVI-D ports quantity0

ECC сompatibilityNon-ECC

EPS power connector (8-pin)Yes

Ethernet interface type2.5 Gigabit Ethernet

Ethernet LANYes

FormatATX

Front panel audio connectorYes

GamingDa

HDMIDa

HDMI ports quantity1

HDMI version2.1

Headphone outputs1

Line-inYes

Maximum internal memory192 GB

MB-FormatATX

MB-SocketLGA1851

Memorie maxima192 GB

Memory channelsDual-channel

Memory slots typeDIMM

Model ChipsetZ890

Motherboard chipsetIntel Z890

Motherboard chipset familyIntel

Motherboard form factorATX

mSATA ports quantity0

Numar sloturi memorie4

Number of chassis fan connectors4

Number of COM connectors1

Number of HDDs supported4

Number of M.2 (M) slots4

Number of memory slots4

Number of SATA connectors0

Number of SATA II connectors0

Number of SATA III connectors4

Number of storage drives supported8

On-board graphics cardNo

Onboard-CPUNo

Package depth273 mm

Package height68 mm

Package weight2.34 kg

Package width353 mm

Parallel processing technology supportNot supported

PCI0

PCI Express x16 (Gen 4.x) slots1

PCI Express x16 (Gen 5.x) slots1

PCI Express x4 (Gen 1.x) slots2

PCI Express x4 (Gen 4.x) slots1

PCI-Ex12

PCI-Ex162

Power source typeATX

Processor manufacturerIntel

Processor socketLGA 1851 (Socket V1)

Quick installation guideYes

RAID levels0, 1, 5, 10

RAID supportYes

RAM-Slots4

RGB LED pin headerYes

RJ-45 LAN1

S/PDIF out portYes

Serial-or-ParalelNo/No

Sloturi M.24

Soclu ProcesorSocket 1851

Supported memory clock speed (max)8600 MHz

Supported memory typesDDR5-SDRAM

Supported storage drive interfacesM.2, SATA III

Supported storage drive typesHDD & SSD

ThunderboltDa

Thunderbolt headers1

Thunderbolt ports quantity1

Tip MemorieDDR5

Tip slot interfata graficaPCIe 5.0 x16

Top Wi-Fi standardWi-Fi 7 (802.11be)

Unbuffered memoryYes

USB 2.0 connectors2

USB 2.0 ports quantity0

USB 3.2 Gen 1 (3.1 Gen 1) connectors2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0

USB 3.2 Gen 2 (3.1 Gen 2) connectors1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity3

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1

USB Type CDa

USB34-8

VGA (D-Sub) ports quantity0

Wi-FIYes

Width30.5 mm

WiFi-AP antenna jack2

Windows operating systems supportedWindows 11

WirelessDa

Specificații

Brand	ASUS
Cod produs	NOD-TUF GAMING Z890-PLUS WIFI
Categorie	Componente
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
Bluetooth	Da
12V power connector	Yes
ATX Power connector (24-pin)	Yes
Audio Chip	Realtek ALC1220P
Audio output channels	7.1 channels
Back-to-BIOS button	Yes
BIOS memory size	256 Mbit
BIOS type	UEFI AMI
Bluetooth version	5.4
Cables included	SATA
Canale audio	7.1
Chassis intrusion connector	Yes
Chipset audio integrat	Realtek
Compatible processor series	Intel Core Ultra (Series 2)
Component for	PC
Cooling type	Passive
CPU fan connector	Yes
Depth	24.4 mm
DisplayPort version	1.4
DisplayPorts quantity	1
DVI-D ports quantity	0
ECC сompatibility	Non-ECC
EPS power connector (8-pin)	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Ethernet LAN	Yes
Format	ATX
Front panel audio connector	Yes
Gaming	Da
HDMI	Da
HDMI ports quantity	1
HDMI version	2.1
Headphone outputs	1
Line-in	Yes
Maximum internal memory	192 GB
MB-Format	ATX
MB-Socket	LGA1851
Memorie maxima	192 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Model Chipset	Z890
Motherboard chipset	Intel Z890
Motherboard chipset family	Intel
Motherboard form factor	ATX
mSATA ports quantity	0
Numar sloturi memorie	4
Number of chassis fan connectors	4
Number of COM connectors	1
Number of HDDs supported	4
Number of M.2 (M) slots	4
Number of memory slots	4
Number of SATA connectors	0
Number of SATA II connectors	0
Number of SATA III connectors	4
Number of storage drives supported	8
On-board graphics card	No
Onboard-CPU	No
Package depth	273 mm
Package height	68 mm
Package weight	2.34 kg
Package width	353 mm
Parallel processing technology support	Not supported
PCI	0
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
PCI Express x4 (Gen 1.x) slots	2
PCI Express x4 (Gen 4.x) slots	1
PCI-Ex1	2
PCI-Ex16	2
Power source type	ATX
Processor manufacturer	Intel
Processor socket	LGA 1851 (Socket V1)
Quick installation guide	Yes
RAID levels	0, 1, 5, 10
RAID support	Yes
RAM-Slots	4
RGB LED pin header	Yes
RJ-45 LAN	1
S/PDIF out port	Yes
Serial-or-Paralel	No/No
Sloturi M.2	4
Soclu Procesor	Socket 1851
Supported memory clock speed (max)	8600 MHz
Supported memory types	DDR5-SDRAM
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
Thunderbolt	Da
Thunderbolt headers	1
Thunderbolt ports quantity	1
Tip Memorie	DDR5
Tip slot interfata grafica	PCIe 5.0 x16
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Unbuffered memory	Yes
USB 2.0 connectors	2
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB Type C	Da
USB3	4-8
VGA (D-Sub) ports quantity	0
Wi-FI	Yes
Width	30.5 mm
WiFi-AP antenna jack	2
Windows operating systems supported	Windows 11
Wireless	Da

Configurație

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

Bluetooth: Da12V power connector: YesATX Power connector (24-pin): YesAudio Chip: Realtek ALC1220PAudio output channels: 7.1 channelsBack-to-BIOS button: Yes
