ASUS · NOD-TUF GAMING B850-PLUS WIFI

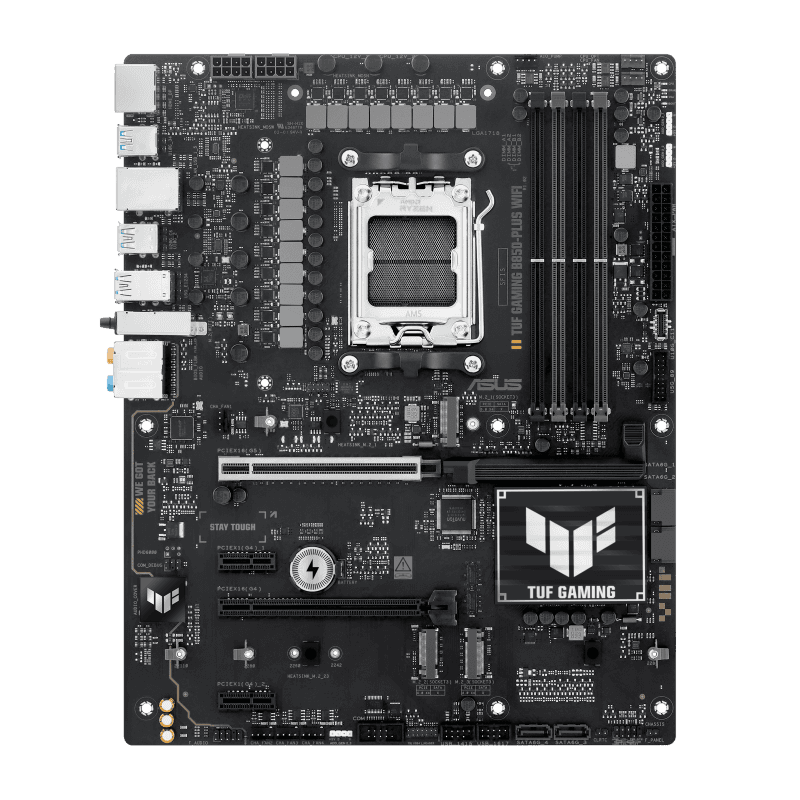

Placa de baza ASUS TUF GAMING B850-PLUS WIFI, Socket AM5, DDR5, ATX

Name: Placa de baza ASUS TUF GAMING B850-PLUS WIFI, Socket AM5, DDR5, ATX
Brand: ASUS
SKU: NOD-TUF GAMING B850-PLUS WIFI
Price: 1696 RON
Availability: BackOrder

Placa de Baza ASUS TUF GAMING B850-PLUS WIFI AM5, 4x DDR5, 1x DP 1x HDMI, 1x PCIE 5.0 2x PCIE 4.0 x16 2x PCIE 4.0 x1, 3x M.2, 4x SATA 6GB/s, ATX

1.402 lei

prețuri fără TVA · 1.696 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.1.402 lei

ASUS · ComponenteDoar pentru firme (B2B)

Placa de baza ASUS TUF GAMING B850-PLUS WIFI, Socket AM5, DDR5, ATX

SKU: NOD-TUF GAMING B850-PLUS WIFI

Bluetooth: Da
1st M.2 highest PCI Express generation: 5.0
1st M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 22110
3rd M.2 highest PCI Express generation: 4.0

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

1.402 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandASUS

Cod produsNOD-TUF GAMING B850-PLUS WIFI

CategorieComponente

BluetoothDa

1st M.2 highest PCI Express generation5.0

1st M.2 largest key size2280

2nd M.2 highest PCI Express generation4.0

2nd M.2 largest key size22110

3rd M.2 highest PCI Express generation4.0

3rd M.2 largest key size2280

Antenna includedYes

ATX Power connector (24-pin)Yes

Audio ChipRealtek ALC1220

Audio output channels7.1 channels

BIOS memory size256 Mbit

BIOS typeUEFI AMI

Bluetooth version5.4

Cables includedSATA

Canale audio7.1

Chassis intrusion connectorYes

Chipset audio integratRealtek

Clear CMOS buttonYes

Compatible processor seriesAMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Component forPC

CPU fan connectorYes

Depth24.4 mm

DisplayPort version1.4

DisplayPorts quantity1

DVI-D ports quantity0

ECC сompatibilityECC & Non-ECC

EPS power connector (8-pin)Yes

Ethernet interface type2.5 Gigabit Ethernet

Ethernet LANYes

FormatATX

Front panel audio connectorYes

Front panel connectorYes

GamingDa

HDMIDa

HDMI ports quantity1

HDMI version2.1

Headphone outputs1

Line-inYes

Maximum internal memory192 GB

Maximum resolution7680 x 4320 pixels

MB-FormatATX

MB-SocketAM5

Memorie maxima192 GB

Memory channelsDual-channel

Memory slots typeDIMM

Microphone inYes

Model ChipsetB850

Motherboard chipsetAMD B850

Motherboard chipset familyAMD

Motherboard form factorATX

mSATA ports quantity0

Numar sloturi memorie4

Number of chassis fan connectors4

Number of COM connectors1

Number of CPU fan connectors2

Number of EPS power connectors (8-pin)2

Number of HDDs supported4

Number of M.2 (M) slots3

Number of memory slots4

Number of RGB LED pin headers3

Number of SATA connectors0

Number of SATA II connectors0

Number of SATA III connectors4

Number of storage drives supported7

Number of water pump connectors1

On-board graphics cardNo

Onboard-CPUNo

Package depth273 mm

Package height68 mm

Package weight1.81 kg

Package width353 mm

Parallel processing technology supportNot supported

PCI0

PCI Express x1 (Gen 4.x) slots2

PCI Express x16 (Gen 4.x) slots1

PCI Express x16 (Gen 5.x) slots1

PCI-Ex12

PCI-Ex163

Power source typeATX

Processor manufacturerAMD

Processor socketSocket AM5

Quick installation guideYes

RAID levels0, 1, 5, 10

RAID supportYes

RAM-Slots4

RGB LED pin headerYes

RJ-45 LAN1

Serial-or-ParalelNo/No

Sloturi M.23

Soclu ProcesorSocket AM5

Supported memory clock speed (max)8000 MHz

Supported memory typesDDR5-SDRAM

Supported processor socketsSocket AM5

Supported storage drive interfacesM.2, SATA III

Supported storage drive typesHDD & SSD

ThunderboltNu

Thunderbolt headers1

Tip MemorieDDR5

Tip slot interfata graficaPCIe 5.0 x16

Top Wi-Fi standardWi-Fi 7 (802.11be)

Unbuffered memoryYes

USB 2.0 connectors2

USB 2.0 ports quantity2

USB 3.2 Gen 1 (3.1 Gen 1) connectors1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0

USB 3.2 Gen 2 (3.1 Gen 2) connectors1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity3

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0

USB 3.2 Gen 2x2 Type-C ports quantity1

USB Type CDa

USB34-8

VGA (D-Sub) ports quantity0

Weight1.32 kg

Wi-FIYes

Wi-Fi standardsWi-Fi 7 (802.11be)

Width30.5 mm

WiFi-AP antenna jack2

Windows operating systems supportedWindows 11

WirelessDa

Specificații

Brand	ASUS
Cod produs	NOD-TUF GAMING B850-PLUS WIFI
Categorie	Componente
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
Bluetooth	Da
1st M.2 highest PCI Express generation	5.0
1st M.2 largest key size	2280
2nd M.2 highest PCI Express generation	4.0
2nd M.2 largest key size	22110
3rd M.2 highest PCI Express generation	4.0
3rd M.2 largest key size	2280
Antenna included	Yes
ATX Power connector (24-pin)	Yes
Audio Chip	Realtek ALC1220
Audio output channels	7.1 channels
BIOS memory size	256 Mbit
BIOS type	UEFI AMI
Bluetooth version	5.4
Cables included	SATA
Canale audio	7.1
Chassis intrusion connector	Yes
Chipset audio integrat	Realtek
Clear CMOS button	Yes
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Component for	PC
CPU fan connector	Yes
Depth	24.4 mm
DisplayPort version	1.4
DisplayPorts quantity	1
DVI-D ports quantity	0
ECC сompatibility	ECC & Non-ECC
EPS power connector (8-pin)	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Ethernet LAN	Yes
Format	ATX
Front panel audio connector	Yes
Front panel connector	Yes
Gaming	Da
HDMI	Da
HDMI ports quantity	1
HDMI version	2.1
Headphone outputs	1
Line-in	Yes
Maximum internal memory	192 GB
Maximum resolution	7680 x 4320 pixels
MB-Format	ATX
MB-Socket	AM5
Memorie maxima	192 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Microphone in	Yes
Model Chipset	B850
Motherboard chipset	AMD B850
Motherboard chipset family	AMD
Motherboard form factor	ATX
mSATA ports quantity	0
Numar sloturi memorie	4
Number of chassis fan connectors	4
Number of COM connectors	1
Number of CPU fan connectors	2
Number of EPS power connectors (8-pin)	2
Number of HDDs supported	4
Number of M.2 (M) slots	3
Number of memory slots	4
Number of RGB LED pin headers	3
Number of SATA connectors	0
Number of SATA II connectors	0
Number of SATA III connectors	4
Number of storage drives supported	7
Number of water pump connectors	1
On-board graphics card	No
Onboard-CPU	No
Package depth	273 mm
Package height	68 mm
Package weight	1.81 kg
Package width	353 mm
Parallel processing technology support	Not supported
PCI	0
PCI Express x1 (Gen 4.x) slots	2
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
PCI-Ex1	2
PCI-Ex16	3
Power source type	ATX
Processor manufacturer	AMD
Processor socket	Socket AM5
Quick installation guide	Yes
RAID levels	0, 1, 5, 10
RAID support	Yes
RAM-Slots	4
RGB LED pin header	Yes
RJ-45 LAN	1
Serial-or-Paralel	No/No
Sloturi M.2	3
Soclu Procesor	Socket AM5
Supported memory clock speed (max)	8000 MHz
Supported memory types	DDR5-SDRAM
Supported processor sockets	Socket AM5
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
Thunderbolt	Nu
Thunderbolt headers	1
Tip Memorie	DDR5
Tip slot interfata grafica	PCIe 5.0 x16
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Unbuffered memory	Yes
USB 2.0 connectors	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 3.2 Gen 2x2 Type-C ports quantity	1
USB Type C	Da
USB3	4-8
VGA (D-Sub) ports quantity	0
Weight	1.32 kg
Wi-FI	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Width	30.5 mm
WiFi-AP antenna jack	2
Windows operating systems supported	Windows 11
Wireless	Da

Configurație

Placa de Baza ASUS TUF GAMING B850-PLUS WIFI AM5, 4x DDR5, 1x DP 1x HDMI, 1x PCIE 5.0 2x PCIE 4.0 x16 2x PCIE 4.0 x1, 3x M.2, 4x SATA 6GB/s, ATX

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

Placa de Baza ASUS TUF GAMING B850-PLUS WIFI AM5, 4x DDR5, 1x DP 1x HDMI, 1x PCIE 5.0 2x PCIE 4.0 x16 2x PCIE 4.0 x1, 3x M.2, 4x SATA 6GB/s, ATX

Bluetooth: Da1st M.2 highest PCI Express generation: 5.01st M.2 largest key size: 22802nd M.2 highest PCI Express generation: 4.02nd M.2 largest key size: 221103rd M.2 highest PCI Express generation: 4.0
