ASUS · NOD-90MB1HD0-M0EAY0

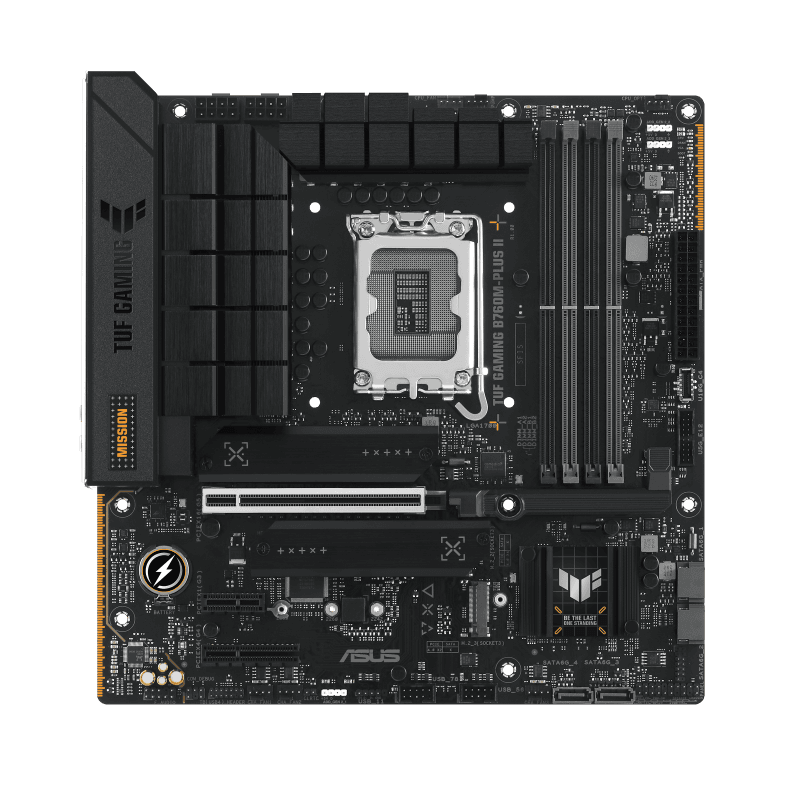

Placa de baza ASUS TUF GAMING B760M-PLUS II, LGA 1700, DDR5, Micro-ATX

Name: Placa de baza ASUS TUF GAMING B760M-PLUS II, LGA 1700, DDR5, Micro-ATX
Brand: ASUS
SKU: NOD-90MB1HD0-M0EAY0
Price: 944 RON
Availability: InStock

Placa de baza Asus TUF GAMING B760M-PLUS II

780 lei

prețuri fără TVA · 944 lei cu TVA

Disponibil la furnizor · 10 buc·termen de livrare confirmat la comandă

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.780 lei

ASUS · ComponenteDoar pentru firme (B2B)

Placa de baza ASUS TUF GAMING B760M-PLUS II, LGA 1700, DDR5, Micro-ATX

SKU: NOD-90MB1HD0-M0EAY0

Bluetooth: Nu
12V power connector: Yes
ATX Power connector (24-pin): Yes
Audio output channels: 7.1 channels
BIOS memory size: 128 Mbit
BIOS type: UEFI AMI

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

780 leiprețuri fără TVA

Disponibil la furnizor · 10 buc·termen de livrare confirmat la comandă

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandASUS

Cod produsNOD-90MB1HD0-M0EAY0

CategorieComponente

BluetoothNu

12V power connectorYes

ATX Power connector (24-pin)Yes

Audio output channels7.1 channels

BIOS memory size128 Mbit

BIOS typeUEFI AMI

Cables includedSATA

Canale audio7.1

Chipset audio integratRealtek

Component forPC

CPU fan connectorYes

Depth24.4 mm

DisplayPorts quantity1

DVI-D ports quantity0

ECC сompatibilityNon-ECC

EPS power connector (8-pin)Yes

Ethernet interface type2.5 Gigabit Ethernet

Ethernet LANYes

Ethernet LAN (RJ-45) ports1

FormatMicro-ATX

Front panel audio connectorYes

GamingDa

HDMIDa

HDMI ports quantity1

Headphone outputs1

Height50 mm

Maximum internal memory192 GB

Memorie maxima192 GB

Memory channelsDual-channel

Memory slots typeDIMM

Microphone inYes

Model ChipsetB760

Motherboard chipsetIntel B760

Motherboard chipset familyIntel

Motherboard form factormicro ATX

Numar sloturi memorie4

Number of chassis fan connectors3

Number of HDDs supported4

Number of M.2 (M) slots3

Number of memory slots4

Number of SATA III connectors4

Number of storage drives supported7

Package depth265 mm

Package height71 mm

Package weight1.65 kg

Package width280 mm

Parallel processing technology supportNot supported

PCI Express x1 (Gen 3.x) slots1

PCI Express x16 (Gen 5.x) slots1

PCI Express x4 (Gen 4.x) slots1

Processor manufacturerIntel

Processor socketLGA 1700

RAID levels0, 1, 5, 10

RAID supportYes

RJ-45 LAN1

S/PDIF out portYes

Screws includedYes

Sloturi M.23

Soclu ProcesorSocket 1700

Supported memory clock speed (max)7800 MHz

Supported memory clock speeds7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz

Supported memory typesDDR5-SDRAM

Supported processor socketsLGA 1700

Supported storage drive interfacesM.2, SATA III

Supported storage drive typesHDD & SSD

ThunderboltNu

Thunderbolt headers1

Tip MemorieDDR5

Tip slot interfata graficaPCIe 5.0 x16

Unbuffered memoryYes

USB 2.0 connectors3

USB 2.0 ports quantity4

USB 3.2 Gen 1 (3.1 Gen 1) connectors1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0

USB 3.2 Gen 2 (3.1 Gen 2) connectors1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0

USB 3.2 Gen 2x2 Type-C ports quantity1

VGA (D-Sub) ports quantity0

Weight982 g

Wi-FINo

Width244 mm

Windows operating systems supportedWindows 10 x64, Windows 11

WirelessNu

Specificații

Brand	ASUS
Cod produs	NOD-90MB1HD0-M0EAY0
Categorie	Componente
Garanție	Se confirmă la ofertare
Livrare	termen de livrare confirmat la comandă
Bluetooth	Nu
12V power connector	Yes
ATX Power connector (24-pin)	Yes
Audio output channels	7.1 channels
BIOS memory size	128 Mbit
BIOS type	UEFI AMI
Cables included	SATA
Canale audio	7.1
Chipset audio integrat	Realtek
Component for	PC
CPU fan connector	Yes
Depth	24.4 mm
DisplayPorts quantity	1
DVI-D ports quantity	0
ECC сompatibility	Non-ECC
EPS power connector (8-pin)	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Format	Micro-ATX
Front panel audio connector	Yes
Gaming	Da
HDMI	Da
HDMI ports quantity	1
Headphone outputs	1
Height	50 mm
Maximum internal memory	192 GB
Memorie maxima	192 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Microphone in	Yes
Model Chipset	B760
Motherboard chipset	Intel B760
Motherboard chipset family	Intel
Motherboard form factor	micro ATX
Numar sloturi memorie	4
Number of chassis fan connectors	3
Number of HDDs supported	4
Number of M.2 (M) slots	3
Number of memory slots	4
Number of SATA III connectors	4
Number of storage drives supported	7
Package depth	265 mm
Package height	71 mm
Package weight	1.65 kg
Package width	280 mm
Parallel processing technology support	Not supported
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
PCI Express x4 (Gen 4.x) slots	1
Processor manufacturer	Intel
Processor socket	LGA 1700
RAID levels	0, 1, 5, 10
RAID support	Yes
RJ-45 LAN	1
S/PDIF out port	Yes
Screws included	Yes
Sloturi M.2	3
Soclu Procesor	Socket 1700
Supported memory clock speed (max)	7800 MHz
Supported memory clock speeds	7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz
Supported memory types	DDR5-SDRAM
Supported processor sockets	LGA 1700
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
Thunderbolt	Nu
Thunderbolt headers	1
Tip Memorie	DDR5
Tip slot interfata grafica	PCIe 5.0 x16
Unbuffered memory	Yes
USB 2.0 connectors	3
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 3.2 Gen 2x2 Type-C ports quantity	1
VGA (D-Sub) ports quantity	0
Weight	982 g
Wi-FI	No
Width	244 mm
Windows operating systems supported	Windows 10 x64, Windows 11
Wireless	Nu

Configurație

Placa de baza Asus TUF GAMING B760M-PLUS II

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

Placa de baza Asus TUF GAMING B760M-PLUS II

Bluetooth: Nu12V power connector: YesATX Power connector (24-pin): YesAudio output channels: 7.1 channelsBIOS memory size: 128 MbitBIOS type: UEFI AMI
