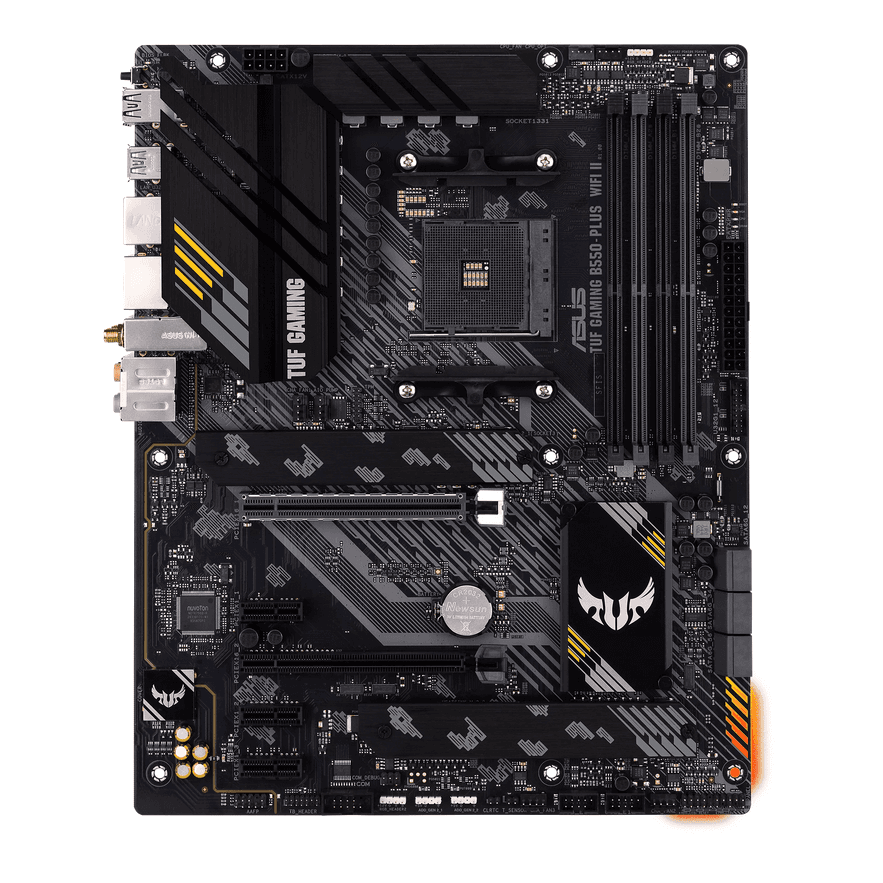

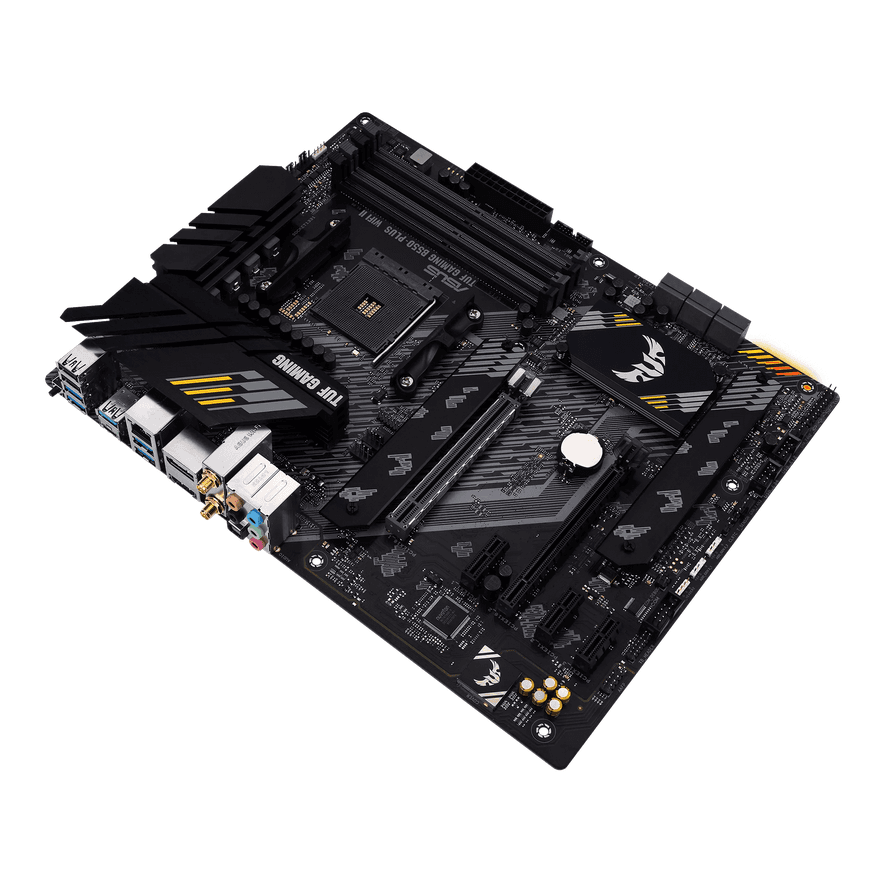

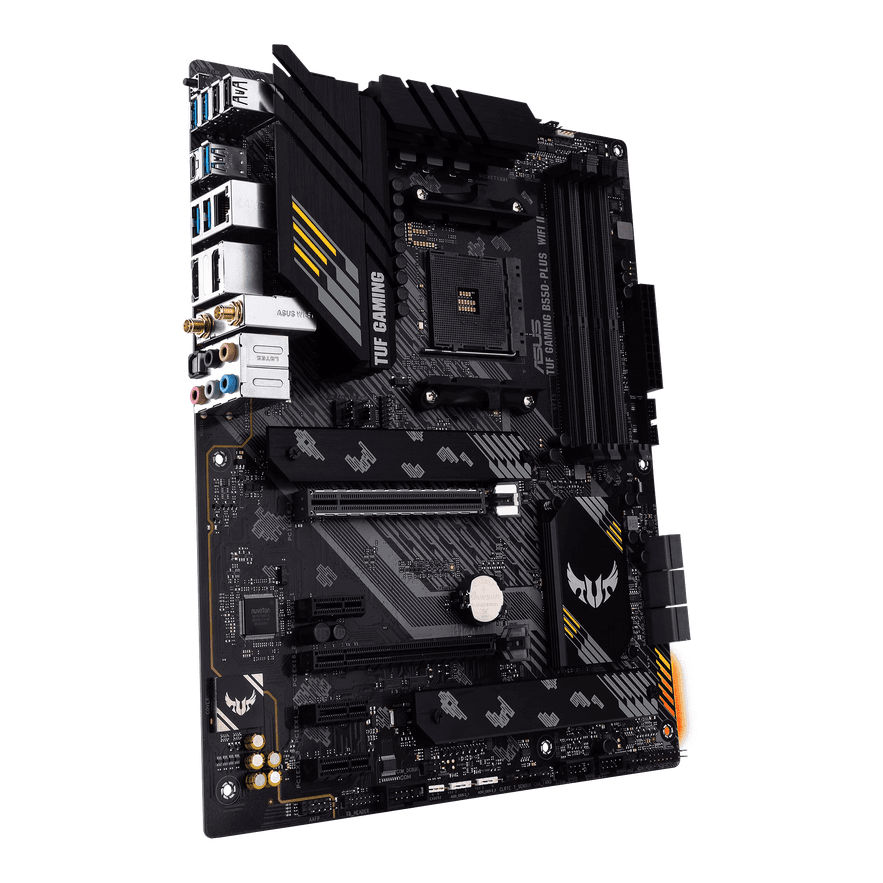

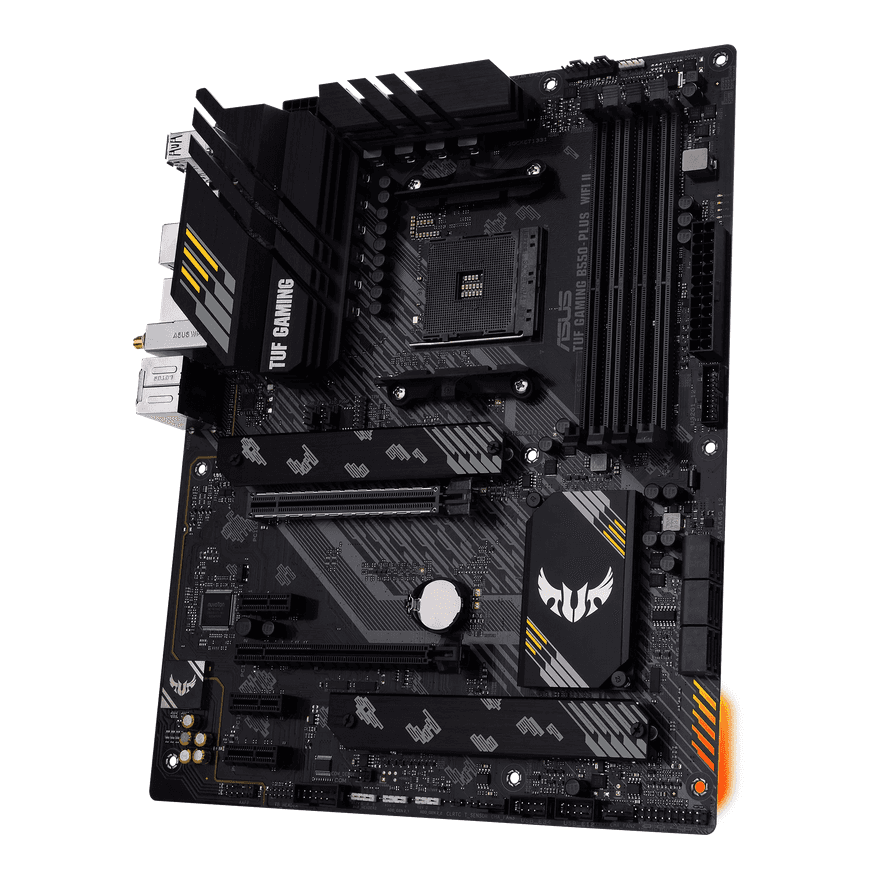

Placa de baza ASUS TUF GAMING B550-PLUS WIFI II, Socket AM4, DDR4, ATX

ASUS · NOD-TUF B550-PLUS WI 2

Placa de baza ASUS TUF GAMING B550-PLUS WIFI II, Socket AM4, DDR4, ATX

Name: Placa de baza ASUS TUF GAMING B550-PLUS WIFI II, Socket AM4, DDR4, ATX
Brand: ASUS
SKU: NOD-TUF B550-PLUS WI 2
Price: 1284 RON
Availability: BackOrder

Placa de baza Asus TUF B550-PLUS WIFI II AM4 DDR4

1.061 lei

prețuri fără TVA · 1.284 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.1.061 lei

ASUS · ComponenteDoar pentru firme (B2B)

Placa de baza ASUS TUF GAMING B550-PLUS WIFI II, Socket AM4, DDR4, ATX

SKU: NOD-TUF B550-PLUS WI 2

Bluetooth: Da
ATX Power connector (24-pin): Yes
Audio output channels: 7.1 channels
BIOS memory size: 256 Mbit
BIOS type: UEFI AMI
Bluetooth version: 5.2

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

1.061 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandASUS

Cod produsNOD-TUF B550-PLUS WI 2

CategorieComponente

BluetoothDa

ATX Power connector (24-pin)Yes

Audio output channels7.1 channels

BIOS memory size256 Mbit

BIOS typeUEFI AMI

Bluetooth version5.2

Cables includedSATA

Canale audio7.1

Chipset audio integratRealtek

Compatible processor seriesAMD Ryzen 3000 Series

Component forPC

CPU fan connectorYes

Depth24.4 mm

DisplayPorts quantity1

Drivers includedYes

DVI-D ports quantity0

DVI-I ports quantity0

ECC сompatibilityECC

EPS power connector (8-pin)Yes

Ethernet interface type2.5 Gigabit Ethernet

Ethernet LANYes

FormatATX

Front panel audio connectorYes

GamingDa

Harmonized System (HS) code84733020

HDMIDa

HDMI ports quantity1

Headphone outputs1

Height7.5 mm

Line-inYes

Maximum internal memory128 GB

MB-FormatATX

MB-SocketAM4

Memorie maxima128 GB

Memory channelsDual-channel

Memory slots typeDIMM

Microphone inYes

Mini PCI Express (Gen 1.x) slots0

Mini PCI Express (Gen 2.x) slots0

Mini PCI Express slot (full length)0

Mini PCI Express slot (half-length)0

Mini PCI Express slots0

Model ChipsetB550

Motherboard chipsetAMD B550

Motherboard chipset familyAMD

Motherboard form factorATX

mSATA ports quantity0

Numar sloturi memorie4

Number of chassis fan connectors3

Number of COM connectors1

Number of displays supported2

Number of M.2 (M) slots2

Number of memory slots4

Number of SATA connectors0

Number of SATA II connectors0

Number of SATA III connectors6

On-board graphics cardNo

Onboard-CPUNo

Parallel processing technology supportNot supported

PCI0

PCI Express OCuLink connectors (NVMe support)0

PCI Express x1 (Gen 2.x) slots0

PCI Express x1 (Gen 3.x) slots3

PCI Express x1 (Gen 4.x) slots0

PCI Express x1 slots0

PCI Express x16 (Gen 2.x) slots0

PCI Express x16 (Gen 3.x) @ dual x8/x8 mode slots0

PCI Express x16 (Gen 3.x) slots1

PCI Express x16 (Gen 4.x) slots1

PCI Express x16 (Gen 5.x) slots0

PCI Express x16 slots0

PCI Express x4 (Gen 1.x) slots0

PCI Express x4 (Gen 2.x) slots0

PCI Express x4 (Gen 4.x) slots0

PCI Express x4 slots0

PCI Express x8 (Gen 1.x) slots0

PCI Express x8 slots0

PCI slots0

PCI-Ex11

PCI-Ex162

PCI-X slots0

Processor manufacturerAMD

Processor socketSocket AM4

PS/2 ports quantity0

RAID levels0, 1, 10

RAID supportYes

RAM-Slots4

RGB LED pin headerYes

RJ-45 LAN1

S/PDIF out portYes

Serial-or-ParalelNo/No

Sloturi M.22

Soclu ProcesorSocket AM4

Supported memory typesDDR4-SDRAM

Supported processor socketsSocket AM4

Supported storage drive interfacesM.2, SATA

Supported storage drive typesHDD & SSD

ThunderboltNu

Thunderbolt headers1

Tip MemorieDDR4

Tip slot interfata graficaPCIe 4.0 x16

Top Wi-Fi standardWi-Fi 6 (802.11ax)

TPM connectorYes

Unbuffered memoryYes

USB 2.0 connectors2

USB 2.0 ports quantity2

USB 3.2 Gen 1 (3.1 Gen 1) connectors1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0

USB 3.2 Gen 2 (3.1 Gen 2) connectors0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1

USB 3.2 Gen 2x2 connectors0

USB 3.2 Gen 2x2 Type-C ports quantity0

USB connector typeUSB Type-A, USB Type-C

USB Type CDa

USB34-8

USB4 Gen 2x2 ports quantity0

USB4 Gen 3x2 ports quantity0

VGA (D-Sub) ports quantity0

Video-ConnectionHDMI/DP

Weight945 g

Wi-FIYes

Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Width30.5 mm

Windows operating systems supportedWindows 10, Windows 11

WirelessDa

Specificații

Brand	ASUS
Cod produs	NOD-TUF B550-PLUS WI 2
Categorie	Componente
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
Bluetooth	Da
ATX Power connector (24-pin)	Yes
Audio output channels	7.1 channels
BIOS memory size	256 Mbit
BIOS type	UEFI AMI
Bluetooth version	5.2
Cables included	SATA
Canale audio	7.1
Chipset audio integrat	Realtek
Compatible processor series	AMD Ryzen 3000 Series
Component for	PC
CPU fan connector	Yes
Depth	24.4 mm
DisplayPorts quantity	1
Drivers included	Yes
DVI-D ports quantity	0
DVI-I ports quantity	0
ECC сompatibility	ECC
EPS power connector (8-pin)	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Ethernet LAN	Yes
Format	ATX
Front panel audio connector	Yes
Gaming	Da
Harmonized System (HS) code	84733020
HDMI	Da
HDMI ports quantity	1
Headphone outputs	1
Height	7.5 mm
Line-in	Yes
Maximum internal memory	128 GB
MB-Format	ATX
MB-Socket	AM4
Memorie maxima	128 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Microphone in	Yes
Mini PCI Express (Gen 1.x) slots	0
Mini PCI Express (Gen 2.x) slots	0
Mini PCI Express slot (full length)	0
Mini PCI Express slot (half-length)	0
Mini PCI Express slots	0
Model Chipset	B550
Motherboard chipset	AMD B550
Motherboard chipset family	AMD
Motherboard form factor	ATX
mSATA ports quantity	0
Numar sloturi memorie	4
Number of chassis fan connectors	3
Number of COM connectors	1
Number of displays supported	2
Number of M.2 (M) slots	2
Number of memory slots	4
Number of SATA connectors	0
Number of SATA II connectors	0
Number of SATA III connectors	6
On-board graphics card	No
Onboard-CPU	No
Parallel processing technology support	Not supported
PCI	0
PCI Express OCuLink connectors (NVMe support)	0
PCI Express x1 (Gen 2.x) slots	0
PCI Express x1 (Gen 3.x) slots	3
PCI Express x1 (Gen 4.x) slots	0
PCI Express x1 slots	0
PCI Express x16 (Gen 2.x) slots	0
PCI Express x16 (Gen 3.x) @ dual x8/x8 mode slots	0
PCI Express x16 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	0
PCI Express x16 slots	0
PCI Express x4 (Gen 1.x) slots	0
PCI Express x4 (Gen 2.x) slots	0
PCI Express x4 (Gen 4.x) slots	0
PCI Express x4 slots	0
PCI Express x8 (Gen 1.x) slots	0
PCI Express x8 slots	0
PCI slots	0
PCI-Ex1	1
PCI-Ex16	2
PCI-X slots	0
Processor manufacturer	AMD
Processor socket	Socket AM4
PS/2 ports quantity	0
RAID levels	0, 1, 10
RAID support	Yes
RAM-Slots	4
RGB LED pin header	Yes
RJ-45 LAN	1
S/PDIF out port	Yes
Serial-or-Paralel	No/No
Sloturi M.2	2
Soclu Procesor	Socket AM4
Supported memory types	DDR4-SDRAM
Supported processor sockets	Socket AM4
Supported storage drive interfaces	M.2, SATA
Supported storage drive types	HDD & SSD
Thunderbolt	Nu
Thunderbolt headers	1
Tip Memorie	DDR4
Tip slot interfata grafica	PCIe 4.0 x16
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
TPM connector	Yes
Unbuffered memory	Yes
USB 2.0 connectors	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 2x2 connectors	0
USB 3.2 Gen 2x2 Type-C ports quantity	0
USB connector type	USB Type-A, USB Type-C
USB Type C	Da
USB3	4-8
USB4 Gen 2x2 ports quantity	0
USB4 Gen 3x2 ports quantity	0
VGA (D-Sub) ports quantity	0
Video-Connection	HDMI/DP
Weight	945 g
Wi-FI	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Width	30.5 mm
Windows operating systems supported	Windows 10, Windows 11
Wireless	Da
