ASUS · NOD-90MB1700-M0EAYC

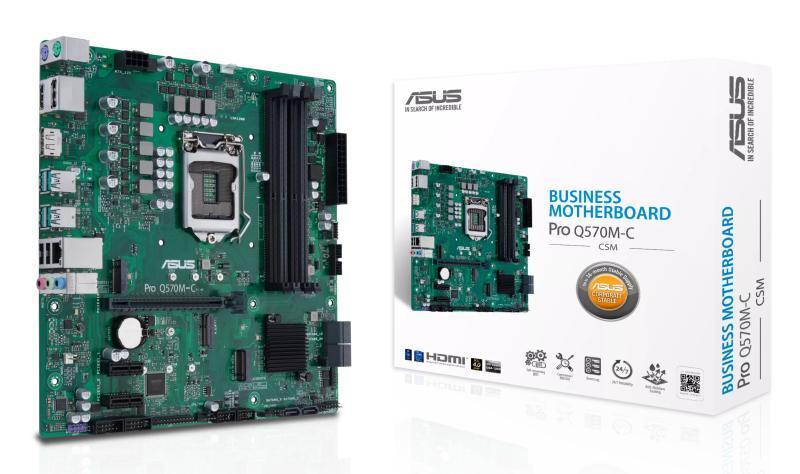

Placa de baza ASUS PRO Q570M-C/CSM, Socket 1200, DDR4, Micro-ATX

Name: Placa de baza ASUS PRO Q570M-C/CSM, Socket 1200, DDR4, Micro-ATX
Brand: ASUS
SKU: NOD-90MB1700-M0EAYC
Price: 725 RON
Availability: BackOrder

ASUS PRO Q570M-C/CSM. Processor manufacturer: Intel, Processor socket: LGA 1200 (Socket H5), Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III. Maximum resolution: 4096 x 2304 pixels. HDMI version: 1.4/2.0

599 lei

prețuri fără TVA · 725 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.599 lei

ASUS · ComponenteDoar pentru firme (B2B)

Placa de baza ASUS PRO Q570M-C/CSM, Socket 1200, DDR4, Micro-ATX

SKU: NOD-90MB1700-M0EAYC

Bluetooth: Nu
ATX Power connector (24-pin): Yes
Audio Chip: Realtek ALC897
Audio connector: Yes
Audio output channels: 7.1 channels
BIOS memory size: 192 Mbit

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

599 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandASUS

Cod produsNOD-90MB1700-M0EAYC

CategorieComponente

BluetoothNu

ATX Power connector (24-pin)Yes

Audio ChipRealtek ALC897

Audio connectorYes

Audio output channels7.1 channels

BIOS memory size192 Mbit

Cables includedSATA

Canale audio7.1

Chassis intrusion connectorYes

Chipset audio integratRealtek

Clear CMOS jumperYes

Component forPC

CPU fan connectorYes

Depth244 mm

DisplayPort version1.4

DisplayPorts quantity2

DVI-D ports quantity0

ECC сompatibilityNon-ECC

EPS power connector (8-pin)Yes

Ethernet interface typeGigabit Ethernet

Ethernet LANYes

Ethernet LAN (RJ-45) ports1

FormatMicro-ATX

Front panel audio connectorYes

GamingNu

Harmonized System (HS) code84733020

HDMIDa

HDMI ports quantity1

HDMI version1.4/2.0

Height51 mm

LAN controllerIntel® I219-V

Maximum internal memory128 GB

Maximum number of SMP processors1

Maximum resolution4096 x 2304 pixels

Memorie maxima128 GB

Memory channelsDual-channel

Memory slots typeDIMM

Model ChipsetQ570

Motherboard chipsetIntel Q570

Motherboard chipset familyIntel

Motherboard form factormicro ATX

Numar sloturi memorie4

Number of COM connectors2

Number of M.2 (M) slots2

Number of memory slots4

Number of SATA III connectors6

Parallel processing technology supportNot supported

PCI Express x1 (Gen 3.x) slots2

PCI Express x16 slots1

Processor manufacturerIntel

Processor socketLGA 1200 (Socket H5)

PS/2 ports quantity2

RJ-45 LAN1

Sloturi M.22

Soclu ProcesorSocket 1200

Supported memory clock speeds2133,2400,2666,2800,2933,3200 MHz

Supported memory typesDDR4-SDRAM

Supported storage drive interfacesM.2, SATA III

ThunderboltNu

Tip MemorieDDR4

Unbuffered memoryYes

USB 2.0 connectors2

USB 2.0 ports quantity2

USB 3.2 Gen 1 (3.1 Gen 1) connectors2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0

USB 3.2 Gen 2 (3.1 Gen 2) connectors0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity4

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0

Wake-on-LAN readyYes

Weight634 g

Wi-FINo

Width244 mm

Windows operating systems supportedWindows 10 x64

WirelessNu

Specificații

Brand	ASUS
Cod produs	NOD-90MB1700-M0EAYC
Categorie	Componente
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
Bluetooth	Nu
ATX Power connector (24-pin)	Yes
Audio Chip	Realtek ALC897
Audio connector	Yes
Audio output channels	7.1 channels
BIOS memory size	192 Mbit
Cables included	SATA
Canale audio	7.1
Chassis intrusion connector	Yes
Chipset audio integrat	Realtek
Clear CMOS jumper	Yes
Component for	PC
CPU fan connector	Yes
Depth	244 mm
DisplayPort version	1.4
DisplayPorts quantity	2
DVI-D ports quantity	0
ECC сompatibility	Non-ECC
EPS power connector (8-pin)	Yes
Ethernet interface type	Gigabit Ethernet
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Format	Micro-ATX
Front panel audio connector	Yes
Gaming	Nu
Harmonized System (HS) code	84733020
HDMI	Da
HDMI ports quantity	1
HDMI version	1.4/2.0
Height	51 mm
LAN controller	Intel® I219-V
Maximum internal memory	128 GB
Maximum number of SMP processors	1
Maximum resolution	4096 x 2304 pixels
Memorie maxima	128 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Model Chipset	Q570
Motherboard chipset	Intel Q570
Motherboard chipset family	Intel
Motherboard form factor	micro ATX
Numar sloturi memorie	4
Number of COM connectors	2
Number of M.2 (M) slots	2
Number of memory slots	4
Number of SATA III connectors	6
Parallel processing technology support	Not supported
PCI Express x1 (Gen 3.x) slots	2
PCI Express x16 slots	1
Processor manufacturer	Intel
Processor socket	LGA 1200 (Socket H5)
PS/2 ports quantity	2
RJ-45 LAN	1
Sloturi M.2	2
Soclu Procesor	Socket 1200
Supported memory clock speeds	2133,2400,2666,2800,2933,3200 MHz
Supported memory types	DDR4-SDRAM
Supported storage drive interfaces	M.2, SATA III
Thunderbolt	Nu
Tip Memorie	DDR4
Unbuffered memory	Yes
USB 2.0 connectors	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Wake-on-LAN ready	Yes
Weight	634 g
Wi-FI	No
Width	244 mm
Windows operating systems supported	Windows 10 x64
Wireless	Nu

Configurație

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

Bluetooth: NuATX Power connector (24-pin): YesAudio Chip: Realtek ALC897Audio connector: YesAudio output channels: 7.1 channelsBIOS memory size: 192 Mbit
